DIP-22 Quick Start (P/N: 2900-301038QS REV 2)

P/N:

2900- 301038QS

Rev:

Scan for full manual

DIP-22 Quick Start Guide

This guide helps you install and use your DIP-22 for the first time.

Go to www.kramerav.com/downloads/DIP-22 to download the latest user manual and check if firmware

upgrades are available.

Step 1: Check what’s in the box

DIP-22 Automatic Video Switcher

1 Bracket set

1 Quick start guide

1 Power adapter and cord

4 Rubber feet

Step 2: Get to know your DIP-22

Feature

Function

DP++ IN SELECT Button

Press to select the DP++ input. Button lights red when analog audio is selected and

green when embedded audio is selected.

DP++ Connector

Connect to a DisplayPort source.

HDMI IN SELECT Button

Press to select the HDMI input. Button lights red when analog audio is selected and

green when embedded audio is selected.

HDMI IN Connector

Connect to an HDMI source.

PC IN SELECT Button

Press to select the PC graphics input. Button lights red when analog audio is selected

and green when embedded audio from the HDMI IN/DP++ IN is selected.

PC IN 15-pin HD Connector

Connect to a computer graphics source.

AUDIO IN 3.5mm Mini Jack

Connect to an unbalanced stereo audio source.

STEP-IN Button

Press to take control of the input that this device is connected to on a compatible

switcher.

ON LED

Lights green when DIP-22 is powered via power adapter or PoE over HDBaseT.

Lights red when DIP-22 provides PoE over HDBaseT to a compatible PoE acceptor.

Feature

Function

AUDIO OUT 3.5mm Mini Jack

Connect to an unbalanced, stereo audio acceptor.

ETHERNET RJ-45 Connector

Connect to a PC via a LAN to control DIP-22.

Feature

Function

CONTROL (G, Rx, Tx)Terminal

Block Connectors

Connect to the PC or to a serial remote controller to control DIP-22.

DATA (G, Rx, Tx)Terminal Block

Connectors

Connect to a serial data source (for example, a room controller) or to an acceptor for

tunneling control commands via HDBaseT.

Remote 5-pin Terminal Block

Connector

Connect to contact closure switches (by momentary contact between the desired pin

and G pin).

INPUT –Short press—toggles between the PC, DP++ and HDMI inputs; Long press—

adjusts the VGA phase shift.

STEP-IN –activate the STEP-IN function.

VOL UP, VOL DOWN –Short press—increases/decreases the volume by one step;

Long press—Increases/decreases the volume from 0% to 100%/100% to 10% in 10

seconds.

FACTORY RESET Button

Short press –Power cycle (reboot) the device.

Long press –Reset IP settings to factory default values.

SETUP 4-way DIP-switches

Set the device behavior.

PROG Mini USB Port

Connect to a PC to perform firmware upgrade.

HDBT OUT RJ-45 Connector

Connect to an HDBaseT receiver (for example, TP-780Rxr, TP-588D or TP-580Rxr)

and provide or accept power (bidirectional PoE).

LINK LED

Lights green when there is a valid HDBT link.

48V DC Power Terminal Block

Connector

Connect to the Kramer power adapter.

Step 3: Install the DIP-22

Install DIP-22 using one of the following methods:

Attach the rubber feet and place the unit on a flat surface.

Fasten a bracket (included) on each side of the unit and attach it to a flat surface.

For more information go to www.kramerav.com/downloads/DIP-22.

Mount the unit in a rack using an optional RK-T2B rack adapter.

Step 4: Connect the inputs and outputs

Always switch OFF the power on each device before connecting it to your DIP-22. For best results, we recommend that you always

use Kramer high-performance cables to connect AV equipment to DIP-22.

Step 5: Connect the power

Connect the 48V DC power supply to DIP-22 and plug it into the mains electricity or accept power over Ethernet (PoE) from an

HDBaseT receiver.

Safety Instructions

Caution:

There are no operator serviceable parts inside the unit.

Warning:

Use only the Kramer Electronics power supply that is provided with the unit.

Warning:

Disconnect the power and unplug the unit from the wall before installing.

See www.KramerAV.com for updated safety information.

Step 6: Operate DIP-22

Operate DIP-22 via:

Front panel SELECT

buttons and STEP-IN

button.

Contact closure switches.

Remotely, by RS-232

serial commands

transmitted by a touch

screen system, PC, or

other serial controller.

Embedded web pages via

the Ethernet (including

Maestro for configuring

single-trigger room

element automation

scenarios).

RS-232/Ethernet

Baud Rate:

115,200

Parity:

None

Data Bits:

Command Format:

ASCII Protocol 3000

Stop Bits:

Example (Route input 1 to HDBT output):

“#ROUTE 1,1,1”,0x0D

Ethernet Parameters

IP Address:

192.168.1.39

Default TCP Port #:

5000

Subnet Mask:

255.255.0.0

Default UDP Port #:

50000

Default Gateway:

192.168.0.1

Full Factory Reset

FACTORY RESET

Button:

Long press to reset IP settings to factory default values.

Protocol 3000:

“#factory” command.

Web Pages:

In the Device Settings page, click Reset.

Contact Closure Switches:

INPUT—input selection/VGA phase

shift adjustment

Short press—Input toggle

Long press—Adjusts the VGA phase shift

STEP IN

Activates the step-in function if relevant

VOL UP—analog audio output volume

increase control

Short press—Increases the volume one step

Long press—Increases the volume from 0% to 100% in 10 seconds

VOL DN—analog audio output volume

decrease control

Short press—Decreases the volume one step

Long press—Decreases the volume from 100% to 0% in 10 seconds

GND

Connect to the common side of the switches

DIP-switch Setup:

A switch that is down is on; a switch that is up is off. By default, all the switches are up (off).

After changing a DIP-switch you must power cycle the device to implement the change.

Video Switching Selection:

DIP-switch 1

DIP-switch 2

Video Input Selection

Off (up)

Automatic—Last connected. Where more than one source

is connected the last one connected has priority

Off (up)

On (down)

Automatic—Priority selection.

DP++ IN HDMI IN PC IN (default, high to low priority)

On (down)

Off (up)

Manual

On (down)

Manual

Audio Switching Selection:

DIP-switch 3

DIP-switch 4

Audio Input Selection

Off (up)

Automatic—Priority selection.

Embedded Audio analog Audio In (high to low priority)

Off (up)

On (down)

Automatic—Priority selection.

Analog Audio In embedded Audio (high to low priority)

On (down)

Off (up)

Embedded Audio

On (down)

Analog Audio In

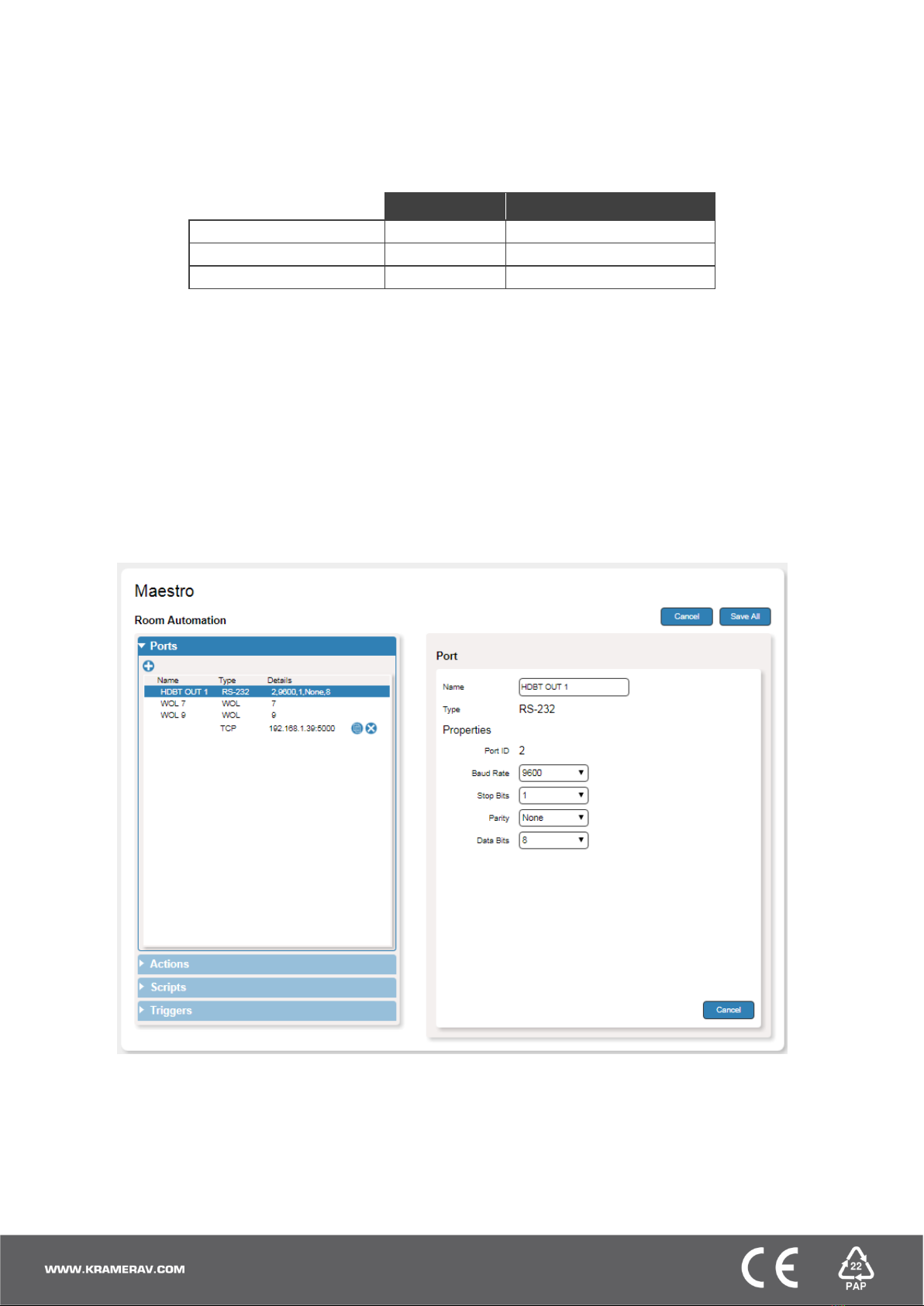

Using Maestro:

Maestro is a powerful software tool that enables you to configure single-trigger room element automation scenarios without the need

for complicated programming. Choose prepared commands from a database, drag and drop the commands to define actions and

execute the actions with predefined triggers.

Maestro turns the device into a much more powerful output device controller. The following table compares the control capabilities of

the non-Maestro and Maestro devices:

Non-Maestro

Maestro

Max. Ports

10 (1 RS-232 + 9 Ethernet)

Max. Commands per Action

Max. Actions

Scenario configuration follows a simple 4-step process:

1. Configure the ports –Define and configure a DIP-22 communication port to control remote devices:

RS-232 and Ethernet –Select and enter the details of the controlled device to control it.

Internal –Select to send commands and control the DIP-22.

WOL –Select and enter the MAC address of the device you want to Wake-On-LAN.

2. Enter commands –Create commands or use ready-made commands from a database that was preinstalled on a PC in the

network (for example, Audio_Mute_On).

3. Create actions –Create a new action and then drag and drop the created commands to the Editor section to build the action

macro (an action includes a group of commands that is operated according to a trigger).

4. Specify a trigger –Select a trigger from the list of triggers and associate it with a previously defined action (triggers are the

events that cause actions to run.
