Kramer WPN-12 Manuel utilisateur

Kramer Electronics, Ltd.

USER MANUAL

Models:

WPN-11,

XGA/Component/CV/YC Transmitter

WPN-12,

XGA/Component/CV/YC Receiver

Contents

Introduction 1

Getting Started 1

Overview 1

Your Component/RGB/YC/CV/XGA Transmitter and Receiver 3

4.1

Your WPN-11 3

4.2

Your WPN-12 4

4.3

Your BC-5X5S Cable PINOUT 5

Using the Component/RGB/YC/CV/XGA Transmitter and Receiver 6

5.1

Installing the WPN-11 and WPN-12 6

5.2

Operating the WPN-11 and WPN-12 6

Technical Specifications 8

Figures

Figure 1: WPN-11 (Front Panel, Side Panel, and 3-D Illustration) 3

Figure 2: WPN-12 (Front Panel, Side Panel, and 3-D Illustration) 4

Figure 3: BC-5X5S Cable PINOUT 5

Figure 4: Example of Conference Room WPN-11 / WPN-12 Installation 7

Tables

Table 1: WPN-11 Features 3

Table 2: WPN-12 Features 4

Table 3: Technical Specifications of the WPN-11 / WPN-12 8

2900-

9999992 A1

ADDENDUM (this data is included at the end of the Overview section)

This addendum adds the following information to the user manual:

Caution – No operator-serviceable parts inside unit.

Warning – Use only the Kramer Electronics input power

wall adapter that is provided with this unit

Warning – Disconnect power and unplug unit from wall

before installing or removing device or servicing unit.

1 For example: model number AD2512C, part number 2535-000251

Introduction

1 Introduction

Welcome to Kramer Electronics (since 1981): a world of unique, creative and

affordable solutions to the infinite range of problems that confront the video,

audio and presentation professional on a daily basis. In recent years, we have

redesigned and upgraded most of our line, making the best even better! Our

350-plus different models now appear in 8 Groups

, which are clearly defined

by function.

Congratulations on purchasing your Kramer WPN-11 and WPN-12 wall plates,

which are suitable for the following applications:

 Board, conference and training rooms

 Presentation systems

 Signal distribution and home theater

In particular, the WPN-11 and WPN-12 are ideal when operating a projector

via remote control. The package includes the following items:

 WPN-11 and/or WPN-12

 This user manual

2 Getting Started

We recommend that you:

 Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

 Review the contents of this user manual

 Use Kramer high performance high resolution cables

3 Overview

The WPN-11 and the WPN-12 constitute an XGA/Component/RGB/CV/YC

Transmitter and Receiver set. The WPN-11 and the WPN-12 are ideal for

operating a projector via remote control. You can connect these sources:

YUV, RGB, CV, Y/C, XGA to the WPN-11 wall plate, and connect the YUV,

RGB, CV, Y/C, XGA outputs from the WPN-12 wall plate to the appropriate

inputs on a projector.

1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:

Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;

GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors

2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com

3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Overview

The Kramer WPN-11 wall plate includes:

 An XGA input (up to UXGA resolution) on a standard HD-15 connector

 A set of RCA connectors that can be used for component video

/RGB,

s-Video (Y/C), or composite video

 A button for selecting component/RGB/composite/s-Video (Y/C) or XGA

 OUTPUT TO LINE terminal block connectors that connect to the

corresponding INPUT FROM LINE terminal block connectors on the

WPN-12 using the optional BC-5X5S cable

 A standard 12 Volt DC feed that lets the WPN-12 derive its power via the

power supply of the WPN-11.The system can be powered from either the

WPN-11 or WPN-12

The Kramer WPN-12 wall plate includes:

 An XGA output on a standard HD-15 connector

 A set of RCA connectors that can be used for component

video/RGB,

s-Video (Y/C), or composite video

 INPUT FROM LINE terminal block connectors that connect to the

corresponding OUTPUT TO LINE terminal block connectors on the WPN-11

using the optional BC-5X5S cable

The BC-5X5S cable

(not supplied

) is very flexible, letting you run different

channels on the single cable—component video/RGB, s-Video (Y/C),

composite video, audio, DC and so on. It has 5 coax (conductor and shield)

cables (red, green, blue, yellow, and black), and 5 thin wires (red and black, as

well as yellow, brown and orange).

Achieving the best performance means:

 Connecting only good quality connection cables, thus avoiding

interference, deterioration in signal quality due to poor matching, and elevated

noise levels (often associated with low quality cables)

 Positioning your WPN-11 and/or WPN-12 Kramer wall plate securely,

and away from moisture, excessive sunlight and dust

1 Sometimes called YUV, or Y, B-Y, R-Y, or Y, Pb/Cb, and Pr/Cr

2 See section 4.3

3 The WPN-11 is a passive tool that sends out power but does not use it

4 Available in various lengths

Your Component/RGB/YC/CV/XGA Transmitter and Receiver

4 Your Component/RGB/YC/CV/XGA Transmitter and Receiver

This section describes:

 Your WPN-11 (see section 4.1)

 Your WPN-12 (see section 4.2)

 Your BC-5X5S Cable (optional) PINOUT (see section 4.3)

4.1 Your WPN-11

Figure 1 and Table 1 define the WPN-11:

Figure 1: WPN-11 (Front Panel, Side Panel, and 3-D Illustration)

Table 1: WPN-11 Features

# Feature Function

1 Holes (2) For fastening the wall plate in place

2 XGA INPUT HD15 Connector Connects to the computer graphics source

3 ON LED Illuminates when receiving power

4 SELECT (COMP/CV/YC or

XGA) Button

Push in to select XGA; release to select component video/RGB

or composite video, or s-Video

5 B/B-Y/Y(YC) IN RCA Connector Connects to the RGB/component video/s-Video

source

6 G/Y/CV IN RCA Connector Connects to the RGB/component video/composite video source

7 R/R-Y/C(YC) IN RCA Connector

Connects to the RGB/component video/s-Video

source

8 OUTPUT TO LINE Terminal

Block Connectors

Connects to the corresponding INPUT FROM LINE terminal block

connectors using the optional BC-5X5S cable (see section 4.3)

9 GND PIN Connects (-) to the Ground

+12VDC IN PIN Connects (+) to the connector for powering the unit

1 With sync on green

2 Made up of the Y on the B/B-Y/Y(YC) connector together with the C on the R/R-Y/C(YC) connector

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your Component/RGB/YC/CV/XGA Transmitter and Receiver

4.2 Your WPN-12

Figure 2 and Table 2 define the WPN-12:

Figure 2: WPN-12 (Front Panel, Side Panel, and 3-D Illustration)

Table 2: WPN-12 Features

# Feature Function

1 Holes (2) For fastening the wall plate in place

2 XGA OUTPUT HD15 Connector Connects to the computer graphics acceptor

3 B/B-Y/Y(YC) OUT RCA Connector Connects to the RGB/component video/s-Video

acceptor

4 G/Y/CV OUT RCA Connector Connects to the RGB/component video/composite video acceptor

5 R/R-Y/C(YC) OUT RCA Connector Connects to the RGB/component video/s-Video

acceptor

6 INPUT FROM LINE Terminal

Block Connectors

Connects to the corresponding OUTPUT TO LINE terminal block

connectors using the optional BC-5X5S cable (see section 4.3)

1 Made up of the Y on the B/B-Y/Y(YC) connector together with the C on the R/R-Y/C(YC) connector

Your Component/RGB/YC/CV/XGA Transmitter and Receiver

4.3 Your BC-5X5S Cable PINOUT

Figure 3 defines the optional BC-5X5S cable:

Figure 3: BC-5X5S Cable PINOUT

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Using the Component/RGB/YC/CV/XGA Transmitter and Receiver

5 Using the Component/RGB/YC/CV/XGA Transmitter and Receiver

You can use your WPN-11 and WPN-12, for example, in a conference room,

as the example in Figure 4 illustrates. For details of how to:

 Install your WPN-11 and WPN-12, see section 5.1

 Operate your WPN-11 and WPN-12, see section 5.2

5.1 Installing the WPN-11 and WPN-12

To install your WPN-11 and WPN-12:

1. Connect the WPN-11 OUTPUT TO LINE terminal block connectors to the

WPN-12 INPUT FROM LINE terminal block connectors, using the optional

BC-5X5S cable.

2. On the WPN-11, connect your 12V DC power supply to the FROM

POWER SUPPLY pins

, taking care that polarity is correct.

3. Insert the WPN-11 and WPN-12 directly into the wall box opening, and

then mount the front panel securely using the screws.

5.2 Operating the WPN-11 and WPN-12

To operate your WPN-11 and WPN-12, as the example in Figure 4 illustrates:

1. On the WPN-11:

 Connect your XGA source (for example, a laptop’s graphics card) to the

XGA INPUT HD15F connector

 Connect your component video

source (for example, a set top box) to the

B/B-Y/Y(YC), G/Y/CV, and R/R-Y/C(YC) IN RCA connectors

 Push in the SELECT button to select the XGA source; or release it to

select the component video/RGB source, composite video source or s-Video

source

2. On the WPN-12:

 Connect the XGA OUTPUT HD15F connector to the XGA input on the

projector

 Connect the B/B-Y/Y(YC), G/Y/CV, and R/R-Y/C(YC) OUT RCA

connectors to the YUV input on the projector

1 Connect the wire labeled “+” to the +12VDC IN pin, and the wire labeled “–” to the GND pin

2 Sometimes called YUV, or Y, B-Y, R-Y, or Y, Pb/Cb, and Pr/Cr

3 You could also connect an RGB source to the B/B-Y/Y(YC), G/Y/CV, and R/R-Y/C(YC) IN RCA connectors, or a Y/C

source to the B/B-Y/Y(YC) and R/R-Y/C(YC) IN RCA connectors, or a composite video source to the G/Y/CV IN RCA

connector

Using the Component/RGB/YC/CV/XGA Transmitter and Receiver

 Connect the B/B-Y/Y(YC), G/Y/CV, and R/R-Y/C(YC) OUT RCA

connectors to the RGB input on the projector

 Connect the B/B-Y/Y(YC) and R/R-Y/C(YC) OUT RCA connectors to

the s-Video input on the projector

 Connect the G/Y/CV OUT RCA connector to the composite video input

on the projector

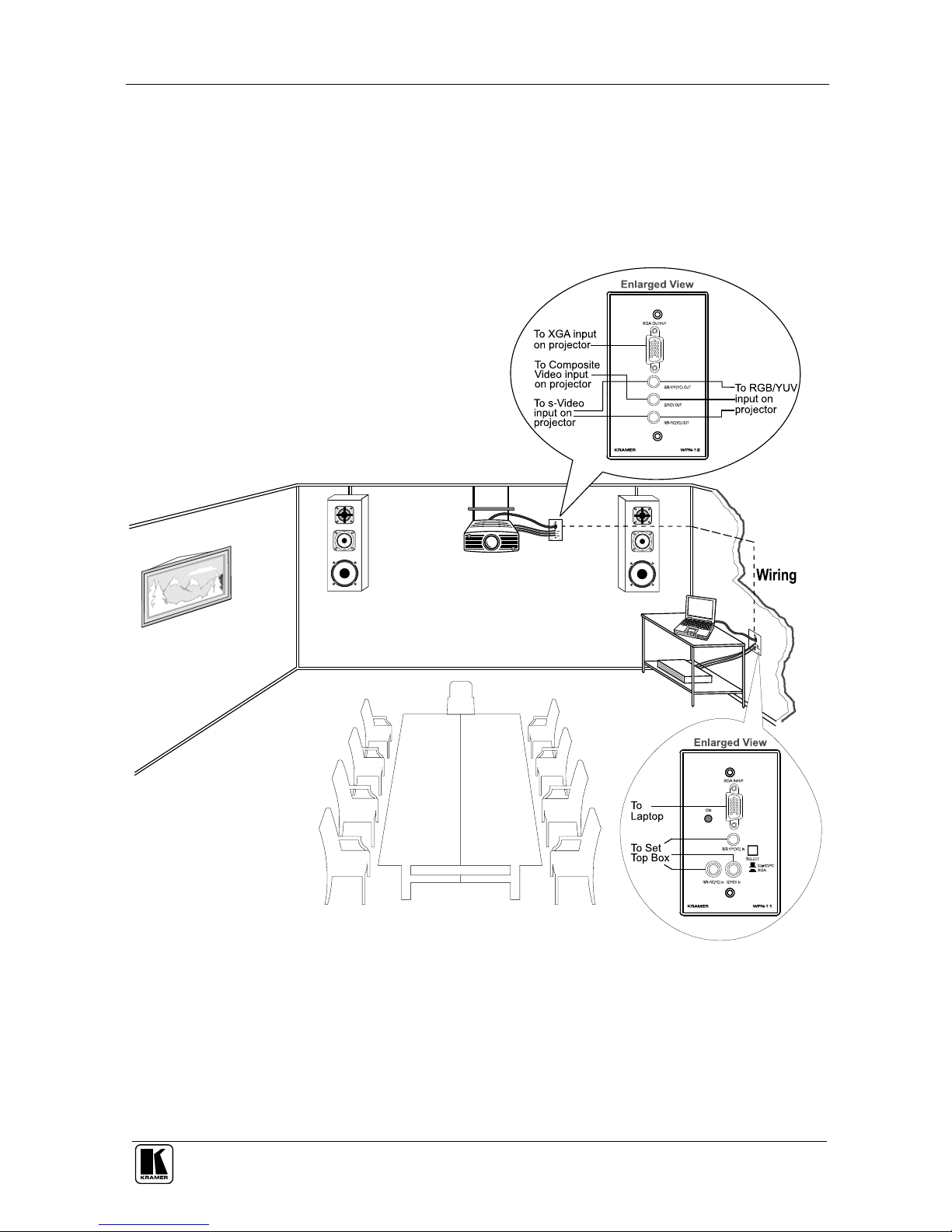

Figure 4: Example of Conference Room WPN-11 / WPN-12 Installation
