Kramer 690T Manuel utilisateur

KRAMER ELECTRONICS LTD.

USER MANUAL

MODELS:

690T

SDI Fiber Optic Transmitter

690R

SDI Fiber Optic Receiver

P/N: 2900-300083 Rev 2

690T, 690R – Contents i

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 3

2.3 Recycling Kramer Products 3

3Overview 4

3.1 Defining the 690T and the 690R SDI Fiber Optic Transmitter and Receiver 5

4Connecting the 690T and the 690R 6

5Technical Specifications 8

Figures

Figure 1: 690T SDI Fiber Optic Transmitter Front and Rear Panels 5

Figure 2: 690R SDI Fiber Optic Receiver Front and Rear Panels 5

Figure 3: Connecting the 690T and/or 690R 7

690T, 690R - Introduction 1

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront the video, audio, presentation, and broadcasting

professional on a daily basis. In recent years, we have redesigned and upgraded

most of our line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix

Switchers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters;

GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;

GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors;

GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and

GROUP 11: Sierra Products.

Congratulations on purchasing your Kramer Pico TOOLS™ 690T SDI Fiber Optic

Transmitter or 690R SDI Fiber Optic Receiver which are ideal for the following

typical applications:

•Home theater, presentation and multimedia applications

•Long range multimedia distribution for cinemas, stores, and entertainment

centers

•Video production and broadcast facilities

•Retail stores and other point-of-sale systems

•Digital signage

2 690T, 690R - Getting Started

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

•Review the contents of this user manual

Go to http://www.kramerelectronics.com to check for up-to-date

user manuals, application programs, and to check if firmware

upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

•Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

•Do not secure the cables in tight bundles or roll the slack into tight coils

•Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

•Position your Kramer product away from moisture, excessive sunlight and

dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

The customer can replace any SFP module with a standard SFP

module but Kramer guarantees correct operation only with Kramer

supplied modules.

SFP modules must be of the same type: either MSA or non-MSA.

Only modules Laser Class I acc. 21 CFR 1040 and Class 1 per IEC

60825-1 are allowed in this product.

690T, 690R - Getting Started 3

2.2 Safety Instructions

Caution: There are no operator serviceable parts inside the unit

Warning: Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning: Disconnect the power and unplug the unit from the wall

before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

4 690T, 690R - Overview

3 Overview

The 690T is a high-performance fiber optic transmitter for SD-SDI, HD-SDI and

3G-SDI signals. The unit converts up to two channels of serial digital signals to

light pulses that are transmitted over a dual single mode cable to a 690R receiver

that converts them back to serial digital signals. The 690T and the 690R pair have

a transmission range of 10km (more than 6.2 miles) for 3G-SDI.

The 690T and the 690R feature:

•A maximum data rate of up to 3Gbps, enabling it to be used for standard

definition, high definition and the new 3G high definition serial digital video

signals (3G-SDI)

•Two SDI gold-plated BNC connectors each for the transmitter and the receiver

•SD-SDI, HD-SDI and 3G-SDI support of video pathological patterns for

SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 297-2006

Standard Definition (SD-SDI)means an NTSC or PAL compatible video format,

consisting of 480 (for NTSC) or 576 (for PAL) lines of interlaced video

High Definition (HD-SDI)means a video format, consisting of 720 active lines of

progressive video or 1080 lines of progressive or interlaced video

3G-SDI means a video format, consisting of 1080 lines of progressive video

•Support of data rates of 270Mbps, 1483.5Mbps, 1485Mbps and 2970Mbps

•SMPTE 297-2006 compatible electrical-to-optical interfaces

•HDTV compatibility

•Reclocking and equalization on each channel

•Cable equalization up to 200m for 1.5GHz HD signals, and 100m for 3GHz

HD signals

•Only modules Laser Class I acc. 21 CFR 1040 and Class 1 per IEC 60825-1

are allowed in this product.

•5V DC power adapters and housing in Kramer Pico TOOLS™ enclosures.

Four units can be rack mounted side−by−side in a 1U rack space with the

optional RK-4PT rack adapter

690T, 690R - Overview 5

3.1 Defining the 690T and the 690R SDI Fiber Optic

Transmitter and Receiver

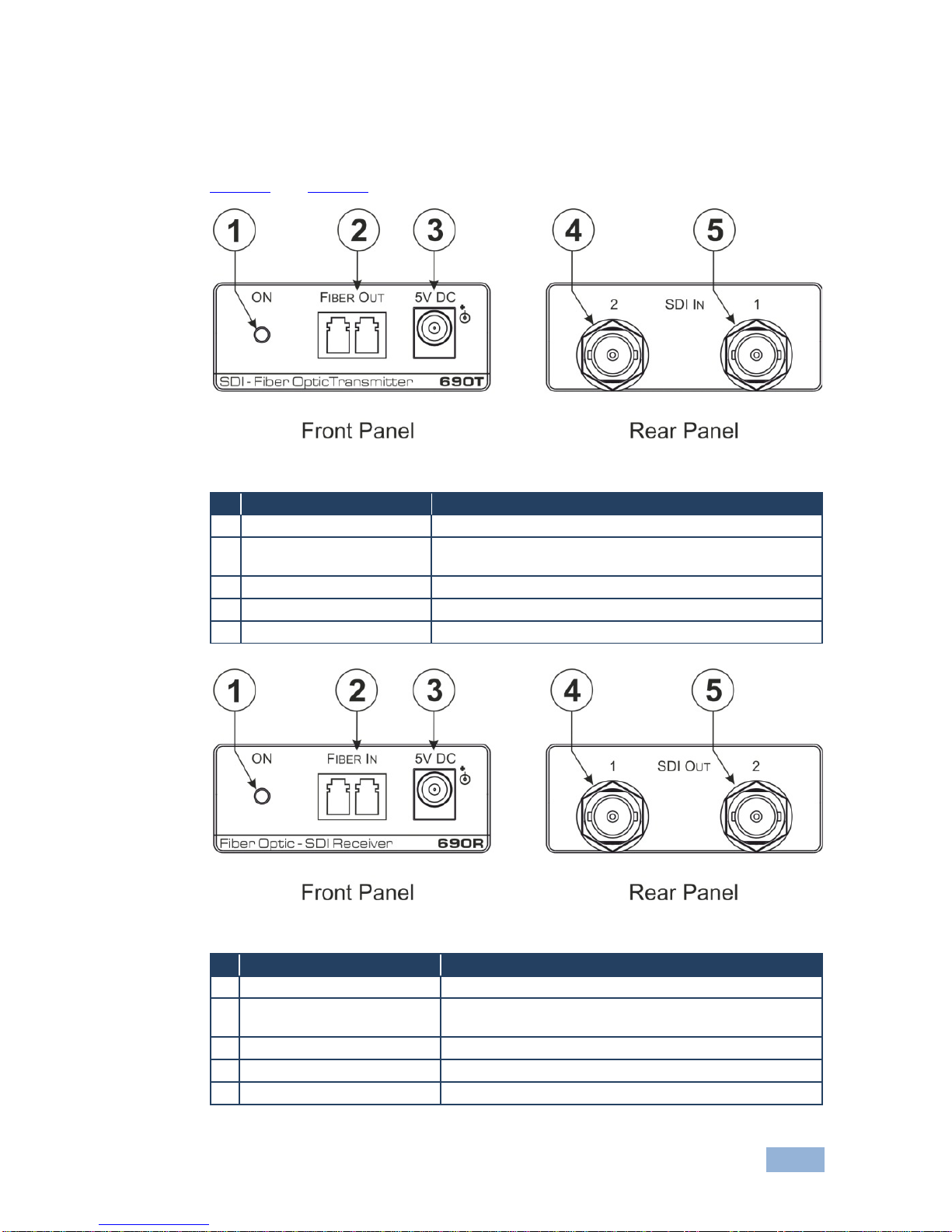

Figure 1and Figure 2define the 690T and 690R, respectively.

Figure 1: 690T SDI Fiber Optic Transmitter Front and Rear Panels

# Feature Function

1 ON LED Illuminates when receiving power

2 FIBER OUT Dual SFP

Connector Connects to the dual optical connector on the 690R via

dual single mode cable

3 5V DC Connector Connect to the power adapter

4 SDI IN2 BNC Connector Connect to the SDI source 2

5 SDI IN1 BNC Connector Connect to the SDI source 1

Figure 2: 690R SDI Fiber Optic Receiver Front and Rear Panels

# Feature Function

1 ON LED Illuminates when receiving power

2 FIBER INDual SFP

Connector Connects to the dual optical connector on the 690T via

dual single mode cable

3 5V DC Connector Connect to the power adapter

4 SDI OUT 1 BNC Connector Connect to the SDI acceptor 1

5 SDI OUT 2 BNC Connector Connect to the SDI acceptor 2

6 690T, 690R - Connecting the 690T and the 690R

4 Connecting the 690T and the 690R

Always switch off the power to any device before connecting it to your

690T and/or 690R. After connecting your 690T and/or 690R connect

the power and then switch on the power to the device.

To connect the 690T and the 690R as illustrated in the example in Figure 3:

1. Connect up to two SDI sources (for example, 3G-SDI video players) to the

two SDI INconnectors.

2. Connect the two SDI OUT connectors to up to two SDI acceptors (for

example, 3G-SDI displays).

The SDI 1 IN source signal on the 690T is always routed to the SDI

1 OUT acceptor on the 690R and the SDI 2 IN source signal on the

690T is always passed to the SDI 2 OUT acceptor on the 690R

3. Remove the dust caps and connect the OPTIC CABLE connector of the

690T to the OPTIC CABLE connector of the 690R, via dual single mode

cable (9/12) over LC connectors (a maximum range of 10km (more than 6.2

miles)).

4. Connect the power adapter to the 5V DC socket and to the mains electricity

for both the 690T and the 690R (not shown in Figure 3).

690T, 690R - Connecting the 690T and the 690R 7

Figure 3: Connecting the 690T and/or 690R
