Kramer TP-581T Manuel utilisateur

KRAMER ELECTRONICS LTD.

USER MANUAL

MODELS:

TP-581T

HDMI Line Transmitter

TP-582T

HDMI Switcher/

Line Transmitter

TP-582R

HDMI Line Receiver DA

P/N: 2900-000582 Rev 6

TP-581T, TP-582T and TP‑582R – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 3

2.3 Recycling Kramer Products 3

3Overview 4

3.1 About HDBaseT™ Technology 5

3.2 Using Twisted Pair Cable 6

4Defining the Devices 7

4.1 Your TP-581T HDMI Line Transmitter 7

4.2 Your TP-582T HDMI Switcher/Line Transmitter 8

4.3 Your TP-582R HDMI Line Receiver DA 9

5Connecting the Devices 10

5.1 Connecting the TP-582T or TP-581T 10

5.2 Connecting the TP-582R 11

5.3 Controlling the AV Equipment via an IR Transmitter 13

5.4 Controlling the TP-582T via the REMOTE Terminal Block Connector 15

5.5 Connecting to a PC 15

5.6 Wiring the RJ-45 Connectors 16

5.7 Acquiring the EDID 17

6Technical Specifications 18

7Default EDID 19

Figures

Figure 1: TP-581T HDMI Line Transmitter 7

Figure 2: TP-582T HDMI Switcher/Line Transmitter 8

Figure 3: TP-582R HDMI Line Receiver DA 9

Figure 4: Connecting the TP-582T and TP‑582R 12

Figure 5: Controlling a DVD Player via the TP-582R 13

Figure 6: Controlling an LCD Display via the TP-582T 14

Figure 7: Connecting the Contact Closure Remote Control PINs 15

Figure 8: TP PINOUT 16

TP-581T, TP-582T and TP‑582R - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 14 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11:

Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and

GROUP 14: Collaboration.

Congratulations on purchasing your Kramer MegaTOOLS®TP-581T HDMI Line

Transmitter, TP-582T HDMI Switcher/Line Transmitter or TP-582R HDMI Line

Receiver DA that are ideal for:

Home theater, presentation and multimedia applications

Rental and staging

TP-581T, TP-582T and TP‑582R - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check if

firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer TP-581T, TP-582T and TP-582R away from moisture,

excessive sunlight and dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

TP-581T, TP-582T and TP‑582R - Getting Started

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning:

Disconnect the power and unplug the unit from the wall

before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

TP-581T, TP-582T and TP‑582R - Overview

3 Overview

The TP-582T and TP-582R are a high-quality twisted pair transmitter and receiver

for HDMI, 100BaseT Ethernet, bidirectional RS-232 and IR signals.

With the TP-582T you can select one of two HDMI inputs, and convert it with the

100BaseT Ethernet, RS-232 and IR input signals to a twisted pair signal. The

TP-582R converts the twisted pair signal back to 100BaseT Ethernet, RS-232, IR

and two HDMI outputs, and de-embeds the audio to S/PDIF and TOSLINK® audio

outputs. The TP-581T is identical to the TP-582T but has only one HDMI input.

Since the TP-581T has only one input, it does not have the input selection control which the

TP-582T has (that is, contact closure, IR and front panel input selection).

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check if

firmware upgrades are available (where appropriate).

The transmitter/receiver pair features:

A maximum data transfer rate of 6.75Gbps (2.25Gbps per graphic channel)

(1080p@60Hz 36-bit) over a range of up to 130m (430ft) when using

BC−HDKat6a cables

HDTV compatibility

HDMI support for Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed

Audio Channels, Dolby TrueHD, DTS-HD, CEC

3D pass-through

HDCP compliance

EDID PassThru, passes EDID/HDCP signals from source to display

A bidirectional RS-232 interface over which commands and data can flow in

both directions via the RS-232 interface at rates up to 115200, allowing

status requests and control of the destination unit

Bidirectional infrared interface for remote control of peripheral devices (see

Section 5.3)

100BaseT Ethernet interface for connection to a network (see Section 5.5)

LED status indicators for input, output, link and power

TP-581T, TP-582T and TP‑582R - Overview

Two RJ-45 CAT 5 output connectors: one for the line output and the other

for the Ethernet input

The compact MegaTOOLS® enclosures (for the transmitters and the receiver) let

you rack mount up to two units side-by-side in a 1U 19” rack space when using the

optional RK-T2B rack.

In addition, the TP-582T HDMI Switcher/Line Transmitter also features:

Two HDMI inputs

Momentary remote contact closure for input switching

Front panel input select button

IR remote control input switching (via the Kramer IR remote control

transmitter)

The TP-582R HDMI Line Receiver DA also features:

One RJ-45 CAT 5 input connector

Two HDMI outputs

An S/PDIF digital audio output

A TOSLINK®optical audio output

The TP-581T HDMI Line Transmitter also features:

One HDMI input

3.1 About HDBaseT™ Technology

HDBaseT™ is an advanced all-in-one connectivity technology (Supported by the

HDBaseT Alliance). It is particularly suitable in the consumer home environment

as a digital home networking alternative where it enables you to replace numerous

cables and connectors by a single LAN cable used to transmit uncompressed full

high-definition video, audio, 100BaseT Ethernet, power over cable, as well as

various control signals.

The products described in this user manual are HDBaseT certified.

TP-581T, TP-582T and TP‑582R - Overview

3.2 Using Twisted Pair Cable

Kramer engineers have developed special twisted pair cables to best match our

digital twisted pair products; the Kramer BC−HDKat6a (CAT 6 23 AWG cable)

significantly outperforms regular CAT 5 / CAT 6 cables.

We strongly recommend that you use shielded twisted pair cable.

TP-581T, TP-582T and TP‑582R - Defining the Devices

4 Defining the Devices

This section describes the:

TP-581T HDMI Line Transmitter, see Section 4.1

TP-582T HDMI Switcher/Line Transmitter, see Section 4.2

TP-582R HDMI Line Receiver DA, see Section 4.3

4.1 Your TP-581T HDMI Line Transmitter

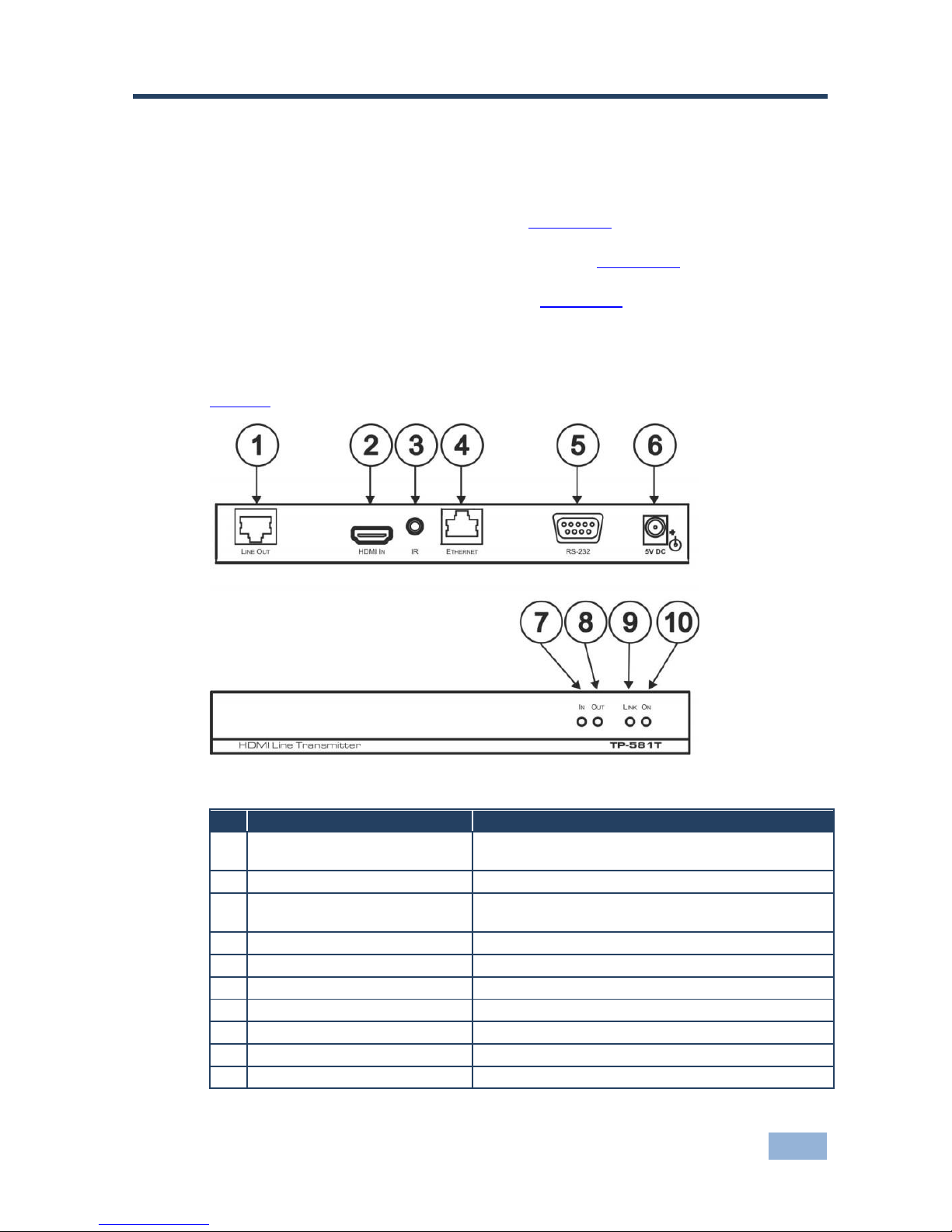

Figure 1 defines the TP-581T:

Figure 1: TP-581T HDMI Line Transmitter

Feature

Function

LINE OUT RJ-45 Connector

Connects to the CAT 5 IN RJ-45 connector on the

TP-582R

HDMIIN Connector

Connects to the HDMI source

IR 3.5mm Mini Jack Connector

Connects to an external infrared transmitter / sensor

(receiver)

ETHERNET Connector

Connects to a network

RS-232 9-pin D-sub Connector

Connects to an RS-232 port

5V DC

+5V DC connector for powering the unit

IN LED

Lights when an HDMI input device is connected

OUT LED

Lights when an HDMI output device is detected

LINK LED

Lights when the TP connection is active

ON LED

Lights when receiving power
