Kramer TOOLS TP-220HD Manuel utilisateur

Kramer Electronics, Ltd.

USER MANUAL

Models:

TP-219HD,

XGA / HD Line Transmitter / Switcher

TP-220HD,

XGA / HD Line Receiver / DA

Contents

Introduction 1

Getting Started 1

2.1

Quick Start 1

Overview 3

3.1

About the Power Connect Feature 3

3.2

Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP) 3

3.3

About the TP-219HD / TP-220HD 4

3.4

Recommendations for Achieving the Best Performance 4

Your XGA / HD Line Transmitter / Switcher and Receiver / DA 5

4.1

Your TP-219HD 5

4.2

Your TP-220HD 7

Connecting the TP-219HD and TP-220HD 9

5.1

Connecting an HD System 11

5.2

Wiring the CAT5 LINE IN / LINE OUT RJ-45 Connectors 12

Technical Specifications 13

Figures

Figure 1: TP-219HD XGA / HD Line Transmitter / Switcher 5

Figure 2: TP-219HD (Top Side and Lower Side Panels) 5

Figure 3: TP-219HD (Underside Panel) 6

Figure 4: TP-220HD XGA / HD Line Receiver / DA 7

Figure 5: TP-220HD (Top Side and Lower Side Panels) 7

Figure 6: TP-220HD (Underside Panel) 8

Figure 7: Connecting the TP-219HD / TP-220HD XGA System 10

Figure 8: Connecting an HD Source 11

Figure 9: CAT5 PINOUT 12

Tables

Table 1: TP-219HD XGA / HD Line Transmitter / Switcher Features 6

Table 2: TP-219HD (Underside Panel) Features 6

Table 3: TP-220HD XGA / HD Line Receiver / DA Features 8

Table 4: TP-220HD (Underside Panel) Features 8

Table 5: CAT5 PINOUT 12

Table 6: Technical Specifications of the TP-219HD and TP-220HD Setup 13

Introduction

1 Introduction

Welcome to Kramer Electronics (since 1981): a world of unique, creative and

affordable solutions to the infinite range of problems that confront the video,

audio and presentation professional on a daily basis. In recent years, we have

redesigned and upgraded most of our line, making the best even better! Our

500-plus different models now appear in 8 Groups

, which are clearly defined

by function.

Congratulations on purchasing your Kramer TOOLS TP-219HD XGA / HD

Line Transmitter / Switcher and Kramer TOOLS TP-220HD XGA / HD Line

Receiver / DA which are ideal for:

 Presentation and multimedia applications

 Long range graphics distribution for schools, hospitals, security, and stores

The package includes the following:

 TP-219HD and/or TP-220HD

 Power adapter (12V DC Input)

 This user manual

2 Getting Started

We recommend that you:

 Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

 Review the contents of this user manual

 Use Kramer high performance high resolution cables

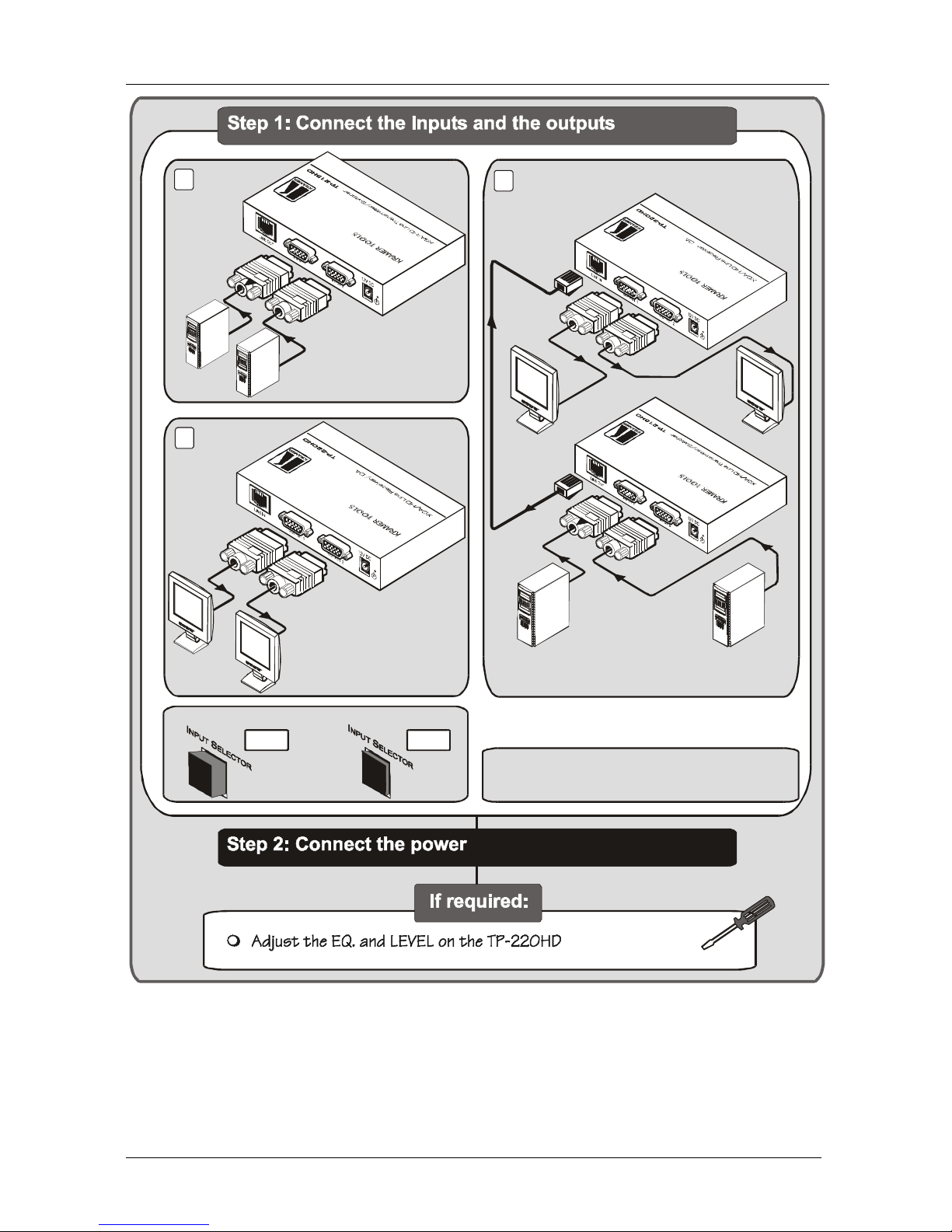

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:

Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;

GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors

2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com

3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

Connect the

sources to the

TP-219HD

Connect the

acceptors to the

TP-220HD

TP-219HD

Connect the

CAT5 cable

On the TP-219HD, s

elect INPUT 1 or INPUT 2

If necessary, set the polarity of both

machines using the underside switches

IN 1

IN 2

Display 2

Display 1

Long

Display 2

Display 1

Computer

Graphics

Source 1

Computer

Graphics

Source 2

Computer

Graphics

Source 1

Computer

Graphics

Source 2

Overview

3 Overview

This section describes:

 The power connect feature, see section 3.1

 Using shielded twisted pair (STP) / unshielded twisted pair (UTP), see

section 3.2

 A summary of the TP-219HD / TP-220HD, see section 3.3

 Recommendations for achieving the best performance, see section 3.4

3.1 About the Power Connect Feature

The Power Connect feature lets you power a transmitter / receiver system by

connecting just one power adapter— to either the transmitter or the receiver.

The other unit is fed via the cable connecting between the transmitter/receiver.

The Power Connect feature applies as long as the cable can carry power. The

distance does not exceed 50 meters on standard CAT5 cable, for longer

distances, heavy gauge cable should be used

For a CAT5 cable exceeding a distance of 50 meters, separate power supplies

should be connected to the transmitter and to the receiver simultaneously.

3.2 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP)

The decision whether to use shielded twisted pair (STP) cable or unshielded

twisted pair (UTP) cable depends on the nature of the application.

It is recommended that in applications with high interference, shielded twisted

pair (STP) cable is used. However, the shield itself does create a capacitance

that degrades the frequency response of the machines. For shorter distances, of

50m or so, shielded twisted pair (STP) cable is preferred because it provides

protection from interference (degradation is not apparent).

For long range applications, unshielded twisted pair (UTP) cable is preferred.

However, the unshielded twisted pair (UTP) cable should be installed far away from

electric cables, motors and so on, which are prone to create electrical interference.

1 CAT5 cable is still suitable for the video/audio transmission, but not for feeding the power at these distances

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Overview

3.3 About the TP-219HD / TP-220HD

The Kramer TOOLS TP-219HD can receive two computer graphics/HD

signals of which one is selected via an INPUT SELECTOR button. The

selected input is transmitted via CAT5 cabling to the TP-220HD which

distributes it to two outputs simultaneously.

The TP-219HD XGA / HD Line Transmitter / Switcher:

 Has a transmission range of more than 300 ft. (more than 100 meters)

 Includes two XGA

/YUV

inputs on HD15F connectors

 Features an INPUT SELECTOR button to select between INPUT 1 and

INPUT 2

 Can change the polarity of encoding H and V Sync for XGA graphics

 Can power or be powered by the receiver over the same CAT5 cable (see

section 3.1)

 Is 12VDC fed

The TP-220HD XGA / HD Line Receiver / DA:

 Has two XGA/YUV

outputs on HD15F connectors

 Can change the polarity of decoding H and V Sync for XGA graphics

 Includes EQ. and LEVEL controls

 Can power or be powered by the transmitter over the same CAT5 cable

(see section 3.1)

 Is 12VDC fed

3.4 Recommendations for Achieving the Best Performance

To achieve the best performance:

 Connect only good quality connection cables, thus avoiding interference,

deterioration in signal quality due to poor matching, and elevated noise-

levels (often associated with low quality cables)

 Avoid interference from neighboring electrical appliances and position your

TP-219HD/TP-220HD away from moisture, excessive sunlight and dust

1 The TP-219HD and TP-220HD accept high definition resolutions: 480p, 576p, 720p, 1080i, and 1080p

2 The terminology XGA is used throughout this manual, where this implies any RGBHV signal on an HD15 connector

having a resolution from VGA up to UXGA

3 Also known as Y, Cb, Cr, or Y, B-Y, R-Y, or Y, Pb, Pr

Your XGA / HD Line Transmitter / Switcher and Receiver / DA

4 Your XGA / HD Line Transmitter / Switcher and Receiver / DA

This section describes the:

 TP-219HD XGA / HD – Line Transmitter / Switcher, see section 4.1

 TP-220HD XGA / HD – Line Receiver / DA, see section 4.2

4.1 Your TP-219HD

Figure 1, Figure 2, and Table 1 define the TP-219HD:

Top Side Panel

Lower Side Panel

Figure 1: TP-219HD XGA / HD Line Transmitter / Switcher

Top Side Panel

Lower Side Panel

Figure 2: TP-219HD (Top Side and Lower Side Panels)

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your XGA / HD Line Transmitter / Switcher and Receiver / DA

Table 1: TP-219HD XGA / HD Line Transmitter / Switcher Features

# Feature Function

1 12V DC +12V DC connector for powering the unit

2 INPUT 2 HD15F Connector Connect to the second XGA/HD source

3 INPUT 1 HD15F Connector Connect to the first XGA/HD source

4 LINE OUT RJ-45 Connector

Connect

to the LINE IN RJ-45 connector on the

TP-220HD

5 INPUT SELECTOR button Press to select IN 2; release to select IN 1

6 ON LED Illuminates when receiving power

Figure 3 and Table 2 define the TP-219HD underside panel:

Figure 3: TP-219HD (Underside Panel)

Table 2: TP-219HD (Underside Panel) Features

# Feature Function

1 HS

Switch Slide the switch up (to NORMAL) to retain the polarity

Slide the switch down

to change the HS polarity to NEGATIVE polarity

2 VS Switch Slide the switch up (to NORMAL) to retain the polarity

Slide the switch down

to change the VS polarity to NEGATIVE polarity

1 Using a UTP CAT5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 5 and Figure 9)

2 By default, both switches are set to NORMAL

3 Downgoing syncs

Your XGA / HD Line Transmitter / Switcher and Receiver / DA

4.2 Your TP-220HD

Figure 4, Figure 5, and Table 3 define the TP-220HD:

Top Side Panel

Lower Side Panel

Figure 4: TP-220HD XGA / HD Line Receiver / DA

Top Side Panel

Lower Side Panel

Figure 5: TP-220HD (Top Side and Lower Side Panels)

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your XGA / HD Line Transmitter / Switcher and Receiver / DA

Table 3: TP-220HD XGA / HD Line Receiver / DA Features

# Feature Function

1 12V DC +12V DC connector for powering the unit

2 OUTPUT 2 HD15F Connector Connect to the second XGA/HD acceptor

3 OUTPUT 1 HD15F Connector Connect to the first XGA/HD acceptor

4 LINE IN RJ-45 Connector Connect

to the LINE OUT RJ-45 connector on the TP-219HD

5 EQ. Trimmer Adjust

the cable compensation equalization level

6 LEVEL Trimmer Adjust

the output signal level

7 ON LED Illuminates when receiving power

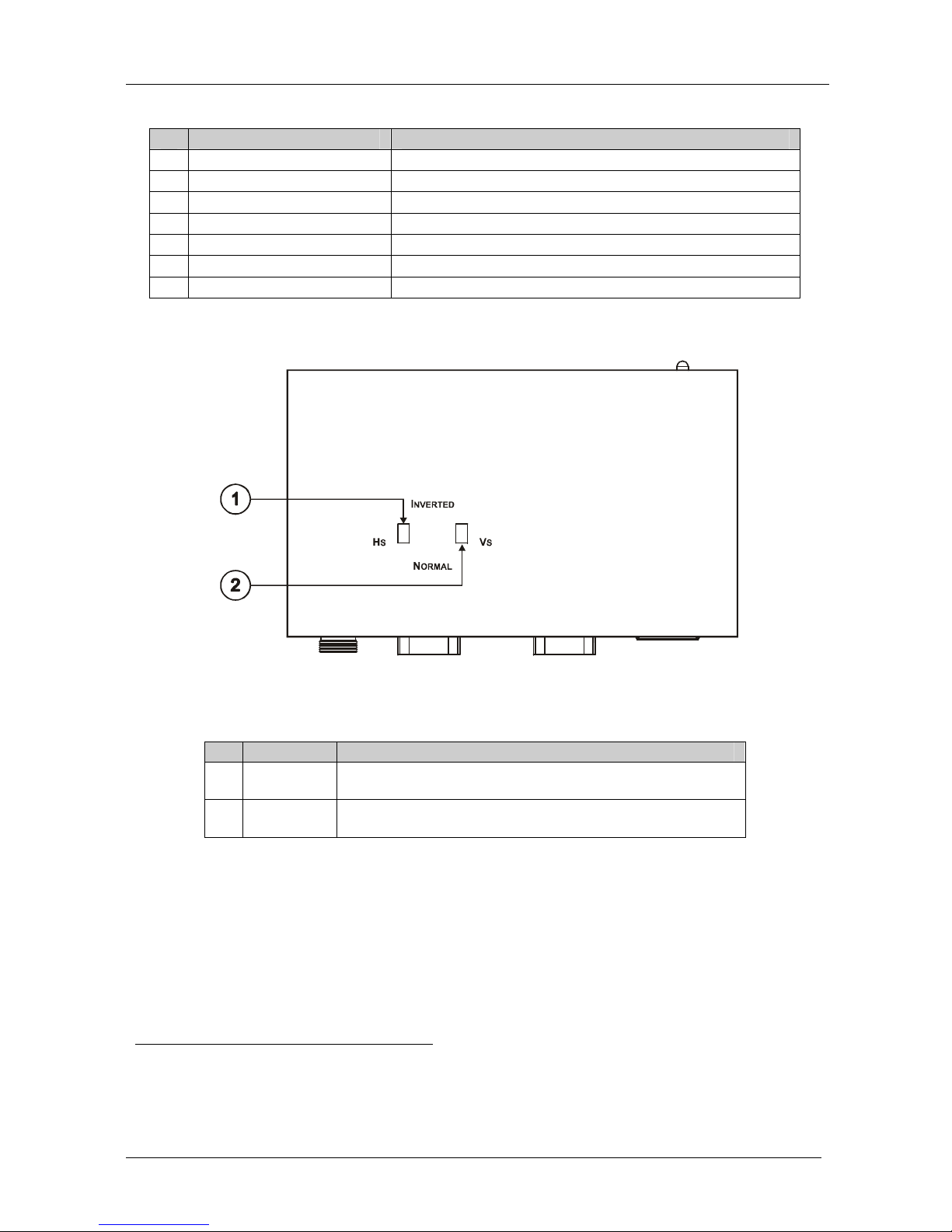

Figure 6 and Table 4 define the TP-220HD underside panel:

Figure 6: TP-220HD (Underside Panel)

Table 4: TP-220HD (Underside Panel) Features

# Feature Function

1 HS Switch Slide the switch up

(to INVERTED) to invert the HS polarity

Slide the switch down (to NORMAL) to retain the polarity

2 VS Switch Slide the switch up

(to INVERTED) to invert the VS polarity

Slide the switch down (to NORMAL) to retain the polarity

1 Using a UTP CAT5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 5 and Figure 9)

2 Insert a screwdriver into the small hole and carefully rotate it, to trim the appropriate level

3 By default, both switches are set to NORMAL

Autres manuels pour TOOLS TP-220HD

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Kramer Récepteur

Kramer

Kramer 712N Manuel utilisateur

Kramer

Kramer PT-571HDCP-MD Manuel utilisateur

Kramer

Kramer 670T Manuel utilisateur

Kramer

Kramer KIT-400 Manuel utilisateur

Kramer

Kramer DigiTOOLS KW-11T Manuel utilisateur

Kramer

Kramer WP-120 Manuel utilisateur

Kramer

Kramer 690T Manuel utilisateur

Kramer

Kramer DigiTOOLS KW-11T Manuel utilisateur

Kramer

Kramer DigiTOOLS TP-551 Manuel utilisateur

Kramer

Kramer TOOLS TP-45 Manuel utilisateur

Kramer

Kramer TP-583Txr Manuel utilisateur

Kramer

Kramer TP-574 Manuel utilisateur

Kramer

Kramer TOOLS TP-220HD Manuel utilisateur

Kramer

Kramer TOOLS TP-41 Manuel utilisateur

Kramer

Kramer KW-14T-IL Manuel utilisateur

Kramer

Kramer KDS-EN2T Manuel utilisateur

Kramer

Kramer TP-789R Manuel utilisateur

Kramer

Kramer PT-871 Manuel utilisateur

Kramer

Kramer PT-571 Manuel utilisateur

Kramer

Kramer 621R Manuel utilisateur

Kramer

Kramer TP-578H Manuel utilisateur

Kramer

Kramer TP-594Txr Manuel utilisateur

Kramer

Kramer VP-427 Manuel utilisateur

Kramer

Kramer TOOLS TP-9 Manuel utilisateur

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur

Dish Network

Dish Network Satellite Television Manuel utilisateur
