Kramer FC-113 Manuel utilisateur

Kramer Electronics, Ltd.

Preliminary

USER MANUAL

Model:

FC-113

HDMI to SD/HD-SDI Converter

Contents

1Introduction 1

2Getting Started 1

2.1 Quick Start 2

3Overview 2

3.1 Recommendations for Best Performance 3

3.2 Accessory to Medical Equipment (IEC 60601-1) 3

4Defining the FC-113 HDMI to SD/HD-SDI Converter 4

5Connecting the FC-113 HDMI to SD/HD-SDI Converter 5

6Technical Specifications 6

Figures

Figure 1: FC-113 HDMI to SD/HD-SDI Converter 4

Figure 2: Connecting the FC-113 HDMI to SD/HD-SDI Converter 5

Tables

Table 1: FC-113 HDMI to SD/HD-SDI Converter Features 4

Table 2: Technical Specifications of the FC-113 HDMI to SD/HD-SDI Converter 6

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast

range of problems that confront the video, audio, presentation, and

broadcasting professional on a daily basis. In recent years, we have

redesigned and upgraded most of our line, making the best even better! Our

1,000-plus different models now appear in 11 groups1

Thank you for purchasing the Kramer DigiTOOLS®FC-113 HDMI to

SD/HD-SDI Converter, which is ideal for:

that are clearly

defined by function.

•Home theater, presentation and multimedia applications

•Rental and staging

•HDMI to SD/HD-SDI Converter for medical equipment

The package includes the following items:

•FC-113

•Power supply (5V DC)

•This user manual2

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and

packaging materials for possible future shipment

•Review the contents of this user manual

•Use Kramer high-performance high-resolution cables3

1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control Systems;

GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;

GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;

GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products

2 Download up-to-date Kramer user manuals from http://www.kramerelectronics.com

3 The complete list of Kramer cables is available from http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Overview

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

3 Overview

The FC-113 HDMI to SD/HD-SDI Converter is a high-performance format

converter for SDI (SMPTE 259M), HD-SDI (SMPTE 292M), and

3G HD-SDI (SMPTE 424M) signals. It converts an HDMI input to two

identical SDI video with embedded audio output signals. The FC-113 does

not perform frame rate or resolution conversion1

1 It has to receive an HD or SD signal to convert it to SD/HD-SDI signals

Overview

The FC-113 features:

•One HDMI input

•Two SD/HD-SDI/3G HD-SDI outputs on BNC connectors

•HDTV compatibility

•Active LED indicators on the front panel. Green indicates a standard

(SDI) definition and blue indicates a (HD-SDI) high-definition input

signal

•5V DC power

•Medical equipment compliance

3.1 Recommendations for Best Performance

To achieve the best performance:

•Use only good quality connection cables1

•Do not secure the cables in tight bundles or roll the slack into tight coils

to avoid interference,

deterioration in signal quality due to poor matching, and elevated noise

levels (often associated with low quality cables)

•Avoid interference from neighboring electrical appliances that may

adversely influence signal quality and position your Kramer FC-113

away from moisture, excessive sunlight and dust

3.2 Accessory to Medical Equipment (IEC 60601-1)

In the modern medical environment remote access is essential, for example,

to transfer clinical data between doctors and to train to medical students.

The FC-113 is certified according to the IEC 60601-1-2, Clause 2.1.3,

Medical Electrical Equipment, Part 1: General Requirements for Emc

standard which is required when accessory devices are used at locations

where medical personnel and patients are present.

The FC-113 constitutes an optional component that can be considered

necessary and suitable as part of medical equipment or for use as part of a

medical system to provide real time simultaneous video feeds to those

present at the local medical environment and at remote locations. In this

1 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Defining the FC-113 HDMI to SD/HD-SDI Converter

environment, the FC-113 can be added to the system ONLY if the

connecting equipment has been evaluated and meets the IEC 60601-1-2

Emc standards. Note, that when attaching accessory devices to a digital or

analog interface, they must comply with the IEC standard for which they

are used: for medical equipment (IEC 60601-1-2), data processing

equipment (IEC 60950) and electromagnetic compatibility (IEC 61000-1).

4 Defining the FC-113 HDMI to SD/HD-SDI Converter

Figure 1and Table 1define the FC-113 HDMI to SD/HD-SDI Converter.

Figure 1: FC-113 HDMI to SD/HD-SDI Converter

Table 1: FC-113 HDMI to SD/HD-SDI Converter Features

Feature

Function

1 HDMI IN Connector Connect to an HDMI source

2 SD/HD-SDI OUT 1 BNC Connector Connect to an SD or HD-SDI acceptor 1

3 SD/HD-SDI OUT 2 BNC Connector Connect to an SD or HD-SDI acceptor 2

4 5V DC +5V DC connector for powering the unit

5 SD/HD LED Lights green for an SD input signal and blue for an HD-SDI

input signal

6 IN LED Lights green to indicate an HDMI signal

7 ON LED Lights green when receiving power

Connecting the FC-113 HDMI to SD/HD-SDI Converter

5 Connecting the FC-113 HDMI to SD/HD-SDI Converter

To connect1Figure 2the FC-113, as illustrated in :

1. Connect an HDMI source (for example, a video camera) to the HDMI

IN connector.

2. Connect the SD/HD-SDI OUT 1 connector to an acceptor (for example,

a non-linear editor).

3. Connect the SD/HD-SDI OUT 2 connector to a digital display.

4. Connect the 5V DC power adapter to the power socket and connect the

adapter to the mains electricity (not illustrated in Figure 2).

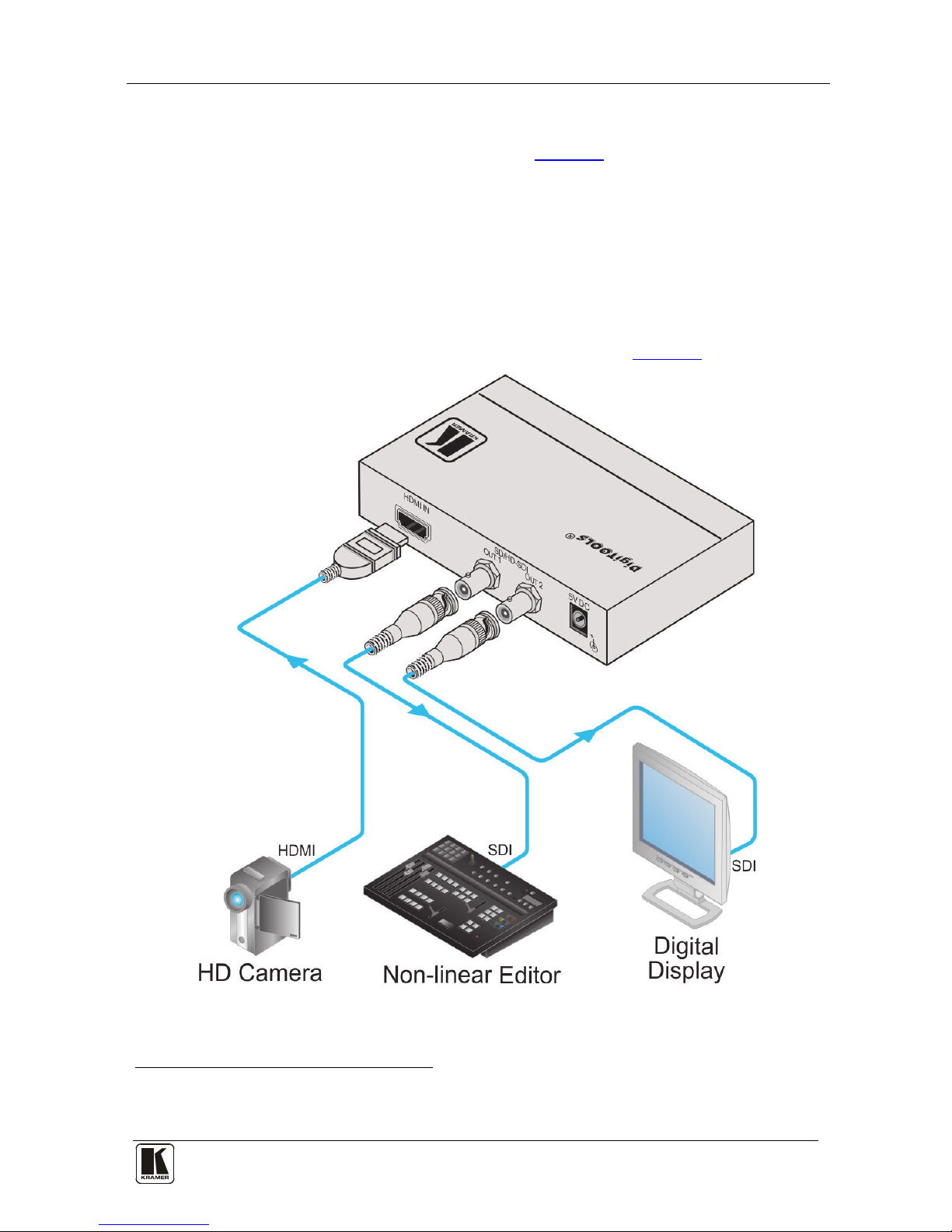

Figure 2: Connecting the FC-113 HDMI to SD/HD-SDI Converter

1 Switch off the power on each device before connecting it to your FC-113. After connecting your FC-113, switch on its

power and then switch on the power on each device

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Technical Specifications

6 Technical Specifications

The FC-113 technical specifications are shown in Table 2:

Table 2: Technical Specifications1

INPUT:

of the FC-113 HDMI to SD/HD-SDI Converter

1 HDMI connector

OUTPUTS: 2 SD/HD-SDI, 3G HD-SDI on BNC connectors

INPUT FORMATS: 525i, 625i

1080p @23.98/24/25/29.97/30/50/59.94/60

1080i @50/59.94/60

720p @50/59.94/60

OUTPUT FORMATS: SMPTE-259M/292M/424M

MAX DATA RATE: Up to 3Gbps

STANDARD COMPLIANCE: HDMI

INDICATOR LEDS: SD/HD, OUT, ON

POWER SOURCE: 5V DC, 470mA

DIMENSIONS: 12cm x 7.2cm x 2.4cm (4.7" x 2.8" x 1.0") W, D, H

WEIGHT: 0.3kg (0.67lbs)

ACCESSORIES: Power supply

OPTIONS: 19” rack mount adapter

1 Specifications are subject to change without notice

Kramer Electronics, Ltd.

Web site: www.kramerelectronics.com

E-mail: info@kramerel.com

P/N: 2900-000528 REV 6

For the latest information on our products and a list of

Kramer distributors visit www.kramerelectronics.com

where updates to this user manual may be found.

We welcome your questions, comments and feedback.

Caution

Safety Warning:

Disconnect the unit from the power supply before

opening/servicing.

P/N:

2900- 000528

Rev:
