Kramer TP-583Txr Manuel utilisateur

TP-583Txr/TP-583Rxr Quick Start

(P/N: 2900-300959QS REV 1)

P/N:

2900- 300959QS

Rev:

Scan for full manual

TP-583Txr/TP-583Rxr Quick Start Guide

This guide helps you install and use your TP-583Txr/TP-583Rxr for the first time.

Go to www.kramerav.com/downloads/TP-583Txr, TP-583Rxr to download the latest user manual and check

if firmware upgrades are available.

Step 1: Check what’s in the box

TP-583Txr HDMI Line Transmitter or

1 Power adapter and cord

1 Quick start guide

TP-583Rxr HDMI Line Receiver

4 Rubber feet

1 Bracket set

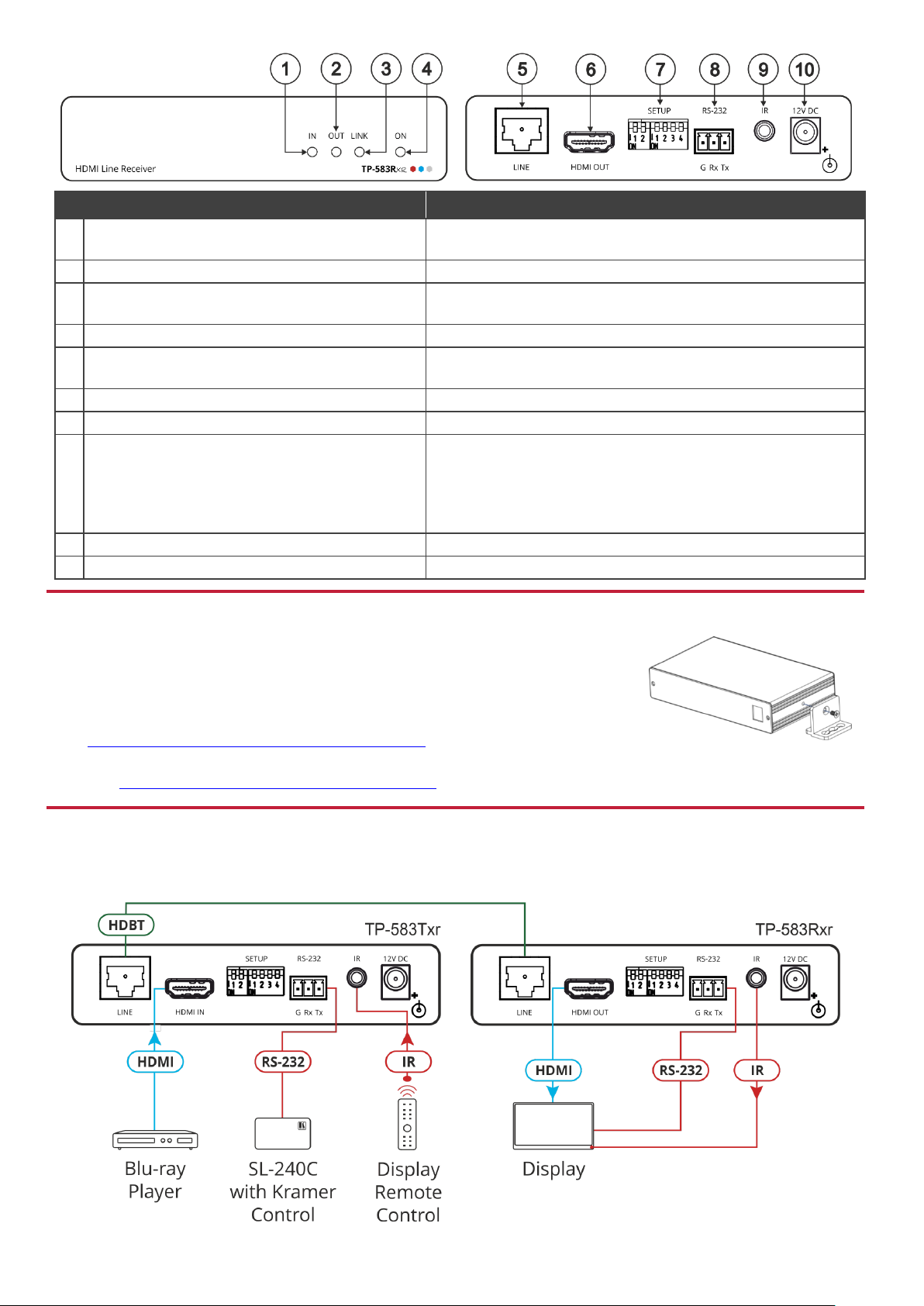

Step 2: Get to know your TP-583Txr and TP-583Rxr

TP-583Txr

Feature

Function

IN LED

Lights green when an active source device input signal is detected.

OUT LED

Lights green when an active, far-end sink (acceptor) connection is

detected via the HDBT link.

LINK LED

Lights green when an HDBT link is established with the HDBaseT

receiver.

ON LED

Lights green when the device receives power.

LINE RJ-45 Connector

Connect to the RJ-45 HDBT LINE connector on a receiver (for

example, TP-583Rxr, TP-780Rxr and so on).

HDMI™IN Connector

Connect to an HDMI source.

SETUP DIP-switches

Set the operation DIP-switches.

RS-232 (G, Rx, Tx) 3-pin Terminal Block Connector

Connect to a laptop to control the receiver or perform firmware

upgrade.

Connect to a controller device (for example, SL-240C) to serially

control a remote device (for example, the HDMI OUT acceptor) that

is connected to TP-583Rxr.

IR 3.5mm Mini Jack Connector

Connect to an external infrared emitter / sensor.

12V DC Power Connector

12V DC connector for powering the unit.

TP-583Rxr

Feature

Function

IN LED

Lights green when an active, far-end source device input signal is

detected via the HDBT link.

OUT LED

Lights green when an active sink (acceptor) connection is detected.

LINK LED

Lights green when an HDBT link is established with the HDBaseT

transmitter.

ON LED

Lights green when the device receives power.

LINE RJ-45 Connector

Connect to the RJ-45 HDBT LINE connector on a transmitter (for

example, TP-583Txr, TP-780Txr and so on).

HDMI OUT Connector

Connect to an HDMI acceptor.

SETUP DIP-switches

Set the operation DIP-switches.

RS-232 (G, Rx, Tx) 3-pin Terminal Block Connector

Connect to a laptop to control the receiver or perform firmware

upgrade.

Connect to a serially controlled device (for example, the HDMI OUT

acceptor) to enable its control by a remote controller device (for

example, SL-240C) that is connected to TP-583Txr.

IR 3.5mm Mini Jack Connector

Connect to an external infrared emitter / sensor.

12V DC Power Connector

12V DC connector for powering the unit.

Step 3: Install TP-583Txr/TP-583Rxr

Install TP-583Txr/TP-583Rxr using one of the following methods:

•Attach the rubber feet and place the unit on a flat surface.

•Fasten a bracket (included) on each side of the unit and attach it to a flat surface.

For more information go to

www.kramerav.com/downloads/TP-583Txr, TP-583Rxr.

•Mount the unit in a rack using the recommended rack adapter

(see www.kramerav.com/product/TP-583Txr, TP-583Rxr).

Step 4: Connect the inputs and outputs

Always switch OFF the power on each device before connecting it to your TP-583Txr/TP-583Rxr. For best results, we recommend

that you always use Kramer high-performance cables to connect AV equipment to TP-583Txr/TP-583Rxr.

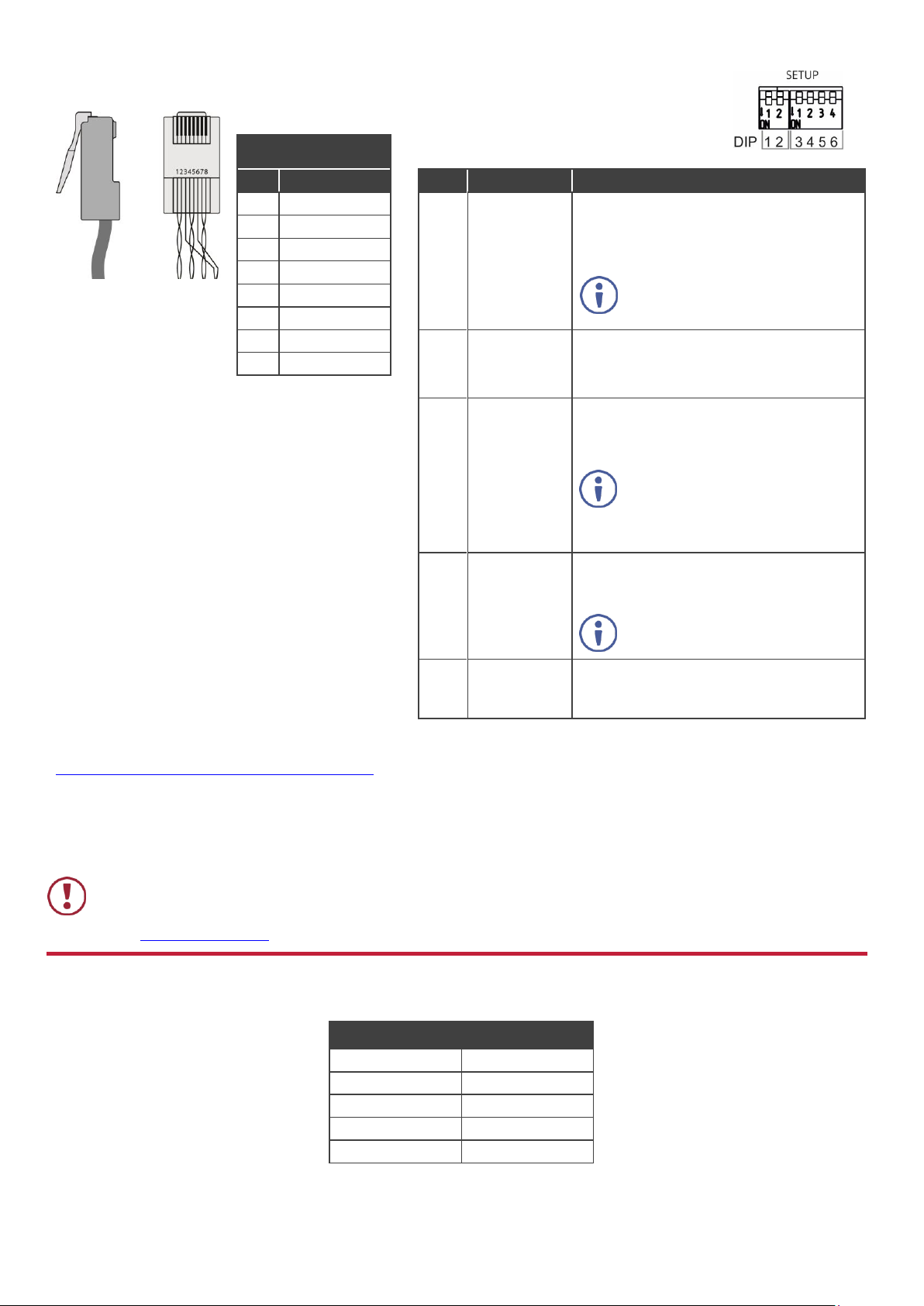

RJ-45 Pinout:

DIP-Switch Settings

For the HDBT connector, see the wiring diagram

below:

All DIP-switches are set to OFF (up) by default,

Changes to DIP-switches 4 and 5 only take

effect after power cycling the device.

PIN EIA /TIA 568B

Wire Color

Feature

Dip-switch Settings

Orange / White

HDBT Range

Mode

OFF –HDBaseT normal range.

ON –HDBaseT ultra-long range

(provides increased range at a reduced

bandwidth).

Orange

Green / White

Blue

The ultra-long range mode is

activated when DIP-switch 1 on at

least one of the devices is set to ON.

Blue / White

Green

Brown / White

Compression

Level

OFF –Low compression level is applied.

ON –High compression level is applied to

gain better extension reach performance.

Brown

Compressed

Signals

OFF –Compression is applied only to signal

resolutions higher than 1080p.

ON –Compression is applied to all signal

resolutions.

Compression can be applied for a

TP-583Txr/TP-583Rxr

paired-connection only, thus

preserving backward compatibility

with standard-HDBT extenders.

4, 5

FW Upgrade

OFF, OFF –Normal operation mode.

ON, OFF –HDBT FW upgrade mode.

ON, ON –Compression FW upgrade mode.

When either DIP-switch is set to ON,

the device extension operation is

disabled.

IR Frequency

OFF (up) –Frequency is 38kHz.

ON (down) –Wide-range modulated IR

frequency.

For optimum range and performance use the

recommended Kramer cables available at

www.kramerav.com/product/TP-583Txr, TP-583Rxr.

Step 5: Connect the power

Connect the 12V DC power adapter to TP-583Txr/TP-583Rxr and plug it into the mains electricity.

Safety Instructions

Caution:

There are no operator serviceable parts inside the unit.

Warning:

Use only the Kramer Electronics power adapter that is provided with the unit.

Warning:

Disconnect the power and unplug the unit from the wall before installing.

See www.KramerAV.com for updated safety information.

Step 6: Operate TP-583Txr/TP-583Rxr

Operate TP-583Txr/TP-583Rxr

remotely, by RS-232 serial

commands transmitted by a touch

screen system, PC, or other serial

controller

RS-232 Control

Baud Rate:

57,600

Data Bits:

Stop Bits:

Parity:

None

Command Format:

ASCII

Technical Specifications

TP-583Txr

Input

HDMI

On a female HDMI connector

Output

HDBT

On an RJ-45 connector

Port

RS-232

On a 3-pin terminal block connector for serial link extension

On a 3.5mm mini jack connector

TP-583Rxr

Input

HDBT

On an RJ-45 connector

Output

HDMI

On a female HDMI connector

Port

RS-232

On a 3-pin terminal block connector for serial link extension

On a 3.5mm mini jack connector

General

Video

Transmitted Data Bandwidth

Up to 18Gbps (6Gbps per graphic channel)

Max Resolution

Standard compression level

4096x2160@60Hz (4:4:4) 24bpp

High compression level

3840x2160@60Hz (4:4:4) 24bpp

Compliance

HDMI 2.0, HDCP 2.2, HDR 10

Reach Extension

We recommend that you use Kramer shielded cables to achieve optimum extension ranges.

Standard Compression Level

Up to 100m (330ft) at 4K@60Hz (4:4:4)

Up to 100m (330ft) at 4K@60Hz (4:2:0) or

Up to 180m (590ft) at full HD (1080p @60Hz 36bpp)

High Compression Level

Up to 100m (330ft) at 4K@60Hz (4:4:4)

Up to 180m (590ft) at 4K@60Hz (4:2:0)

Up to 200m (650ft), full HD (1080p @60Hz 36bpp), when using recommended

Kramer cables, see www.kramerav.com/product/TP-583Txr, TP-583Rxr

Extended RS-232

Baud Rate

300 to 115200

Controls

Front Panel

IN, OUT, LINK and ON LED indicators

Rear Panel

DIP-switches

Power

Consumption

12V DC, TP-583Txr 400mA; TP-583Rxr 600mA

Source

12V DC, 2A

Environmental

Conditions

Operating Temperature

0° to +40°C (32° to 104°F)

Storage Temperature

-40° to +70°C (-40° to 158°F)

Humidity

10% to 90%, RHL non-condensing

Regulatory Compliance

Safety

CE, UL

Environmental

RoHs, WEEE

Enclosure

Size

Tool

Type

Aluminum

Cooling

Convection ventilation

General

Net Dimensions (W, D, H), each

12cm x 7.2cm x 2.4cm

(4.7" x 2.8" x 0.94")

Shipping Dimensions (W, D, H)

15.7cm x 12cm x 8.7cm

(6.2" x 4.7" x 3.4")

Net Weight, each

0.2kg (0.44bs) approx.

Shipping Weight

0.72kg (1.6lbs) approx.

Accessories

Included

1 Power adapter, 1 power cord and 1 bracket set per device

Specifications are subject to change without notice at www.kramerav.com

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
