Kramer VS-42HN Manuel utilisateur

KRAMER ELECTRONICS LTD.

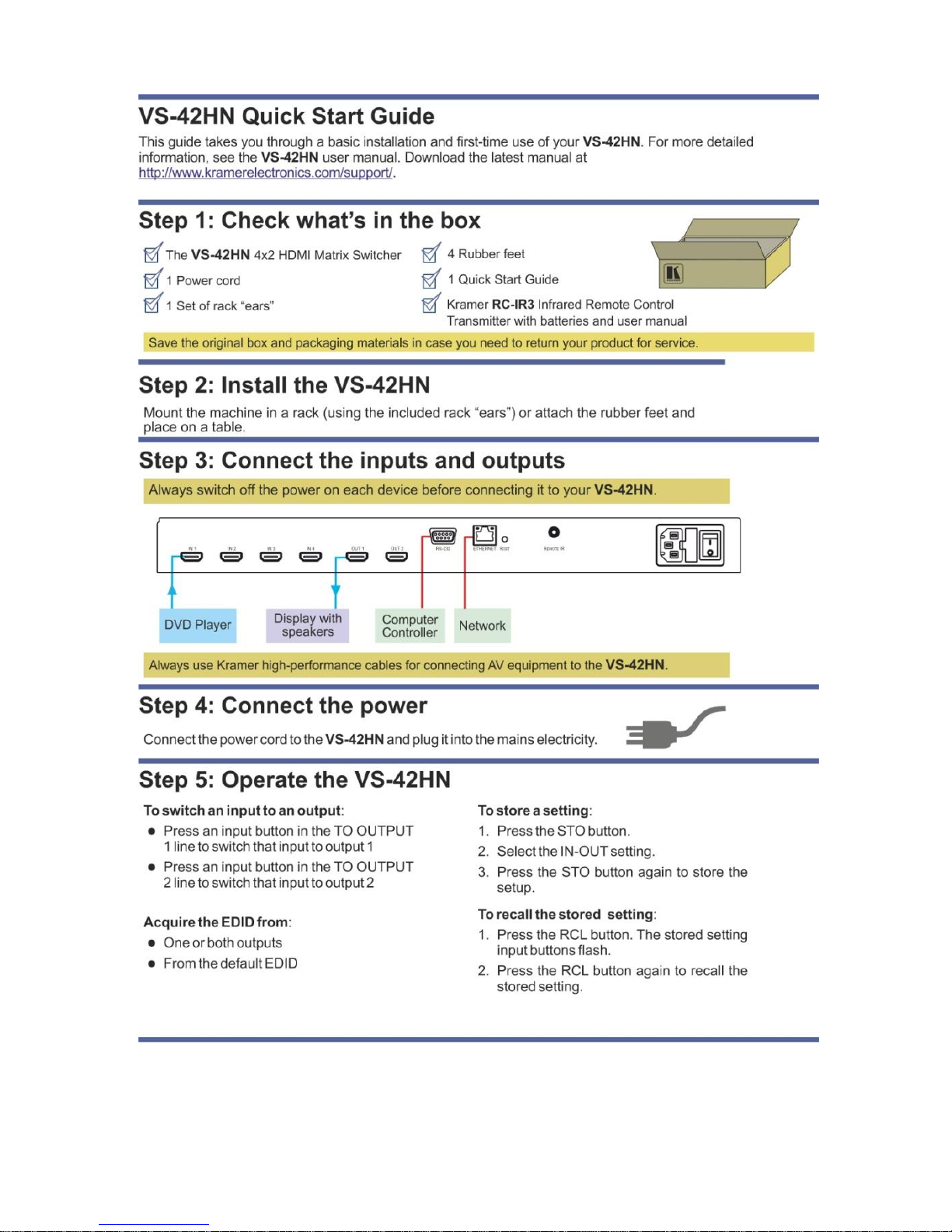

USER MANUAL

MODEL:

VS-42HN

4x2 HDMI Matrix Switcher

P/N: 2900-300152 Rev 4

VS-42HN - Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 2

2.3 Recycling Kramer Products 3

3Overview 4

3.1 Defining the VS-42HN 4x2 HDMI Matrix Switcher 4

3.2 Using the IR Transmitter 7

4Installing in a Rack 8

5Connecting the VS-42HN 4x2 HDMI Matrix Switcher 9

6Operating the VS-42HN 4x2 HDMI Matrix Switcher 11

6.1 Acquiring the EDID 11

6.2 Resetting to the Default EDID 12

6.3 Storing and Recalling a Switching Setting 12

6.4 Switching Between Protocol 2000 and Protocol 3000 13

6.5 Connecting to the VS-42HN 4x2 HDMI Matrix Switcher via RS-232 13

6.6 Connecting to the VS-42HN via Ethernet 14

6.7 Upgrading the Firmware 17

7Technical Specifications 18

8Default Communication Parameters 19

9Default EDID 20

10 Kramer Protocol 2000 22

11 Protocol 3000 25

11.1 Kramer Protocol 3000 Syntax 25

11.2 Kramer Protocol 3000 Commands 28

Figures

Figure 1: VS-42HN 4x2 HDMI Matrix Switcher Front Panel 5

Figure 2: VS-42HN 4x2 HDMI Matrix Switcher Rear Panel 6

Figure 3: Connecting the VS-42HN 4x2 HDMI Matrix Switcher 10

Figure 4: Local Area Connection Properties Window 15

Figure 5: Internet Protocol Version 4 Properties Window 16

Figure 6: Internet Protocol Version 6 Properties Window 16

Figure 7: Internet Protocol Properties Window 17

VS-42HN - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Video Products.

Congratulations on purchasing your Kramer VS-42HN 4x2 HDMI Matrix Switcher,

which is ideal for the following typical applications:

Conference room presentations

Advertising applications

Rental and staging

VS-42HN - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check if

firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your VS-42HN away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the power cord that is supplied with the unit

Warning:

Do not open the unit. High voltages can cause

electrical shock! Servicing by qualified personnel only

Warning:

Disconnect the power and unplug the unit from the wall

before installing

VS-42HN - Getting Started

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

VS-42HN - Overview

3 Overview

The VS-42HN is a high quality 4x2 matrix switcher for HDMI signals. It reclocks and

equalizes the signals and can route any input to any or all outputs simultaneously.

In particular, the VS-42HN features:

Up to 6.75Gbps data rate (2.25Gbps per graphics channel)

Suitable for resolutions up to UXGA and 1080p at 60Hz

Support for HDCP (High Definition Digital Content Protection)

HDMI support for 3D, Deep Color, x.v.Color™, Lip Sync

3D pass-through

Support for up to 7.1 multi channel audio

I-EDIDPro™ Kramer Intelligent EDID Processing™ – Intelligent EDID

handling and processing algorithm ensures Plug and Play operation for

HDMI systems

Kramer reKlocking™ and Equalization Technology that rebuilds the digital

signal to travel longer distances

A lock button to prevent unwanted tampering with the buttons on the front

panel

Preset memory locations for quick access to common configurations

Support for Kramer Protocol 2000 and Protocol 3000

You can control the VS-42HN using the front panel buttons, or remotely via:

RS-232 serial commands transmitted by a PC, touch screen system or other

serial controller

The Kramer RC-IR3 infrared remote control transmitter

A PC connected to the Ethernet port on the device via a LAN

An external remote IR receiver (optional), see Section 3.2

3.1 Defining the VS-42HN 4x2 HDMI Matrix Switcher

Figure 1 and Figure 2 define the VS-42HN.

VS-42HN - Overview

VS-42HN –Overview

Figure 1: VS-42HN 4x2 HDMI Matrix Switcher Front Panel

Feature

Function

IR Receiver

Signal receiver for the infrared remote control transmitter

INPUT SELECTOR

Buttons

TO OUTPUT 2

Press one of the 4 inputs to switch it to Output 2

TO OUTPUT 1

Press one of the 4 inputs to switch it to Output 1

OFF Button Output 1

Press to disconnect output 1 from the inputs

OFF Button Output 2

Press to disconnect output 2 from the inputs

EDID Button

Press to acquire the EDID (see Section 6.1)

STO Button

Press to store a switching setting (see Section 6.3)

RCL Button

Press to recall the switch setting (see Section 6.3)

LOCK Button

Press and hold to toggle the locking/release of the front panel buttons.

Press to acquire the EDID (see Section 6.1)

VS-42HN - Overview

Figure 2: VS-42HN 4x2 HDMI Matrix Switcher Rear Panel

Feature

Function

IN HDMI Connectors (1 to 4)

Connect to up to 4 HDMI sources

OUT HDMI Connector (1 to 2)

Connect to the first and second HDMI acceptors

RS-232 9-pin D-sub Serial Port Connector

Connect to a PC/serial controller

ETHERNET RJ-45 Connector

Connect to a PC via a LAN

RESET Button

Press to reset to factory default definitions:

IP number 192.168.1.39, Mask –255.255.0.0, Gateway –0.0.0.0

First, disconnect the power cord and then connect it again while pressing the ETH Factory Reset

button. The unit powers up and loads its memory with the factory default definitions and erases all

stored preset

REMOTE IR Opening

Connect to an external IR receiver for controlling the device via an IR remote controller (see

Section 3.2)

Covered by a cap. The 3.5mm jack at the end of the internal IR connection cable fits into this

opening

Mains Power Connector, Fuse and Power

Switch

Plug in the power cord and switch the device on and off

6VS-42HN –Overview

VS-42HN - Overview

3.2 Using the IR Transmitter

You can use the RC-IR3 IR transmitter to control the machine via the built-in IR

receiver on the front panel or, instead, via an optional external IR receiver (Model:

C-A35M/IRR-50). The external IR receiver can be located up to 15 meters away

from the machine. This distance can be extended to up to 60 meters when used

with three extension cables (Model: C-A35M/A35F-50).

Before using the external IR receiver, be sure to arrange for your Kramer dealer to

insert the internal IR connection cable (for example, P/N: 505-70434010-S) with

the 3.5mm connector that fits into the REMOTE IR opening on the rear panel.

Connect the external IR receiver to the REMOTE IR 3.5mm connector.
