Kramer RC-13TC Manuel utilisateur

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

RC-13TC

Video Transport Controller

P/N: 2900-000648 Rev 2

RC-13TC – Contents i

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

3Overview 3

4Defining the RC-13TC Video Transport Controller 4

5Using Your Video Transport Controller 6

5.1 The RC-13TC as a Standalone Video Transport Controller 6

5.2 The RC-13TC as an Auxiliary Control Panel 8

5.3 Operating the RC-13TC Video Transport Controller 9

6Grounding the RC-13TC Video Transport Controller 10

7Mounting the Faceplate 11

8Technical Specifications 12

Figures

UFigure 1: RC-13TC Video Transport Controller Front PanelU4

UFigure 2: RC-13TC Video Transport Controller Rear PanelU5

UFigure 3: Sample RC-13TC Standalone Video Transport Controller ConfigurationU6

UFigure 4: RC-13TC Standalone Power Supply ConnectionU7

UFigure 5: RC-13TC Connections when used as part of a K-NET SystemU8

UFigure 6: RC-13TC LCD Programmed with TextU9

UFigure 7: Grounding Connection ComponentsU10

RC-13TC - Introduction 1

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront the video, audio, presentation, and broadcasting

professional on a daily basis. In recent years, we have redesigned and upgraded

most of our line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix

Switchers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters;

GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;

GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors;

GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and

GROUP 11: Sierra Products.

Congratulations on purchasing your Kramer RC-13TC Video Transport Controller,

which is ideal for use as an:

•Advanced, standalone, wall mounted video transport controller. When used

in this way, the unit must be configured as well as supplied with 12V DC

power

Refer to the separate online K-Config Configuration Guide at

http://www.kramerelectronics.com

•Auxiliary device in a larger Kramer K-NET room control setup

The package includes the following items:

•The RC-13TC Video Transport Controller

•3' (0.91m) USB cable

•IR Emitter control cable

•Power supply (12V DC)

•Screwdriver

•This user manual

The latest Kramer user manuals are available from http://www.kramerelectronics.com

•K-Config Configuration software

2 RC-13TC - Getting Started

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

•Review the contents of this user manual

•Use Kramer high-performance high-resolution cables

Go to http://www.kramerelectronics.com to check for up-to-date

user manuals, application programs, and to check if firmware

upgrades are available (where appropriate).

This user manual is written for the end user and does not contain details regarding

installation and configuration. This information can be found in the K-Config

Configuration Guide, available from http://www.kramerelectronics.com.

2.1 Achieving the Best Performance

To achieve the best performance:

•Use only good quality connection cables to avoid interference, deterioration

in signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

•Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

•Position your Kramer RC-13TC away from moisture, excessive sunlight and

dust

Caution: No operator serviceable parts inside the unit

Warning: Disconnect the power and unplug the unit from the wall

before installing

RC-13TC - Overview 3

3 Overview

This user manual descr bes the RC-13TC Video Transport Controller. The

RC-13TC controller interface acts as an all-in-one, remote control panel for several

AV sources in any venue, such as, classrooms, boardrooms or auditoriums. The

RC-13TC streamlines operations by enabling remote transport control of the video

source in the room. The RC-13TC features:

•Programmable, backlit buttons (configurable by your system integrator to

display any color) that are able to execute one or multiple commands

(programming performed by your system integrator)

•A bidirectional RS-232 serial port for control of AV equipment

•Two K-NET™ ports

•Two IR control ports

•Support for firmware upgrade via USB or the K-NET™ connection (when

installed as an auxiliary device)

4 RC-13TC - Defining the RC-13TC Video Transport Controller

4 Defining the RC-13TC Video Transport

Controller

This section defines the RC-13TC.

Figure 1: RC-13TC Video Transport Controller Front Panel

# Feature Function

1 Source Select Button Press to select the AV source

2 Video Transport Control Buttons Use to control the functions of the selected AV

source

3 LCD Programmable Readout

Programmable, 8-character LCD readout with white

characters on a blue background (which usually

reflects the selected AV source name)

RC-13TC - Defining the RC-13TC Video Transport Controller 5

Figure 2: RC-13TC Video Transport Controller Rear Panel

# Feature Function

4 KNET TERM Termina ion Switch Use to set the K-NET bus termination (see

Section 5.2.2

5 )

KNET 4-pin Removable Terminal

Blocks (1 and 2) Connect to a master room controller or to another

auxiliary device.

Connect GND to GND, B to B, A to A, +12V to

+12V (see Section 5.2

6 )

RESET (DEFAULT) Factory

Default Reset Button Press and hold during power-up to erase all

custom programming.

Note: The current LCD text and all button actions

are erased

7 Ring Tongue Terminal Grounding

Screw Connect to grounding wire (see Section 6

)

RS-232 3-pin Removable

Terminal Block For controlling a display, switcher, AV source or

other AV equipment

9 IR Infrared 2-pin Removable

Terminal Blocks (1 and 2) Connect to IR emitters (see Figure 3

Connect OUT 1 or OUT 2 to IR+ (anode), GND to

GND (cathode)

10 PROGRAM (USB) Connector Connect to a computer to program the unit ID,

LCD text and button actions using K-Config

Configuration software

11 Power Supply 2-pin Removable

Terminal Block Connect to power supply (see Section 5.1.2

Connect GND to GND, +12V to +12V ).

12 FW UPGRADE Switch For the use of Kramer service personnel only

6 RC-13TC - Using Your Video Transport Controller

5 Using Your Video Transport Controller

This user manual is applicable once the unit is configured and installed (by your

system integrator), therefore the following procedures are not detailed in this

manual:

•Hardware installation

•Programming the LCD readout using K-Config Configuration software

(described in the K-Config Configuration Guide)

•Programming the button actions using K-Config Configuration software

5.1 The RC-13TC as a Standalone Video Transport

Controller

Figure 3: Sample RC-13TC Standalone Video Transport Controller Configuration

RC-13TC - Using Your Video Transport Controller 7

When the RC-13TC functions as a standalone, wall mounted video transport

controller, as illustrated in Figure 3:

•The RC-13TC is connected directly to the controlled devices (see

Section 5.1.1

•A +12V DC power supply to the unit is required (see

)

Section 5.1.2

•The RC-13TC requires programming

)

5.1.1 Connecting the RC-13TC as a Standalone Video Transport

Controller

The RC-13TC can be connected as a standalone video transport controller as

illustrated in the example in Figure 3with connections as descrbed in the following

table:

Your system integrator configures and installs your room controller to suit your requirements.

This example describes only one possible configura ion.

Connector Connect to:

GND/+12V Power adapter

IR 1 Blu-ray DVD player 1

IR 2 Blu-ray DVD player 2

PROGRAM (USB) PC—required only for configuring the RC-13TC

RS-232 Display or switcher

5.1.2 Connecting a Standalone RC-13TC to a Power Supply

When the RC-13TC is employed as a standalone room controller it should be

connected to the power supply as illustrated in Figure 4.

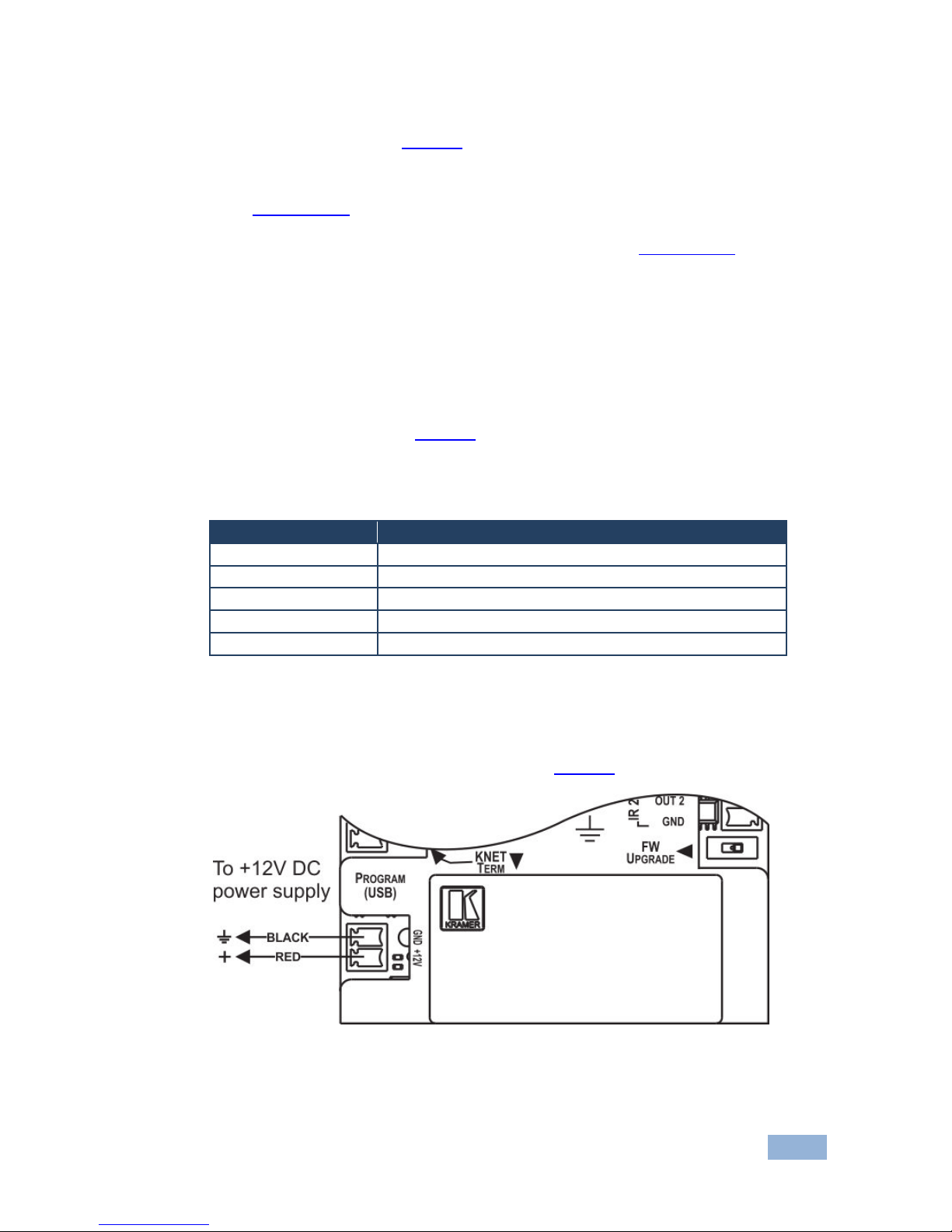

Figure 4: RC-13TC Standalone Power Supply Connection

8 RC-13TC - Using Your Video Transport Controller

5.2 The RC-13TC as an Auxiliary Control Panel

When the RC-13TC is used as an auxiliary control panel, as illustrated in Figure 5:

•It requires only a K-NET connection to another auxiliary device

•A power supply unit is not required as the K-Net connection carries the

power supply

Power supplies are sold separately. Consult your Kramer dealer for details.

•No programming of the auxiliary panel is needed

•Depending on the setup, the device ID may need setting using the K-Config

application

•The RS-232 and IR ports may be used to control devices

5.2.1 Connecting Multiple RC-13TC Devices as System Controllers

Connect the RC-13TC devices to the SV-552 as illustrated in Figure 5.

Figure 5: RC-13TC Connections when used as part of a K-NET System

5.2.2 Setting the K-NET Termination

The first and last physical devices on a K-NET bus must be terminated (in this

example, devices 1 and 3).
