KRT-4 Quick Start

P/N:

2900- 301470QS

Rev:

Scan for full manual

KRT-4 Quick Start Guide

This guide helps you install and use your KRT-4 for the first time.

Go to www.kramerav.com/downloads/KRT-4 to download the latest user manual and check if firmware

upgrades are available.

Step 1: Check what’s in the box

KRT-4 Cable Retractor

3 M4x50 screws

WCP (KRT) insert kit

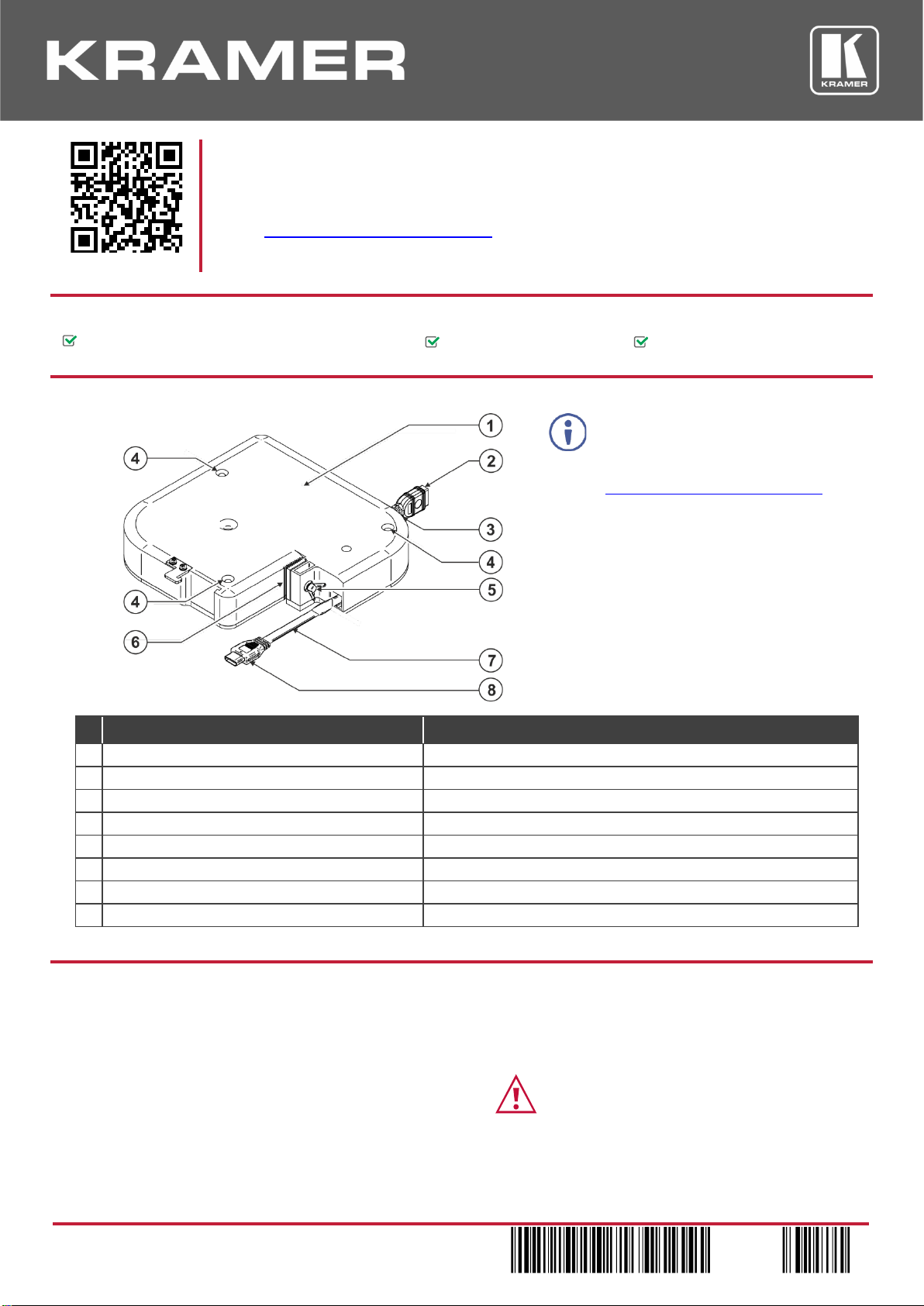

Step 2: Get to know your KRT-4

KRT-4 is available for the following cables:

HDMI™, VGA, audio (3.5mm), LAN,

USB-3.0, MDP/H (up to 4K30Hz), 3H2

(HDMI extender) and DisplayPort. Refer to

www.kramerav.com/product/KRT-4 for the

updated configuration list.

Feature

Function

Retractor Enclosure

Contains the retractable cable mechanism.

Fixed Cable Female Connector

Connect to a male connector under the table.

Fixed Cable End

Short connector cable.

Screw Openings for Mounting Under the Table (3)

Use to attach the KRT-4 directly under a table.

Wing-Head Thumb Screw

Use to turn and lock KRT-4 to the TBUS enclosure.

TBUS Installation Slot

Insert TBUS enclosure side into the slot to attach KRT-4 to a TBUS.

Retracting Cable

Pull to connect to a connector above the table.

Retracting Cable Male Connector

Connect to a female connector.

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Step 3: Install KRT-4

Use this procedure to mount KRT-4 onto the following Kramer TBUS units: TBUS-1AXL, TBUS-3xl, TBUS-4xl, TBUS-5xl, TBUS-6xl

and TBUS-10XL and so on.

•Before mounting the KRT-4 onto a TBUS, you need to configure and install the TBUS inner frame (including inserts and

power sockets) and mount the TBUS onto a table.

•Remember to prepare an opening in the TBUS inner frame

for the retracting cable connector (for example, use the

Kramer WCP pass-through insert).

•Ensure that the environment (e.g., maximum ambient temperature

& air flow) is compatible for the device.

•Avoid uneven mechanical loading.

•Appropriate consideration of equipment nameplate ratings should

be used for avoiding overloading of the circuits.

•Reliable earthing of rack-mounted equipment should be

maintained.

To attach KRT-4 to a TBUS:

1. From under the table, slide the KRT-4 onto one of the

side walls of the TBUS.

Make sure that the fixed cable is directed downwards

and the retracting cable is directed upwards.

2. Use the wing-head thumb screw to fix the KRT-4 firmly in

place and pass the retracting cable end through the

cable pass-through bushing.

The KRT-4 is now firmly fixed in place.

Attaching KRT-4 (as a Standalone) to the Underside of a Table

The thickness of the table should be at least 18mm so as not

to damage the table. Kramer Electronics is not responsible

for any damage caused to the table.

To attach KRT-4 to the underside of a table:

1. Place the KRT-4 under the table in the desired location.

Make sure that the retracting cable faces the edge of the

table.

2. Pass the 3 M4x50 screws through the table screw

openings and tighten them to fix the retractor under the

table.
