Kramer VM-214DT Manuel utilisateur

VM-214DT Quick Start

P/N:

2900- 300570QS

Rev:

Scan for full manual

VM-214DT Quick Start Guide

This guidehelps youinstall and use your VM-214DT for the first time.

Go to www.kramerav.com/downloads/VM-214DT to download the latest user manual andcheck if firmware

upgrades areavailable.

Step 1: Check what’s in the box

VM-214DT HDMI/HDBT Switcher/DA

1 Quick start guide

1 Set of rack ears

1 Power cord

4 Rubber feet

Step 2: Get to know your VM-214DT

Feature

Function

IR LED

Lights orange when the unit accepts IR remote commands.

IR Sensor

Extends a detected IR signal to the connected HDBT devices as defined in the Data

Switching embedded web page –when an IR sensor is not connected to the IR 3.5mm mini

jack on the rear panel.

Disabled when the IR 3.5mm mini jack on the rear panel is connected.

POWER LED

Lights when the unit is powered.

VOLUME ()

Press to decrease the volume of the analog audio output.

VOLUME ()

Press to increase the volume of the analog audio output.

INPUT Selector Button

Press to select input 1 HDMI or input 2 HDBT.

HDMI / HDBT INPUT LED

Lights green to indicate that the HDMI 1 / HDBT 2 input is selected.

EDID READ Button

Press to read the selected EDID and write it to both inputs.

EDID SELECT Button

Press to cycle through the sources from which to read the EDID: Default, External, or Output.

When Output is selected, cycles through outputs 1 to 9. The relevant EDID TYPE and

OUTPUT LEDs light green.

EDID TYPE LEDs

Lights green to indicate that the DEFAULT EDID / EXT. (external) EDID / OUTPUT EDID is

selected.

OUTPUT LEDs (1 to 5)

In normal operation mode: lights green when an acceptor is connected to the output.

In EDID mode: when EDID TYPE OUTPUT LED lights green, press the EDID SELECT button

briefly to cycle through output 1 to 9 to select the output from which to read EDID. The

relevant LED lights during EDID setup and remains lit after completing the EDID setup.

Feature

Function

INPUT 1 HDMI™Connector

Connect to a local HDMI source.

INPUT 2 HDBT on RJ-45 Connectors

Connect to an HDBT transmitter (for example, TP-580Txr).

OUT 1 HDMI Connector

Connect to a local HDMI acceptor.

OUT HDBT RJ-45 Connectors (2 to 5)

Connect to HDBT receivers (for example, TP-580Rxr).

AUDIO OUT 3.5mm Mini Jack

Connect to an analog audio acceptor.

REMOTE IR 3-pin Terminal Block Connector

For future use.

IR on 3.5 Mini Jacks

Connect to an IR sensor/emitter cable to send/receive an IR

control signal via HDBT links.

RS-232 DATA 3-pin Terminal Block Connector

Connect to serially control the devices that are connected to the

HDBT transmitters/receivers via HDBT links.

RS-232 CONTROL 3-pin Terminal Block Connector

Connect to the serial controller to control the VM-214DT.

REMOTE 3-pin Terminal Block Connector

For future use

SETUP DIP-switches

Use to set the device behavior.

ETHERNET RJ-45 Connector

Connect to LAN for Ethernet extension via IN and OUT HDBT

ports and remote IP control of the VM-214DT.

RESET Button

Press and hold while powering on the device to reset to factory

default parameters.

PROG Mini USB Connector

Connect to a PC to perform firmware upgrades.

Mains Power Connector, Fuse, and Switch

Connect to the mains supply.

Step 3: Install VM-214DT

Install VM-214DT using one of the following methods:

Remove the three screws from each side of the unit, reinsert those screws through the rack ears

and mount on a 19" rack.

Attach the rubber feet and place the unit on a flat surface.

Step 4: Connect the inputs and outputs

Always switch OFF the power on each device before connecting it to your VM-214DT. For best results, we recommend that

you always use Kramer high-performance cables to connect AV equipment to the VM-214DT.

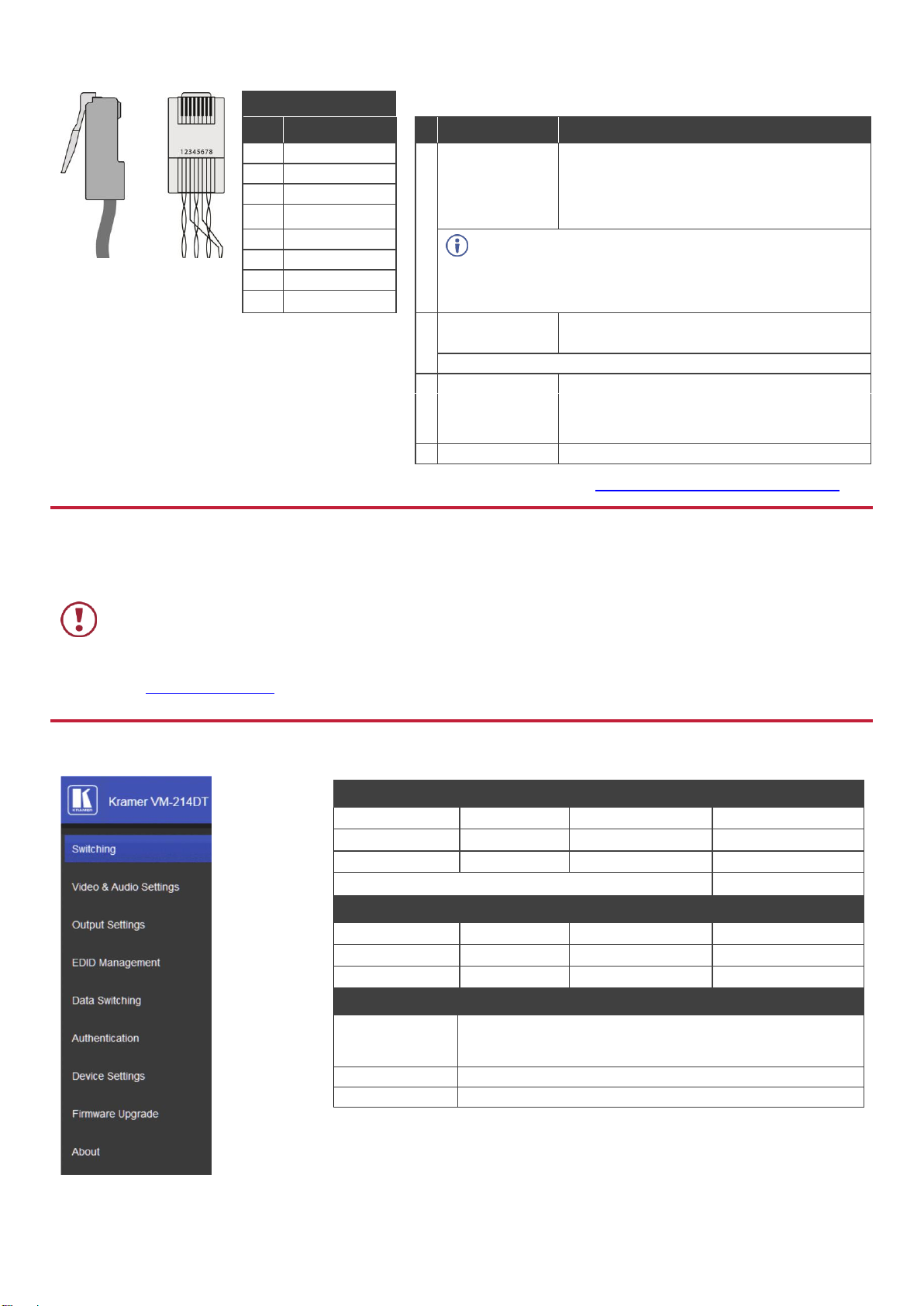

RJ-45 Pinout:

DIP-Switch Settings

For the Ethernet connector, see the wiring diagram

below:

Changes to the DIP-switches only take effect on power-up. After

changing a switch, reboot the device. All DIP-switches are set to Off

(up) by default.

PIN EIA /TIA 568B

Wire Color

Feature

Dip-switch Settings

Orange / White

IR Pass-through

On (down) –Add IR modulation to the IR output

signal (applicable only when the IR port is

connected to an IR emitter cable).

Off (up) –Pass-through the IR signal (default)

to the IR port via an IR cable.

Orange

Green / White

Blue

Blue / White

The IR Pass-through DIP-switch setup depends on the IR

control connectivity application and should be set to either Off

or On to ensure that the IR-controlled device responds to the

IR controller.

Green

Brown / White

Brown

Range mode

On (down) –Enable extra-range.

Off (up) –Disable extra-range (default).

Note that range mode affects the HDBT input only.

Audio

de-embedding

On (down) –Disable audio de-embedding.

Note that the audio output port is muted.

Off (up) –Enable audio de-embedding to the

analog audio output port (default).

Reserved

N/A

For optimum range and performance use the recommended Kramer cables available at www.kramerav.com/product/VM-214DT.

Step 5: Connect the power

Connect the power cord to VM-214DT and plug it into the mains electricity.

Safety Instructions

Caution:

There are no operator serviceable parts inside the unit.

Warning:

Use only the power cord that is supplied with the unit.

Warning:

Do not open the unit. High voltages can cause electrical shock! Servicing by qualified personnel only.

Warning:

Disconnect the power and unplug the unit from the wall before installing.

See www.KramerAV.com for updated safety information.

Step 6: Operate the VM-214DT

Web pages:

RS-232 and Ethernet:

RS-232/Ethernet

Baud Rate:

115,200

Parity:

None

Data Bits:

Command Format:

ASCII Protocol 3000

Stop Bits:

Example (Route input 1 to output 1):

#ROUTE 1,1,1 <cr>

Ethernet Parameters

IP Address:

192.168.1.39

Subnet Mask:

255.255.0.0

Default UDP Port #:

50000

Default Gateway:

192.168.0.1

Full Factory Reset

Front Panel

Buttons:

Front panel buttons: power off the device, press and hold the

RESET button for 3 seconds while powering the device, and

then release.

Protocol 3000:

“#factory” command.

Web pages:

In the Device Settings page, click Reset.

Technical Specifications

Inputs

1 HDMI

On a female HDMI connector

1 HDBT

On an RJ-45 connector

Outputs

1 HDMI

On a female HDMI connector

4 HDBT

On RJ-45 connector

1 Unbalanced Stereo Audio

On a 3.5mm mini jack

Ports

1 IR

On a 3.5mm mini jack for IR link extension via HDBT input and outputs

1 DATA RS-232

On a 3-pin terminal block for serial link extension via HDBT input and

outputs

1 RS-232

On a 3-pin terminal block for device control

1 Mini USB

On a female USB connector for firmware upgrade

1 10/100BaseT Ethernet

On an RJ-45 female connector for device control via LAN and Ethernet

link extension via HDBT input and outputs

Extension Reach

4K @60Hz (4:2:0)

Up to 100m (330ft)

Full HD (1080p @60Hz 36bpp)

Up to 130m (430ft)

HDBaseT Ultra Mode and Full HD

(1080p @60Hz 24bpp)

Up to 180m (590ft)

Compliance

HDBaseT 1.0

Video

Max. Resolution

4K@60Hz (4:2:0) and 4K@30Hz (4:4:4)

Compliance

Supports HDMI 2.0 and HDCP 1.4

RS-232 Extension

Baud Rate

300 to 115,200

Analog Audio

Max Level

1 Vrms

THD + Noise

0.03% @1kHz at nominal level

Controls

Front Panel

Front panel buttons: input select, volume, EDID, IR

Indication LEDs: input select, EDID type, outputs

Rear Panel

RS-232 device control

RS-232 remote control via HDBT ports

IR remote control via HDBT ports

Ethernet

DIP-switches

Supported PC Web Browsers

Windows 7 and Higher

Internet Explorer (32/64 bit) version 10

Firefox version 30

Chrome version 35

MAC

Chrome version 35

Chrome version 63.0.3239.84

Firefox version 30

Firefox version 57.0.2

Safari version 7

Minimum Browser Window Size

1024 x 768 when in full screen mode

Power

Consumption

46VA

Source

100-240V AC, 50/60Hz

Environmental Conditions

Operating Temperature

0° to +40°C (32° to 104°F)

Storage Temperature

-40° to +70°C (-40° to 158°F)

Humidity

10% to 90%, RHL non-condensing

Regulatory Compliance

Safety

CE, FCC, UL

Environmental

RoHs, WEEE

Enclosure

Size

19” 1U

Type

Aluminum

Cooling

Fan ventilation

General

Net Dimensions (W, D, H)

43.6cm x 23.7cm x 4.4cm

(17.2” x 9.3” x 1.7”)

Shipping Dimensions (W, D, H)

52.5cm x 33cm x 10.7cm

(20.7” x 13” x 4.2”)

Net Weight

2.5kg (5.5lbs) approx.

Shipping Weight

3.2kg (7.1lbs) approx.

Accessories

Included

Power cord, rack ears

Optional

For optimum range and performance use the recommended USB,

Ethernet, serial and IR Kramer cables available at

www.kramerav.com/product/VM-214DT

Specifications are subject to change without notice at www.kramerav.com

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
