KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

101L

Video Line Amplifier

P/N: 2900-000160 Rev 2

101L – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 3

2.3 Recycling Kramer Products 3

3Overview 4

3.1 Defining the 101L Video Line Amplifier 4

4Connecting the 101L 5

5Technical Specifications 6

Figures

Figure 1: 101L Video Line Amplifier 4

Figure 2: Connecting the 101L Video Line Amplifier 5

101L - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Products.

Congratulations on purchasing your Kramer 101L Video Line Amplifier, which is

ideal for the following typical applications:

Professional display systems that require long distance delivery of high

quality video

CCTV, medical, and sports applications

101L - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com to check for up-to-date

user manuals, application programs, and to check if firmware

upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer 101L away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

101L - Getting Started

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning:

Disconnect the power and unplug the unit from the wall

before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

101L - Overview

3 Overview

The high performance 101L Video Line Amplifier is used for amplifying the video signal

intensity and improving the image sharpness (the picture quality) when a video signal is

transmitted over a long cable.

In particular, the 101L features:

Extra-wide bandwidth of 500MHz

Gain and equalization trimmer controls to compensate for signal losses

inherent in long cable runs, recessed to prevent tampering

3.1 Defining the 101L Video Line Amplifier

This section defines the 101L.

Figure 1: 101L Video Line Amplifier

Feature

Function

VIDEO OUT BNC Connector

Connects to a video acceptor

VIDEO IN BNC Connector

Connects to the video source

12V DC

+12V DC connector for powering the unit

CONTROL EQ. Trimmer

Adjusts the cable compensation equalization level

CONTROL LEVEL Trimmer

Adjusts the output signal level

ON LED

Illuminates when receiving power

101L - Connecting the 101L

4 Connecting the 101L

Always switch off the power to each device before connecting it to your

101L. After connecting your 101L, connect its power and then switch

on the power to each device.

To connect the 101L, as illustrated in the example in Figure 2, do the following:

1. Connect the video source (for example, a composite video camera) to the

VIDEO IN BNC connector.

It is recommended that you connect the 101L closer to the source than to the acceptor.

2. Connect the VIDEO OUT BNC connector to a video acceptor (for example, a

composite display).

3. Connect the 12V DC power adapter to the power socket on the 101L, and

connect the adapter to the mains electricity.

The ON LED illuminates.

4. If required, adjust the output signal level (LEVEL) and/or cable

compensation equalization level (EQ.) with a small screwdriver.

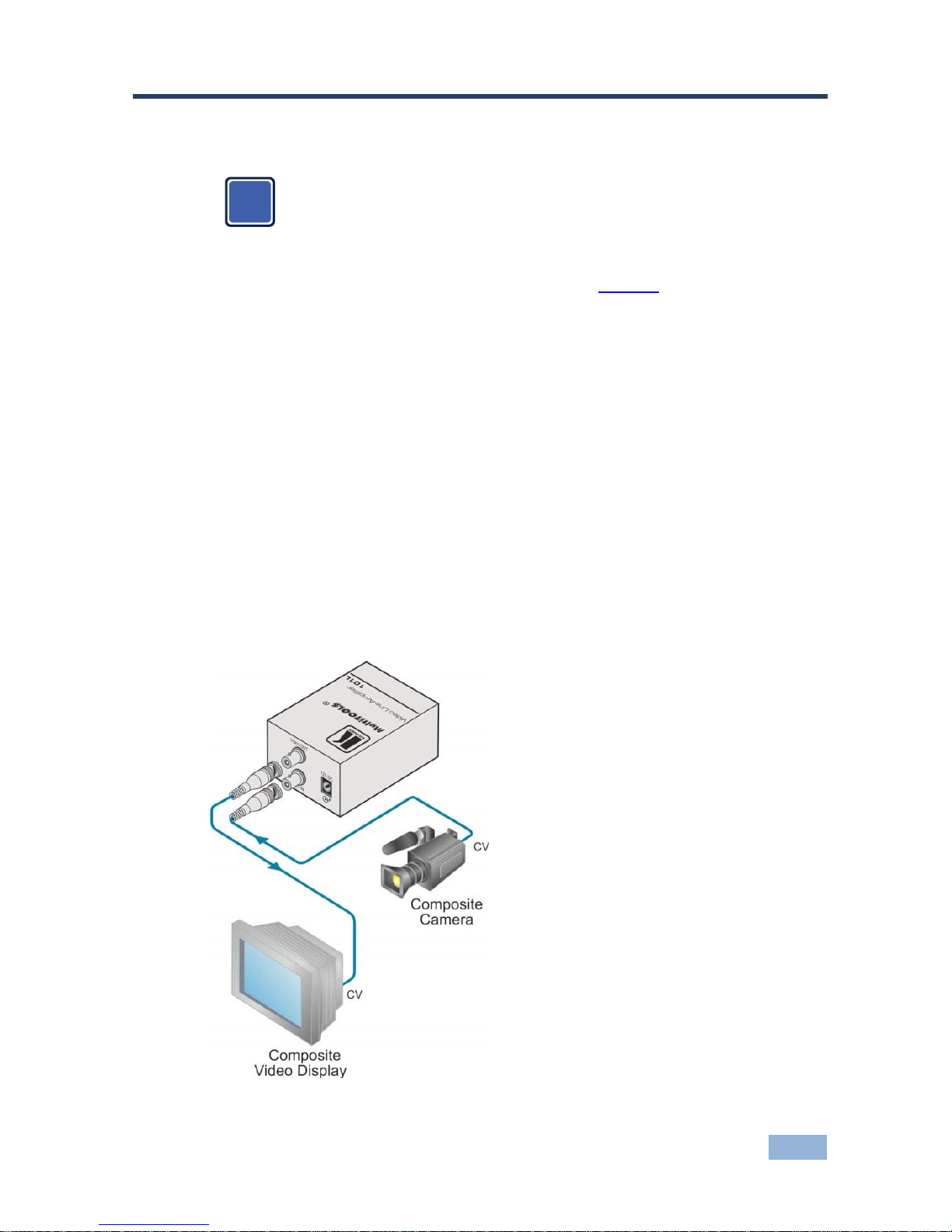

Figure 2: Connecting the 101L Video Line Amplifier

101L - Technical Specifications

5 Technical Specifications

INPUT:

1 composite video, 1Vpp/75on a BNC connector

OUTPUT:

1 composite video, 1Vpp/75on a BNC connector

MAX. OUTPUT LEVEL:

2.5Vpp

BANDWIDTH:

500MHz

DIFF. GAIN:

0.03%

DIFF. PHASE:

0.03Deg.

S/N RATIO:

75dB

CONTROLS:

Level: -0.8dB to 6.5dB; equalization: 0dB to 8dB @ 5MHz

COUPLING:

POWER CONSUMPTION:

12V DC, 60mA

OPERATING TEMPERATURE:

0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE:

-40° to +70°C (-40° to 158°F)

HUMIDITY:

10% to 90%, RHL non-condensing

DIMENSIONS:

5.32cm x 4.36cm x 7.25cm (2.09" x 1.72" x 2.85") W, D, H

WEIGHT:

0.15kg (0.55lbs) approx.

ACCESSORIES:

Power supply

OPTIONS:

RK-1 19”rack adapter

Specifications are subject to change without notice at http://www.kramerelectronics.com
