Kontron MITX-KBL Manuel utilisateur

mITX-KBL - Quick Installation Guide - Version 1.0 // www.kontron.com // 1



mITX-KBL - QUICK INSTALLATION GUIDE

Thank you for purchasing the Kontron mITX-KBL embedded board. This document provides information to allow you to quickly

install this product.

Packing Checklist

1. Take the mITX-KBL out of the packing box and check if the unit is properly secure in the plastic bag.

2. Check the contents of the carton box: (*: optional)

mITX-KBL main board

Rear I/O Shield

COM Port Cable*

DIO Cable*

USB 3.0 Cable*

2-Port USB 2.0 Cable*

SATA Cable*

PS/2 Cable*

VGA Cable*

3G Mini SIM Card Holder Kit*

mITX-KBL - Quick Installation Guide - Version 1.0 // www.kontron.com // 2

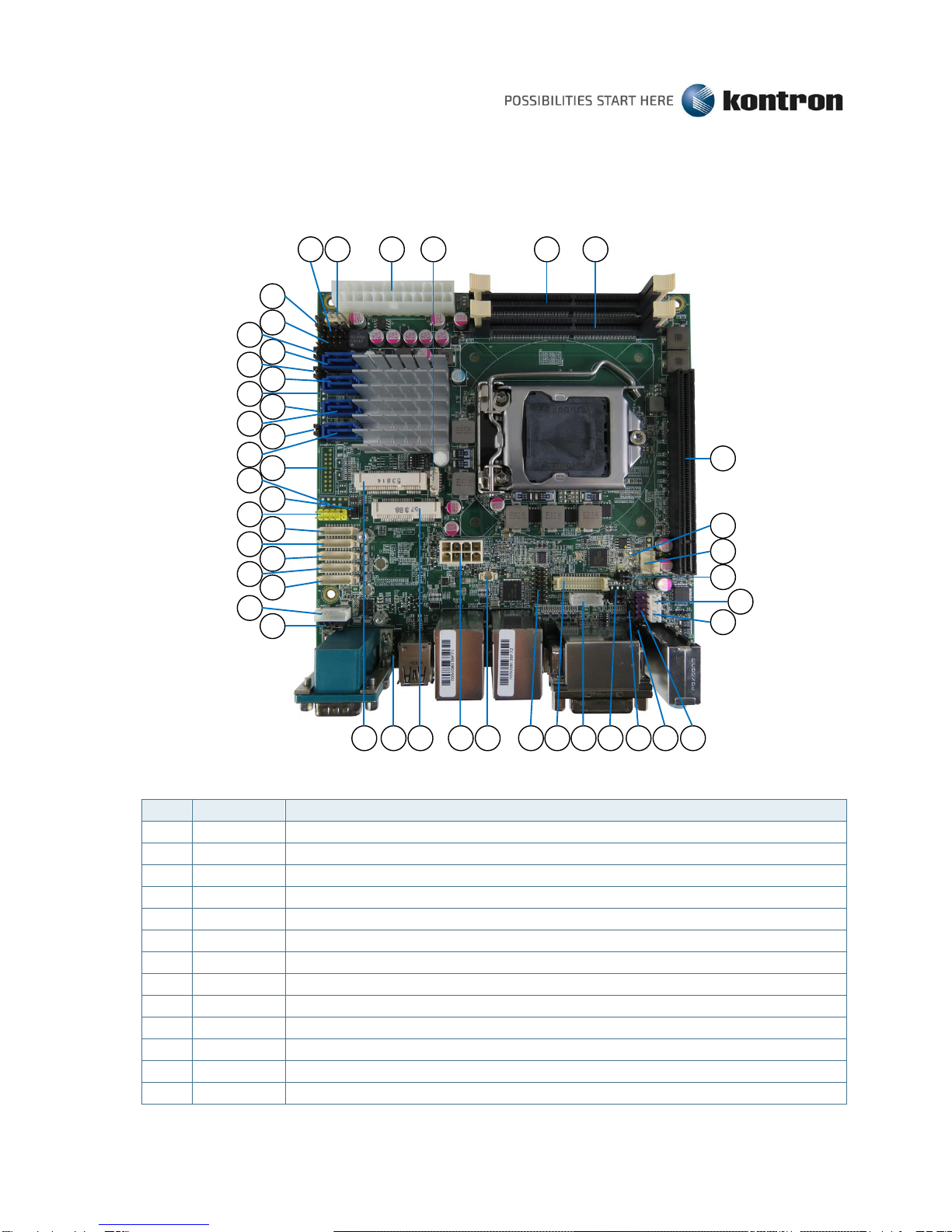

Jumper and Internal Connector Locations

Jumper List

Item

Designation

Description

JP1

AT / ATX Power Mode Selection

JP2

Clear ME Register

JP3

RTC Reset Selection

JP4

mPCIE / mSATA Selection for MPCIE1 (models w/ Q170 only)

JP5

mPCIE / mSATA Selection for MPCIE2 (models w/ Q170 only)

JP6

Keyboard Lock Selection

JP7

mPCIE LED Indicator Pin Header

JP9

PCIE Configuration Setting for PEG1 (models w/ Q170 only)

JP10

Backlight Power Enable Selection for LVDS1

JP11

Panel & Backlight Power Selection for LVDS1

JP12

Pin-9 Selection for COM1

JP13

ME F/W Selection

JP14

Pin-9 Selection for COM2

mITX-KBL - Quick Installation Guide - Version 1.0 // www.kontron.com // 3

Internal Connector List

Item

Designation

Description

ATX1

2x12-pin ATX Power Supply Wafer

ATX2

2x2-pin ATX Power Supply Wafer

BAT1

CR2032 Battery Power Input Wafer

CN1

USB3.0 Port-5, 6 Box Header (models w/ Q170 only)

CN2

SIM Interface Wafer for MPCIE2

CN3

USB2.0 Port 11, 12 Pin Header (models w/ Q170 only)

CN4

USB2.0 Port 7, 8 Pin Header

CN5

8-bit Digital Input / Output Pin Header

CN6

RS-232 / 422 / 485 Port 3 Wafer

CN7

RS-232 Port 4Wafer

CN8

RS-232 Port 5Wafer

CN9

RS-232 Port 6Wafer

CN10

VGA Header

CN11

Left Channel 3W Audio AMP Output Wafer

CN12

Backlight Power Output Wafer for LVDS1

CN13

Front Panel Audio Pin Header

CN14

SPDIF-Out Pin Header

CN15

PS/2 Keyboard & Mouse Mini-DIN Connector

CN16

Right Channel 3W Audio AMP Output Wafer

FAN1

CPU FAN Wafer

FAN2

System FAN Wafer

FP1

Front Panel Pin Header 1

FP2

Front Panel Pin Header 2

MPCIE1

Half Size mPCIE / mSATA Socket

MPCIE2

Full Size mPCIE / mSATA Socket

PEG1

PCIEx16 Slot

SATA1

Serial ATA Port-0 Connector

SATA2

Serial ATA Port-1 Connector

SATA3

Serial ATA Port-2 Connector

SATA4

Serial ATA Port-3 Connector

DIMM1

DDR4 Memory SO-DIMM Socket

DIMM2

DDR4 Memory SO-DIMM Socket

LVDS1

Primary 24-bit, 2-channel LVDS Panel Connector

mITX-KBL - Quick Installation Guide - Version 1.0 // www.kontron.com // 4

Jumper Settings

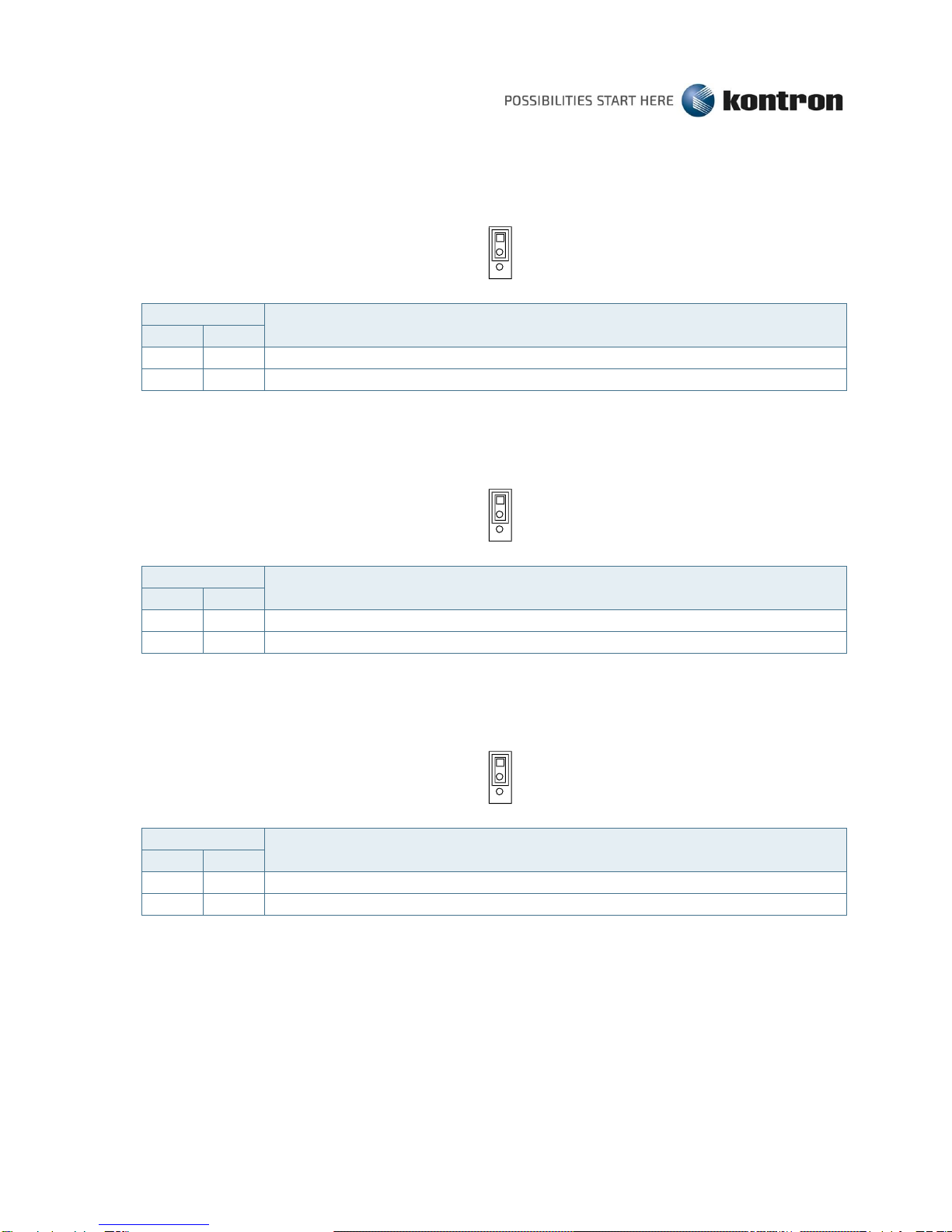

AT / ATX Power Mode Selection (JP1)

Jumper 1 Position

Description

Pin 1-2

Pin 2-3

ATX Mode

AT Mode

“X” = Jumper set (short) and “-” = jumper not set (open)

Clear ME Register (JP2)

Jumper 1 Position

Description

Pin 1-2

Pin 2-3

Normal

Clear ME Register

“X” = Jumper set (short) and “-” = jumper not set (open)

RTC Reset Selection (JP3)

Jumper 1 Position

Description

Pin 1-2

Pin 2-3

Normal (default position)

Clear RTC CMOS (board does not boot with the jumper in this position)

“X” = Jumper set (short) and “-” = jumper not set (open)

mITX-KBL - Quick Installation Guide - Version 1.0 // www.kontron.com // 5

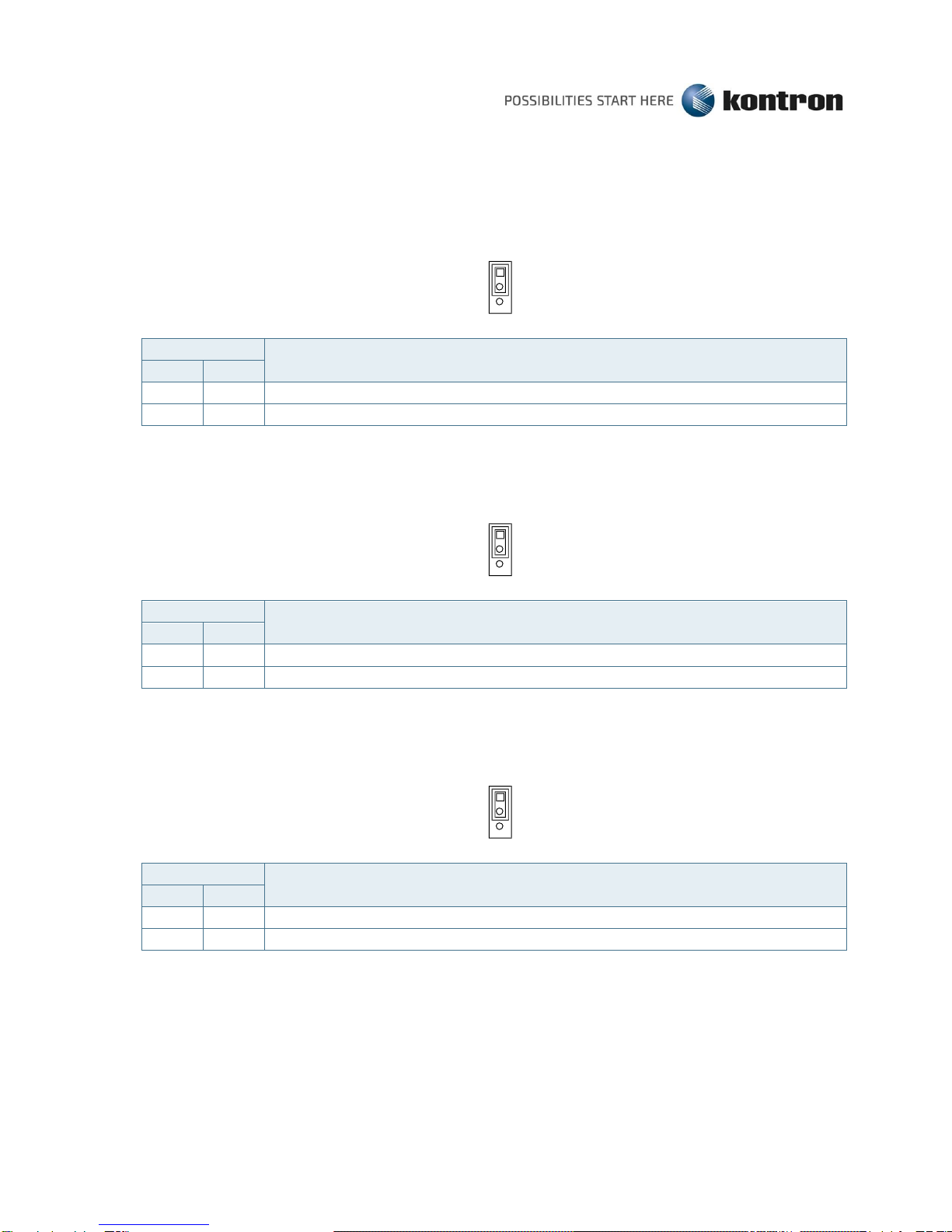

mPCIE / mSATA Selection for MPCIE2 (JP4) (only for models with Intel® Q170 Chipset)

Jumper 1 Position

Description

Pin 1-2

Pin 2-3

mSATA

mPCIE

“X” = Jumper set (short) and “-” = jumper not set (open)

mPCIE / mSATA Selection for MPCIE1 (JP5) (only for models with Intel® Q170 Chipset)

Jumper 1 Position

Description

Pin 1-2

Pin 2-3

mSATA

mPCIE

“X” = Jumper set (short) and “-” = jumper not set (open)

Keyboard Lock Selection (JP6)

Jumper 1 Position

Description

Pin 1-2

Pin 2-3

Normal

Keyboard Locked

“X” = Jumper set (short) and “-” = jumper not set (open)

mITX-KBL - Quick Installation Guide - Version 1.0 // www.kontron.com // 6

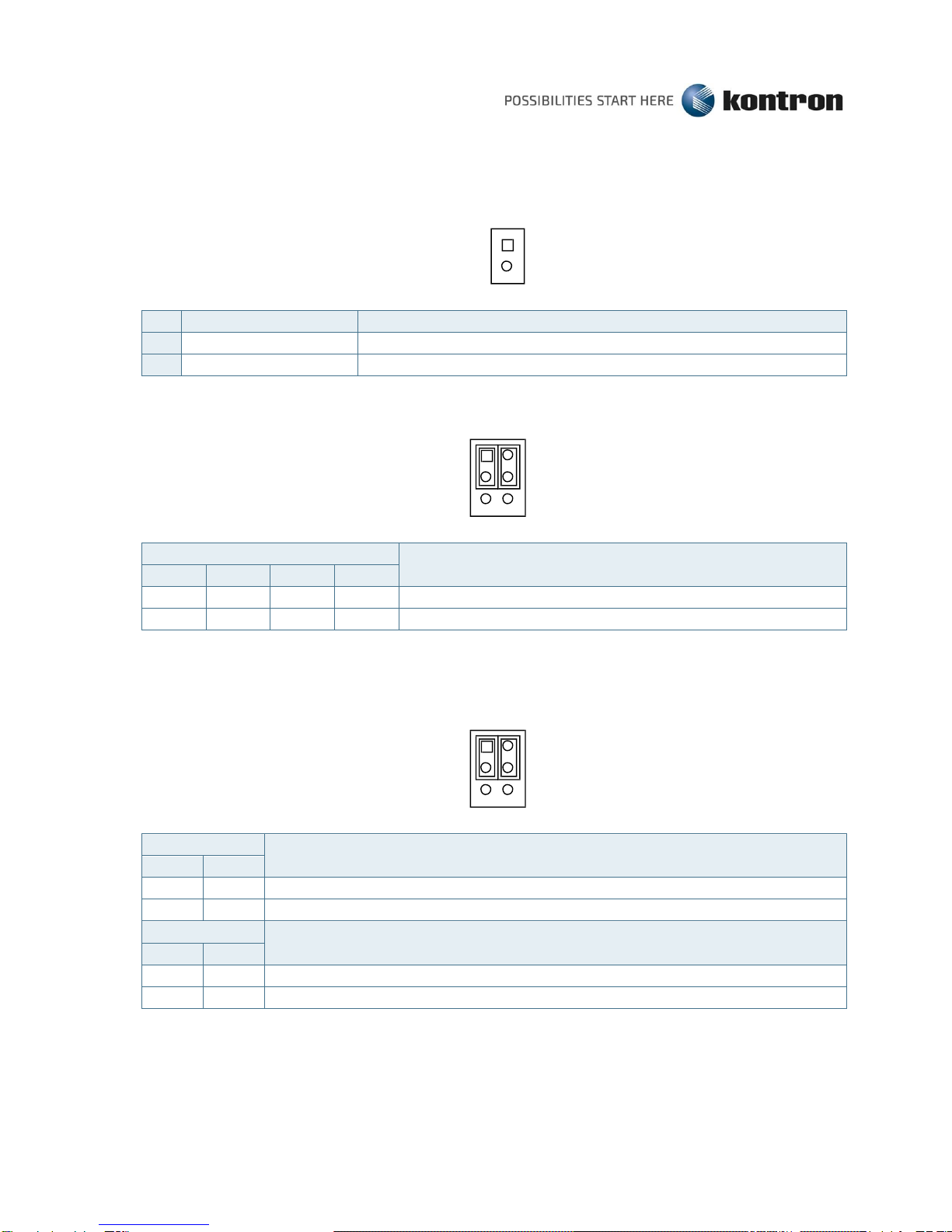

MPCIE LED Indication Pin Header (JP7)

Signal

Note

LED+

LED-

Panel & Backlight Power Selection for PEG1 (JP9) (only for models with Intel® Q170 Chipset)

Jumper Position

Description

Pin 1-3

Pin 3-5

Pin 2-4

Pin 4-6

x16

x8 x8

“X” = Jumper set (short) and “-” = jumper not set (open)

Backlight Power Enable Selection for LVDS1 (JP10)

Jumper 1 Position

Description

Pin 1-3

Pin 3-5

Backlight Enable Voltage = +3.3V

Backlight Enable Voltage = +5V

Jumper 2 Position

Description

Pin 2-4

Pin 4-6

Active High

Active Low

“X” = Jumper set (short) and “-” = jumper not set (open)

mITX-KBL - Quick Installation Guide - Version 1.0 // www.kontron.com // 7

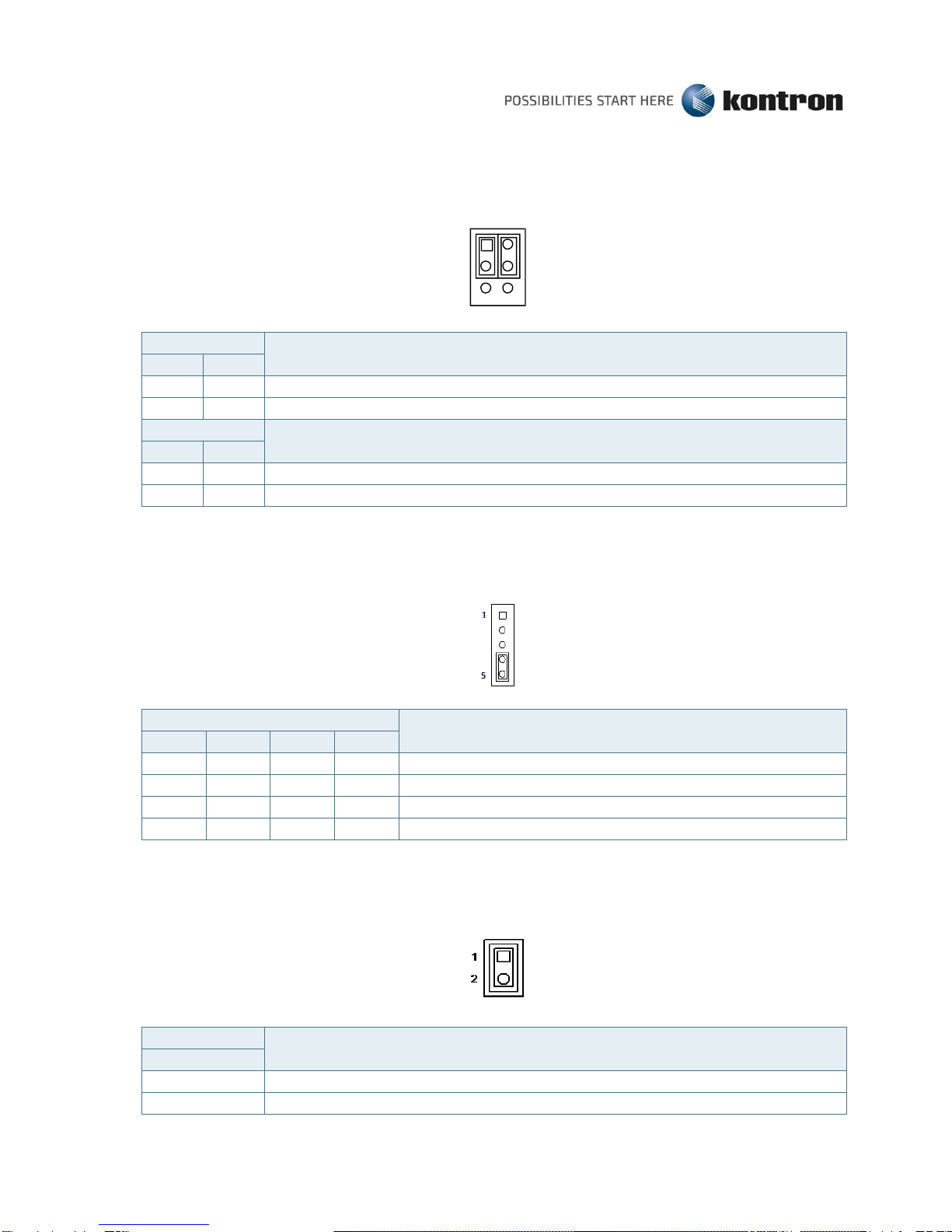

Panel & Backlight Power Selection for LVDS1 (JP11)

Jumper 1 Position

Description

Pin 1-3

Pin 3-5

Backlight Power = +12V

Backlight Power = +5V

Jumper 2 Position

Description

Pin 2-4

Pin 4-6

Panel Power = +3.3V

Panel Power = +5V

“X” = Jumper set (short) and “-” = jumper not set (open)

Pin-9 Selection for COM1 (JP12)

Jumper Position

Description

Pin 1-2

Pin 2-3

Pin 3-4

Pin 4-5

COM1, Pin-9 = +12V

COM1, Pin-9 = +5V

COM1, Pin-9 = RI

“X” = Jumper set (short) and “-” = jumper not set (open)

ME F/W Selection (JP13)

Jumper Position

Description

Pin 1-2

Security Measures Defined by BIOS are Over-written

Security Measures Defined are Set

“X” = Jumper set (short) and “-” = jumper not set (open)

mITX-KBL - Quick Installation Guide - Version 1.0 // www.kontron.com // 8

Pin-9 Selection for COM2 (JP14)

Jumper Position

Description

Pin 1-2

Pin 2-3

Pin 3-4

Pin 4-5

COM1, Pin-9 = +12V

COM1, Pin-9 = +5V

COM1, Pin-9 = RI

“X” = Jumper set (short) and “-” = jumper not set (open)

mITX-KBL - Quick Installation Guide - Version 1.0 // www.kontron.com // 9

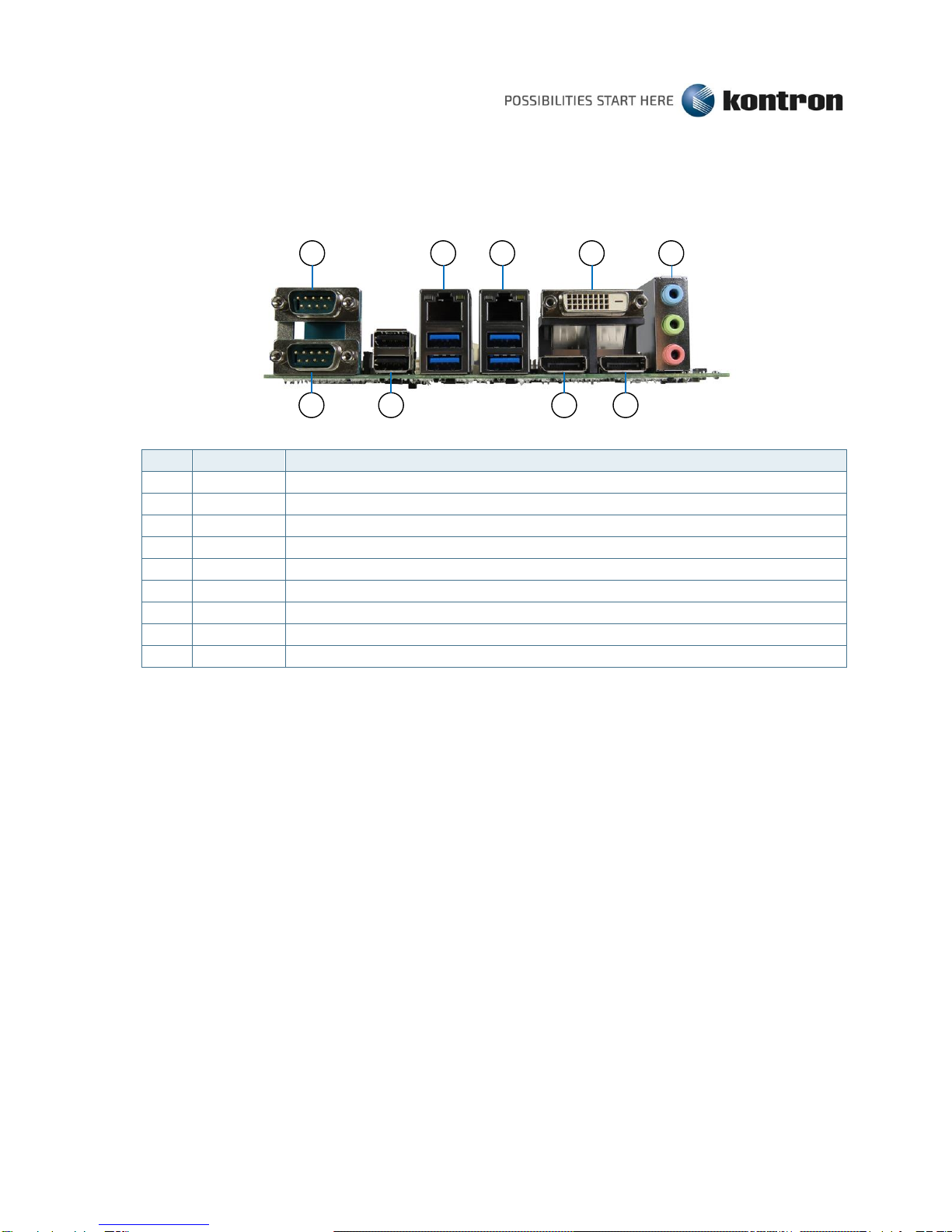

Real I/O Panel Connector Locations

Item

Designation

Description

CN17

GbE LAN1 & USB3.0 Port-1, 2 Connector

CN18

GbE LAN2 & USB3.0 Port-3, 4 Connector

CN19

DVI-D Connector

CN20

Line-In, Line-Out & Mic-In Audio Jacks

CN21

USB2.0 Port-9, 10

CN22TOP

RS-232 / 422 / 485 COM2 Connector

CN22BOT

RS-232 / 422 / 485 COM1 Connector

CN23

Display Port B Connector

CN24

Display Port A Connector
