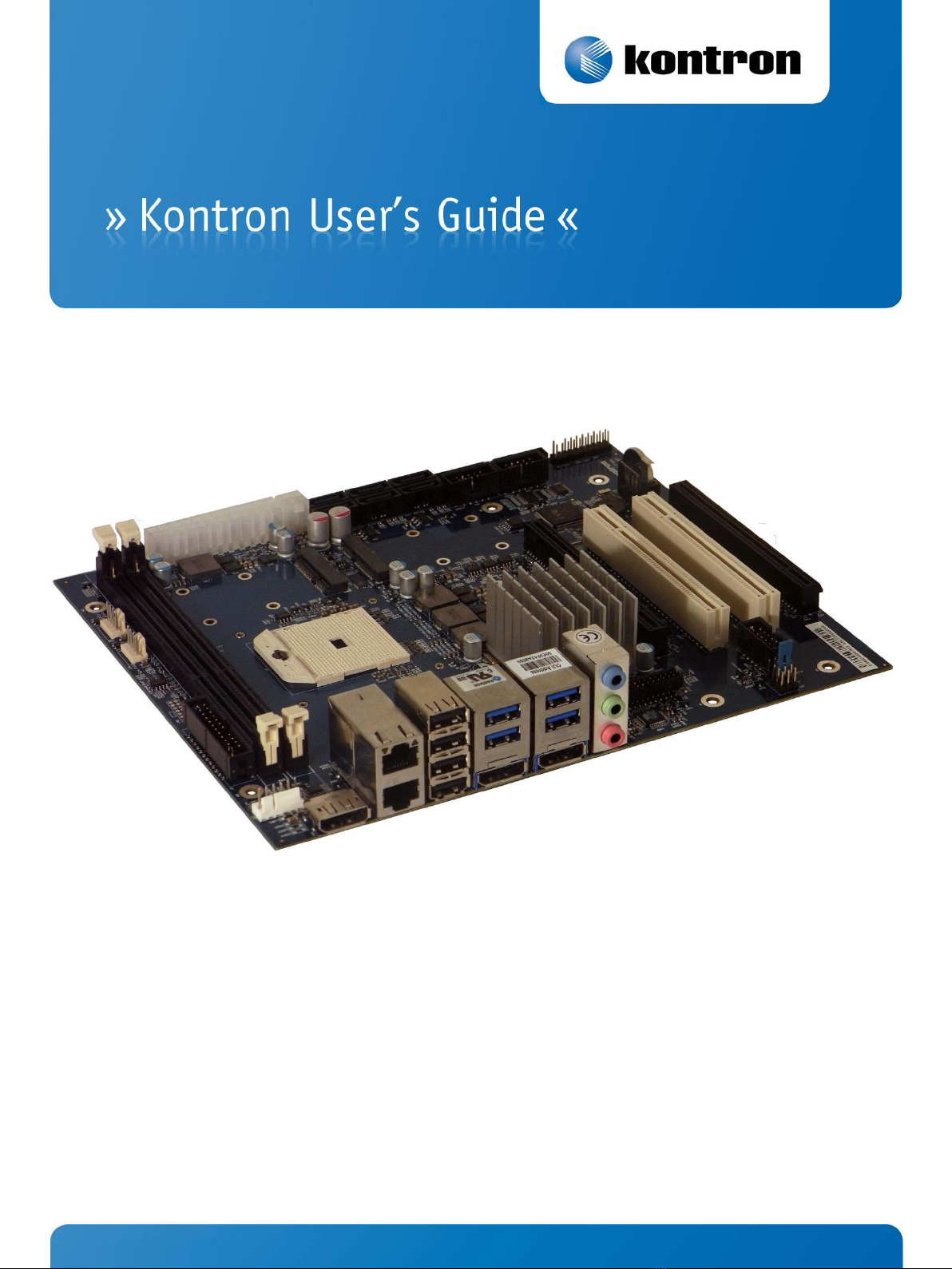

KTA75/Flex

KTD-N0876-0

Error! Use the Home tab to apply Überschrift 1 to the text that you want to appear here.

Table of Contents

KTA75/Flex Users Guide

» Table of Contents «

1Introduction ........................................ 5

2Installation Procedure .............................. 6

2.1 Installing the Board ................................................. 6

2.2 Requirements IEC60950 ................................................ 7

3System Specifications ............................... 8

3.1 Component main data .................................................. 8

3.2 KTA75/Flex Block Diagram ............................................ 14

3.3 USB ports overview .................................................. 15

4Connectors Locations ............................... 18

4.1 KTA75/Flex Topview .................................................. 18

5Connector Signal Definitions ....................... 19

6Rear IO Connectors ................................. 20

6.1 DisplayPort (DP0/DP1/DP2)( J3/J4/J44) ............................... 20

6.2 USB3.0 Connectors (USB10/USB11/USB12/USB13)(J15/J15/J14/J14) ........ 23

6.3 Ethernet Connectors (ETH1/ETH2) (J8) ................................ 25

6.4 USB x4 Stack Connector (USB6/USB7/USB8/USB9) (J20) .................. 26

6.5 Audio Interface (J40) ............................................... 28

7Pin Connectors ..................................... 29

7.3 Audio Header Connector (J41) ........................................ 31

7.4 USB4/5 Connector (J16) .............................................. 32

7.5 Jumper area (J34, J35, J36, J37) .................................... 34

7.6 SPI Connector (J21) ................................................. 35

7.7 COM1/COM2 (J23/J22) ................................................. 36

7.8 LPC Connector (J29) ................................................. 37

7.9 Front Panel Connector (J5) .......................................... 38

7.10 CPU/System Fan Connectors (J25, J24) ................................ 40

7.11 Feature Connector (J26) ............................................. 41

7.12 KBD/MSE (J27) ....................................................... 46

8Slot Connectors (PCI-Express, miniPCIe, PCI, SATA,

mSATA) .................................................. 47

8.1 PCIex16 (in x16 slot) (J7) .......................................... 47

8.2 PCIex4 (J6) ........................................................ 49

8.3 mPCIe connector (J38) ............................................... 51

8.4 mSATA/mPCIe Connector (J43) ......................................... 52

Error! Use the Home tab to apply Überschrift 1 to the text that you want to appear here.

Table of Contents

KTA75/Flex Users Guide

8.5 PCI slot connectors (J18 & J28) ..................................... 53

8.6 SATA0, SATA1, SATA2, SATA3, SATA4 & SATA5 (J12, J13, J9, J11, J10 &

J39) 57

Appendix: Mating Connectors ............................. 58

Appendix: OS Setup ...................................... 59

KTD-N0876-0 Page 1 General Information

KTA75/Flex Users Guide

Document Revision History

Rev.

Date

Comment

Mar 21th 2013

MLA

Preliminary version ofKTA75/Flex.

No part of this document may be reproduced or transmitted in any form

or by any means, electronically or mechani- cally, for any purpose

without the express written permission of KONTRON Technology A/S.

KTD-N0876-0 Page 2 General Information

KTA75/Flex Users Guide

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of

their respective owners.

Disclaimer

KONTRON Technology A/S reserves the right to make changes without

notice to any product, including circuits and/or software described or

contained in this manual in order to improve design and/or

performance.

Specifications listed in this manual are subject to change without

notice. KONTRON Technology assumes no responsibility or liability for

the use of the described product(s), conveys no license or title under

any patent, copyright or mask work rights to these products and makes

no representations or warranties that these products are free from

patent, copyright or mask work right infringement unless otherwise

specified. Applications that are described in this manual are for

illustration purposes only. KONTRON Technology A/S makes no

representation or warranty that such application will be suitable for

the specified use without further testing or modification.

Life Support Policy

KONTRON Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS

IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT EXPRESS WRITTEN APPROVAL OF

THE GENERAL MANAGER OF KONTRON Technology A/S.

As used herein:

Life support devices or systems are devices or systems which (a) are

intended for surgical implant into body or (b) support or sustain life

and whose failure to perform when properly used in accordance with

instructions for use provided in the labelling can be reasonably

expected to result in significant injury to the user.

A critical component is any component of a life support device or

system whose failure to perform can be reasonably expected to cause

the failure of the life support device or system or to affect its

safety or effectiveness.

KTD-N0876-0 Page 3 General Information

KTA75/Flex Users Guide

KTA75/Flex P/N: 66110000

Prod.code:A4Q S/N: 01148401

KONTRON Technology Technical Support

If you have questions about installing or using your KONTRON

Technology Product, then check this User’s Manual first – you will

find answers to most questions here. To obtain support please contact

your local Kontron Sales Partner or Kontron Field Application Engineer

(FAE).

Before Contacting Support: Please be prepared to provide as much

information as possible:

CPU Board

1.Type and P/N (Part Number), find label like:

2.S/N (Serial Number), find label like:

Configuration (if relevant)

1.CPU Type and Clock speed

2.DRAM Type and Size.

3.BIOS Revision (find the version info in the BIOS Setup Menu).

4.BIOS Settings different than Default Settings.

System (if relevant)

1.OS (Operating System) Make and Version.

2.Driver Version numbers: Graphics, Network, and Audio etc.

3.Attached Hardware: Harddisks, CD-Rom, Display Panels etc.

KTD-N0876-0 Page 4 General Information

KTA75/Flex Users Guide

Warranty

KONTRON Technology warrants its products to be free from defects in

material and workmanship during the warranty period. If a product

proves to be defective in material or workmanship during the warranty

period KONTRON Technology will, at its sole option, repair or replace

the product with a similar product.

Replacement Product or parts may include remanufactured or refurbished

parts or components.

The warranty does not cover:

1.Damage, deterioration or malfunction resulting from:

A. Accident, misuse, neglect, fire, water, lightning or other

acts of nature, unauthorized product modification or failure

to follow instructions supplied with the product.

B. Repair or attempted repair by anyone not authorized by

KONTRON Technology.

C. Causes external to the product, such as electric power

fluctuations or failure.

D. Normal wear and tear.

E. Any other causes which does not relate to a product defect.

2.Removal, installation and set-up service charges.

Exclusion of damages:

KONTRON TECHNOLOGY LIABILITY IS LIMITED TO THE COST OF REPAIR OR

REPLACEMENT OF THE PRODUCT. KONTRON TECHNOLOGY SHALL NOT BE LIABLE

FOR:

1.DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT,

DAMAGES BASED UPON INCON- VENIENCE, LOSS OF USE OF THE PRODUCT,

LOSS OF TIME, LOSS OF PROFITS, LOSS OF BUSINESS OPPORTUNITY,

LOSS OF GOODWILL, INTERFERENCE WITH BUSINESS RELATIONSHIPS OR

OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THEIR POSSIBILITY OF

SUCH DAMAGES.

2.ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR

OTHERWISE.

3.ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY.

KTD-N0876-0 Page 5 Introduction

KTA75/Flex Users Guide

1Introduction

This manual describes the KTA75/Flex family of boards made by KONTRON

Technology A/S. These board will also be denoted KTA75 within this

Users Guide.

The KTA75 is designed to support the listed APU variants (uPGA 722pin

processors) and AMD A75 Fusion Controller Hub (FCH) A75 on a Flex form

factor. See the chapter System Specifications for more specific

details.

APU variants

AMD PN

Processor data

R-464L

RE464LDEC44HJE

2.3 GHz –Quad Core –35W

R-460H

RE460HDEC44HJE

1.9 GHz –Quad Core –35W

R-272F

RE272FDEC23HJE

2.7 GHz –Dual Core –35W

R-268D

RE268DDEC23HJE

2.5 GHz –Dual Core –35W

The 4 versions have the same type of active CPU cooler (the cooler is

by default not premounted, but can be ordered with this obtion).

Use of this Users Guide implies a basic knowledge of PC-AT hard- and

software. This manual is focused on describing the KTA75 board’s

special features and is not intended to be a standard PC-AT textbook.

New users are recommended to study the Installation Procedure stated

in the following chapter before switching-on the power.

All configuration and setup of the CPU board is either done

automatically or manually by the user via the BIOS setup menus. Only

exceptions are the Clear CMOS jumper and the Always On jumper.

KTD-N0876-0 Page 6 System Specifications

KTA75/Flex Users Guide

Warning: Turn off PSU (Power Supply Unit) befor configuring

the board and do not hot plug power supply, otherwise

components (RAM, LAN cards etc.) might get damaged.

Warning: please notice that the board contains components on

both sides of the PCB which can easily be damaged if board is

handled without reasonable care. A damaged component can

result in malfunction or no function at all. Do not use

washers with teeth as they can damage the PCB and may cause

2Installation Procedure

2.1 Installing the Board

To get the board running, follow these steps. If the board shipped

from KONTRON has already components like RAM mounted, then relevant

steps below can be skipped.

1. Turn off the PSU (Power Supply Unit)

2. Insert the DDR3 UDIMM 240 Pin module(s)

Be careful to push it in the slot(s) before locking the tabs.

3. Connecting Interfaces and PSU

Insert all external cables for hard disk, keyboard etc. A

display/monitor must be connected in order to be able to change

BIOS settings. Connect a standard ATX/BTX PSU to the board by the

inserting power cables into 24-pin ATX and the 4-pin ATX+12V PWR

plugs connectors.

4. Power Button

Turn on mains power to the PSU. If board doesn’t boot, then

PWRBTN_IN must be toggled; this is done by shorting pins 16

(PWRBTN_IN) and pin 18 (GND) on the FRONTPNL connector (see

Connector description), by use of a “normally open” switch etc.

5. BIOS Setup

Enter the BIOS setup by pressing the <Del> key during boot up. Enter

Exit Menu and Load Optimal Defaults. Refer to the “BIOS

Configuration / Setup“ section of this manual for details on BIOS

setup.

6. Mounting the board to chassis

It is recommended using screws with integrated washer and having

diameter of approx. 7mm.

Note: To clear all BIOS settings, including Password protection,

activate Clear CMOS Jumper for ~10 sec (without power connected).

KTD-N0876-0 Page 7 System Specifications

KTA75/Flex Users Guide

2.2 Requirements IEC60950

Users of KTA75 should take care when designing chassis interface

connectors in order to fulfil the IEC60950 standard.

Lithium battery precautions

CAUTION!

Danger of explosion if battery is

incorrectly re- placed. Replace only

with same or equivalent type

recommended by manufacturer. Dispose

of used batteries according to the

manufacturer’s instruc- tions.

VORSICHT!

Explosionsgefahr bei unsachgemäßem

Austausch der Batterie. Ersatz nur

durch den selben oder einen vom

Hersteller empfohlenen gleichwertigen

Typ. Entsorgung gebrauchter Batterien

nach Anga- ben des Herstellers.

ATTENTION!

Risque d'explosion avec l'échange

inadéquat de la batterie. Remplacement

seulement par le même ou un type

équivalent recommandé par le

producteur. L'évacuation des batteries

usagées conformément à des indications

du fabricant.

PRECAUCION!

Peligro de explosión si la batería se

sustituye incorrectamente. Sustituya

solamente por el mismo o tipo

equivalente recomendado por el

fabricante. Disponga las baterías

usadas según las instrucciones del

fabricante.

ADVARSEL!

Lithiumbatteri –Eksplosionsfare ved

fejlagtig håndtering. Udskiftning må

kun ske med batteri af samme fabrikat

og type. Levér det brugte batteri

tilbage til leverandøren.

ADVARSEL!

Eksplosjonsfare ved feilaktig skifte av

batteri. Benytt samme batteritype eller

en tilsvarende type anbefalt av

apparatfabrikanten. Brukte batterier

kasseres i henhold til fabrikantens

instruksjoner.

VARNING!

Explosionsfara vid felaktigt

batteribyte. Använd samma batterityp

eller en ekvivalent typ som

rekommenderas av apparattillverkaren.

Kassera använt batteri enligt

fabrikantens instruktion.

VAROITUS!

Paristo voi räjähtää, jos se on

virheellisesti asennettu. Vaihda

paristo ainoastaan lalteval- mistajan

suosittelemaan tyyppiln. Hävitä

käytetty paristo valmistajan ohjeiden

mukaisesti.

When an interface or connector has a VCC (or other power) pin which is

directly connected to a power plane like the VCC plane:

To protect the external power lines of the peripheral devices the

customer has to take care about:

•That the wires have suitable rating to withstand the maximum

available power.

•That the enclosure of the peripheral device fulfils the fire

protecting requirements of IEC60950.

Table des matières

Autres manuels Kontron Carte mère

Kontron

Kontron ETXexpress Eval Type 3 Manuel utilisateur

Kontron

Kontron FlexATX-KBL-S-C236 Manuel utilisateur

Kontron

Kontron 786LCD/mITX Manuel utilisateur

Kontron

Kontron KTQ67/Flex Manuel utilisateur

Kontron

Kontron MOPSPM104 Manuel utilisateur

Kontron

Kontron nanoETXexpress Manuel utilisateur

Kontron

Kontron mITX-KBL-S Manuel utilisateur

Kontron

Kontron SMARC-sAL28 Manuel utilisateur

Kontron

Kontron MBATX-845GV-VEAH Manuel utilisateur

Kontron

Kontron Qseven-Eval Carrier Manuel utilisateur

Kontron

Kontron AdvancedTCA Series Manuel utilisateur

Kontron

Kontron ATX-KBL-S Manuel utilisateur

Kontron

Kontron ECX-BYT Manuel utilisateur

Kontron

Kontron KT690/mITX Manuel utilisateur

Kontron

Kontron KTG41/ATXu Manuel utilisateur

Kontron

Kontron mITX-DNV Manuel utilisateur

Kontron

Kontron mITX-E3826 Manuel utilisateur

Kontron

Kontron KT690/mITX Manuel utilisateur

Kontron

Kontron K393 Series Manuel utilisateur

Kontron

Kontron EPIC/PM Manuel utilisateur

Kontron

Kontron COMe Ref.Carrier T6 Manuel d'utilisation

Kontron

Kontron COMe-m4AL10 Manuel utilisateur

Kontron

Kontron mITX-SKL-H Manuel utilisateur

Kontron

Kontron ETXexpress UGM Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
