Konica Minolta DRYPRO SIGMA Manuel utilisateur
KONICA MINOLTA DRYPRO SIGMA Laser Imaging System
The DRYPRO SIGMA Laser Imaging System is intended to provide hard copy images
from digital imaging source output signals onto KONICA MINOLTA MEDICAL IMAGING
FILM SD-S. The device is intended for use with a variety of digital modalities,
including, but not limited to, CR (Computed Radiology), DR (Digital Radiology), CT
(Computerized Tomography) and MRI (Magnetic Resonance Imaging). The images
are to be used for medical diagnosis and referral to physicians and their patients.
This device is not intended to be used with Full Field Digital Mammography units or
Computed Radiography units supporting digital mammography.
Intended Use
Pub No. 9G7571_en, Rev. B, 2013-04-01
© KONICA MINOLTA, INC., 2013
KONICA MINOLTA and DRYPRO are trademarks of KONICA
MINOLTA, INC.
KONICA MINOLTA, INC.
1 Sakura-machi, Hino-shi, Tokyo, 191-8511, Japan
Getting Started
Your laser imager comes with several publications to help you get started quickly and
safely. Locate the following publications:
• SafetyManual(9G7565):Reviewthismanualrsttounderstandhowtopositionandwork
with the laser imager safely and within regulations.
• Pre-Installation Manual (9G7563): Ensure that your site is ready for the installation.
• Installation Manual (9G7567): Learn how to install the laser imager.
• Operation Manual (9G7564): See this guide for a product overview, use instructions, and
troubleshooting tips.
• Quick Reference Card (9G7566): Keep this card in a convenient place and reference it as
needed.
The DRYPRO SIGMA Laser Imager prints on KONICA MINOLTA Medical Imaging Film.
Film Types
Pub history:
A: 2011-03-31. First release.
B: Updated the company name.
2015-04-17 9G7567_en 1
Installation Manual
Requirements to install the laser imager
CAUTION:
The laser imager weighs approximately 54 kg (120 lb). Two
people must use safe lifting techniques to move the laser
imager. One person can complete the remaining steps. The
installation must be performed by qualified personnel.
Required tools • Phillips screwdriver
• Scissors
• Straight blade screwdriver
• Crossover cable (not shown)
Required information You will need:
• IP Address and related network information for the laser imager
• Configuration information for each modality that will print to the laser
imager
This information should have been previously collected and recorded in
the Pre-Installation Manual that was provided to your site.
If you do not have the Pre-Installation Manual, contact your dealer or
qualified service provider.
Task Recommended Skill or Knowledge
Unpack the laser imager. Ability to use common hand tools.
Use a personal computer to view the documentation on
the publications disc supplied with the laser imager.
Basic personal computer skills.
Connect a personal computer to the laser imager and
enter the network information.
Familiarity with TCP/IP network addressing
conventions.
Configure the laser imager to print from a modality. Familiarity with DICOM protocol.
Make a backup disk of the configuration. Understand personal computer file name
conventions.
2 9G7567_en 2015-04-17
Unpacking the laser imager
Checking the
accessories
Check that the following items are included in the accessories box:
• Power cord
• Network cable
• Deodorant filter
• Publications kit
IMPORTANT: Please read the Safety Manual before you proceed to
install or operate the laser imager.
1. Remove the two foam assemblies.
2. Open the bag that covers the laser imager.
CAUTION:
Use safe lifting techniques and two people to move the laser
imager.
3. Lift the laser imager from the carton and set it on a flat surface.
Position the laser imager temporarily so there is a space of at least
1 m (39 in.) at the back of the laser imager.
Foam Assemblies
Accessories
Box
2015-04-17 9G7567_en 3
Moving the shipping
brackets and retainer Shipping brackets are fastened inside the laser imager to keep the parts
safe during shipment. You must remove them, and then reinstall them in
a different location (as shown) inside the laser imager. This prevents the
shipping brackets from becoming lost. You must also remove the rollback
retainer.
NOTE: If it is necessary to ship the laser imager again, you must return
the shipping brackets to the shipping locations.
1. To move the back shipping brackets, remove:
a. Back cover
b. 4 screws that fasten the 2 shipping brackets
Back view of laser imager
2. Rotate the shipping brackets and reattach them in the alternate set
of holes on the rail.
3. Retain the other 2 bracket screws: Install the screws into any of the
empty holes where the bracket was attached earlier.
4. Replace the back cover.
5. At the front of the imager, open the film supply. Reach in and
remove the foam rollback retainer.
Shipping Brackets
Shipping Brackets reattached
4 9G7567_en 2015-04-17
6. To move the front shipping bracket, remove 4 screws that fasten the
shipping bracket.
Front view of laser imager
7. Use 2 of the screws to reattach the shipping bracket in the alternate
set of holes on the left side of the rail.
8. Retain the other 2 bracket screws: Install the screws into any of the
empty holes where the bracket was attached earlier.
9. Remove the right cover:
a. Remove the top cover. (Leave the film supply open.)
b. Remove 2 screws that attach to the right cover standoffs.
FRONT SHIPPING
BRACKET
(FILTER REMOVED
Shipping
Bracket
Front Shipping
Bracket in
Storage
Shipping
Bracket
reattached
H221_6003AC
2 screws
2015-04-17 9G7567_en 5
10. Behind the right cover, locate the tie wrap that fastens the exposure
transport belt. The tie wrap removes tension from the belt during
shipping. Cut and remove the tie wrap from the belt.
11. Install the deodorant filter.
12. Reinstall the right and top covers.
13. Close the film supply.
H221_6030GC
Tie Wrap
Film Supply
Filter
6 9G7567_en 2015-04-17
Connecting to electrical power
1. Locate the power cord. The power cord must match the AC power
outlets at your site.
If you cannot use the power cord that is provided, obtain a suitable
power cord locally. You must use an agency-approved power cord
rated for adequate amperage with a plug type suitable for your
location. Contact your dealer if you need assistance.
2. Check that the voltage on the label over the power cord inlet
matches the AC voltage at your site.
CAUTION:
If the voltage on the label does not match the AC voltage at
your site, do not continue with the installation. Contact your
dealer or qualified service provider.
Power cord inlet labels and connectors
3. Remove the power cord inlet label.
RISK OF ELECTRIC SHOCK:
Dangerous voltage!
4. Connect the power cord to the:
• AC power connector on the laser imager.
• Building AC power outlet.
OR
Laser
Imager
Back
Panel
2015-04-17 9G7567_en 7
Applying power
1. Check that the film supply is closed.
2. To start the laser imager, press the power switch on the back of the
laser imager to on (|). Wait as the laser imager warms up. The
warm-up period might last up to 30 minutes. The display screen
shows the progress as the laser imager becomes ready to print.
Warming up
The warm-up period varies depending on how long the laser imager
has been off and the ambient temperature.
NOTE: If the laser imager does not start, see “Troubleshooting” on page
12.
Inserting a film cartridge
1. Open the film supply.
2. Insert the film cartridge. Align the cartridge with the label facing up
and the perforations to the front. Set the leading edge on the
cartridge guides, then slide the film cartridge into the laser imager to
engage the detents in the bottom of the cartridge.
3. Close the film supply.
4. Check that the film count appears on the display screen.
NOTE: If a film count does not appear, see the Operation Manual for
help.
The power symbol is
yellow and flashing
while the laser
imager warms up
A countdown to zero (0) indicates
how soon the laser imager will be
ready to print
H210_1020AC
H210_1020ACA
Leading Edge
Detents
Perforations
Cartridge
Guide
Film Supply
8 9G7567_en 2015-04-17
Configuring the laser imager
Setting up your
computer to
communicate with the
laser imager
Do this procedure at your computer.
1. Select Start>Settings>Network Connections.
NOTE: Depending on your operating system, this might be
Start>Settings>Network and Dial-up Connections.
2. Right-click Local Area Connection.
3. Select Properties.
4. Select Internet Protocol (TCP/IP).
5. Click Properties.
IMPORTANT: Remember or write down your current settings, as you
will reset your computer to these settings near the end of
the installation.
6. Select the option button next to Obtain an IP address
automatically.
7. Click OK.
8. Click OK.
Connecting your
computer to the laser
imager
1. Remove the laser imager’s top cover.
2. Using a crossover cable, connect your computer to the service port
on the laser imager.
3. Route the crossover cable so that it does not interfere with the top
cover when it is installed.
4. Reinstall the top cover.
H221_6031HC
Service
Port
Top Cover
Crossover Cable
2015-04-17 9G7567_en 9

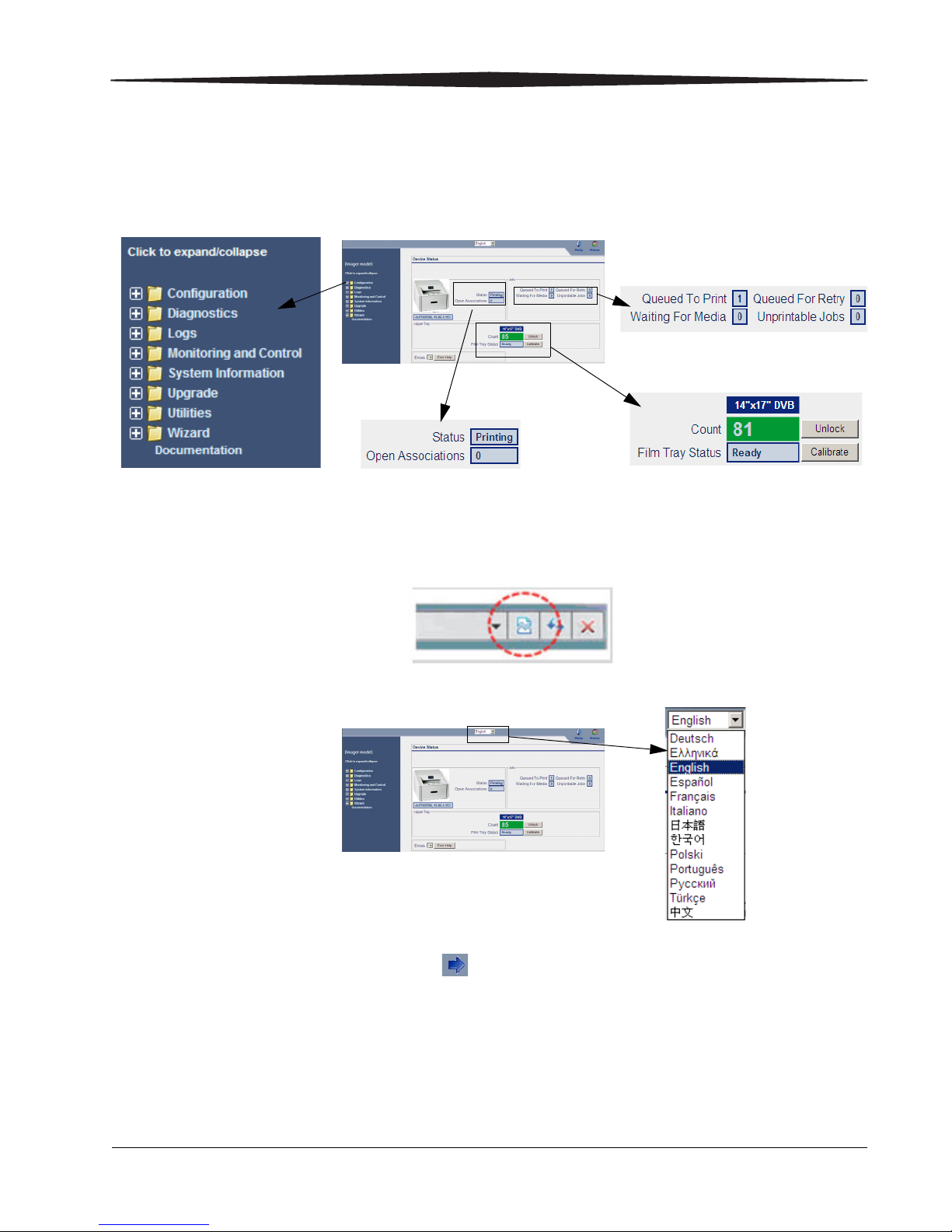

Configuring
site-specific information
1. Start MICROSOFT INTERNET EXPLORER.
2. In the Address box, type: 192.168.0.1
3. Click Go. The main screen for the Web Portal appears.
4. If you are using INTERNET EXPLORER 8, set the IE8 window to
compatibility view. Click the Compatibility View toolbar button. This
will correct some potential viewing issues with IE8. If the icon is not
on the toolbar, select Compatibility View from the Tools menu.
5. Select your language:
6. Select Wizards > Installation Assistant.
7. Click at the bottom of the screen. The Network Configuration
screen appears.
8. Enter:
•HostName
• IP Address
• Subnet Mask
• Default Gateway
