Specication & Installation Guide

bizhub 28e

Specication & Installation Guide

bizhub 28e

bizhub 28e Specications

Type Electrographic Laser Printer

Resolution 600 x 600 dpi

Paper

Plain Paper: 20-24 lb.

Thick Stock: 20-43 lb.*

Duplexing: 20 to 28 lb.

Envelopes**, letterhead*, recycled paper, transparencies*, postcard.*

*Can only be fed through bypass tray.

** Can only be fed through bypass tray (1 envelope).

Paper Tray Sizes

BypassTray:(W)3.6"–8.5"to(L)5.5"–14.0", letter, legal, half-letter, A4, A5, A6, F4.

Tray 1: Letter, legal, half-letter, A4, A5, A6, F4.

Tray 2-4 (option): Letter, legal, half-letter, A4, A5, A6, F4.

Paper Tray Capacity

Bypass Tray: 100 sheets

Tray 1: 500 sheets

Tray 2 (option): 500 sheets

Tray 3 (option): 500 sheets

Tray 4 (option): 500 sheets

Paper Output Capacity 250 sheets (face down)

2-bin Tray: 100 sheets (optional)

Warm-up Time Approximately 12 seconds

Image Loss Width 0.12" from all edges

First Print Approximately 5 seconds

Print Speed 28 ppm

Power Requirements 120 V, 8.4 A

Power Consumption

Peak: 1000 W

Standby: 41 W

Sleep: 1.3 W

Dimensions (WxDxH) 20.5" x 20.2" x 20.0"

System Memory 512 MB

Weight 53 lbs.

Duty Cycle

Up to 50,000 maximum monthly print volume supported under vendor supplied service. Customers should consider multiple

machines if average approaches duty cycle on a continual basis.

Environmental Requirements

Temperature 50 to 89.6°F

Humidity 20 to 80% RH (at 86°F)

Noise while engine

under operation

Copying: 56.8 dB

Idle: 40.0 dB (average)

Specication & Installation Guide

bizhub 28e

Electrical Requirements

Line options Dedicated

Voltage 120 V/60 Hz

bizhub 28e Dimensions

Dimensions

20.0"

20.2"

20.5"

bizhub 28e Space Requirements

To ensure easy operation,

consumable replacement

and maintenance, adhere

to the recommended space

requirements detailed below.

7.5"

(191mm)

28.0" (711mm)

33.2" (843 mm)

10.4" (264 mm)

30.7" (780 mm)

4" (100 mm)

34.6" (879 mm)

31.0" (787 mm)

4" (100 mm)

34.9" (886 mm)

4" (100 mm)

35.9" (911mm)

7.5"

(191mm)

28.0" (711mm)

33.2" (843 mm)

10.4" (264 mm)

30.7" (780 mm)

4" (100 mm)

34.6" (879 mm)

31.0" (787 mm)

4" (100 mm)

34.9" (886 mm)

4" (100 mm)4" (100 mm)

35.9" (911mm)

Specication & Installation Guide

bizhub 28e

Component Considerations

PF-508 Paper Feed Cassette

Type 1 x 500-sheet cassette (Max. 3)

Support Paper Weight 20–24 lb. bond

Support Paper Size 5.5" x 8.5" to 8.5" x 14"

Paper Capacity 500 Sheets

Power Requirements Supplied from main body

PS-505 PostScript 3 Enabler

Type Printing Option

Functions Enables PS3 compatibility with Mac operating environments or specialty print

applications. Required for PDF Direct Printing.

EM-905 PostScript 3 Memory Upgrade Kit

Type Printing Option

Size 1 GB

Function Increases PostScript printing performance for specialty printing applications.

Recommended if using the PDF Direct Printing feature.

BC-904 Barcode Printing

Type Printing Option

Functions Enables the printing of barcodes including UPC/EAN, Interleave 25, Code 39,

Code 126, PostNet and more.

PS-506 PostScript 3/Barcode Printing/OCR Enabler

Type Printing Option

Functions Allows for Barcode, OCR Font and PostScript Printing.

continued

Specication & Installation Guide

bizhub 28e

Component Considerations

SX-4600WAN Wireless Network Adapter

Type Miscellaneous Option

Functions Provides wireless connectivity.

MC-901 Mechanical Page Counter

Type Mechanical Counter

Functions Quickly access machine print counts using this hard counter.

Panel Overlay Kit (Spanish)

Type Miscellaneous Option

Functions Panel overlay for Spanish language users. Includes Spanish drivers.

Panel Overlay Kit (French)

Type Miscellaneous Option

Functions Panel overlay for French language users. Includes French drivers.

SCD-26L Large Paper Cabinet

Type Paper Cabinet

Functions Storage of accessories, supplies, paper, etc.

Dimensions (WxDxH) 20.5" x 18.0" x 19.5" Must add one optional paper cassette (PF-508) to achieve

operation height.

continued

Specication & Installation Guide

bizhub 28e

Component Considerations

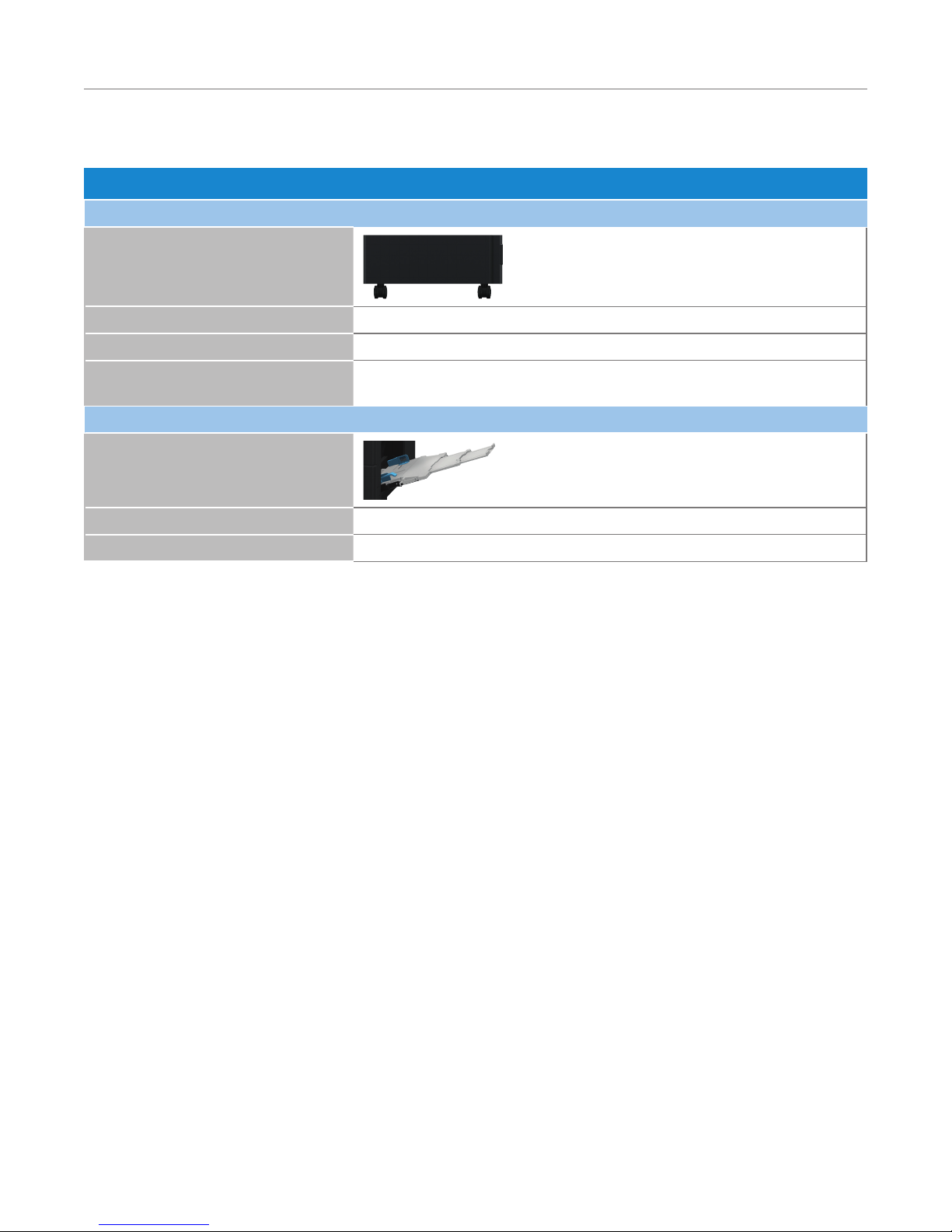

SCD-26S Small Paper Cabinet

Type Paper Cabinet

Functions Storage of accessories, supplies, paper, etc.

Dimensions (WxDxH) 20.5" x 18.0" x 10.0"

Must add three optional paper cassettes(PF-508) to achieve operation height.

JS-604 External Job Separator

Type Output Tray

Functions Additional output tray. Separation for fax output, etc.

Specication & Installation Guide

bizhub 28e

Standard Paper Tray Support

Main Unit Standard Tray and Bypass Tray

Component

Capacity Size Weight

Standard Tray 500-sheets Letter, Legal, Half-letter 20-28 lb. bond

Bypass Tray 100-sheets Postcard, Letter, Legal, Half-letter,

Envelopes, Cover stock 20-43 lb. bond

Copy Specications

Copying Process Electrostatic LED Copy, Mono Component

Toner System Crushed Toner

Copy Speed (Letter) Up to 28 ppm

Autoduplex Speed (Letter) Up to 10 ppm

1st Copy Out Time Approx. 5 sec.

Warm-Up Time Approx. 12 sec.*

Copy Resolution 600 x 600 dpi

Multi Copy 1-99

Gradation 256 Gradations

Original Size Up to 8.5" x 14"

Magnication 25-400% in 1% steps

Copy Functions Duplex Copy, Electronic Sorting, Rotation Copy, 2in1, 4in1, ID Card Copy,

Custom Size Settings

* Warm up time may vary, depending on the operating environment.

Print Specications (Standard)

Type Built-in Print System

CPU 364 MHz

Memory 512 MB

Print Speed 28 ppm Letter

Print Resolution 600 x 600 dpi

Compatible Computers IBM PC or compatible and Macintosh (Power PC or Intel Processor)

PDL GDI, PCL 5e/XL (Std),PostScript 3 (Opt.), Barcode (Opt.), PDF Direct (Opt.)

Interface 10/100 Base-TEthernet,Hi-Speed USB 2.0, Hi-Speed USB 2.0 Host Port

Ethernet Protocol TCP/IP (IPv4/IPv6), SMB, LPD, IPP, SNMP, HTTP, HTTPS, POP3, LDAP, SSL, LPR

Supported OS

Windows XP (32/64), Vista (32/64) Windows 7 (32/64), Windows 8 (32/64),

Windows 10, Windows Server 2003/2003 x64/2008/2008 x64; Unix, Citrix, SAP,

AS/400; Mac OS 10.2-10.8*, 11.0;Linux (Red Hat, Fedora, SUSE)*

Font

PCL: 80 fonts, Cyrillic, 15 fonts

Barcode (option): 32 fonts (PCL 5e only)

PS3 (option): 136 fonts

* PS3 Option required

Specication & Installation Guide

bizhub 28e

Print Drivers

Windows Windows XP (32/64), Vista (32/64) Windows 7 (32/64), Windows 8 (32/64),

Window 10, Windows Server 2003/ 2003 (64)/2008/2008 (64)/2008 R2/ 2012 (64)

Macintosh Mac OS 10.2–10.8*, 11.0

Other Unix, Citrix, SAP, AS/400;Linux (Red Hat, Fedora, SUSE)*

*PS3 Option required.

Scanning Functions

Color/Monochrome Yes/Yes

Scanning Size Up to 8.5" x 14"

Duplex Scanning Yes

TWAIN Compliant Windows XP (32/64), Vista (32/64) Windows 7 (32/64), Windows 8 (32/64),

Window 10, Windows Server 2003/2003 (64)/2008/2008 (64)/2008 R2/2012 (64)

WIA Compliant Yes: Windows XP (32/64), Vista (32/64), 7 (32/64)

Color Depth 24-bit

Scanning Resolution Up to 600 x 600 dpi

Protocol TCP/IP(IPv4/IPv6),SMB, LPD, IPP, SNMP, HTTP, HTTPS, POP3, LDAP, SSL, LPR

Output Format PDF, TIFF, JPEG, Secure PDF

Main Function Scan-to-Email, I-fax, Scan-to-FTP, Scan-to-SMB, Scan-to-USB, TWAIN,

Scan-to-Evernote, Box, Dropbox, Google Drive, PaperCut MF Integration

Gradation 256 levels

Driver Network, TWAIN Driver

Address Setting supports LDAP

Network Functions

Sending Scanned Data

in an Email Message

Scanned data can be sent to a specied Email address. The destination is specied from

the control panel of this machine, and the scanned data is sent as an Email attachment.

Sending Scanned Data as Files (FTP)

Scanned data is uploaded to a specied FTP server. The FTP server address,

or message board.

Sending Scanned Data

to a Computer on the Network (SMB)

Scanned data can be sent to a shared folder on a specied computer. The name

of the destination computer, login password, and other information are entered

from Message Board.

Sending Scanned Data

to a USB Thumb Drive

Scanned data can be sent to a USB thumb drive inserted into the USB Host Port

on the front of the machine.

Using the bizhub 28e

solely as a Scanner

This machine can be used as a scanner. The scanner can be controlled from a PC

connected to the network, and the scanned image can be loaded into an application

on the PC to be processed.

Sending Scanned Data to Cloud Apps Scan directly to Evernote, box apps, Google Drive and Dropbox to allow document access

from a Smartphone, PC or tablet.

Specication & Installation Guide

bizhub 28e

Fax Specications

Communication Super G3

Compatible Lines Public Switched Telephone Network, PBX

Duplex Fax (Receive) Yes

Compression MH/MR/MMR/JBIG

Modem Speed 33.6 Kbps

Grayscale/Halftones 256 levels

Transmit Paper Size Up to 8.5” x 14”

Receive Paper Size Up to 8.5” x 14”

Polling Types Standard, Secure

Resolution Up to 400 dpi

Speed Dial 1000

Groups Up to 100

Transmission Speed Between 2 and 3 seconds (33600 bps)

Special Fax

Features

VoIP Support

Delayed Transmission

Custom Cover Sheet Insertion

Batch Transmission

PC-based Fax

Fax Forwarding to Email

Device Management and User Tools

Message Board

Scan-to-Print Monitor

Specication & Installation Guide

bizhub 28e

Paper Type Specications

Normal

(Plain Paper)

Normal paper is for general use. Normal

paper is usually not a recycled paper.

Normal paper is paper weighing

between 20 to 24 lb.

Thick Paper Thick paper is paper weighing between

20 to 43 lb. It can be fed via the bypass tray.

Envelopes Envelopes (up to 1) can be fed through

the bypass tray.

Recommended Paper Stocks

Classication Brand of Paper

Normal (Plain Paper) Xerox #4200

Transparency 3M PP2500

Paper Considerations

Paper Size Conversion Chart

Paper Letter Legal

Measurement 8.5" x 11" 8.5" x 14"

Paper Weight Conversion Chart

Caliper

gsm Bond Offset Cover Tag Index Point Bristol inches mm

60.20 16 40 22 37 33 3.2 27.4 0.0032 0.081

67.72 18 45 24 41 37 3.6 30.9 0.0036 0.092

75.20 20 50 28 46 42 3.8 34.3 0.0038 0.097

90.30 24 60 33 56 50 4.8 41.2 0.0048 0.120

105.35 28 70 39 64 58 5.8 48.1 0.0058 0.147

109.11 29 73 40 62 60 6.0 49.8 0.0060 0.152

116.63 31 81 45 73 66 6.1 53.2 0.0061 0.155

131.68 35 90 48 80 74 6.2 60.1 0.0062 0.157

135.45 36 90 50 82 75 6.8 61.8 0.0068 0.173

146.73 39 100 54 90 81 7.2 67.0 0.0072 0.183

150.50 40 100 56 93 83 7.3 68.7 0.0073 0.185

161.78 43 110 60 100 90 7.4 73.8 0.0074 0.188

165.55 44 110 61 02 92 7.6 75.5 0.0076 0.193

176.83 47 120 65 108 97 8.0 80.7 0.0078 0.198

199.41 53 135 74 122 110 9.0 91.0 0.0085 0.216

Autres manuels pour bizhub 28e

Table des matières

Autres manuels Konica Minolta Imprimante

Konica Minolta

Konica Minolta Color Care IQ-501 Manuel utilisateur

Konica Minolta

Konica Minolta bizhub 4050 Manuel utilisateur

Konica Minolta

Konica Minolta Magicolor 2550 Guide de démarrage rapide

Konica Minolta

Konica Minolta Magicolor 2550 Manuel utilisateur

Konica Minolta

Konica Minolta magicolor 7450 Manuel utilisateur

Konica Minolta

Konica Minolta Magicolor 2350 EN Manuel utilisateur

Konica Minolta

Konica Minolta Magicolor 6100 Manuel utilisateur

Konica Minolta

Konica Minolta magicolor 4690MF Manuel utilisateur

Konica Minolta

Konica Minolta Magicolor 5550 Manuel utilisateur

Konica Minolta

Konica Minolta PagePro 1390 MF Guide de démarrage rapide

Konica Minolta

Konica Minolta Di1610 Manuel utilisateur

Konica Minolta

Konica Minolta magicolor 1650EN Manuel utilisateur

Konica Minolta

Konica Minolta AccurioPress 6136 Manuel utilisateur

Konica Minolta

Konica Minolta PagePro 9100 Manuel utilisateur

Konica Minolta

Konica Minolta accuriopress c6100 Manuel utilisateur

Konica Minolta

Konica Minolta DRYPRO SIGMA Manuel utilisateur

Konica Minolta

Konica Minolta BIZHUB 164 Manuel utilisateur

Konica Minolta

Konica Minolta Magicolor 6100 Manuel utilisateur

Konica Minolta

Konica Minolta magicolor 2430 DL Manuel utilisateur

Konica Minolta

Konica Minolta A00F011 Manuel utilisateur

Konica Minolta

Konica Minolta Magicolor 2400 Series Manuel utilisateur

Konica Minolta

Konica Minolta magicolor 4750EN/4750DN Manuel utilisateur

Konica Minolta

Konica Minolta Magicolor 5650EN Manuel utilisateur

Konica Minolta

Konica Minolta PagePro 1400W Guide de démarrage rapide

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Canon

Canon i70 Series Manuel utilisateur

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Canon

Canon LASER SHOT LBP-1210 Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon PIXMA G3560 Guide de configuration

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Canon

Canon CLBR 460ps Manuel utilisateur

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

Canon

Canon imagePASS-A2 Manuel utilisateur

Canon

Canon S820D Manuel utilisateur

Konica Minolta bizhub 28e Manuel utilisateur

Manuels Imprimante populaires d'autres marques
