Konica Minolta CM-3700A-U Manuel utilisateur

SPECTROPHOTOMETER

CM-3700A-U

INSTRUCTION MANUAL

Before using this instrument,

please read this manual.

Safety Symbols

The following symbols are used in this manual or CM-3700A-U to prevent accidents

which may occur as a result of incorrect use of the instrument.

Denotes an instruction regarding a safety warning or note.

Read the instruction carefully to ensure safe and correct use.

Denotes an instruction regarding the risk of electric shock.

Read the instruction carefully to ensure safe and correct use.

Denotes an instruction regarding the risk of ﬁre.

Read the instruction carefully to ensure safe and correct use.

Denotes a prohibited action.

This action must never be performed.

Denotes an instruction.

This instruction must be strictly adhered to.

Denotes a prohibited action.

Never disassemble the instrument.

Denotes an instruction.

Be sure to disconnect the AC adapter from the AC outlet.

This symbol indicates A.C.

This symbol indicates D.C.

This symbol indicates class II protection against electric shock.

Trademarks

• Windows®is a registered trademark of Microsoft Corporation in the United States and other countries.

Notes on this Manual

• Copying or reproduction of all or part of the contents of this manual without KONICA MINOLTA’s permis-

sion is strictly prohibited.

• The contents of this manual are subject to change without prior notice.

• Every effort has been made in the preparation of this manual to ensure the accuracy of its contents.

However, should you have any questions or ﬁnd any errors, please contact your retailer or a KONICA

MINOLTA-authorized service facility.

• KONICA MINOLTA will not accept any responsibility for consequences arising from the use of the instru-

ment.

Safety Precautions

To ensure correct use of this instrument, read the following points carefully and adhere to them.

After you have read this manual, keep it in a safe place where it can be referred to anytime a question arises.

WARNING (Failure to adhere to the following points

may result in death or serious injury.)

Do not use the instrument in places where

ﬂammable or combustible gases (gasoline,

etc.) are present.Doing so may cause a ﬁre.

Do not disassemble or modify the

instrument or the AC adapter. Doing

so may cause a ﬁre or electric shock.

Always use the AC adapter supplied as

a standard accessory or the optional AC

adapter, and connect it to an AC outlet

of the rated voltage and frequency. If an

AC adapter other than those speciﬁed by

KONICA MINOLTA is used, it may result in

damage to the unit, ﬁre or electric shock.

Take special care not to allow liquid or

metal objects to enter the instrument.

Doing so may cause a ﬁre or electric

shock. Should liquid or metal objects

enter the instrument, turn the power

OFF immediately, disconnect the

AC adapter plug from the AC outlet,

and contact the nearest Konica

Minolta-authorized service facility.

If the instrument will not be used for a

long time, disconnect the AC adapter

plug from the AC outlet. Accumulated

dirt or water on the prongs of the

AC adapter’s plug may cause a

ﬁre and should be removed.

The instrument should not be operated if it

is damaged or the AC adapter is damaged,

or if smoke or odd smells occur. Doing

so may cause a ﬁre. In such situations,

turn the power OFF immediately,

disconnect the AC adapter plug from the

AC outlet and contact the nearest Konica

Minolta-authorized service facility.

Do not forcibly bend, twist, or pull the AC

adapter power cable. Do not scratch or alter

the power cable or place heavy objects

on it. Doing so may damage the power

cable and cause a ﬁre or electric shock.

Always hold the plug itself when

disconnecting the AC adapter plug

from the AC outlet. Pulling on the

power cable may damage it and

cause a ﬁre or electric shock.

Insert the power plug fully and

securely. Incomplete inserting may

cause ﬁre or electric shock.

Do not insert or disconnect the AC adapter

plug from an AC outlet with wet hands.

Doing so may cause electric shock.

CAUTION (Failing to adhere to the following points may result in

injury or damage to the instrument or other property.)

Do not perform measurement with the

specimen measuring port

directed towards your eyes.

Doing so may damage your eyes.

Do not place the instrument on an

unstable or sloping surface. Doing so

may result in its falling or overturning,

causing injury. Be careful not to drop

the instrument when carrying it.

Be careful not to get your hand caught in

the openable section of the instrument.

Doing so may result in injury.

Make sure that the AC outlet is located

near the instrument and that the AC

adapter plug can be connected to and

disconnected from the AC outlet easily.

When cleaning, disconnect the power plug.

Connecting may cause electric shock.

INTRODUCTION

This spectrophotometer is designed for spectral measurement of color and color

differences in various industries. It can measure reﬂected color with high accuracy.

Packing Materials

General Packing Materials

Keep all packing materials (cardboard box, cushioning material, plastic bags, etc.) in a safe

place. The CM-3700A-U is a precision measuring instrument. They can be used to protect the

instrument from impact and vibration during shipment to Konica Minolta for maintenance.

Should they be lost or damaged, contact the nearest Konica Minolta-authorized service facility.

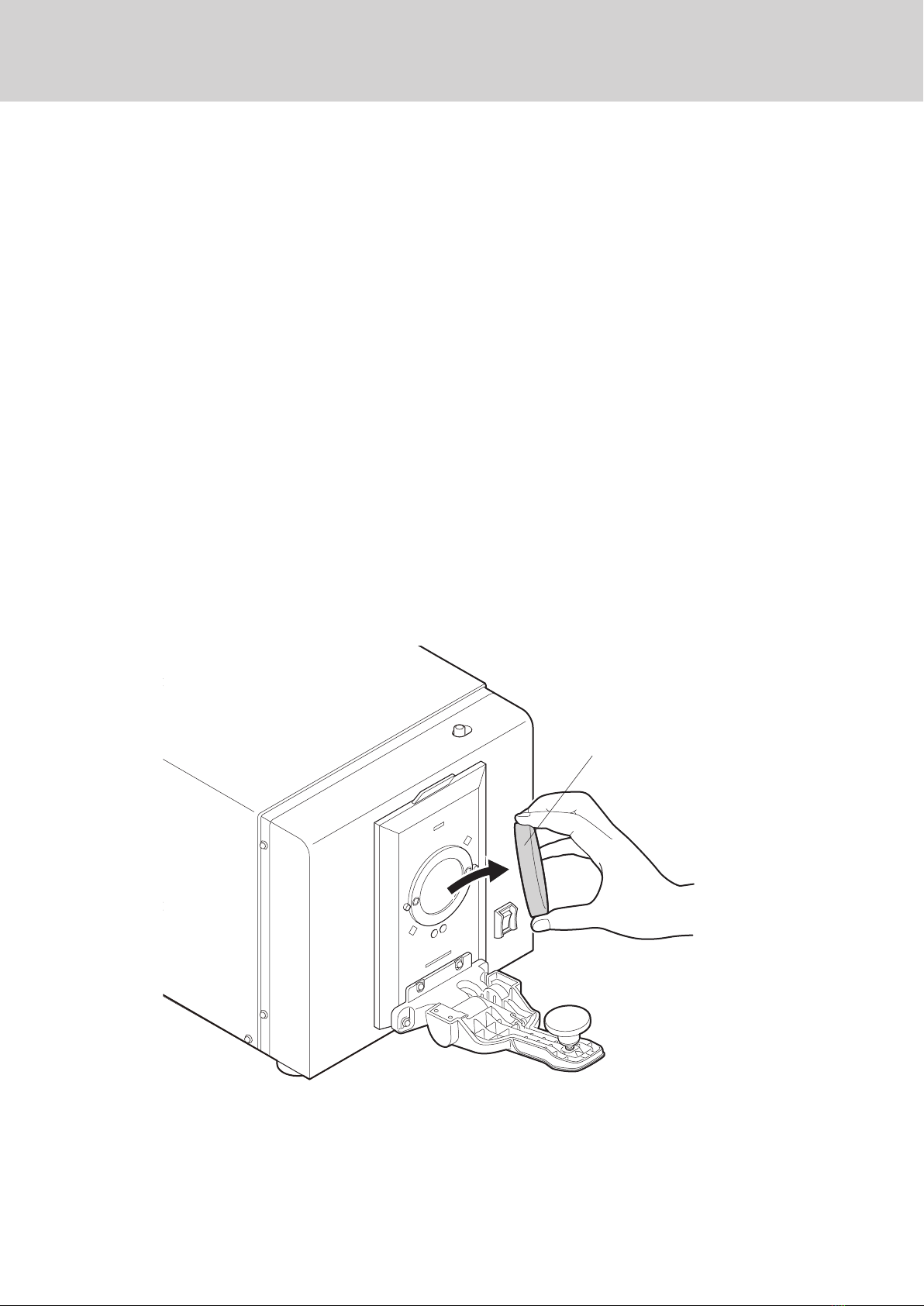

Protective cap for the specimen measuring port (integrating sphere opening)

The CM-3700A-U is delivered with no target mask attached. To protect the specimen

measuring port, a protective cap is attached to the specimen measuring port.

This protective cap must be removed before using the CM-3700A-U.

When you transport the CM-3700A-U to another place, the protective cap

must be attached. Keep the protective cap in a safe place after putting it in the accessory case (CM-A156).

Protective cap

Notes on Use

Be sure to use this instrument properly. Use of this instrument in ways other than those speciﬁed in

this manual may result in risk of injury, electric shock, instrument damage, or other problems.

Operating Environment

• Use the CM-3700A-U at an ambient temperature between 13°C and 33°C and relative humidity 80% or

less (at 33°C) with no condensation. Be sure to use the instrument within this range. Do not use it in areas

of rapid temperature changes.

• Do not leave the CM-3700A-U in direct sunlight or near sources of heat, such as stoves, etc. The internal

temperature of the instrument may become much higher than the ambient temperature in such cases.

• Do not use the CM-3700A-U in areas where dust, cigarette smoke or chemical gases are present. Doing

so may cause deterioration in performance or a breakdown.

• Do not use the CM-3700A-U near equipment which produces a strong magnetic ﬁeld (such as speakers, etc.).

• The CM-3700A-U belongs to installation category I products (equipment which is powered by an AC adapt-

erconnected to commercially available power).

• The CM-3700A-U belongs to pollution degree 2 products (equipment which may cause temporary electrical

hazards due to contamination or condensation or products which are used in such an environment).

• Do not use the CM-3700A-U at altitudes higher than 2,000 m.

• The CM-3700A-U and the AC adapter supplied as a standard accessory have been designed exclusively

for indoor use. They should never be used outdoors because rain or other factors may damage the instru-

ment.

Measurement

• Make sure no dirt or dust get into the specimen measuring port.

• When using the instrument for long periods of time, the measurement value may change depending on

changes in the environment. Therefore, in order to achieve accurate measurements, we recommend that

white calibration be done regularly using the White Calibration Plate.

White Calibration Plate

• The calibration data for the White Calibration Plate was measured at 23°C.

To achieve the highest accuracy when measuring absolute values (colorimetric values), calibration and

measurement should be performed at 23°C.

• Do not allow the White Calibration Plate to get scratched or stained with such as ﬁngerprints.

• Do not move the White Calibration Plate while it has been caught by the sample holder. Doing so may

damage the White Calibration Plate.

• When the White Calibration Plate is not in use, be sure to close the cover so that the White Calibration

Plate is not exposed to ambient light.

Target Mask

• Do not touch the Target Mask’s inner surface (white-coated surface) by hand, scratch it or make it dirty.

• When not in use, Target Masks should be stored in the accessory case (CM-A156) so that they will not be

exposed to ambient light.

Power Source

• Make sure that the power switch is set to OFF (“ I “) when the CM-3700A-U is not in use.

• Always use the AC adapter supplied as a standard accessory (AC-A308) and connect it to an AC outlet of

the rated voltage and frequency.

• Use an AC power supply of the rated supply voltage (within ±10%).

• Do not connect the AC adapter to an overloaded electrical circuit. In addition, do not wrap or cover the AC

adapter with cloth or other material while in use. Doing so may cause an electric shock or ﬁre.

System

• Do not subject the CM-3700A-U to strong impact or vibration. Doing so may cause deterioration of perfor-

mance or breakdown.

• The specimen measuring port and integrating sphere are extremely precise components, and great care

should be taken to prevent them getting dirty or exposing them to impacts. When the CM-3700A-U is not in

use, be sure to attach a target mask to the measuring port to prevent entry of foreign matter.

• The CM-3700A-U may cause interference if used near a television, radio, etc.

• Since the CM-3700A-U uses a microcomputer, external magnetic noise may cause malfunction. In this

case, turn the power OFF, and wait 30 minutes, and then turn it ON again.

Notes on Storage

• The CM-3700A-U should be stored at temperatures between 0°C and 40°C, and at a relative humidity of

80% or less (35°C) without condensation. Do not store the instrument in areas subject to high tempera-

tures, high humidity, sudden changes in temperature, or where freezing or condensation may occur, be-

cause these circumstances may cause a breakdown. It is recommended to store the CM-3700A-U with a

drying agent at a temperature around 20°C.

• Do not leave the CM-3700A-U inside a car such as in the trunk. Otherwise, the temperature and/or humid-

ity may exceed the allowable range for storage during midsummer or midwinter, resulting in a breakdown.

• Keep the packing materials used for shipment and use them to transport the CM-3700A-U. This protects

the instrument from sudden changes in temperature, vibration, and shock.

• Do not store the CM-3700A-U in areas where dust, cigarette smoke or chemical gases are present. Doing

so may cause deterioration in performance or a breakdown.

• Entry of dust into the specimen measuring port will hinder accurate measurement. When the instrument is

not in use, you must attach the target mask and the sample holder, and cover the instrument with the sup-

plied Dust Cover to prevent the entry of dust into the integrating sphere.

• The White Calibration Plate may become discolored if left exposed to light. Therefore, make sure to close

the cover when it is not in use so that the White Calibration Plate is not exposed to ambient light during

storage.

• The Target Masks may discolor if they are left exposed to light. When they are not in use, keep them in a

safe place to prevent exposure to light and to protect them from scratches and dust. And store them in the

accessory case (CM-A156).

• Take care not to leave the CM-3700A-U for a long period of time with a target mask attached. The sample

holder may stick to the target mask.

• Be sure to keep all packing materials (cardboard box, cushioning material, plastic bags, etc.). They can be

used to protect the instrument during transportation to the service facility for maintenance (re-calibration

etc.).

Notes on Cleaning

• If the CM-3700A-U becomes dirty, wipe it with a soft, clean dry cloth. Never use solvents such as thinner or

benzene.

• If the White Calibration Plate becomes dirty, wipe it with a soft, clean dry cloth. If dirt is difﬁcult

to remove, wipe it off with a cloth dampened with commercially-available lens cleaning solution.

Then remove the solution with a cloth dampened with water, and leave the plate to dry.

• If the inner surface (white-coated surface) of the Target Masks, or the inside of the integrating sphere, get-

dirty, contact a Konica Minolta-authorized service facility.

• Should the CM-3700A-U break down, do not try to disassemble and repair it by yourself. Contact a Konica

Minolta-authorized service facility.

Disposal Method

• Make sure that the CM-3700A-U and its accessories and packing materials are either disposed of or re-

cycled correctly in accordance with local laws and regulations.

CONTENTS

Safety Precautions .................................1

INTRODUCTION ......................................2

Packing Materials ............................................... 2

Notes on Use...................................................... 3

Notes on Storage................................................ 5

Notes on Cleaning.............................................. 5

Disposal Method................................................. 5

CONTENTS..............................................6

Using the CM-3700A-U

Standard Accessories............................8

Optional Accessories.............................9

System Diagram ...................................10

Names and Functions of Parts............11

Measurement Procedure......................12

Flow of Preparation and Measurement ............ 12

Connecting a Personal Computer.......13

Connecting the AC Adapter.................14

Turning Power ON and OFF.................15

Attaching a Target Mask.......................16

Notes on Use of Target Mask ........................... 16

Calibration.............................................17

Calibration for Reﬂectance Measurements ...... 17

White calibration data....................................... 17

Performing calibration....................................... 18

Attaching the Zero Calibration Box ....19

Notes on Use of Zero Calibration Box .............. 19

Attaching the White Calibration Plate

...20

Notes on Use of White Calibration Plate .......... 20

Updating White Calibration Data ...................... 20

Setting a Specimen ..............................21

Reﬂectance measurement ............................... 21

The sample holder for measuring the reﬂectance

.. 22

About opacity measurements........................... 22

Cleaning the CM-3700A-U and Accessories

..23

Zero Calibration Box and White Calibration Plate

... 23

Target Mask...................................................... 23

Inside Integrating Sphere ................................. 23

Error message ......................................24

TROUBLESHOOTING GUIDE...............26

Explanations

Illumination/Viewing System ...............28

Measuring Reﬂected Colors ............................. 28

Illumination area and Measurement areas

....29

Illumination area ............................................... 29

Measurement area ........................................... 29

Dimensions ...........................................30

Speciﬁcations .......................................31

Using the CM-3700A-U

White Calibration Plate CM-A154

Used to perform white calibration for measurement

of reﬂectance. A CD-ROM containing white

calibration data and software for writing the white

calibration data is supplied with this accessory.

Standard Accessories

Target Mask CM-A91

CM-A95

Used to change the illumination area (measurement

aperture area) according to the specimen.

Measurement and illumination (aperture

area at specimen surface) areas when each

target mask is attached are as follows.

CM-A91 (SAV): 1× 3 mm / 5 × 7 mm

CM-A95 (USAV): 1× 3 mm / 3 × 5 mm

Zero Calibration Box CM-A155

Used to perform zero calibration for

measurement of reﬂectance.

AC Adapter AC-A308

Used to supply power from an AC

outlet to the CM-3700A-U.

Input: 100 to 240 V 50/60 Hz

Output: 8 V 1.5 A

Plug design: Center-negative

USB Cable (3 m) IF-A21

Used to connect the instrument to

a personal computer (PC).

Accessory Case CM-A156

Dust Cover CM-A69

Table des matières

Autres manuels Konica Minolta Instrument de mesure

Konica Minolta

Konica Minolta CR-400 Manuel utilisateur

Konica Minolta

Konica Minolta CM-36dGV Manuel utilisateur

Konica Minolta

Konica Minolta CA-410 Series Manuel utilisateur

Konica Minolta

Konica Minolta AeroDR SKR 4000 Manuel utilisateur

Konica Minolta

Konica Minolta REGIUS 110 Manuel utilisateur

Konica Minolta

Konica Minolta REGIUS 210 Manuel utilisateur

Konica Minolta

Konica Minolta MULTI GLOSS 268 Manuel utilisateur

Konica Minolta

Konica Minolta SKR 4000 Manuel utilisateur

Konica Minolta

Konica Minolta CS-3000HDR Manuel utilisateur

Konica Minolta

Konica Minolta CM-600d Manuel utilisateur

Konica Minolta

Konica Minolta CM-3220D Manuel utilisateur

Konica Minolta

Konica Minolta CECF-9 Manuel utilisateur

Konica Minolta

Konica Minolta REGIUS SIGMA2 Manuel utilisateur

Konica Minolta

Konica Minolta BC-10 Plus Manuel utilisateur

Konica Minolta

Konica Minolta CS-150 Manuel utilisateur

Konica Minolta

Konica Minolta RANGE7 Manuel utilisateur

Konica Minolta

Konica Minolta CM-700d Manuel utilisateur

Konica Minolta

Konica Minolta VI-9I Manuel utilisateur

Konica Minolta

Konica Minolta CS-2000 Manuel utilisateur

Konica Minolta

Konica Minolta SPAD-502 Manuel utilisateur

Konica Minolta

Konica Minolta CS-2000 Manuel utilisateur

Konica Minolta

Konica Minolta CIVI-36clG Manuel utilisateur

Konica Minolta

Konica Minolta CA-100PLUS Manuel utilisateur

Konica Minolta

Konica Minolta CS-2000A - AUTRE Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
