Konica Minolta FK-513 Manuel utilisateur
E-1
FK-513 Fax Kit
INSTALLATION MANUAL
A879-9551-00
Applied Machines: C287/C227/367/287/227
COLOR MFP: 28 ppm/22 ppm
MFP: 36 ppm/28 ppm/22 ppm
Product Code: A797/A798/A789/A7AH/A7AK
1. Accessory parts
*Varies depending on the applicable marketing
area
Note:
• This manual provides the illustrations of the
accessory parts and machine that may be
slightly different in shape from yours. In that
case, instead of the illustrations, use the
appearance of your machine to follow the
installation procedure. This does not cause any
significant change or problem with the proce-
dure.
• If none of the later steps instruct you to use the
parts including screw and cover that you
removed following the instructions described in
this manual, discard them.
No. Name Shape Q’ty
1. Fax kit
1
2. Harness
1
3. Modular
cable
1
4. USB cable
1
5. Ferrite core *
1
6. Clamp
2
7. Wire saddle
2
8. Screw
2
9. Label
(Super G3
label) *1
10. Label *
1set
11. Installation
manual
1 set
No. Name Shape Q’ty
Keep this bag away from babies and
children. Do not use in cribs, beds,
carriages, or playpens.
The thin film may cling to nose and
mouth and prevent breathing. This bag is
not a toy.
E-2
2. Installation procedures
<Installations to models C287/C227>

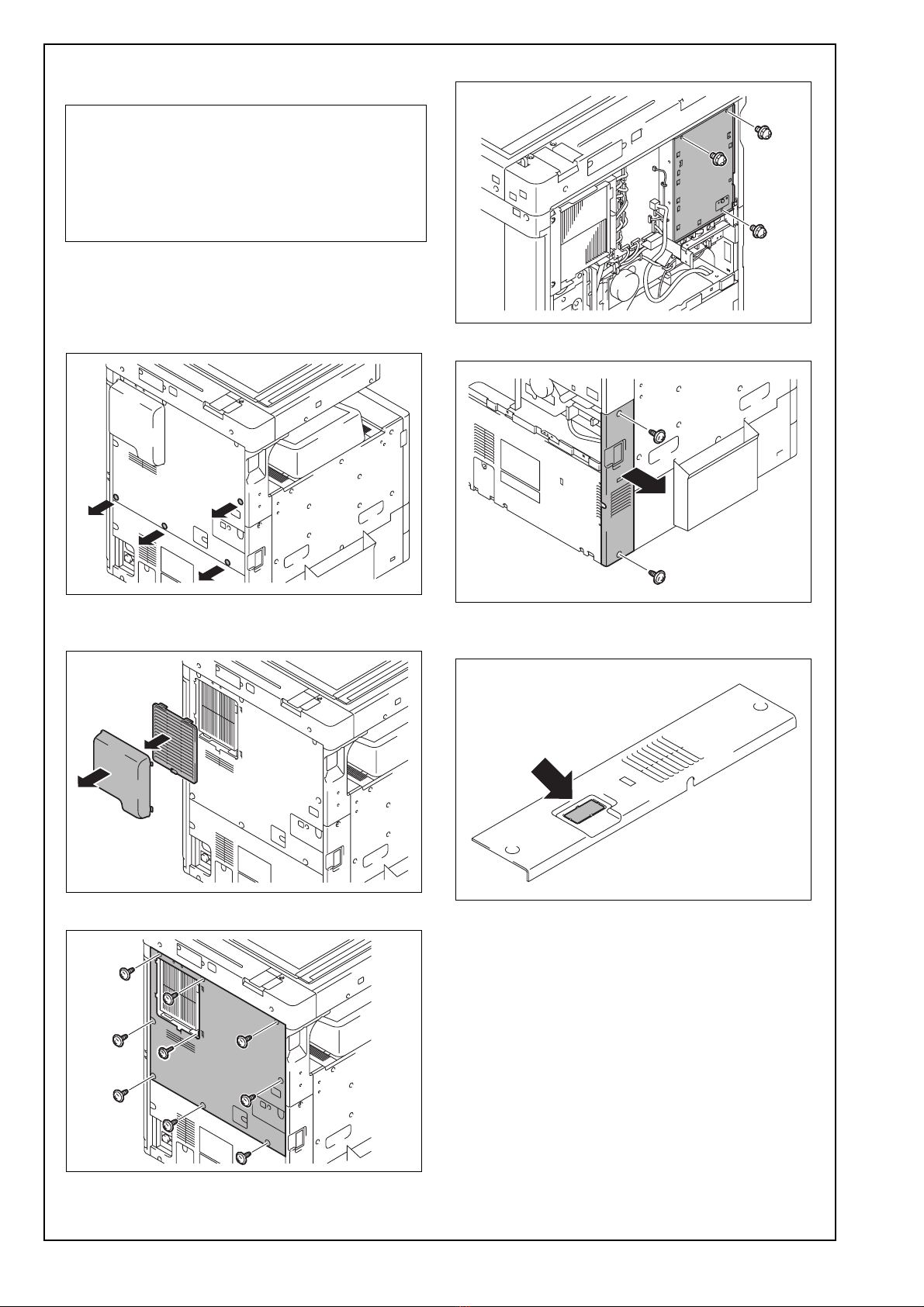

(1) Turn OFF the power switch and unplug the
power cord from the power outlet.
(2) Remove the four caps from the upper rear cover.
(3) Remove the duct cover and the louver from the
upper rear cover.
(4) Remove the upper rear cover. (Nine screws)
(5) Remove the metal plate. (Three screws)
(6) Remove the lower left rear cover. (Two screws)
(7) Remove the knockout from the lower left rear
cover using nippers.
(8) Reinstall the lower left rear cover. (Two screws)
<Installations to models C287/C227>
Follow the installation procedures starting on page
E-2.
<Installations to models 367/287/227>
Follow the installation procedures starting on page
E-4.
E-3

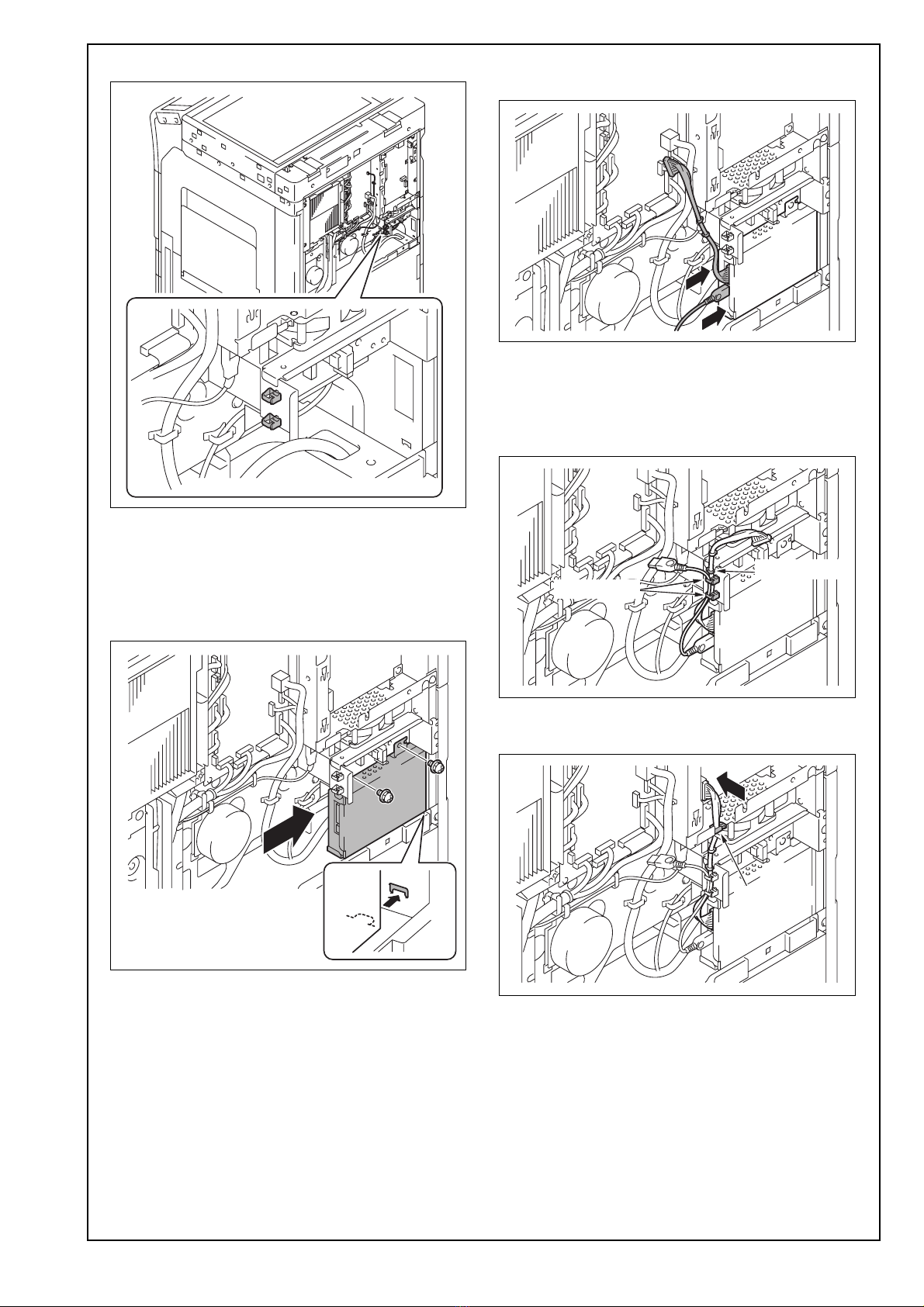

(9) Attach the supplied two wire saddles.
(10) Attach the Fax kit. (Two supplied screws)
Note:
• Insert the protrusion of the Fax kit into the slot
of the machine.
• Attach the Fax kit while pushing it to the right
side.
(11) Connect the connectors of the supplied har-
ness and USB cable to the Fax kit.
(12) Route the harness and USB cable inside the
two wire saddles installed in step (9).
Note:
Make sure that the blue cable tie securing the har-
ness is positioned as shown in the illustration.
(13) Route the harness inside the edge cover and
insert the connector into the MFP board.
Blue cable tie
Wire saddle
Edge cover
E-4
(14) Connect the USB cable to the port shown in the
illustration.
(15) To install the covers and other parts removed in
steps (2) to (5), reverse the removal procedure.
(16) Go to <Installation of the ferrite core> on page
E-6.
<Installations to models 367/287/227>
(1) Turn OFF the power switch and unplug the
power cord from the power outlet.
(2) Remove the left rear cover from the machine.
(Three screws)
(3) Remove the toner filter at the back side of the
machine and remove the rear cover. (13 screws)
(4) Attach the supplied two wire saddles.
(5) Attach the Fax kit. (Two supplied screws)
Note:
• Insert the protrusion of the Fax kit into the slot
of the machine.
• Attach the Fax kit while pushing it to the right
side.
E-5
(6) Route the supplied harness through the wire
saddles installed in step (4) and insert the con-
nector into the Fax kit.
Note:
Make sure that the white cable tie securing the
harness is positioned between the wire saddles.
(7) Route the harness inside the edge cover and
insert the connector into the MFP board.
(8) Connect the supplied USB cable to the Fax kit at
the port shown in the illustration and route the
cable through the two wire saddles shown in the
illustration.
(9) Install the rear cover and install the toner filter.
a) Attach the rear cover. (Five screws)
Note:
Fasten the mounting screws in the order from [1]
to [5].
b) Fasten the remaining screws for the rear cover
(eight screws) and install the toner filter.
(10) Remove the knockout from the left rear cover
removed in step (2) using nippers.
(11) Attach the left rear cover. (Three screws)
White cable tie
Edge cover
Wire saddle
[2]
[1]
[3]
[4]
[5]
E-6
<Installation of the ferrite core>
Note:
• Perform the steps only when a Fax Kit which
has a ferrite core bundled for applicable mar-
keting area is installed.
• If the telephone is not connected to the main
unit, keep the ferrite core in a safe place.
(1) Attach the supplied ferrite core to the modular
cable of the telephone.
Note:
• Install the ferrite core by winding the cable two
turns.
• Attach the ferrite core at the position same as
where a ferrite core has been attached on the
supplied modular cable.
(2) Connect the modular cable of the telephone to
the TEL port.
Note:
Connect the jack on the end near the ferrite core
to the Fax kit.
<Connecting the modular cable>
(1) Connect the supplied modular cable to the LINE
port.
Note:
• Connect the jack on the end near the ferrite
core to the Fax kit.
• Only analog circuits are allowed for users con-
necting to the Key Telephone System or private
branch exchanges (PBX).
(2) Attach the supplied clamps on the upper and
lower sides of the ferrite core(s) and secure them
at the position shown in the illustration.
<C287/C227>
<367/287/227>
Clamp
Clamp
E-7
<Affixing the labels>
(1) Affix the supplied label to the position shown
below.
<C287/C227>
<367/287/227>
(2) Affix the supplied label (Super G3 label) to the
position shown below.
3. Configuration procedures
<Setting the FAX>
(1) Plug the power cord into the power outlet and
turn ON the power switch.
(2) Display the Service Mode screen.
(For details of how to display the Service Mode
screen, see the service manual.)
(3) Touch “System 2.”
(4) Touch “Option Board Status.”
(5) Touch “Set” of FAX (circuit 1).
(6) Touch “END” and touch “Exit.”
(7) Turn OFF and ON the power switch.
Note:
• When displayed the Service Mode screen, be
sure to turn OFF the power switch after exiting
the Service Mode screen and wait for 10 sec-
onds or more before turning ON.
• After turning ON the power switch, be sure to
conduct the following procedures in ‘Country
code setting’ and ‘FAX initialization’ after con-
firming the message ‘Preparing Scan/Fax...’ is
turned off.
(8) Display the Service Mode screen.
(For details of how to display the Service Mode
screen, see the service manual.)
(9) Touch “System 1.”
(10) Touch “Marketing Area.”
(11) Touch “Fax Target.”
Label
Label
Super G3 label
E-8
(12) Use the or key to select the Target
Area (Refer to the list below).
Note:
Set OT for countries other than the ones listed
above.
* Select the appropriate country code according to
the dial system used in the installation place. For
DTMF, select “EU,” and for dial pulse, select
“each destination country code.”
(13) Touch “END” twice.
(14) Touch “FAX.”
(15) Touch “Initialization.”
(16) Touch “Fax Function Parameter” and “Commu-
nication Journal Data.”
(17) Touch “Yes.”
(18) Touch “Yes.”
(19) Touch “END.”
(20) Touch “Exit” on the Service Mode screen.
(21) Turn OFF and ON the power switch.
Note:
When displayed the Service Mode screen, be sure
to turn off the power after exiting the Service Mode
screen and wait for 10 seconds or more before
turning on.
(22) Perform the sending and receiving tests
between the Machine and either the store
which offers the service or the local retailer, to
check that it can be operated normally.
<Caution when performing dial transfer>
After setting the country code, dialing operations
may be selected after the switchboard dial tone is
detected depending on the destination. In this case,
depending on the switchboard connected to the
machine and the type of dial tone received from the
switchboard, dialing operations may not be avail-
able. If that happens, you may be able to avoid the
problem with the following setting.
<Turn the Dial Tone Detection function OFF>
(1) Display the Service Mode screen.
(For details of how to display the Service Mode
screen, see the service manual.)
(2) Touch “FAX.”
(3) Touch “Network.”
(4) Touch “Network Setting 2.”
(5) Touch “OFF” of Dial Tone Detection.
(6) Touch “END.”
(7) Touch “Exit” on the Service Mode screen.
(8) Turn OFF and ON the power switch.
Note:
When displayed the Service Mode screen, be sure
to turn off the power after exiting the Service Mode
screen and wait for 10 seconds or more before
turning on.
Country code setting for FAX
U.S. US Taiwan TW
Canada CA Australia AU
Germany DE New Zealand NZ
U.K. EU* (GB) Hong Kong HK
France EU* (FR) Malaysia MY
Switzerland EU* (CH) Singapore SG
Netherlands EU* (NL) South Africa ZA
Belgium EU* (BE) China CN
Austria EU* (AT) Korea KR
Norway EU* (NO) Argentina AR
Sweden EU* (SE) Brazil BR
Finland EU* (FI) Vietnam VN
Ireland EU* (IE) Philippines PH
Denmark EU* (DK) Russia RU
Spain EU* (ES) Saudi Arabia SA
Portugal EU* (PT)
Italy EU* (IT)
Poland EU* (PL)
