Kohler LOVEE K-9289T Manuel utilisateur

-1-

INSTALLATION INSTRUCTIONS

LOVEE

FREESTANDING BATH WITH STAINLESS FOOT AND TOWEL RACK

K-9289T/K-9271T

BEFORE YOU BEGINBEFORE YOU BEGIN

, 2010

A. Introduction

Please read these instructions carefully to

familiarize yourself with the required tools, materials,

and installation sequences. Follow the sections that

pertain to your particular installation. This will help

you avoid costly mistakes. In addition to proper

installation, read all operating and safety instructions.

All information is based on the latest product

information available at the time of publication.

Kohler Co. reserves the right to make changes in

product characteristics, packaging, or availability at

any time without notice.

These instructions contain important care, cleaning,

and warranty information-please leave these

instructions for the consumer.

B. Installer Hazard Notification

CAUTION!! Risk of personal injury.

Cast iron baths are extremely heavy, and need

at least 3 persons for help. Wear appropriate

safety equipment when installing these products.

C. The following instructions must be

followed to avoid any potential damage

to the surface of the enamel.

CAUTION!! The surface of the enamel will be

damaged if the following instructions are not

followed.

Keep sharp-ended objects or tools away from the

bathtub during transportation.

Cover the edge and bottom of the bath with

transparent plastic cloth to protect it from being

spotted by dirt and silicon during installation.

Install the bath at the proper position.

368 201419

1150366-T01-A

-2-

B. Product Inspection

Uncrate and inspect bath for damage. Leave all

materials in the crate during construction to prevent

damage.

Carefully open the stainless rack and remove the

components and hardware pack, inspect all the

stainless rack for damage.

If you observe any damage, do not install the bath or

the stainless rack. Report the specific problem to

your dealer.

B. Clearance Requirements

Check the rough-in and room dimensions to provide

adequate available space for the bath unit.

Safety glasses

Tape measure

Pencil

Level

Blade screwdriver

Phillips screwdriver

Pliers

Sealant

Square

Knife

Conventional woodworking tools and materials

Drop cloth 2 4,sor2 6

Water-resistant wall material

Metal shims

Adjustable wrench

Hex wrench

Rags

5mm Allen wrench

10mm Allen wrench

A. Tools And Materials Required (Not Supplied)

INSTALLATION REQUIREMENTSINSTALLATION REQUIREMENTS

2x4 2x6

5mm

10mm

PRODUCT REQUIREMENTSPRODUCT REQUIREMENTS

A. Summary Of Key Requirements

Observe all local plumbing codes.

Install the bath tub to a level floor.

Provide properly-dimensioned space.

Make sure the flooring offers adequate support for

your bath.

Observe all local plumbing and building codes.

1150366-T01-A

-3-

C. Plumbing Preparation

Position the plumbing according to rough-in dimensions.

Check the supplies for leaks.

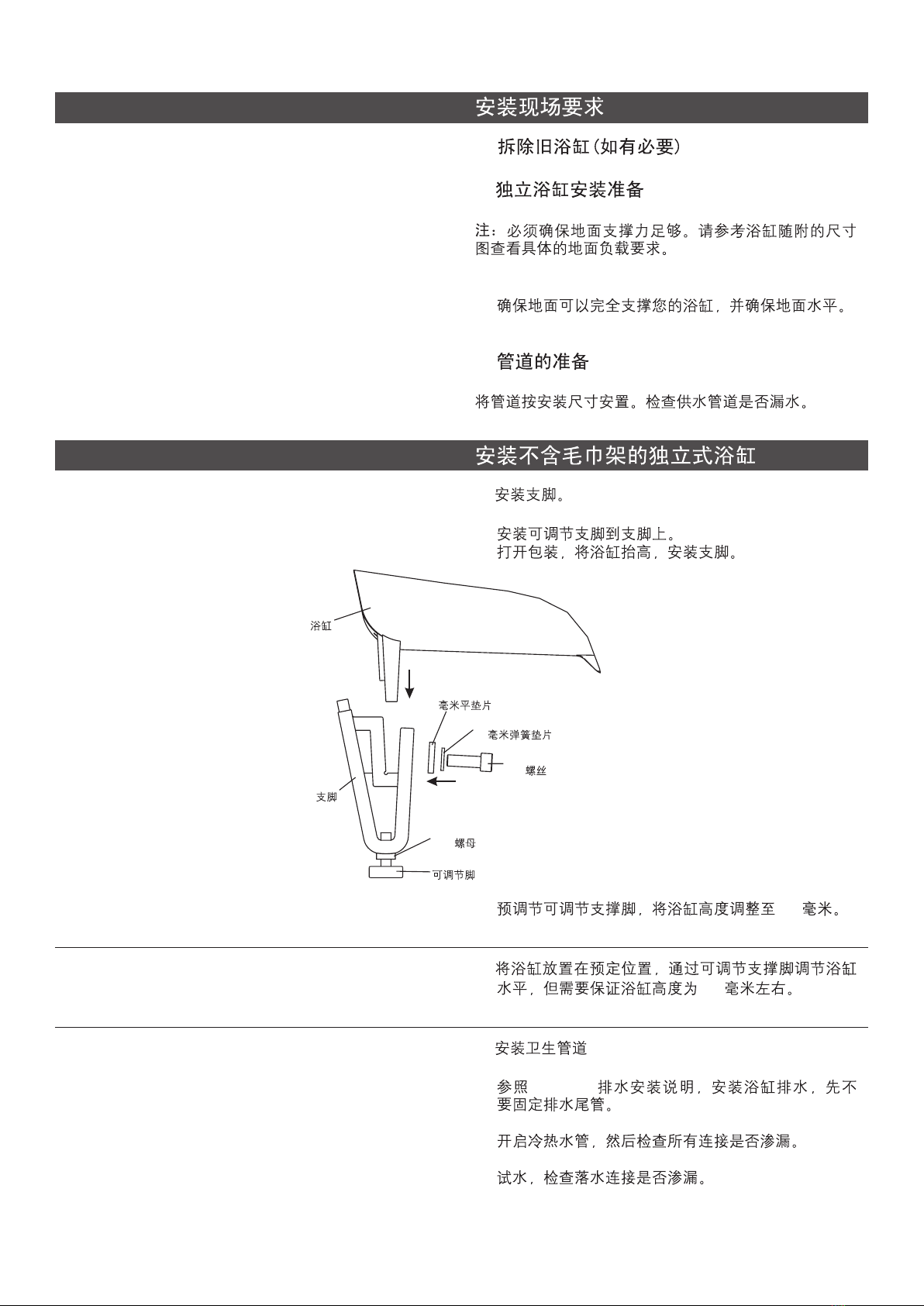

SITE REQUIREMENTSSITE REQUIREMENTS

B. Preparation

Note: Adequate floor support must be provided. Refer to

roughing-in sheet packed with your bath for specific floor

loading requirements.

Make sure the floor offers adequate support for your

bath and verify that the subfloor is flat and level.

A. Old Bath Removal (if necessary)

!560

Install the feet.

Unpack the bath, and fix the feet.

Install the adjustable feet onto the feet.

lift the bath

!Adjust the height of the bath to 560mm by adjusting

the adjustable feet bottom.

560

K-15995T

2. Place to the predetermined position. Adjust the

adjustable feet to level the bath. Ensure that the

height of the bath is about 560mm.

Install the plumbing

Install the bath drain. Please refer to the installation

instruction of Bath Drain K-15995T. Don't fix the

drain tail piece first.

Turn on the cold and hot supply, and then check all

the connections to see whether there is any leakage.

Run water, and then check the drain connection to

see whether there is any leakage.

INSTALL THE FREESTANDING BATH WITHOUT TOWEL RACK

Bath

Feet

10mm Gasket

10mm Spring Gasket

M10 Screw

M10

M10 Nut

M10

Adjustable Feet

1150366-T01-A

-4-

Install the stainless steel pipe and the fixing plate

Install and fix the four stainless steel pipes and four

fixing plates according to the picture.

Fixing Plate Step 1: Insert the fixing plate into

the square tube.

Step 2: Insert the square tube

with the fixing plate in it

into the foot.

2Fixing Plate

Square Tube

INSTALL THE FREESTANDING BATH WITH TOWEL RACK

!560

Install the feet.

Unpack the bath, and fix the feet.

Install the adjustable feet onto the feet.

lift the bath

!Adjust the height of the bath to 560mm by adjusting

the adjustable feet bottom.

560

2. Place to the predetermined position. Adjust the

adjustable feet to level the bath. Ensure that the

height of the bath is about 560mm.

Bath

Feet

Adjustable Feet

10mm Gasket

10mm Spring Gasket

M5 Screw +

5mm Spring Gasket

M5 +5

M10 Screw

M10

M10 Nut

M10

1150366-T01-A

-5-

K-15995T

Install the plumbing

Install the bath drain. Please refer to the installation

instruction of Bath Drain K-15995T. Don't fix the

drain tail piece first.

Turn on the cold and hot supply, and then check all

the connections to see whether there is any leakage.

Run water, and then check the drain connection to

see whether there is any leakage.

Install the stainless steel pipe and the fixing plate

Install and fix the four stainless steel pipes and four

fixing plates according to the picture.

Fixing Plate

Insert into the hole of the square tube.

Square Tube

5. Install the towel rack according to the picture.

6. Repeat step 4 to fix the towel rack and the fixing

plates.

6. 4

M5 Screw +

5mm Spring Gasket

M5 +5

Step 1: Insert the fixing plate into

the square tube.

Step 2: Insert the square tube

with the fixing plate in it

into the foot.

1150366-T01-A

-6-

IMPORTANT CONSUMER INFORMATIONIMPORTANT CONSUMER INFORMATION

Safeguard ASME/ANSI

A112.19.1M

pH 3 8 (

)

The Safeguard slip resistant surface on this bathtub

meets or exceeds the requirements of ASME/ANSI for

A112.19.1M slip resistance.

Improper maintenance or cleansers may

permanently remove the slip resistant surface on

Kohler bathtubs.

All housekeeping and maintenance

employees must be trained in the proper cleaning of

Kohler bathtubs. Post a copy of this notice in a readily-

visible location.

use steel wool, wire brushes, metal scrapers

or abrasive sponge pads to clean a Kohler bath tub.

use buffing machines on the slip resistant

surface.

use high alkaline or strong acid cleansers.

use abrasive cleansers. Use only non-

abrasive cleansers and a soft nylon brush to clean the

slip resistant surface.

When using commercial cleansers, use cleansers

with a pH of between three and eight.

When using commercial cleansers, use cleansers

with a pH of between three and eight.

Follow cleanser manufacturer instructions very

carefully.

DANGER!!

NOTICE:

DO NOT

1150366-T01-A
