Installation Guide

Steam Control Kit

Mproduct numbers are for Mexico (i.e. K-12345M)

Los números de productos seguidos de Mcorresponden a México

(Ej. K-12345M)

Français, page “Français-1”

Español, página “Español-1”

K-1647 K-1663

K-1698

1045320-2-G

Tools and Materials

Before You Begin

IMPORTANT! When using this unit, basic precautions should always be followed.

WARNING: Risk of personal injury. Do not install the Steam Control User Interface outside the

steam enclosure. The User Interface must be installed within the enclosure to allow the sensors to

regulate the temperature and control the ﬂow of steam.

DANGER: Risk of electrocution. Disconnect the electricity to the working area at the main breaker

panel before performing these installation steps.

WARNING: Risk of personal injury. If you become uncomfortable while taking a steam bath, you

should power off the unit. Cool off with the shower, open the door, or exit the unit.

WARNING: Risk of allergic reaction. Before adding any oils, aromatic therapies, or skin care

products to the aromatherapy well, make sure they will not cause an allergic reaction to the user.

WARNING: Risk of personal injury. This steam bath may not be suitable for use if you are

pregnant, have a heart condition, have high blood pressure, have circulatory problems, are under

the inﬂuence of alcohol, are taking drugs or are under the care of a physician. A steam bath can put

undue stress on the body, as does any hot bath, shower, or sauna.

WARNING: Risk of personal injury. DO NOT consume alcoholic beverages or take

medications/drugs prior to or when using the steam bath. Alcohol and drugs affect mental

judgement and inhibit bodily functions such as heartbeat and respiration, resulting in potentially

dangerous effects.

WARNING: Risk of injury to children. Do not allow children to use this unit unless they are

closely supervised at all times. The steam generator is not designed to be used by children.

NOTICE: Use this unit only for its intended use as speciﬁed in this manual. DO NOT use attachments not

recommended by Kohler Co.

Inspect the product for any damage. Contact the KOHLER Customer Care Center using the

information on the back of this guide.

Follow all local plumbing and electrical codes. All electrical work should be done by a qualiﬁed

electrician.

Disconnect all power before making any electrical connections.

Silicone Sealant

Drill w/ 1-1/4"

& 2-1/2" Hole Bit

(match bit to wall material)

Sealant

Tape

Socket Wrench

with 1" Socket

Pipe Nipples

1045320-2-G 2 Kohler Co.

Before You Begin (cont.)

Kohler Co. reserves the right to make revisions in the design of products without notice, as speciﬁed

in the Price Book.

Kohler Co. 3 1045320-2-G

Review Layout

WARNING: Risk of personal injury. Do not install the Steam Control User Interface outside the

steam enclosure. The User Interface must be installed within the enclosure to allow the sensors to

regulate the temperature and control the ﬂow of steam.

WARNING: Risk of scalding. Do not locate the steam head near a seat or bench, as the steam head

is hot during operation and may scald the user if touched.

NOTICE: It is recommended to locate the control kit and steam head on the same wall as the plumbing

controls. For optimum performance, do not locate the control kit directly above the steam head. Locate the

steam head 6″(15.2 cm) above the ﬂoor and a minimum of 4-1/2″(11.4 cm) from the threshold. The steam

head should always be located as far away from the seating area as possible.

Review the layout determined during the steam generator installation. See the steam generator installation

guide for more information.

Modules - Single Steam Head

(15.2 cm) Steam

Head

11"

(27.9 cm)

K-1569/K-1669

K-1683/K-1684 K-1681/K-1682

60"

(152.4 cm)

4-1/2"

(11.4 cm)

K-1688

Control

Kit

Control

Kit

Control

Kit

12" (30.5 cm)

6" (15.2 cm) Steam

Head

Steam

Head Steam

Head

60"

(152.4 cm)

Drain End

(15.2 cm)

60"

(152.4 cm)

K-1687

11"

(27.9 cm)

21"

(53.3 cm)

21"

(53.3 cm)

Control

Kit

4-1/2"

(11.4 cm)

60"

(152.4 cm)

Drain End

K-9486/K-9489

4-1/2"

(11.4 cm)

21" (53.3 cm)

60"

(152.4 cm)

Drain End

K-9488/K-9496

Steam

Head

Steam

Head

21" (53.3 cm)

Steam

Head

(15.2 cm)

Steam

Head

Control

Kit

4-1/2"

(11.4 cm)

60"

(152.4 cm)

(15.2 cm)

Steam

Head

21" (53.3 cm) Control

Kit

60"

(152.4 cm)

21" (53.3 cm)

Steam

Head

(15.2 cm)

Control

Kit

4-1/2"

(11.4 cm)

Drain End

Steam

Head

1045320-2-G 4 Kohler Co.

Review Layout (cont.)

Identify the model number of your shower module in the illustration. If necessary, consult the

Homeowners Guide included with your shower module to verify the model number. If the

dimensions for your particular model are not shown, refer to the ″Custom Shower Application″

illustration in the ″Prepare the Site″section.

Determine the location of the control kit and steam head based on the roughing-in dimensions

illustrated. Dimensions given in the rough-in information are crucial for proper installation.

Install the Steam Control User Interface inside the steam enclosure.

Locate the control kit and steam head in the location indicated. All measurements are from the

inside of the module.

Custom Shower Applications

Install the Steam Control User Interface inside the steam enclosure.

The steam head should be located 6″(15.2 cm) above the shower ﬂoor or 4-1/2″(11.4 cm) above the

threshold.

Ensure clearance between the steam line and any surrounding surfaces.

Kohler Co. 5 1045320-2-G

1. Prepare the Site

NOTE: This section continues the installation as described in the steam generator installation instructions.

Refer to the steam generator installation instructions guide for more information, if required.

NOTE: If two steam heads are required, ensure there is at least 12-1/2″(31.8 cm) between the center of

each hole. The steam heads do not need to be located in the same area.

Install the ﬁnished wall material.

Mark the temporary pipe nipple at the location of the ﬁnished wall surface.

Remove the temporary pipe nipple from the elbow.

Drill or cut a 2-1/2″(6.4 cm) hole centered around the elbow in the wall.

Wall Stud

2-1/2" (6.4 cm)

6" (15.2 cm) from Floor

Provide clearance

from wall.

Mark the nipple even

with finished wall.

Temporary

Nipple

Wall Stud

1045320-2-G 6 Kohler Co.

2. Install the Steam Head(s)

NOTICE: Do not obstruct the steam head with shut-off valves, plugs, or caps.

Subtract 1-1/4″(3.2 cm) from the marked length to determine the appropriate nipple size.

Choose a nipple length within 1/8″of the appropriate nipple size.

Apply thread sealant to the threads on one side of the nipple and thread that side into the steam

head housing until hand-tight.

Apply thread sealant to the threads on the other end of the nipple.

Position the gasket around the steam head housing so that it will be between the ﬁnished wall and

the steam head housing ﬂange.

Usea1″socket to thread the steam head housing assembly into the elbow in the wall.

Make sure the gasket is compressed and a good seal has been achieved around the edges of the

steam head housing.

Use an appropriate sealant to achieve a watertight seal if needed.

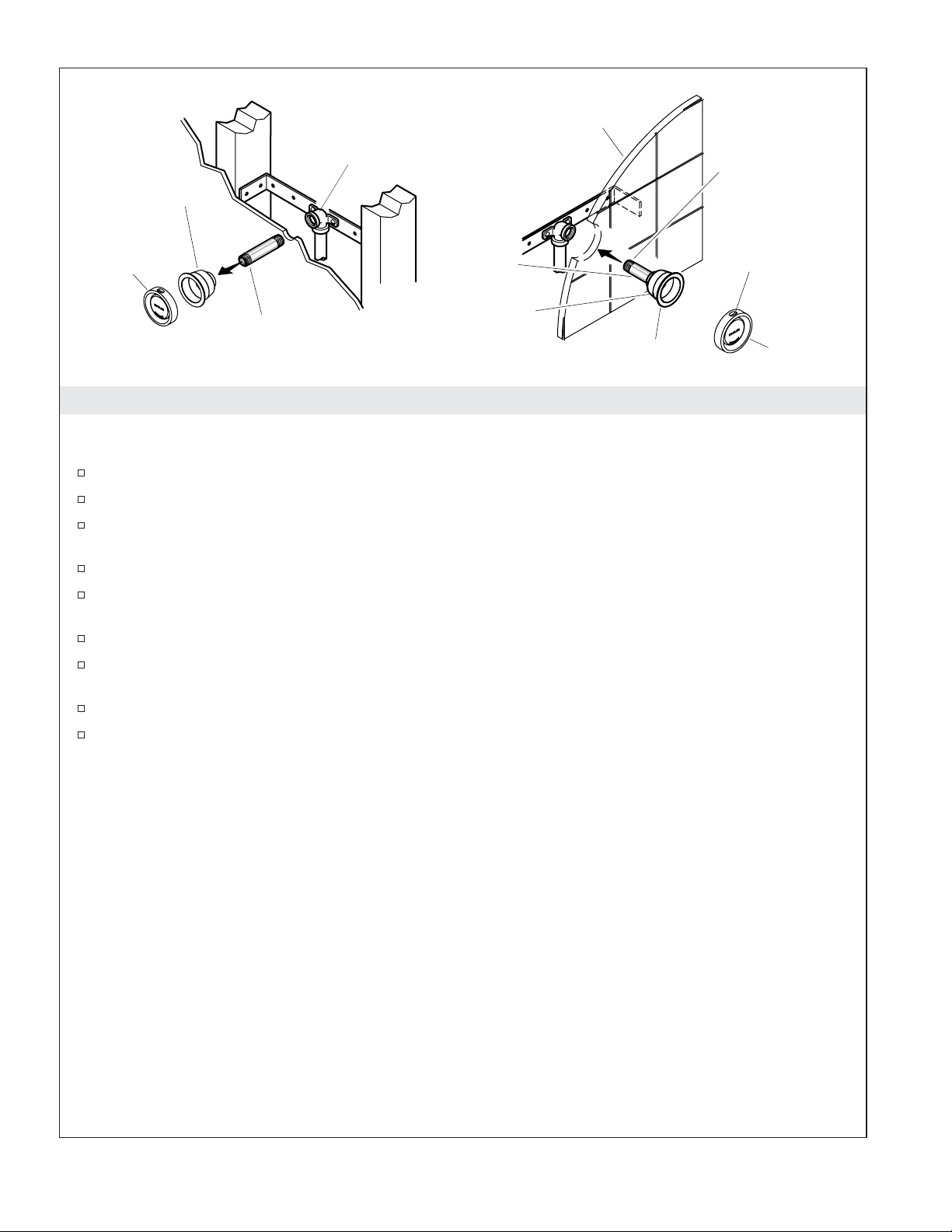

Press the steam head assembly into the steam head housing with the aromatherapy well positioned

on the top of the steam head.

Steam

Head

Steam Housing

1/2" NPT

Elbow

Steam

Head

Lip

Wall

Aromatherapy

Well

Nipple

Steam

Housing

Apply thread sealant.

Apply

thread sealant.

Kohler Co. 7 1045320-2-G

3. Install the Steam Control

WARNING: Risk of personal injury. Do not install the Steam Control User Interface outside the

steam enclosure. The User Interface must be installed within the enclosure to allow the sensors to

regulate the temperature and control the ﬂow of steam.

Make sure that the power is turned off at the main breaker panel before proceeding.

Locate the control pad on the wall 60″(152.4 cm) from the ﬂoor.

At the selected location, drill a hole 1-1/4″(3.2 cm) in diameter.

NOTICE: Do not pinch, nail, wedge, or use undue force when handling the control connector and the

control pad wire. Any damage may result in control kit failure. If the control pad is not installed

immediately, protect the control connector with tape or other shielding material.

NOTICE: When installing the control kit, allow room in the control cable for a drip loop. The drip loop

will discourage moisture from following the control cable to the steam generator.

Pull the control connector from the steam generator through the drilled hole.

Carefully plug the control connector to the control pad wire using the double-end female connector

(provided).

Restore the power at the main breaker panel.

Turn on both water and power to the generator.

Test the control pad to ensure it is functioning properly. Refer to the ″Using the Control Pad″

section.

Apply a continuous bead of silicone sealant around the back edge of the control pad.

Press the control pad ﬁrmly onto the wall.

Apply a bead of silicone sealant around the outside edge of the control pad. Use tape to secure the

control to the wall while the sealant cures.

Allow the silicone sealant to cure for 24 hours before use.

Back View

Control Pad

Control Connector

Apply silicone sealant.

1-1/4"

(3.2 cm) D.

60" (152.4 cm)

to Floor

1045320-2-G 8 Kohler Co.

4. Operate the Steam Control

Steam Control Operation

NOTE: The clock is always displayed on the display when the steam is not in use.

Push the ″On/Off″button to start the steam.

When the button is pushed the green light on the ″On/Off″button turns on. It remains on until the

unit is turned off. The display reads ″On″for the ﬁrst three minutes of operation if the settings are

not changed.

The current temperature is then displayed until the target temperature is reached.

Push the ″On/Off″button again to stop the steam. The green light on the ″On/Off″button turns off

and the display reads ″Off″for ﬁve seconds, then returns to the clock.

NOTE: When turning the unit on, the steam duration and temperature settings will be based upon the

previous user settings. The settings of a new control unit are 113°F (45°C) for 15 minutes.

Steam Control Adjustment

NOTE: Make sure the steam control unit is turned ON before making any of the following adjustments.

Push the temperature button and the display ﬂashes the previous setting. To adjust steam

temperature, press the increase button to increase the temperature and the decrease button to

decrease the temperature. The maximum allowed temperature is 125°F (52°C). The minimum

operating temperature is 90°F (32°C).

After ﬁve seconds, the ﬂashing stops and ambient temperature is displayed as it changes to the

target temperature.

Push the timer button and the display ﬂashes the previous setting. Press the increase or decrease

buttons to adjust the setting up or down. After 5 seconds the ﬂashing stops and the timer setting is

displayed. If the increase or decrease buttons are not pushed the time will continue to count down.

The minimum operating time is 10 minutes, the maximum operating time is 20 minutes.

Push the clock button and the display ﬂashes the current time of day setting. Press the increase or

decrease buttons to adjust the clock. After ﬁve seconds, the ﬂashing stops and the set time is

displayed.

Press the ″On/Off″button to stop the steam and exit at any time. The display will read ″Off″for

ﬁve seconds and default to the clock.

To toggle the temperature reading between Fahrenheit and Celsius, push and hold the temperature

button for three seconds.

Power Clean (K-1647 and K-1698 only)

Increase

Timer

Decrease

On/Off

Temperature

Clock

Display

Kohler Co. 9 1045320-2-G

Operate the Steam Control (cont.)

WARNING: Risk of personal injury. Stay out of the showering area when the power clean function

is activated.

NOTICE: Users will be automatically reminded to use power clean after 600 minutes of steam generator

use. The display will read ″run″″PCLn″. The steam generator may be run three times before the cleaning

function must be run.

NOTE: When power clean is activated, water will typically discharge from the steam head.

NOTE: The cleaning cycle must be completed before normal steam operation may be resumed.

To activate the power clean function: Push the timer button, increase button, and decrease buttons

at the same time for ﬁve seconds. The display will read ″PCLn,″″On,″then count down the cycle

time until the cleaning cycle is complete. The cleaning cycle may last up to 45 minutes and shuts off

automatically when complete.

NOTE: If electrical power to the steam generator is interrupted during the cleaning cycle, the cycle must

be restarted when the electrical power is restored.

1045320-2-G 10 Kohler Co.

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Kohler Appareil de salle de bains

Kohler

Kohler K-10044 Instructions de montage

Kohler

Kohler Triton K-7307 Instructions de montage

Kohler

Kohler K-19034 Manuel utilisateur

Kohler

Kohler STERLING 500 Series Instructions de montage

Kohler

Kohler Kumin K-104K36-SANA-CP Manuel utilisateur

Kohler

Kohler Mira Decor Manuel utilisateur

Kohler

Kohler Sterling Ensemble AFD 7110 Series Instructions de montage

Kohler

Kohler K-T9474 Instructions de montage

Kohler

Kohler FAMILY CARE K-22781T-1 Manuel utilisateur

Kohler

Kohler Mira Showers Escape Thermostatic 9.0 kW Manuel utilisateur

Kohler

Kohler K-4636 Manuel utilisateur

Kohler

Kohler LOURE 98452T-CP Manuel utilisateur

Kohler

Kohler K-1118-LA Guide de démarrage rapide

Kohler

Kohler Symbio K-1315-H Manuel utilisateur

Kohler

Kohler ELEVATION 72675T-C7 Manuel utilisateur

Kohler

Kohler Englefield Valencia Elite Manuel utilisateur

Kohler

Kohler K-8002 Instructions de montage

Kohler

Kohler OVE Vanity Lavatory K-19950T Manuel utilisateur

Kohler

Kohler Waterlite tower 3866 Manuel utilisateur

Kohler

Kohler K-701805T-FMSW Manuel utilisateur

Kohler

Kohler K-15000 Manuel utilisateur

Kohler

Kohler URBANITY 15096T Manuel utilisateur

Kohler

Kohler K-45425 Instructions de montage

Kohler

Kohler K-9035 Instructions de montage

Manuels Appareil de salle de bains populaires d'autres marques

DURAVIT

DURAVIT C.1 C15240 0090 Manuel

Heatstore

Heatstore HSTRL500WTN Manuel utilisateur

Sunshower

Sunshower PURE SOLO Manuel utilisateur

Delabie

Delabie Delabie Sporting 714700 Manuel utilisateur

ESS

ESS Container TCL-11 Manuel utilisateur

Mustee

Mustee 22C Manuel utilisateur

VITRA

VITRA V-Flow Manuel utilisateur

baliv

baliv DUK-80.30 T Manuel utilisateur

Malmet

Malmet B105BT Manuel utilisateur

bathstore

bathstore Transition H1690MM Mode d’emploi

BELLOSTA

BELLOSTA Edward 0800/M Manuel utilisateur

baliv

baliv DU-5160 Manuel utilisateur

Franke

Franke PRTR0006 Manuel utilisateur

Gessi

Gessi RILIEVO 59011 Manuel utilisateur

noken

noken VITAE 100188525-N299998810 Manuel utilisateur

Allen + Roth

Allen + Roth 1142VA-30-201 Manuel utilisateur

Britex

Britex HBDA Manuel utilisateur

GRE

GRE DSALC32W Manuel utilisateur
