Trūper Operator Maintenance

Color Scanner

Part Number S006830 Rev. B

www.bbhscanners.com 72 of 142

Operator Maintenance

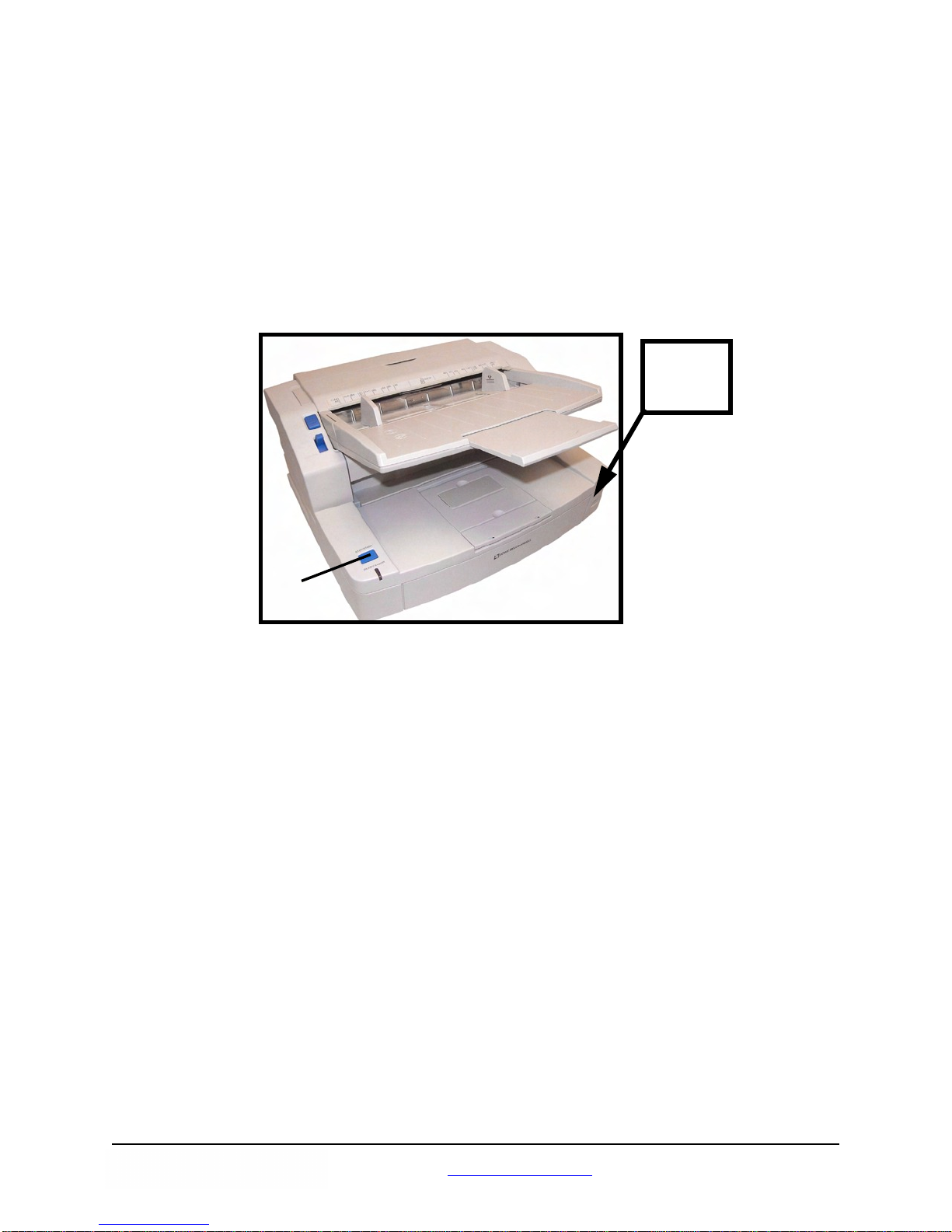

Cleaning the Outside of the Scanner

To maintain the scanner’s performance, clean the outside of the unit at least once per month using the

following procedure:

Press the power button to the OFF position.

Clean the exit tray, the feeder and feeder tray, ADF cover and other surfaces with a soft cloth.

The insertion and exit slots of the ADF can become soiled with dirt, grime and paper dust. Clean

these areas at least once per month or more often if there is an accumulation dust.

Use a brush to remove dirt and dust from the exhaust fan vent on the back side of the unit near the

power cord connection and from the two vents on the left and right sides of the ADF assembly.

Power button

LED

www.bbhscanners.com 73 of 142

Cleaning Inside the Scanner

If paper jamming, marking, or multiple-sheet feeding occurs frequently, clean the rollers, sensors and

double feed detector as described in this section. To maintain scanning quality, clean the scanner

components frequently: Clean inside the scanner at least once per week or after 20,000 sheets have been

scanned, whichever comes first.

To determine the number of sheets scanned, use the Trūper User Utility. (See “Trūper User Utility” on

page 92.)

The following guidelines are for cleaning inside the scanner:

•If the documents you scan are dirty, the scanner’s parts and components will also become dirty.

Be sure the documents you scan are as clean as possible.

•If black or white lines appear on the scanned images, clean the ADF glass areas and the

reference plates as described in “Cleaning the Background Color Reference Plates and ADF

Glass” on page 81.

•If paper jamming, marking, or double feeding occurs frequently even after cleaning, you may

need to change the rollers, as described in “Replacing Consumables” on page 86.

Also observe the warnings for use of the roller cleaning paper shown in “Roller Cleaning Paper” on

page 74.

ÂNote

For proper cleaning and maintenance, it is recommended that the following three roller cleaning

procedures be performed concurrently.

www.bbhscanners.com 74 of 142

Roller Cleaning Paper

Use the roller cleaning paper to clean inside the scanner.

Warning

Before using the roller cleaning paper, please read these instructions completely. Keep these

instructions for future reference.

• KEEP THE ROLLER CLEANING PAPER AWAY FROM FIRE.

• Do not use the roller cleaning paper near a heater or open flame.

• Do not drink or inhale the roller cleaning

paper fluid.

• The roller cleaning paper may be harmful to

your skin. Please use protective gloves

when working with the cleaning paper.

• Do not store the roller cleaning paper in

direct sunlight or in a place with temperature

over 104oF (40oC).

• Use the roller cleaning paper only to clean the rollers and scanning area.

• If you need more information about the roller cleaning paper, please refer to the Material Safety

Data Sheet (MSDS) available upon request from Böwe Bell + Howell Scanners.

Preparation: Cut the roller cleaning paper bag on the dotted line and take out the roller cleaning paper.

Use the roller cleaning paper immediately after opening the bag. If the bag remains open for a long period

of time, the alcohol cleaning solution will evaporate and the cleaning paper will not be effective.

Additional roller cleaning paper is available from the Böwe Bell + Howell Scanning Essentials online store

at http://webstore.bbhscanners.com or from the reseller where you purchased the Trūper scanner. See

also the “Consumable Parts and Accessories List” on page 13.

Dotted line

www.bbhscanners.com 75 of 142

Cleaning the Paper Feed Roller, Separation Roller and Retard Roller

Press the power button to the OFF position.

Push the ADF door release button to open the ADF door.

Use the roller cleaning paper to remove any dirt or grime from the surfaces of the paper feed roller

and separation roller.

Hold the roller to prevent it from rotating, then wipe the roller from one side to the other in the

direction of the arrows shown in the diagram. Turn the roller as you continue to wipe and clean all

the way around the roller.

2ADF door

ADF door release

3Paper feed roller

Separation roller

www.bbhscanners.com 76 of 142

Open the retard cover in the direction of the arrow shown in the diagram by pulling up from the

indent on the right side.

Use the roller cleaning paper to remove the dirt from the surface of the retard roller.

Hold the roller to prevent it from rotating, then wipe the roller from one side to the other in the

direction of the arrows shown in the diagram. Turn the roller as you continue to wipe and clean all

the way around the roller.

Retard roller

Retard cover

Indent

Retard roller

www.bbhscanners.com 77 of 142

Close the retard cover in the direction of the arrow as shown in the following diagram.

•When you close the retard cover, close it securely until the cover is locked. Do not slam the

retard cover.

Close the ADF door.

•When you close the ADF door, close it securely until the door is locked. Do not slam the ADF

door.

Proceed to the following section, “Cleaning the Drive Rollers and Free Rollers in the ADF”.

Cleaning the Drive Rollers and Free Rollers in the ADF

Press the power button to the OFF position.

Push the ADF door release button to open the ADF door.

Retard roller

Retard cover

www.bbhscanners.com 78 of 142

Use the roller cleaning paper to remove the dirt from the surfaces of the four (4) drive rollers.

Hold the roller to prevent it from rotating, then wipe the roller from one side to the other in the

direction of the arrows shown in the diagram. Turn the roller as you continue to wipe and clean all

the way around the roller.

Use the roller cleaning paper to remove the dirt from the surfaces of the four (4) free rollers.

Hold the roller to prevent it from rotating, then wipe the roller from one side to the other in the

direction of the arrows shown in the diagram. Turn the roller as you continue to wipe and clean all

the way around the roller.

Close the ADF door.

•When you close the ADF door, close it securely until the door is locked. Do not slam the ADF

door.

Proceed to the following section, “Cleaning the Drive Rollers, Free Rollers and Exit Rollers in the

Exit Door”.

Drive rollers

Free Rollers

www.bbhscanners.com 79 of 142

Cleaning the Drive Rollers, Free Rollers and Exit Rollers in the Exit Door

Press the power button to the OFF position.

Pull the exit door release lever to open the exit door.

Use the roller cleaning paper to remove the dirt from the surfaces of the four (4) drive rollers and

the two (2) exit rollers.

Hold the roller to prevent it from rotating, then wipe the roller from one side to the other in the

direction of the arrows shown in the diagram. Turn the roller as you continue to wipe and clean all

the way around the roller.

Exit door release

Exit rollers

Drive rollers

www.bbhscanners.com 80 of 142

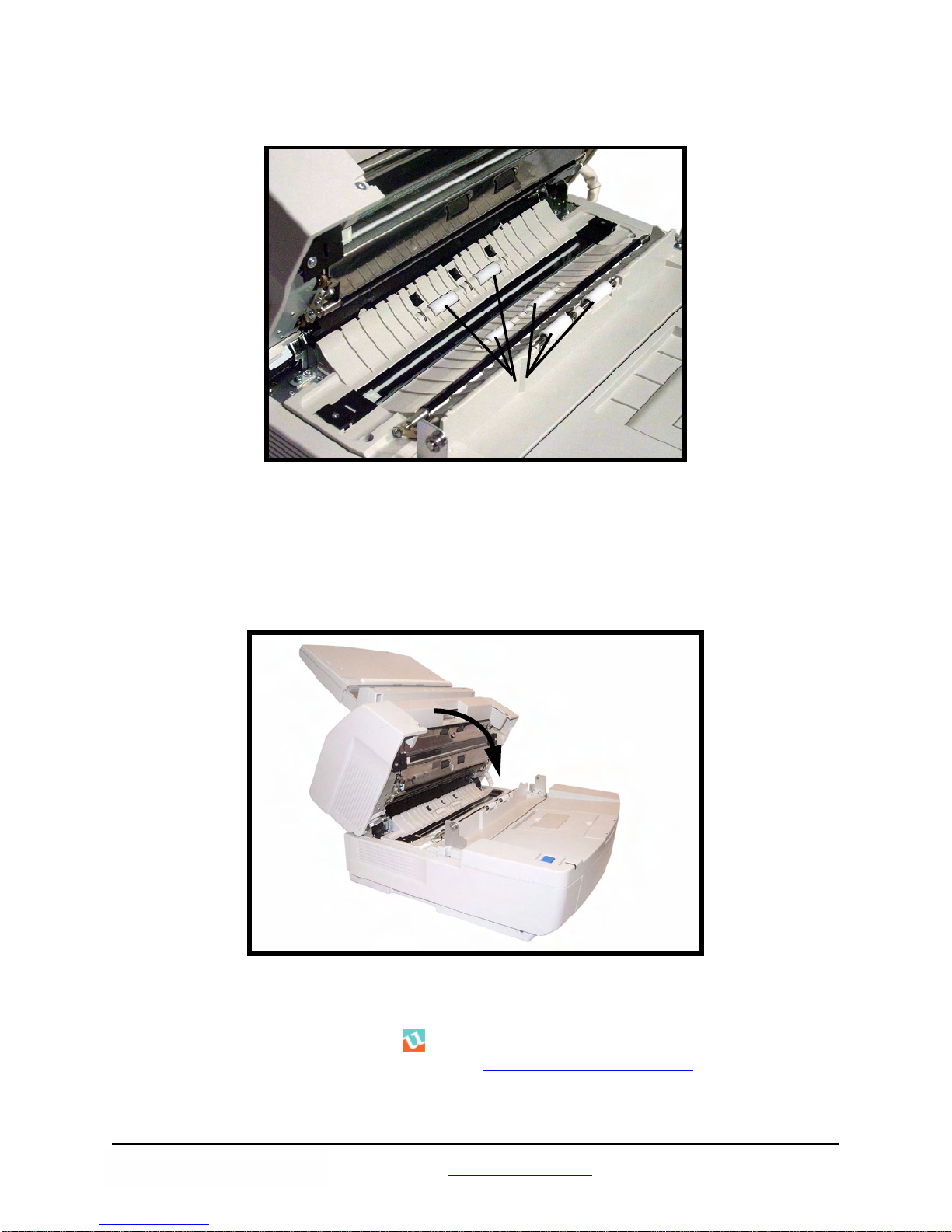

Use the roller cleaning paper to remove the dirt from the surfaces of the six (6) free rollers.

Hold the roller to prevent it from rotating, then wipe the roller from one side to the other in the

direction of the arrows shown in the diagram. Turn the roller as you continue to wipe and clean all

the way around the roller.

Close the exit door.

•When you close the exit door, close it securely until the door is locked. Do not slam the exit

door.

When finished, clear the clean roller counter as described in step 6.

After cleaning the rollers, click the icon to open the Trūper User Utility. Select the User Utility

option to clear the roller cleaning counter. See “Scanner Counter” on page 98.

Free rollers
