IMAGELINK2400DVPlus

andAccessories

InstallationGuide



Unpacking



and



Setting up



Unpacking and Setting Up



1. Remove the plastic bag from the machine and remove all accessories in

the packing material.





Operator's Manual (1).



3 x 8 mm screws for RFC Option I/F Board (5)



Power Cord (1)



Printer Cable (1)



Prism Unit (1)



2. Remove the foam packing and several pieces of tape holding the machine

housing into position.



3. Remove the 2 screws from the front of the machine. Retain the screws as

they will be needed later in this procedure.



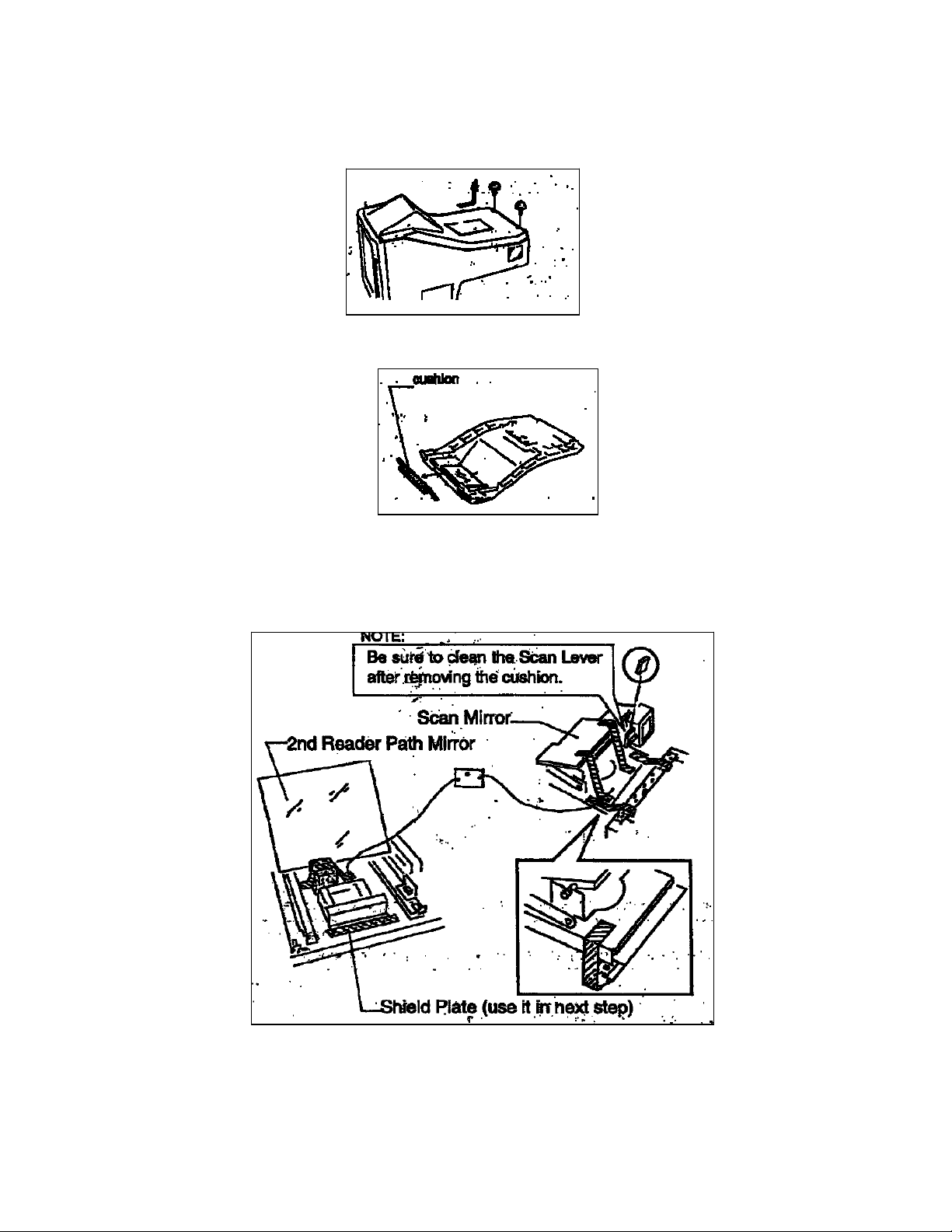

4. Remove 2 screws from the top OPTICAL COVER, slide to the rear and

then lift the cover off the machine.



5. Remove the foam from the MIRROR of the OPTICAL COVER.



6. Remove the several pieces of foam packing and tape from the inside of

the machine, refer to the illustration.



NOTE

Check and remove any material from the SCAN DRIVE SHAFT.



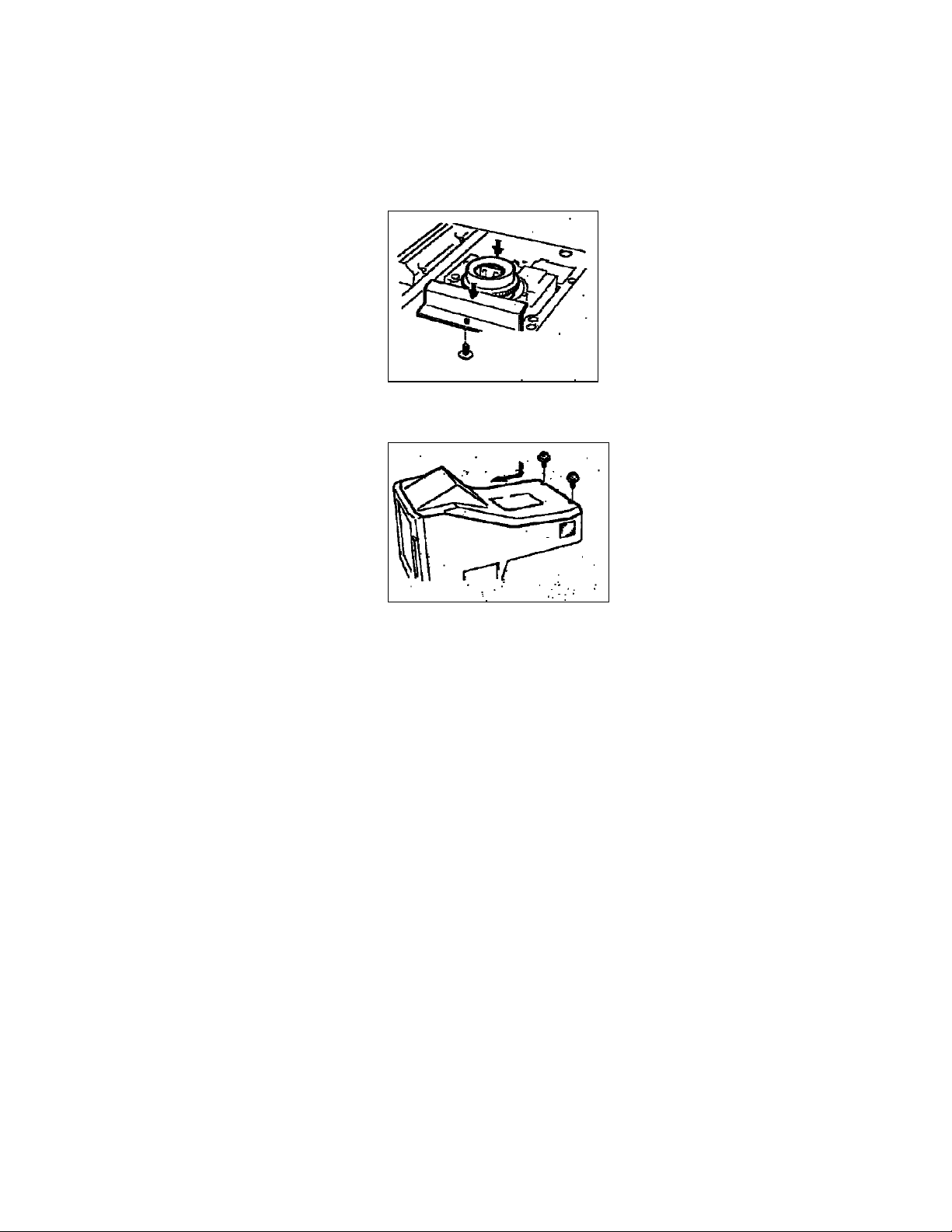

7. Install the PRISM into the PRISM HOLDER and then install the SHIELD

PLATE removed in the previous step of this procedure.



NOTE

Be sure to install the SHIELD PLATE even if the PRISM is not to be used.



8. Replace the OPTICAL COVER.



9. Connect the Printer to the Reader, follow this procedure





10. Connect the Personal Computer to the Reader, follow this procedure





11. Connect power to the machine and check operation.



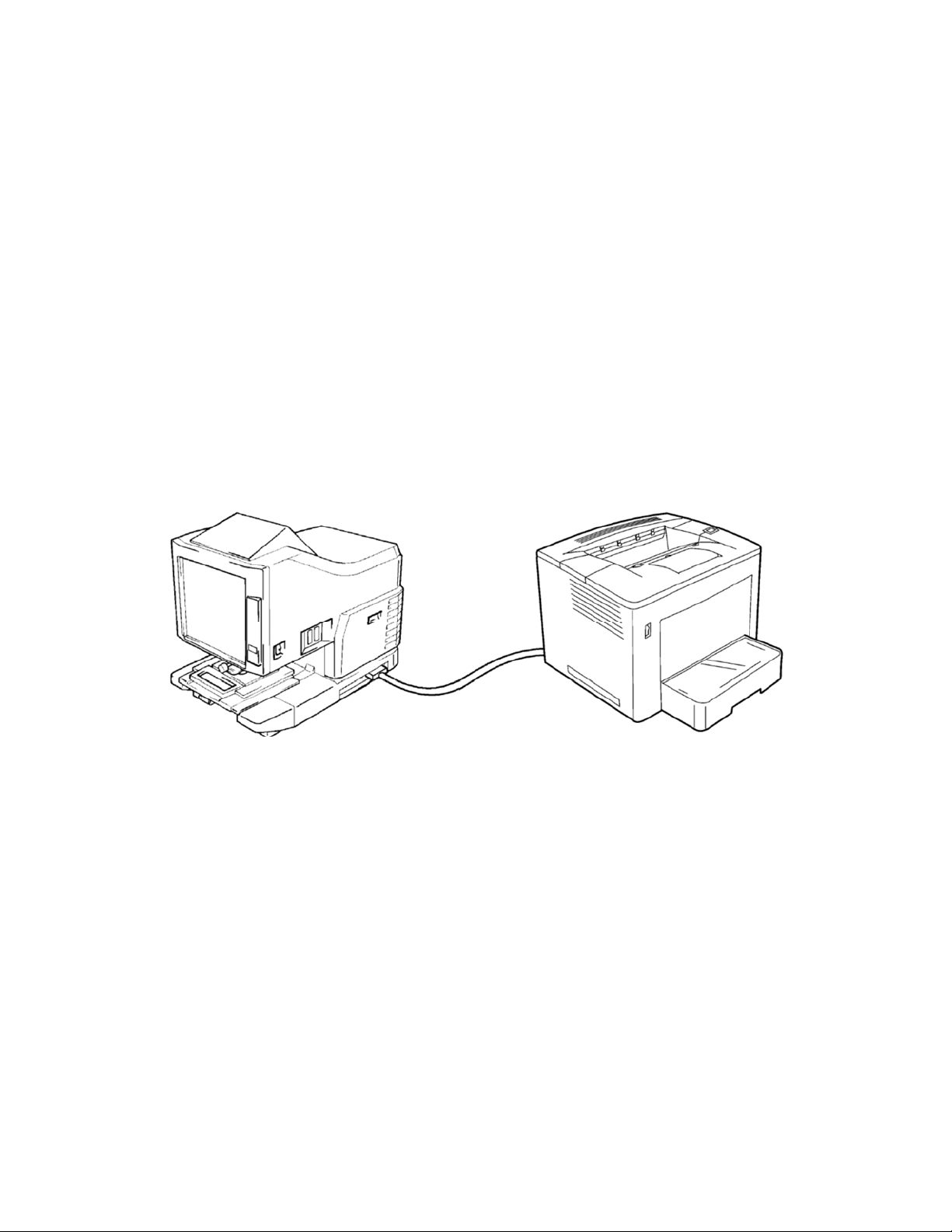

Connecting

the

MSP3500

Printer.



PR Mode (Scanner + Printer)

1. Connect the Printer Cable to either of the ports at the rear of the MSP 3500.

NOTE:

The MSP 3500 Printer will support two DV Plus Scanners connected to it like. If

you intend to use this type of configuration, it is possible for the Printer to print

an identifier on each print so the operators can distinguish between which

scanner the prints came from.

This is enabled in the DV Plus Function Mode, “S7”. See the User’s Manual of

the scanner for more details.

2. Connect the Printer Cable to the scanner.

3. Power on the Printer and the scanner.

4. After the Printer has initialized enter the Function mode on the scanner.

* Select Fb → START key is turned ON, it will display as follows.

 For MSP3500 : Fb → Pr → 35 → Fb

 For MSP3000 : Fb → Pr → 30 → Fb

6. Test the machine operation.



Connecting

To a



Personal

Computer.



PC Mode (Scanner + Personal Computer).



The Scanner is connected to a personal computer and the scanned images

can be uploaded to the computer. An optional PC interface kit required for

connection to a personal computer. The SCSI cable should meet the following

specifications:



1. Power down the Reader and the Personal computer.



2. Connect the USB cable to the PC’s USB 2.0 port.



3. Connect the other end of the cable to Personal Computer.



5. Check Reader operation.

6. The

printer can be switched using Control Panel.



Manual



Frame

Masking

Kit
