Product

Information

Document Scanner 9500

and Document

Scanner/Microimager 990

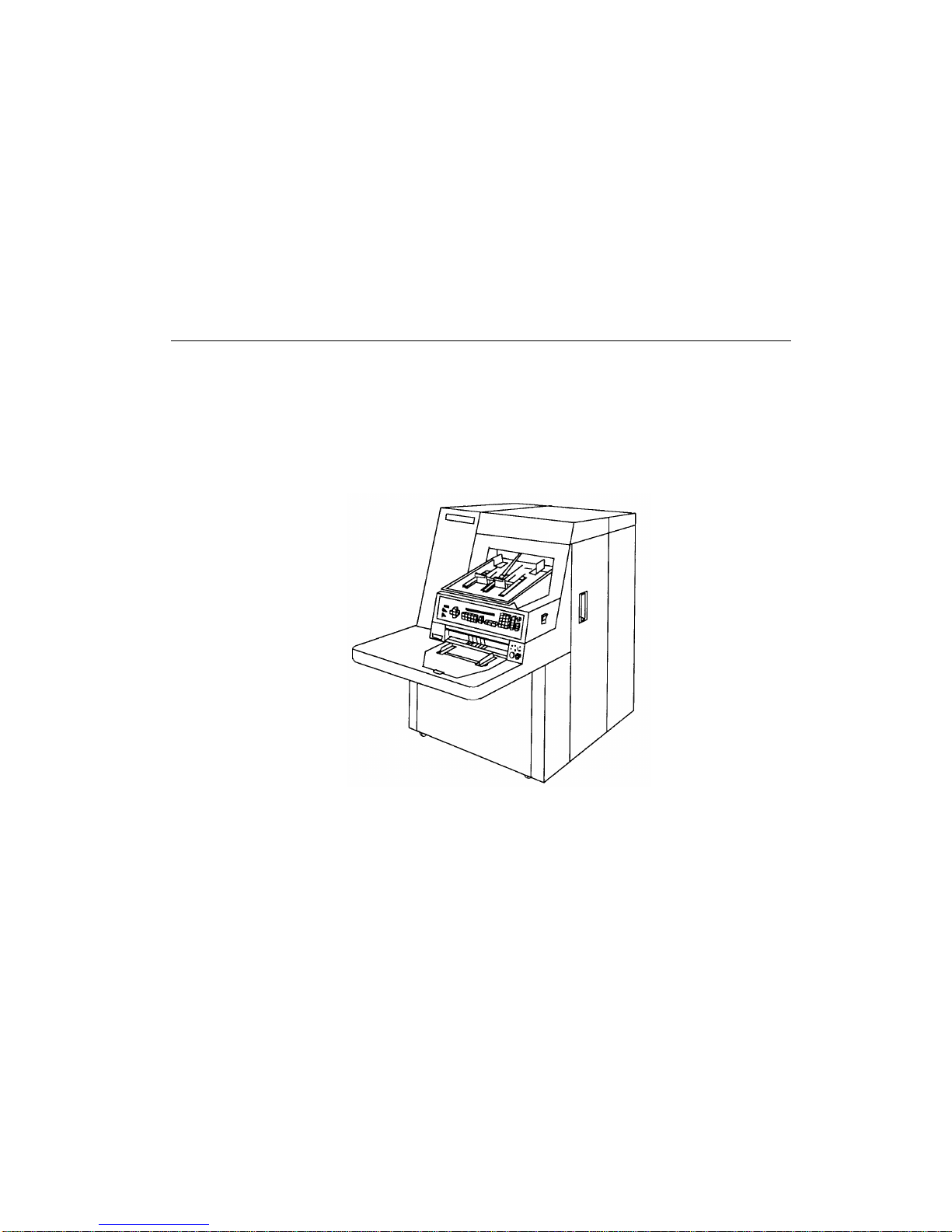

Kodak Digital Science Document Scanner 9500

Product description The Kodak Digital Science Document Scanner 9500 is a high-speed (up to

155 pages-per-minute*), medium- to high-resolution (up to 300 dpi) rotary

scanner designed for high-volume digital capture of business documents.

The Scanner 9500 captures printed characters, handwritten text, and

graphics from documents of various sizes (from 2.5 in [64 mm] to 30 in

[762 mm] long and from 2.5 in [64 mm] to 12 in [305 mm] wide) and

thicknesses (standard documents up to 0.014 inches [0.36 mm]; even

thicker documents may be scanned using the gap release feature).

Customers may choose the Scanner 9500S (simplex) which captures a

page image from single-sided pages or the Scanner 9500D (duplex) which

captures front and back page images from two-sided pages in a single

pass.

Page images are transmitted to a host computer along with an image

header which contains a variety of information, allowing for easy indexing,

database storage and retrieval.

__________

*Standard-sized documents fed in landscape orientation; continuous transport using the Semi-

Automatic Feeder.

Features and benefits The Document Scanner 9500 offers the following features and benefits:

• Freestanding floor console unit.

• Control Panel which provides an easy-to-use operator interface

with: equipment operation keys, standard function keys,

programmable function keys, numeric keypad, status indicators,

and an 80-character LCD Status Display which reflects the current

setup and displays operator messages.

• Gap Adjustment Knob and Gap Release Lever which allows for

adjusting varying document thicknesses.

• Documents are loaded and unloaded from the front and returned

to the exit hopper in their original sequence.

• Adaptive Threshold Processor which provides uniform image

quality of scanned documents regardless of their color, paper

texture, print color or density.

• Access doors allow easy access to the document transport system

without removing the feeder, transport plates, etc. or moving the

Scanner away from the wall.

• Easy daily calibration is performed by feeding a white sheet of

paper.

• Easy daily, weekly, monthly and annual maintenance routines

which require an average of only ten minutes per day.

• Computer-based diagnostics and modular design enable quick and

easy problem diagnosis and repair, reducing downtime.

• Selectable scan resolution from 300–70 dpi.

• Image compression (GIII 1-dimensional; GIII 2-dimensional; GIV).

• Image processing capabilities (such as cropping, image

enhancement filters, noise filter, screening/dithering, thresholding,

etc.).

• Resettable document counter.

• Automatically generates image addresses (from a customer-

defined base address).

• Eighteen programmable modes provide customization for specific

applications.

•

Event confirmation tones/lights.

Optional accessories All accessories have been designed to operate at paper transport speed.

Using these accessories will not reduce overall processing speed.

The following accessories are available to customize scanner applications:

• Advanced Document Controller — detects document overlap

and skew.

• Bar Code Reader — provides a hands-off method of entering data

by automatically reading and decoding information encoded in bar

code form. Decoded bar code information is included in the image

header.

• Check Feeder — provides continuous feeding of check-sized

documents.

• Check Stacker — provides continuous stacking of check-sized

documents.

• Document Printer Controller — allows use of the document printers

(one or two DP1 printers, and one DP12 printer).

• Document Printer 1 — allows customer-specified information to

be printed on documents (single line, vertical orientation—38

characters maximum) as they pass through the transport system.

This information is used for document identification and tracking.

• Document Printer 12 — allows customer-specified information to

be printed on documents (multiple lines, horizontal orientation—

144 characters maximum) as they pass through the transport

system. This information is used for document identification and

tracking.

• Endorser — automatically imprints endorsements on the rear side

of documents (with a variety of die stamp styles) as they pass

through the transport system.

• Footswitch — provides a hands-off method of performing

document level changes or commonly used functions while

documents are being fed into the transport system.

• Imaging Station Lamps — provides color form drop-out capability

for more efficient document storage.

• Patch Reader — controls document level changes by

automatically sensing a predefined patch code and changing the

document level accordingly.

•

Scanner 9500S/9500D Upgrade Module

— allows for an upgrade

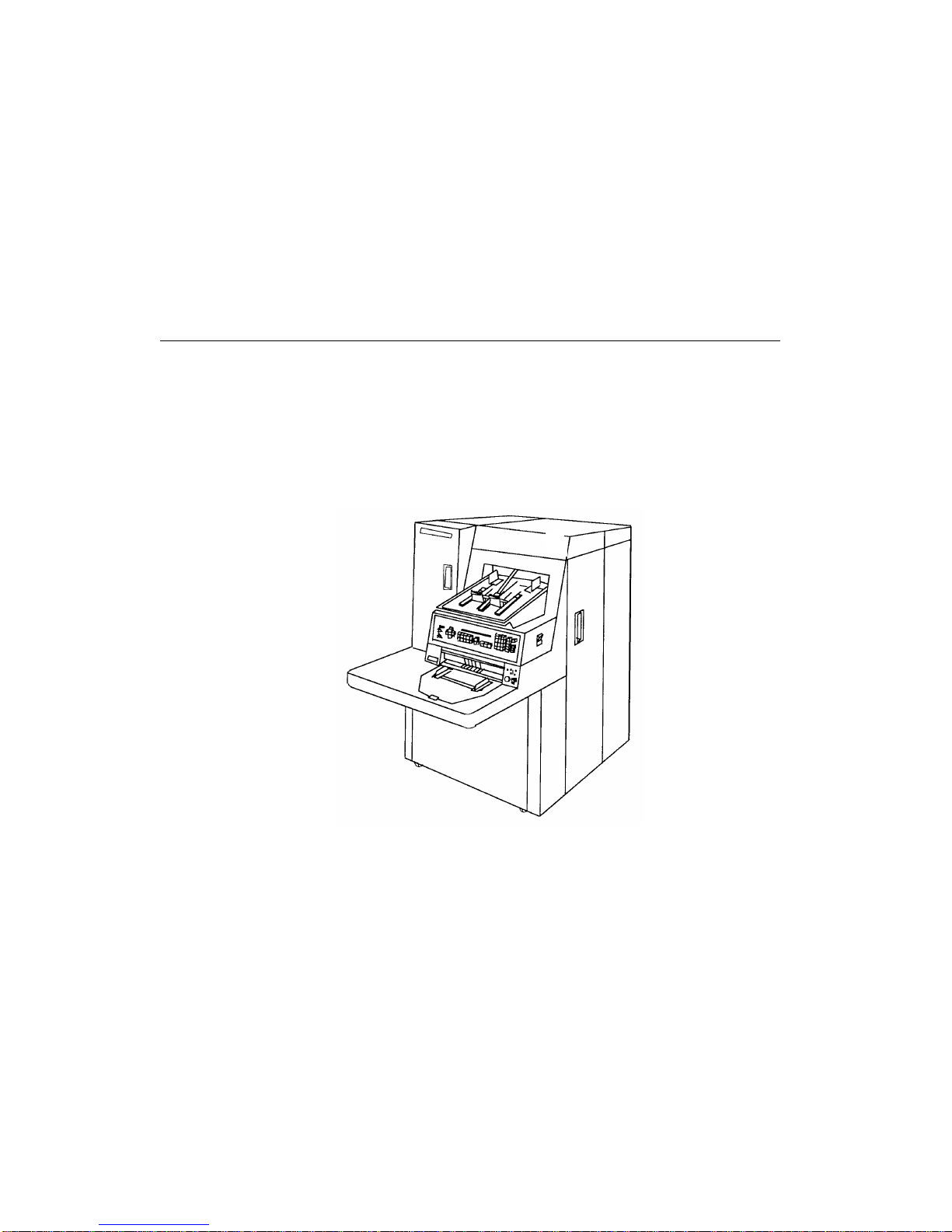

Kodak Digital Science Document Scanner/Microimager 990

Product description The Kodak Digital Science Document Scanner/Microimager 990 is a high-

performance (up to 120 pages-per-minute*) rotary document scanner and

microfilmer designed for medium- to high-volume digital capture of

business documents. The Scanner/Microimager 990 captures printed

characters, handwritten text, and graphics from documents of various sizes

(from 2.5 in [64 mm] to 30 in [762 mm] long and from 2.5 in [64 mm] to 12

in [305 mm] wide) and thicknesses (standard documents up to 0.014

inches [0.36 mm]; even thicker documents may be scanned/filmed using

the gap release feature).

The Scanner/Microimager 990S captures front and back page images from

two-sided documents on film while simultaneously scanning the front side.

The Scanner/Microimager 990D captures front and back page images from

two-sided documents on film while simultaneously scanning the front and

back sides.

Scanned page images are transmitted to a host computer along with an

Image Header which contains a variety of information, allowing for easy

indexing, database storage and retrieval.

Features and benefits The Document Scanner 990 offers the following features and benefits:

• Control Panel which provides an easy-to-use operator interface

with: equipment operation keys, standard function keys,

programmable function keys, numeric keypad, status indicators,

and a LCD Status Display which reflects the current setup and

displays operator messages.

• Gap Adjustment Knob and Gap Release Lever which allows for

adjusting varying document thicknesses.

• Documents are loaded and unloaded from the front and returned

to the exit hopper in their original sequence.

• Access doors allow easy access to the document transport system

without removing the feeder, transport plates, etc. or moving the

Scanner away from the wall.

• Easy daily calibration is performed by feeding a white sheet of

paper.

• Easy daily, weekly, monthly and annual maintenance routines

which require an average of only ten minutes per day.

• Computer-based diagnostics and modular design enable quick and

easy problem diagnosis and repair, reducing downtime.

• Selectable scan resolution from 200–67 dpi.

• Image compression (GIII 1-dimensional; GIII 2-dimensional; GIV).

• Image processing capabilities (such as cropping, image

enhancement filters, noise filter, screening/dithering, thresholding,

etc.).

• Resettable document counter.

• Image addresses automatically generated (from a customer-

defined base address).

• Eighteen programmable modes provide customization for specific

applications.

• Event confirmation tones/lights.

• Programmable in five languages.

• Standard SCSI-2 interface.

•

Simplex, duplex and duo filming.

Optional accessories All accessories have been designed to operate at paper transport speed.

Using these accessories will not reduce overall processing speed.

The following accessories are available to customize scanner/microimager

applications:

• Adaptive Threshold Processor — provides uniform image quality

of scanned documents regardless of their color, paper texture,

print color or density.

• Advanced Document Controller — detects document overlap

and skew.

• Bar Code Reader — provides a hands-off method of entering data

by automatically reading and decoding information encoded in bar

code form. Decoded bar code information is included in the image

header.

• Check Feeder — provides continuous feeding of check-sized

documents.

• Check Stacker — provides continuous stacking of check-sized

documents.

• Document Printer Controller — allows use of the document

printers (one or two DP1 printers, and one DP12 printer).

• Document Printer 1 — allows customer-specified information to

be printed on documents (single line, vertical orientation—38

characters maximum) as they pass through the transport system.

This information is used for document identification and tracking.

• Document Printer 12 — allows customer-specified information to

be printed on documents (multiple lines, horizontal orientation—

144 characters maximum) as they pass through the transport

system. This information is used for document identification and

tracking.

• Endorser — automatically imprints endorsements on the rear side

of documents (with a variety of die stamp styles) as they pass

through the transport system.

• Film Writing Module — allows information to be written on the

film next to each document image for document identification and

tracking.

• Footswitch — provides a hands-off method of performing

document level changes or commonly used functions while

• Patch Reader — controls document level changes by

automatically sensing a predefined patch code and changing the

document level accordingly.

• Scanner/Microimager 990S-990D Upgrade Module — allows for

an upgrade from a Scanner 990S to a Scanner 990D.

• Semi-Automatic Feeder — allows for manual feeding (one

document at a time) or automatic feeding of mixed size documents

(a group/batch of documents at a time).

• Smart Cassettes 100 and 215 — features foolproof duo mode,

easy threading and graphic display of film remaining.

• Workstation Side Console

Product Comparison Matrix

Feature Scanner 9500 Scanner/Microimager 990

Speed*

²200 dpi 120 pages per minute 90 pages per minute

>200 dpi

²300 dpi 80 pages per minute n/a

Scanning capabilities

Scanning modes simplex and duplex simplex and duplex

Resolution 300–70 dpi 200–67 dpi

Buffer size 4 megabytes (simplex)

8 megabytes (duplex) 4 megabytes (simplex)

8 megabytes (duplex)

Microfilming capabilities

Film modes n/a simplex, duplex and duo

Reduction ratios n/a 24X (simplex)

40X (simplex, duplex, duo)

50X (simplex, duplex, duo)

Number of

film cassettes n/a minimum of 1

maximum of 2

Film cassette types n/a Smart Cassette 100

Smart Cassette 215

Film types n/a HQ Microfilm 1461

(Estar Base)

16 mm x 30.5 m (100 ft)

HQ Microfilm 3461

(Estar Base)

16 mm x 65.5 m (215 ft)

Programmable

application modes 18 18

Programmable

control panel keys (P-keys) 10 10

Image Address

Maximum length 15 characters

(12 alphanumeric;

3 delimiter)

15 characters

(12 alphanumeric;

3 delimiter)

Feature Scanner 9500 Scanner/Microimager 990

Original document

specifications

Document width 2.5 – 12 inches

64 – 305 mm 2.5 – 12 inches

64 – 305 mm

Document length 2.5 – 30 inches*

64 – 508 mm 2.5 – 30 inches*

64 – 508 mm

Document thickness 0.0015 – 0.014 inches

0.0381 – 0.36 mm 0.0015 – 0.014 inches

0.0381 – 0.36 mm

Maximum feed height

Semi-automatic feeder 1.5 inches

approx. 350 sheets 1.5 inches

approx. 350 sheets

Check feeder 1.5 inches

approx. 350 sheets 1.5 inches

approx. 350 sheets

Maximum stack height

Std exit hopper 2 inches 2 inches

Check stacker** approx. 465 sheets approx. 465 sheets

Feeder/Stacker options

Check feeder YY*

Check stacker Y Y

Optional capabilities

Bar Code reading for data

input Y Y

Document printing

38 character (DP1) Y Y

144 character (DP12) Y Y

Endorsing n/a Y

Film Writing n/a Y

Footswitch Y Y

Patch reading Y Y

End-fed Y Y

Skew/Length monitoring Y Y

Image Headers

Types

Default

Autres manuels pour Digital Science 9500

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Kodak Scanner

Kodak

Kodak i1400 Series Manuel utilisateur

Kodak

Kodak Scanmate i1120 Manuel utilisateur

Kodak

Kodak i1200 series Manuel utilisateur

Kodak

Kodak 3000 DV Plus Manuel utilisateur

Kodak

Kodak Digital Ice Technology Manuel utilisateur

Kodak

Kodak Ngenuity 9000 Series Manuel d'utilisation

Kodak

Kodak i1800 Series Mode d'emploi

Kodak

Kodak Mini Digital Film Scanner Manuel utilisateur

Kodak

Kodak 1012434 Manuel utilisateur

Kodak

Kodak PROFESSIONAL RFS 3600 Instructions d'installation

Kodak

Kodak Kodak i1840 Manuel utilisateur

Kodak

Kodak I780 - Document Scanner Manuel utilisateur

Kodak

Kodak I620 - Document Scanner Manuel utilisateur

Kodak

Kodak i100 Series Manuel utilisateur

Kodak

Kodak DirectView CR 500 System Manuel utilisateur

Kodak

Kodak PROFESSIONAL RFS 3600 Manuel utilisateur

Kodak

Kodak i30 Manuel utilisateur

Kodak

Kodak SV 710 - EASYSHARE Digital Picture Frame Manuel de service

Kodak

Kodak Scan Station 520 EX Manuel de service

Kodak

Kodak i2900 Manuel utilisateur

Kodak

Kodak i100 Series Manuel utilisateur

Kodak

Kodak i1220 Plus Manuel utilisateur

Kodak

Kodak alaris 2000w Series Manuel utilisateur

Kodak

Kodak A-61003 Fiche d'information produit

Manuels Scanner populaires d'autres marques

Plustek

Plustek Scanner Manuel utilisateur

Z/I Imaging

Z/I Imaging PhotoScan 2001 Manuel utilisateur

Renkforce

Renkforce DS100-5M Manuel utilisateur

Image Access

Image Access WideTEK A2 Manuel utilisateur

Canon

Canon imageFORMULA CR-120N Manuel utilisateur

Fujitsu

Fujitsu FI-4860C2 Manuel utilisateur

GeoSlam

GeoSlam ZEB Horizon Instructions d'installation

Revopoint

Revopoint POP Manuel utilisateur

Fujitsu

Fujitsu fi-4860C Manuel utilisateur

Eddyfi Technologies

Eddyfi Technologies Floormap X Manuel utilisateur

Faselase

Faselase F6 Manuel utilisateur

Fujitsu

Fujitsu CardMinder Manuel utilisateur

Uniden

Uniden BC340CRS Manuel utilisateur

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Manuel utilisateur

Mustek

Mustek PageExpress 4800 Pro Manuel utilisateur

Optex

Optex 750830 Manuel utilisateur

Innova

Innova 5210 Manuel utilisateur

Visioneer

Visioneer CardReader 100 Guide de démarrage rapide
