Publication No. SS2616-1

23NOV99

Supersedes SS2616-1

15JUL97

SITE SPECIFICATIONS

for the

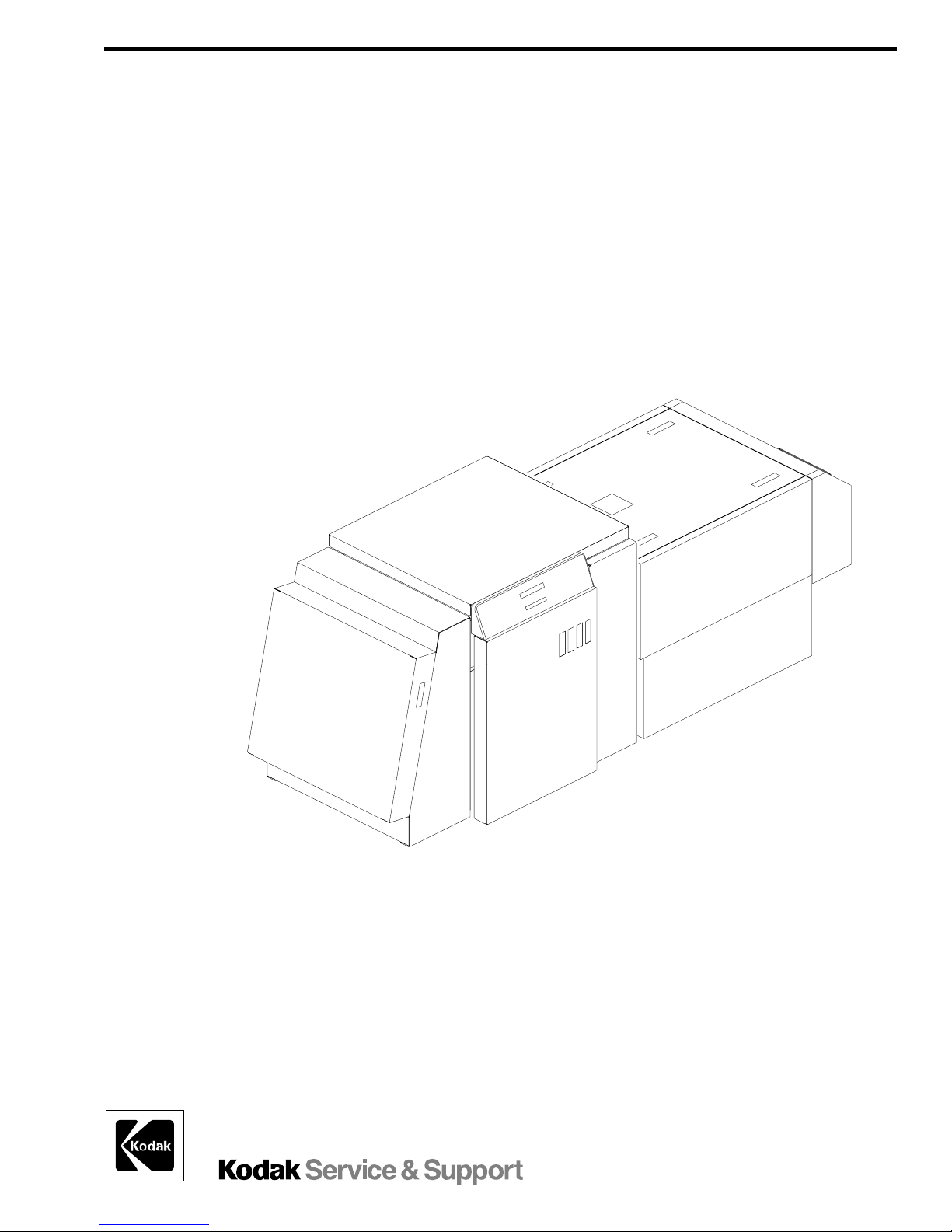

KODAK PROFESSIONAL LED II PRINTERS 20P/20R

KODAK PROFESSIONAL LED II PROCESSOR 20P

G130_1000HA

223NOV99 – SS2616-1

PLEASE NOTE The information contained herein is based on the experience and knowledge relating to the

subject matter gained by Eastman Kodak Company prior to publication.

No patent license is granted by this information.

Eastman Kodak Company reserves the right to change this information without notice, and

makes no warranty, express or implied, with respect to this information. Kodak shall not be

liable for any loss or damage, including consequential or special damages, resulting from any

use of this information, even if loss or damage is caused by Kodak’s negligence or other fault.

Description Page

Table of Contents

Site Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Space Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Operating Environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Electrical Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Plumbing Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Venting Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Other . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Site Specifications

SS2616-1 –23NOV99 3

Section 1: Site Specifications

Space Requirements

Dimensions and Weight (Uncrated)

Site Access:

Doorways to the site should be 91centimetres (36 inches) wide, or larger. The front and rear PRINTER FRAME

DOORS, SHEET TRANSPORT MODULE DOORS, and the OPERATOR CONTROL PANEL (OCP) must be

removed to move the PRINTER through a 36 inch doorway.

Minimum acceptable door size is 71.2 centimetres (28 inches). The enclosures, covers, and subassemblies for the

PAPER SUPPLY MODULE, the KNIFE AND SHEET TRANSPORT MODULE, and the TAKE-UP MODULE†

must be removed to move the PRINTER through a 28 inch doorway.

†Roll-to-roll system only.

Operator and Service Access:

When fully assembled, the system requires a minimum of 91 cm (36 in.) on each side to allow access for service and

operator maintenance.

Floor:

The system should be installed on a smooth, hard, and level floor surface. Floor pitch should not exceed 1 inch in 5

feet.

Operating Environment

The unit to be installed is an Insulation Catagory Type II machine and operates in a Pollution Degree 2 environment

in accordance with IEC 664 ( Normal Office Environment ).

* Room temperature changes of more than 5 degrees during operation will require recalibration of the PRINTER.

**Although the PRINTER and PROCESSOR operate in normal room lighting, access to a darkroom is required for

loading paper into cassettes.

Width Length Weight

Printer:

102 cm (40 in.) 149 cm (58.5 in.) 420 kg (925 lbs)

429 kg (945 lbs) with

paper.

Processor:

87.6 cm (34.5 in.) 130 cm (51 in.)

without removable print

rack.

198 cm (78 in.) with print

rack installed.

172 kg (380 lbs)

312 kg (471 lbs) with

processing chemicals.

Roll-to-roll Printer:

102 cm (40 in.) 189 cm (74.5 in.) 510 kg (1125 lbs)

519 kg (1145 lbs) with

paper.

Description Specification

Temperature* 15.5-26.6°C (60-80°F) for unplumbed

systems15.5-30°C (60-86°F) for plumbed

systems

Relative Humidity 15-76%

Altitude 0-2000 metres (6562 feet)

Lighting maximum of 325 lux **

(30.2 foot-candles)

SITE SPECIFICATIONS

423NOV99 –SS2616-1

Electrical Requirements

Power

** Phase selection must be completed by CES personnel.

*** Outside the U.S. and Canada, amperage for the PRINTER is 16A, and the amperage for the PROCESSOR is

32A.

Note

To prevent processor failures caused by power fluctuations, purchase a Square-D Buck and Boost Transformer

(Model #500SV43F) EK Catalog #869-7799. Other transformers may not provide satisfactory results.

Within the US and Canada, the PRINTER is supplied with a 2.4-metre (8-foot) POWER CORD. The power

receptacle must be located within 1.2 metres 30 cm (4 feet 1 foot) of the rear of the PRINTER. This power receptacle

should be a dedicated line with a separate CIRCUIT BREAKER. The receptacle must accept a PLUG which

conforms to NEMA N6/15 (printer plug specification). Outside the US and Canada, the region will supply the

appropriate locally approved POWER CORD and PLUG. The POWER CORD should be cretified and approved by

a national test house.

Within the US and Canada, the PROCESSOR is supplied with a 2.4-metre (8-foot)POWER CORD which enters the

cabinet from below. The power receptacle must be located within 2.4 metres 30 cm (4 feet 1 foot) of the rear of the

PROCESSOR. This power receptacle should be a dedicated line with a separate CIRCUIT BREAKER. The

receptacle must accept a PLUG which conforms to NEMA L6-30P (processor plug specification). Outside the US

and Canada, the region will supply the appropriate locally approved POWER CORD and PLUG.

A PROTECTIVE EARTH GROUND must be supplied when installing the PROCESSOR.

Voltage Range/

Frequency*** Power Consumption

Roll-to-processor Printer: 200-254V,

47-63Hz, 1phase, 15A

Processor: 208-254V,

47-63Hz, 1phase or 3

phase**, 30A

Less than 9.12kVA.

Roll-to-roll 200-254V, 47-63Hz,

1phase, 15A Less than 2.4kVA.

Site Specifications

SS2616-1 –23NOV99 5

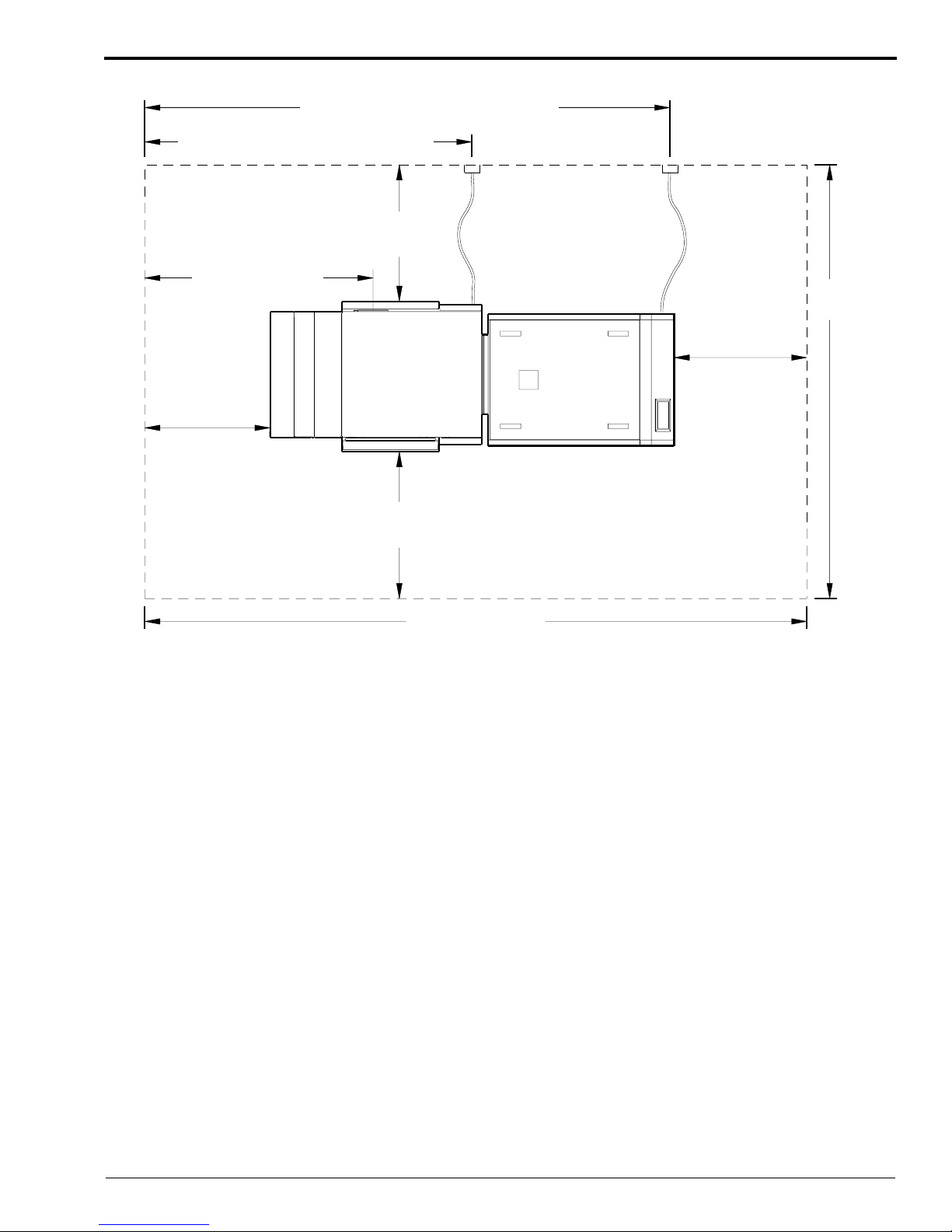

Space requirements for a roll-to-processor system

Printer Processor

4.5 meters (179 in.)

2.9 meters

(114 in.)

30A

1.5 meters (60 in.)

.91 meters (36 in.)

minimum

.91 meters (36 in.)

minimum

G130_0600DA

3.5 meters + .3 meters (138 in. + 12 in.)

2.2 meters + .3 meters (86 in. + 12 in.)

*SCSI−2 connection from host here

15A

External modem connection here

SITE SPECIFICATIONS

623NOV99 –SS2616-1

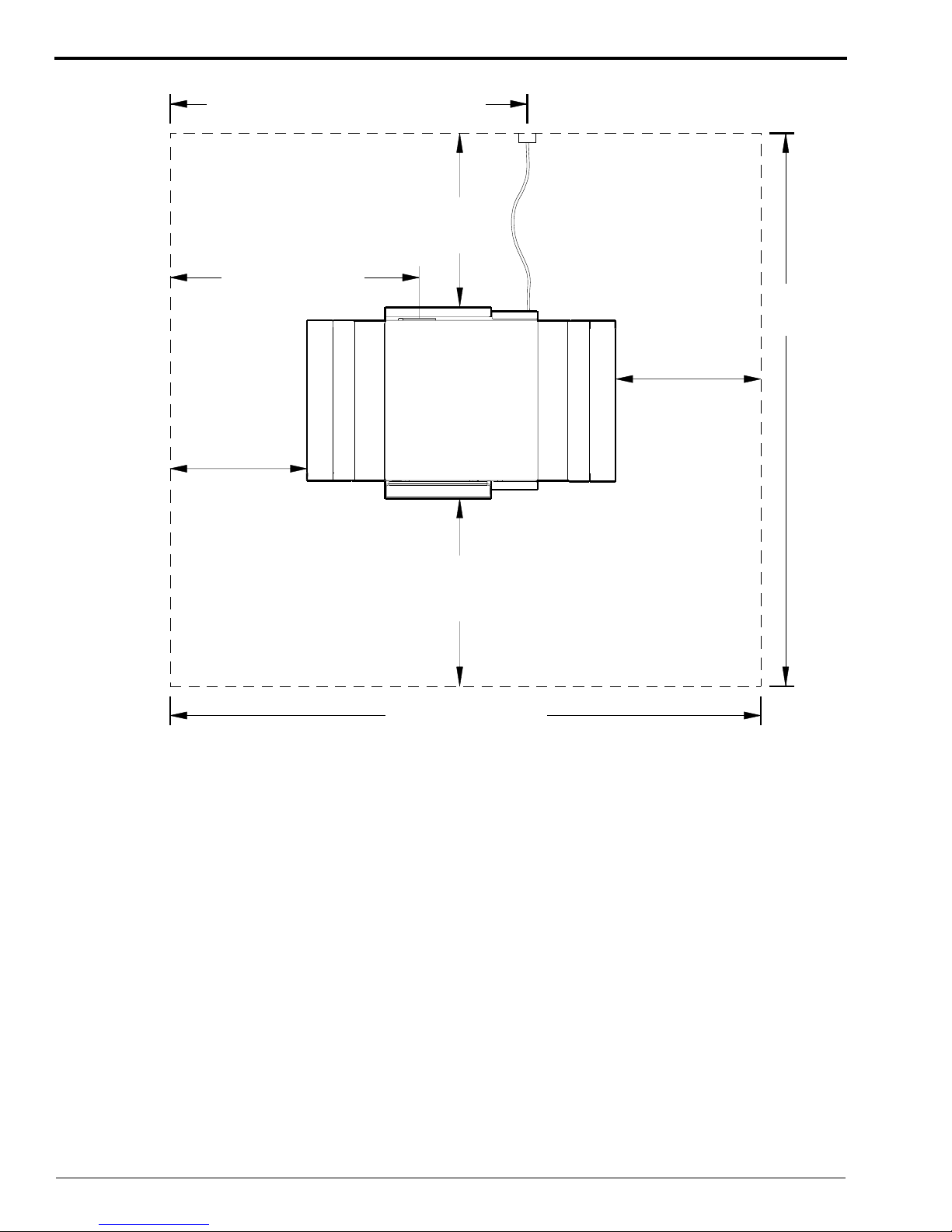

Space requirements for a roll-to-roll system

SCSI Connection to Host Computer:

The proper configuration of the SCSI-2 connection will depend on the distance of the host computer from the

PRINTER.

A single-ended connectioncan be usedif the total distance is less than 6 metres (19.7feet). The customermust supply

a SCSI-2 data CABLE (FAST 20 type) and a SCSI-2 TERMINATOR for single-ended connection. An active FPT

type (forced perfect termination) SCSI-2 TERMINATOR is recommended.

A differential connection must be used if the distance is between 6 and 22.9 metres (19.7 and 75 feet). The customer

must supply a SCSI- 2 data CABLE and a SCSI-2 TERMINATOR for differential connection. A differential SCSI-

2 TERMINATOR is required.

Switching from a single-ended to a differential SCSI-2 connection requires a reconfiguration of the FEE BOARD.

Refer to the INSTALL INSTRUCTIONS for detailed information on how to do this.

Locate SCSI-2 CABLES away from any source of electrical interference (e.g. transformers, fluorescent light ballast).

2.2 meters + .3 meters (86 in. + 12 in.)

SCSI−2 connection from host here

Printer

3.8 meters (149 in.)

2.9 meters

(114 in.)

15A

1.5 meters (60 in.)

.91 meters (36 in.)

minimum

.91 meters (36 in.)

minimum

G130_0601DA

External modem connection here

Site Specifications

SS2616-1 –23NOV99 7

Plumbing Requirements

Water Supply:

Adequate water supply and drainage is the customer’s responsibility, and must be installed to specifications by the

customer before installation of the PROCESSOR begins.

A WATER SUPPLY PANEL for plumbed systems is available from Kreonite (WPS-A), and is recommended.

Kodak willinstall flexible supply lineto PROCESSOR and anelectrical connection to the SOLENOID. The WATER

SUPPLY PANEL should be wall-mounted within 4.9 metres (16 feet) of the rear of the PROCESSOR.

Technical support and warranty of WATER SUPPLY PANEL is the responsibility of Kreonite.

Water to a plumbed system must meet the following specifications:

Flow rate: 3.8-20 liters per minute (1-5 gallons per minute)

Temperature: Hot- 59 C (120 F) minimum temperature. Cold-27 C (80 F) maximum temperature. Practically, the

water temperature should be adjusted to ≥35C (95 F) to minimize the time necessary to bring the PROCESSOR to

operating temperature.

Waste Water:

A floor drain should be located convenient to the PROCESSOR.

The drain system should conform to local specifications for silver-laden bleach-fix, and stabilizer or waste water.

Kodak will install a flexible drain TUBE to the PROCESSOR. The customer will be responsible for connection of

the flexible drain TUBE to a locally approved drain system.

In unplumbed systems, the PROCESSOR is supplied with 10-litre CONTAINERS for easy transport of waste to the

site waste facilities. Waste CONTAINERS will be located under the PROCESSOR.

A sink, 61 cm (24 in.)wide or larger, located near the PROCESSOR, is recommended for use during cleanup.

Venting Requirements

For a roll-to-processor system, 10 complete changes of air in the room per hour are required.

For a roll-to-roll printer, no venting is required.

Other

Telephone: The customer must supply a telephone line (with RJ11C modular phone jack) within 3 metres (10 feet)

of the PRINTER to allow remote diagnostic support via modem. A high-grade analog service line is recommended.

Densitometer: An X-Rite DTP-36 densitometer is strongly recommended for calibration of the PRINTER and for

process control.

Printed in U.S.A. •ss2616_1_23nov99.fm

EASTMAN KODAK COMPANY

Rochester, NY 14650

Kodak is a trademark.
