Kodak 3000 DV Plus Manuel utilisateur



IMAGELINK3000DVPlus

andAccessories

Installation Guide



Unpacking



and



Setting up

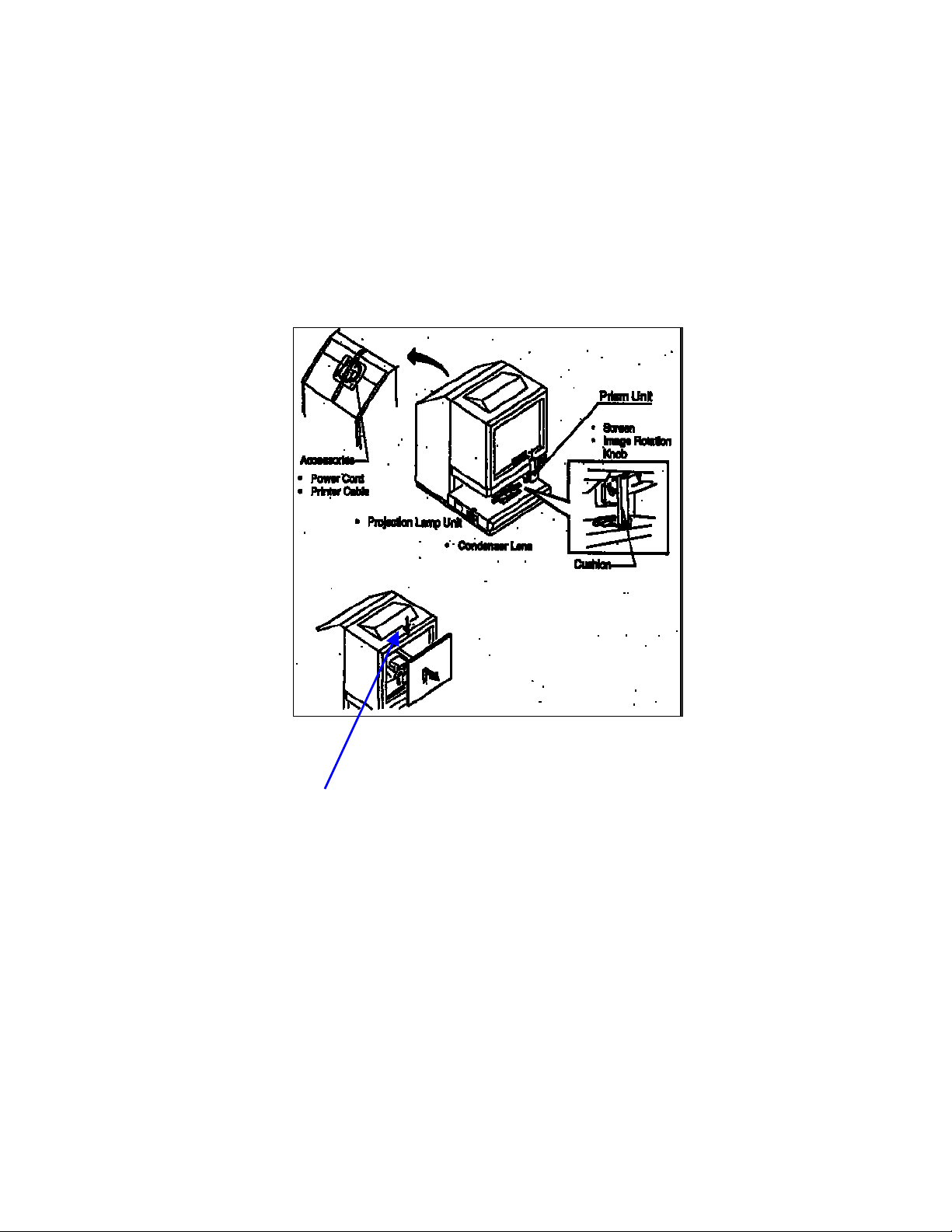

Unpacking.



1. Remove the plastic bag from the machine.



2. Remove the various pieces of packing tape from the machine housing and

the “cushion”.



3. Loosen the Screw at the top of the screen frame and remove the screen.

4. Remove packing and pieces of tape holding each mirror.



NOTE:

If any pieces of tape are hard to peel off, remove the mirror assembly.



5. Remove the Fixing Screw. This screw is no longer required.



NOTE:

Applying power to the machine without removing this Fixing Screw may result

in damage to the machine.



6. Check the machine power switch is OFF. Connect the power cord into the

machine, and connect to a power outlet.



Installing



the



Prism

Assembly.

Installing the Prism

Assembly.



1. Defeat the INTERLOCK SWITCH on the upper right of the screen

(220/240VAC machines only).



2. Power up the machine.



3. Gently turn the IMAGE ROTATION KNOB clockwise or counterclockwise

until the SHIELD PLATE is to the rear of the machine.



4. Turn OFF the POWER SWITCH.



5. Swing down the SHIELD PLATE and install the PRISM as shown in the

illustration.



NOTE:

Align SLIT A on the PRISM ASSEMBLY with cut out B in the SCANNING

PLATE. If the PRISM ASSEMBLY is not installed correctly a shadow can

appear during image rotation operation (also see “SHIELD PLATE

POSITIONING” adjustment



)



6. Re-install the screen and tighten the retaining SCREW.



NOTE:



Make sure the SCREEN is installed in the correct direction with the SCREEN

part number in the top left hand corner.

Checking the Screen Image.



1. Install the FILM CARRIER the customer will be using and power on the

machine.



2. Install the Lens to be used in the machine.



3. With film not loaded, turn the ROTATION KNOB and check the screen

image for a shadow from the SHIELD PLATE does not appear.



NOTE:



If a shadow appears follow the procedure for adjusting the SHIELD PLATE







4. The installation of the Reader is now complete.

SHIELD PLATE Positioning

adjustment.



Follow this procedure if a shadow appears on the SCREEN while the IMAGE

ROTATION KNOB is turned.



1. Turn the IMAGE ROTATION KNOB until the shadow from the SHIELD

PLATE appears the largest on the bottom of the SCREEN.



2. Turn OFF the machine and remove the SCREEN by first loosing the

RETAINING SCREW at the top of the SCREEN.



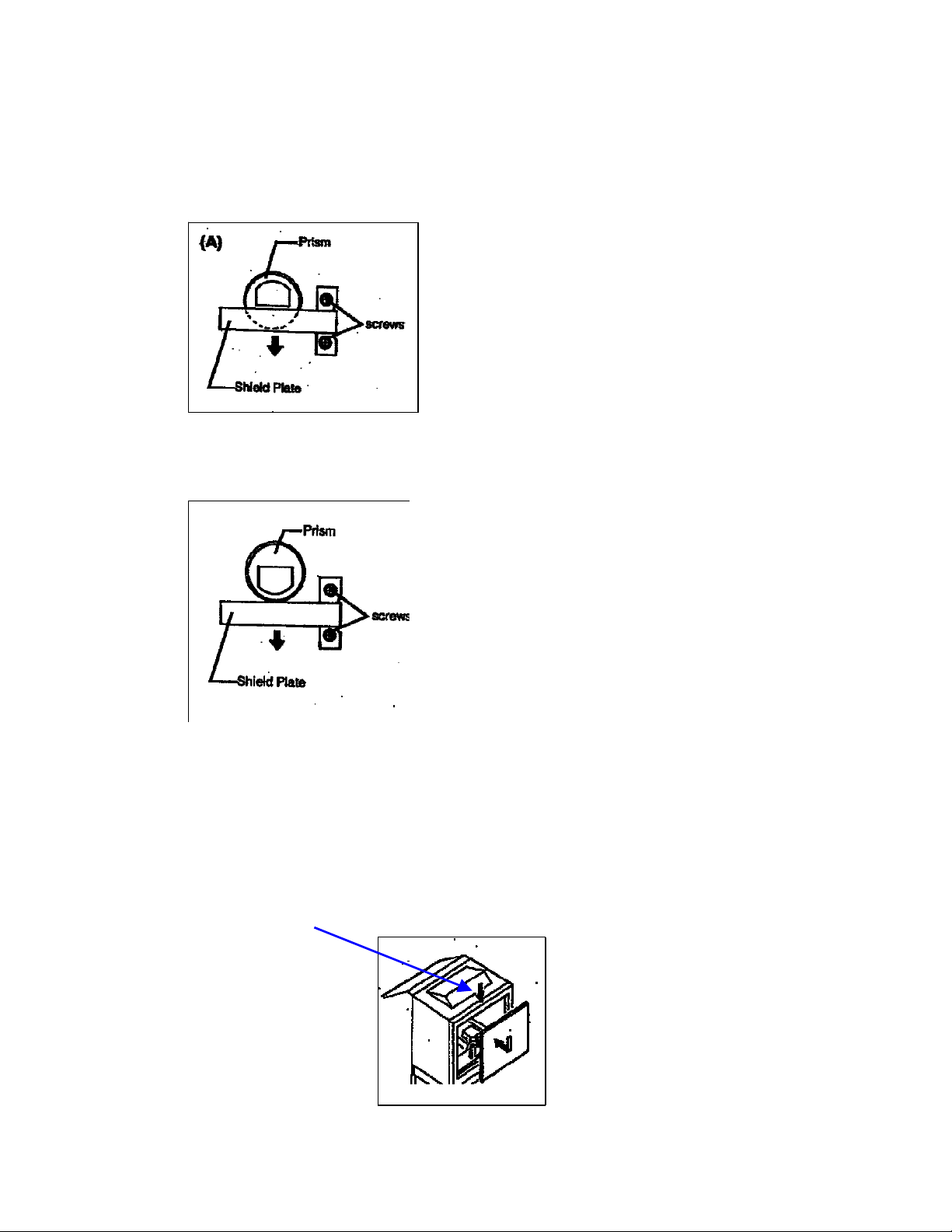

3. Observe the following illustrations:





If the position of the PRISM and

SHIELD PLATE resemble illustration A:



1. Loosen the screws of the SHIELD

PLATE and move it in the direction of the

arrow. Tighten the Screws.



2. Turn the IMAGE ROTATION KNOB

until the position of the PRISM and the

SHIELD PLATE becomes like illustration





If the position of the PRISM and the

SHIELD PLATE resemble illustration B.



1. Loosen the screws of the SHIELD

PLATE and move it in the direction of the

arrow. Tighten the screws.



2. Turn the IMAGE ROTATION KNOB until

the position of the PRISM and the SHIELD

PLATE becomes like illustration A.



4. Re-install the SCREEN and turn the power ON.



NOTE:

Make sure the SCREEN is installed in the correct direction with the part

number in the top left hand corner.



5. Check the shadow does not appear on the SCREEN during image

rotation.



6. Tighten the screw at the top SCREEN FRAME.
