1www.kodak.com/go/aiosupport

Choosing a Connection Type

Make sure you completed the steps in the Start Here Guide. Then choose one of the following connection

types for your printer, and see the corresponding chapter for instructions.

NOTE:

• You can change your connection type later. See the chapter Configuring Your Printer in the

Extended User Guide.

• For additional networking information or troubleshooting, go to

www.kodak.com/go/inkjetnetworking.

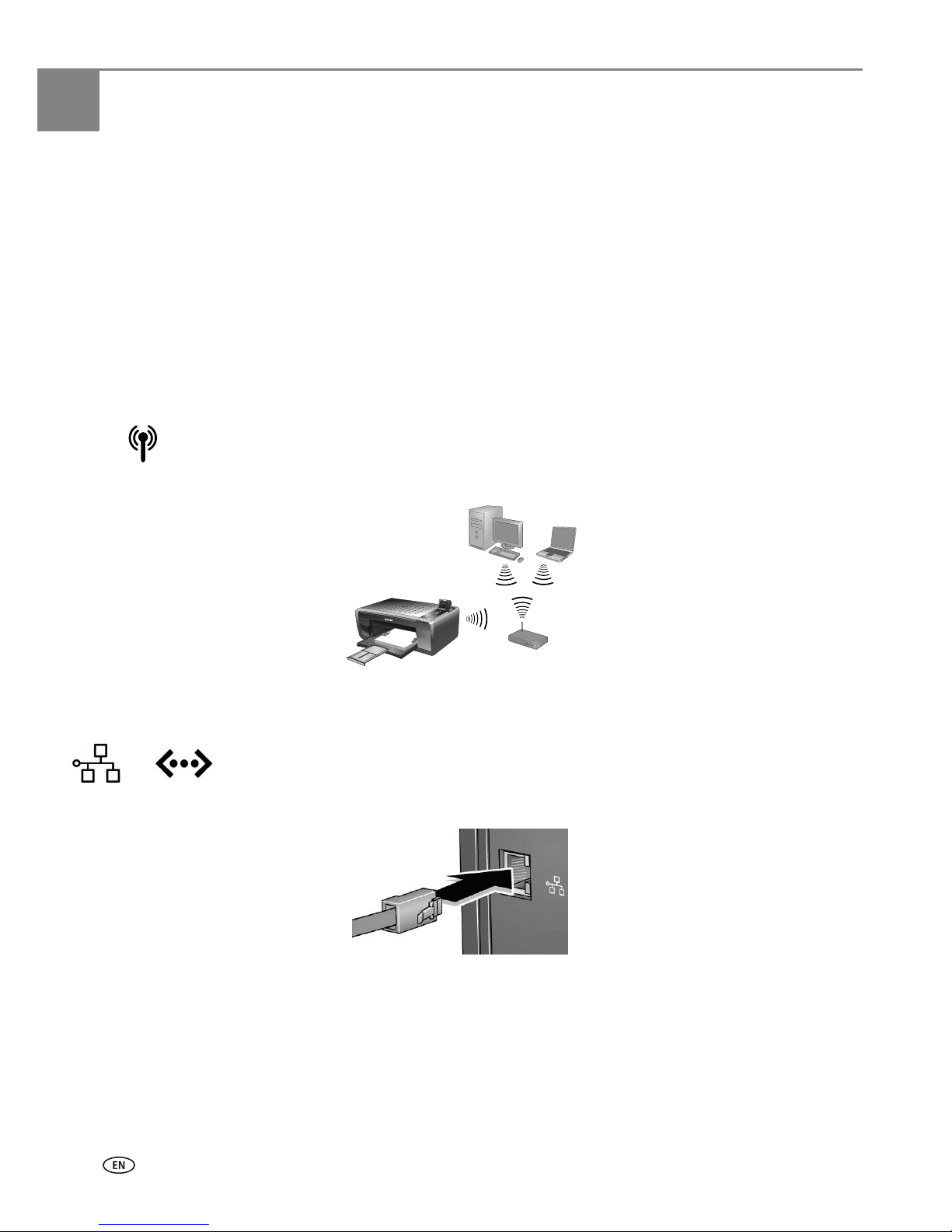

Wireless (Wi-Fi) connection

Ethernet connection

To connect your printer to a wireless network, see Setting Up the Wireless (Wi-Fi)

Connection, page 2.

To connect your printer to a wired network using an Ethernet cable, see Setting Up the

Ethernet Connection, page 4.

MS SD/HCMMC

Rotate

BackHome

urg_01108.book Page 1 Thursday, October 22, 2009 7:41 PM

www.kodak.com/go/aiosupport 2

Setting Up the Wireless (Wi-Fi)

Connection

Before you connect

You need to:

• Have a functional 802.11 wireless network. Kodak recommends that you use a wireless access point,

most commonly a router, that uses Dynamic Host Configuration Protocol (DHCP).

• Determine whether your wireless router supports Wi-Fi Protected Setup (WPS).

• Temporarily disable your firewall until the printer is successfully installed and communicating.

IMPORTANT: If you are unsure of how your network is configured, contact your Internet service provider or your

network administrator for assistance.

Using the LCD keyboard

On the printer, press , , or to select the letters and numbers, using the correct uppercase and

lowercase letters. Press OK after each character. When you are done, select DONE, then press OK.

• To erase a character, select BKSP (backspace), then press OK.

• To change from uppercase to lowercase, select abc/123, then press OK.

• To change from lowercase to uppercase, select ABC/123, then press OK.

• To enter punctuation or symbols, select !@#, then press OK.

Connecting to a non-WPS wireless router

To connect your printer to your wireless network, you need to know the network name, which is also called

the Service Set Identifier (SSID). You can obtain your network name from the wireless router. See the

manufacturer’s documentation for more information.

If your network has security enabled, you also need to know the security string, which may be a Wired

Equivalent Privacy (WEP) key or a Wi-Fi Protected Access (WPA/WPA2) passphrase.

Record your network information in the spaces below, using the correct uppercase and lowercase letters.

Network Name (SSID): __________________________________________________________________________

Security String: _________________________________________________________________________________

1. Press Home.

2. Press to select Network Settings, then press OK.

3. With WiFi Setup Wizard selected, press OK.

NOTE: The Wi-Fi radio turns on automatically when you select WiFi Setup Wizard.

The printer searches for available wireless networks within range, then displays the list in order of signal

strength. If there are more networks than can be shown on the LCD, a (page down) symbol appears

in the bottom right of the display. If you don’t see your network in the list, or if you want to change your

network, select Rescan for Wireless Networks, then press OK.

urg_01108.book Page 2 Thursday, October 22, 2009 7:41 PM

Setting Up the Wireless (Wi-Fi) Connection

3www.kodak.com/go/aiosupport

4. If the name of your network is:

5. If your network has security enabled, use the LCD keyboard to enter your security string.

6. When the confirmation message appears, press OK.

If the printer is successfully connected, the Wi-Fi status light should be on.

If you are unable to connect your printer, go to www.kodak.com/go/inkjetnetworking.

7. When the printer is successfully connected, install the KODAK All-in-One Printer Software on your

computer. Follow the on-screen instructions to complete your setup.

Connecting to a WPS wireless router

1. Press Home.

2. Press to select Network Settings, then press OK.

3. With WiFi Setup Wizard selected, press OK.

NOTE: The Wi-Fi radio turns on automatically when you select Wi-Fi Setup Wizard.

4. With WPS Connect selected, press OK.

5. Select one of these two methods of connecting:

IMPORTANT: Before you press OK on the printer, make sure you know where the router's button is, or where to

enter the generated PIN. If necessary, consult your Internet service provider or router

manufacturer’s documentation for more information.

6. When the confirmation message appears, press OK.

If the printer is successfully connected, the Wi-Fi status light should be on.

If you are unable to connect your printer, go to www.kodak.com/go/inkjetnetworking.

7. When the printer is successfully connected, install the KODAK All-in-One Printer Software on your

computer. Follow the on-screen instructions to complete your setup.

Listed Not Listed

Press to select

your network, then

press OK.

Make sure your wireless router is turned on and within range. If your

wireless router does not broadcast its SSID:

a. Press to select Unlisted network, then press OK.

b. Use the LCD keyboard to enter your network name.

c. Select WEP or WPA/WPA2 as required for your network's security

setup, then press OK.

Pressing a Button Entering a PIN

a. With Push Button Configuration selected, press OK.

b. Press or select the WPS button for your wireless

router.

NOTE: You will have two minutes to press or select the

WPS button. It may be a button on the device

or a virtual button in the device’s software.

a. Press to select Generate WPS

PIN, then press OK.

b. In your wireless router’s software,

locate the PIN screen.

c. Enter the PIN you received from

the LCD into the PIN screen.

urg_01108.book Page 3 Thursday, October 22, 2009 7:41 PM

www.kodak.com/go/aiosupport 4

Setting Up the Ethernet Connection

Before you connect

You need to:

• Have a functional Ethernet network that includes a router, switch, or hub with an Ethernet port.

• Have a Category 5 (or higher) Ethernet cable.

• Temporarily disable your firewall until the printer is successfully installed and communicating.

Connecting to an Ethernet network

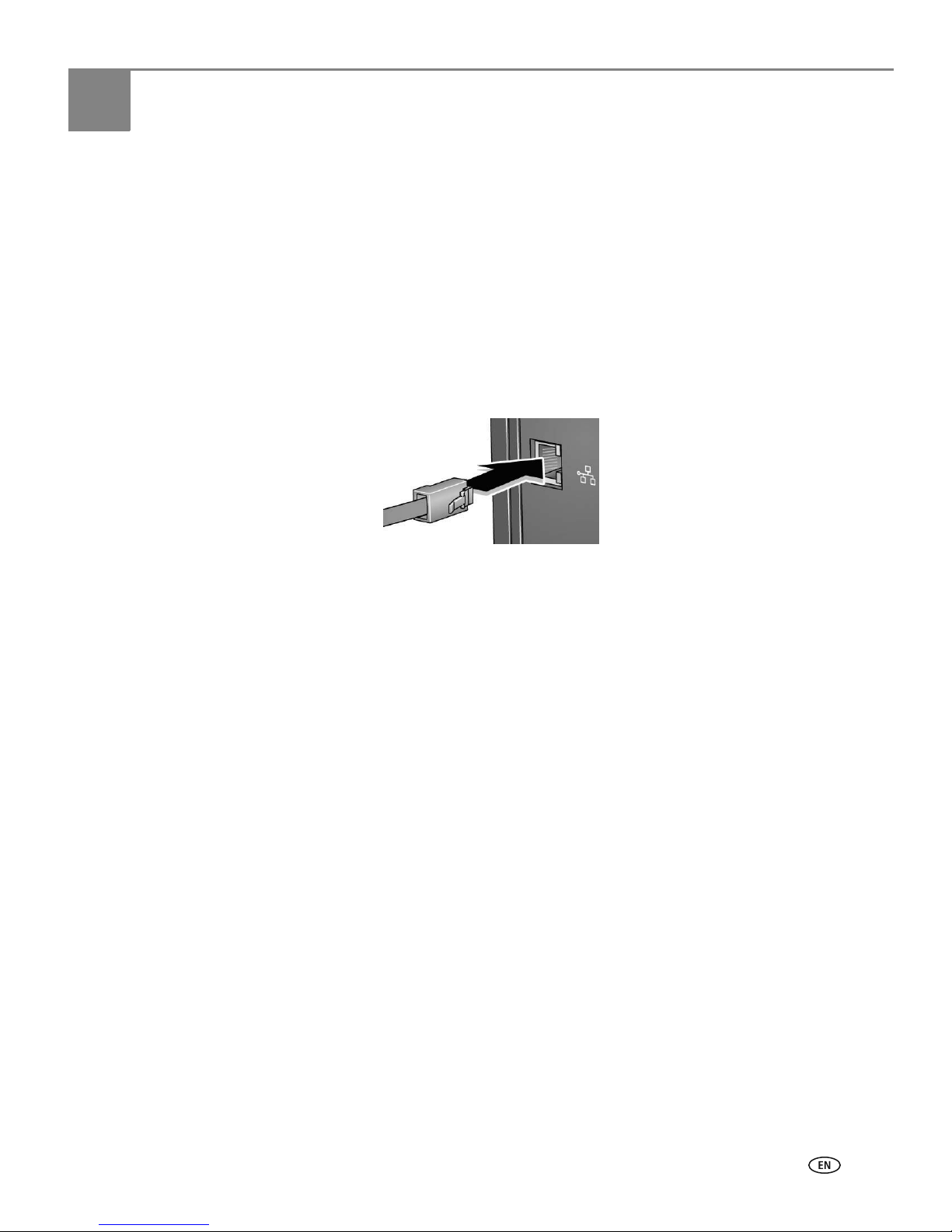

1. Connect the Ethernet cable into the Ethernet port on the back of the printer.

2. Connect the other end of the Ethernet cable into an available Ethernet port on your router, switch,

or hub.

3. Install the KODAK All-in-One Printer Software on your computer. Follow the on-screen instructions to

complete your setup.

urg_01108.book Page 4 Thursday, October 22, 2009 7:41 PM
