Installing a New Printhead in Your KODAK 5000 Series All-in-One Printer

a) Follow these instructions for

step-by-step guidance on how to

remove and replace your printhead.

b) If your printer is not

powered on, press

Start.

c) Lift the printer access door and wait for the carriage

to move to the access position.

d) Remove any paper that

may be loaded in the

printer.

a) Remove both ink cartridges and

set them aside.

b) Unlatch the used printhead. Press the button on the

left, as shown.

c) Lift the used printhead out of the

carriage.

Remove Ink Cartridges and Used Printhead

2

1

1

10

Eastman Kodak Company

Rochester, NY 14650 U.S.A.

© Eastman Kodak Company, 2009

MC/MR/TM: Kodak.

Start

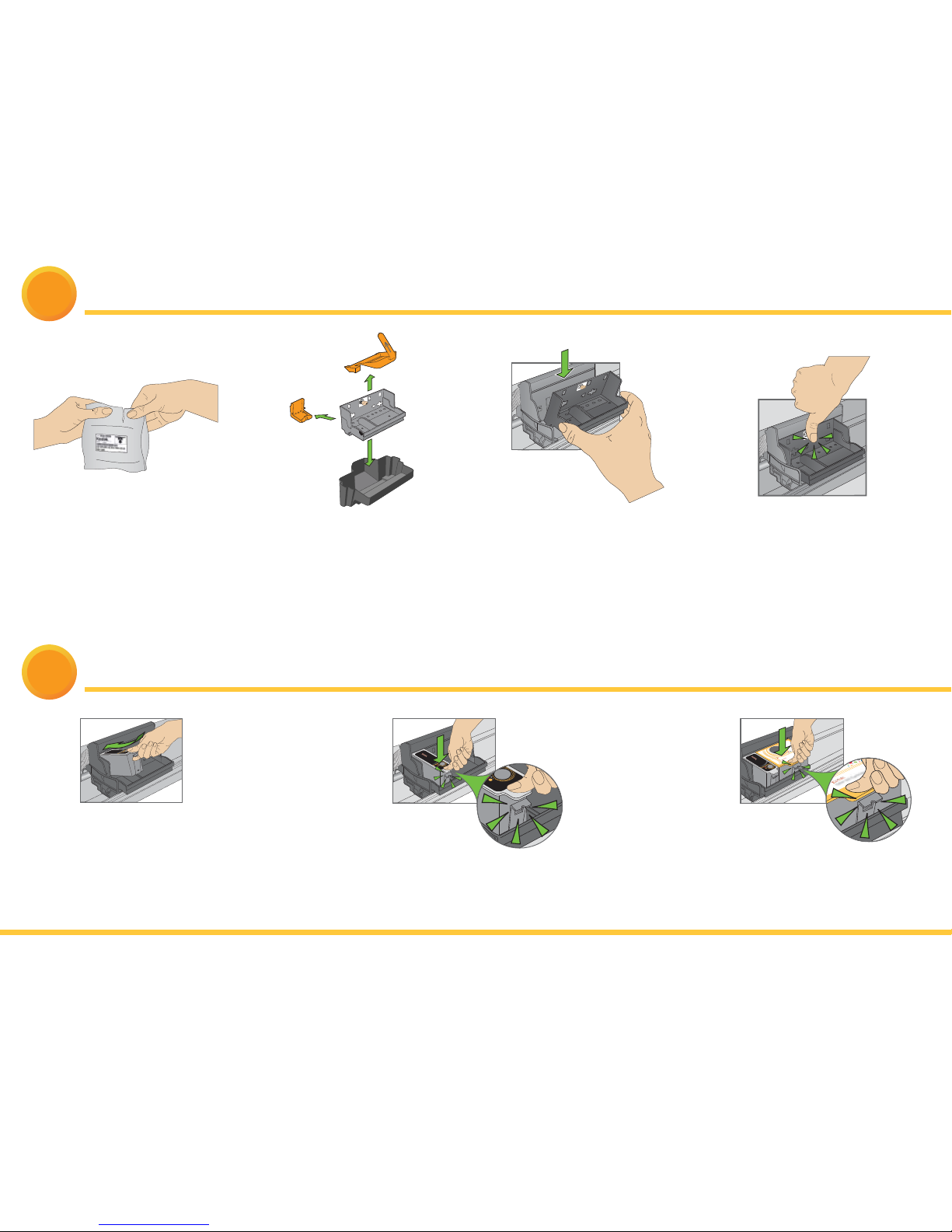

a) Remove the printhead from its bag.

IMPORTANT: Complete steps b

through d immediately after opening

sealed bag.

b) Remove the 3 plastic protective shields. c) Place the printhead into the carriage.

Insert at the angle shown.

d) Push ﬁrmly against the back wall of the

printhead until you hear a loud snap.

a) Insert the black ink cartridge into the

printhead.

b) Press down on the ink cartridge until you

hear it click into position.

c) Repeat steps 4a-4b for the color ink

cartridge. Close the printer access door.

www.kodak.com/go/aiosupport

Insert New Printhead

Re-Insert the Ink Cartridges

4

2

10

BlackInk Cartridge

10

10

BlackInk Cartridge

ColorInk Cartridge

10

3

5

a) Insert 4x6 photo paper glossy side down

and push the photo tray in until it clicks

into place. The photo tray light should

illuminate when the tray is properly

inserted.

b) Once the ON/OFF indicator is a steady

Green, press Start and allow the

printer to print a calibration sheet.

c) Remove the calibration sheet from the

output tray. Place it face down and align

to the registration marks in the proper

corner of the scanner glass, as shown.

d) Lower the scanner lid and press Start.

Wait 2 to 3 minutes for the calibration

sheet to print.

Load Paper and Calibrate

www.kodak.com/go/aiosupport

Start

Start

5100/5300 5500

3

For printer support, please go to www.kodak.com/go/aiosupport or www.kodak.com/go/contact.
