INSTALLATION & MAINTENANCE MANUAL

SPIKE4BK

230V

50Hz

These instructions should be read carefully and retained after installation by the end user for

future reference and maintenance.

These instructions should be used to aid installation of the following product:

SPIKE4BK

GENERAL INSTRUCTIONS

SAFETY

INSTALLATION

• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations

(BS7671) and current Building Regulations. If in any doubt, consult a qualiﬁed electrician

• Please isolate mains prior to installation or maintenance

• Check the total load on the circuit (including when this luminaire is ﬁtted) does not exceed the

rating of the circuit cable, fuse or circuit breaker

• Please note the IP (Ingress Protection) rating of this luminaire when deciding the location for

installation

• This product is Class I and must be earthed

• This product is IP54 rated

• Note - If this luminaire is being used in conjunction with an external PIR or sensor, please

conﬁrm with the manufacturer of the sensors that they are compatible with LED luminaires

• Provide power to the required point of installation (refer to BS7671 for correct cabling

methods), suitable IP rated junction boxes should be used where required

• Choose a position for the luminaire ensuring the ground is suitable to ﬁrmly hold the spike

and luminaire in position. Check the ground is not liable to ﬂooding and the spike does not

infringe with any underground pipes or cables

• The body of the product should not rest directly on the ground

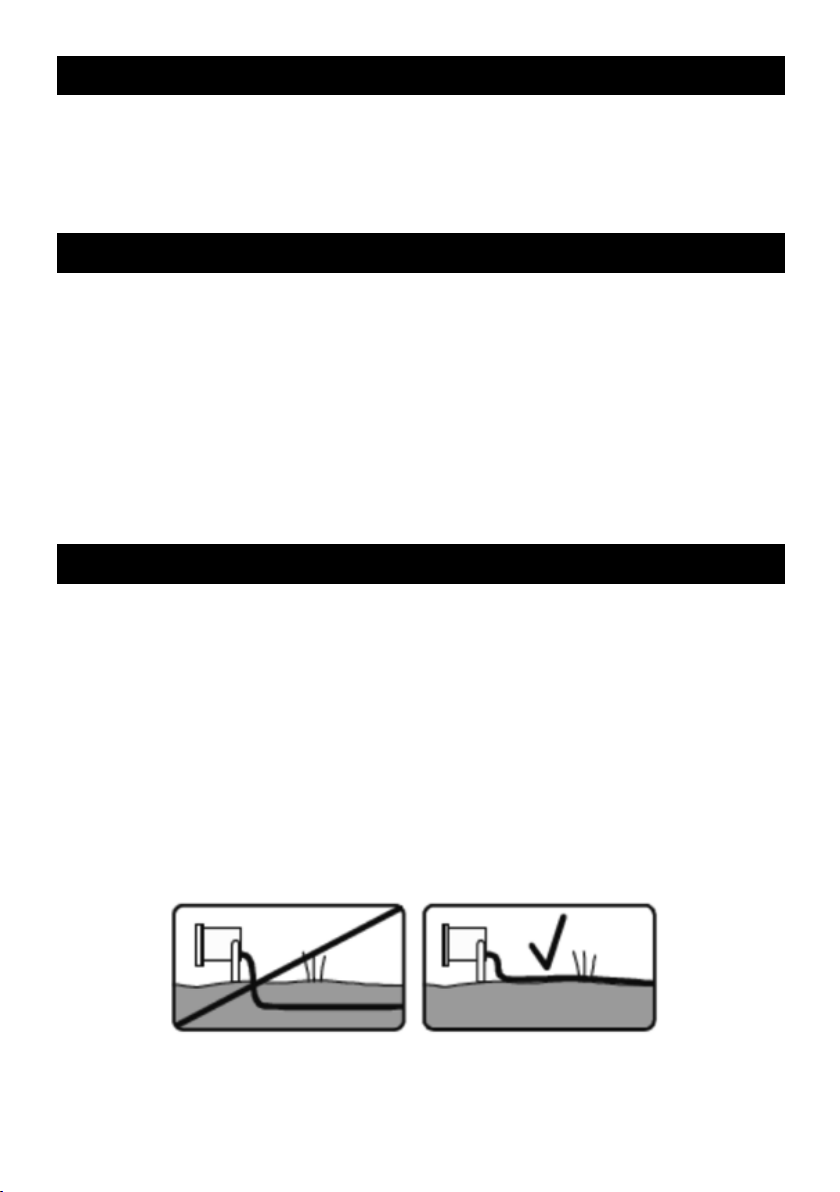

• The pre-installed cable supplied is for above-ground use only. Cables that are to be routed

within walls or below ground must be protected by means of suitable conduit or trunking

(see Fig. 1)

• The spike of the luminaire is required to be pushed fully into the ground (see Fig. 2)

Fig. 1

• For wall mounting installation, unscrew the spike from the luminaire. Mark and drill the hole for

the mounting bracket ensuring it does not infringe with electrical cables, water or gas pipes

• If installing outdoors, please ensure an RCD or RCBO is used

• The power source connections should be local and accessible via a suitable IP rated enclosure

• Connect the mains supply, Live (brown), Neutral (blue) and Earth (green/yellow)

• Switch on and check for correct operation

GENERAL

WARNING

The LED lamps ﬁtted in this product are non-replaceable. The unit should be recycled in the correct

manner when it reaches the end of its life. Check local authorities for where facilities exist

Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may

damage the product

Do not use any source of high pressure washers to maintain or clean this product

This product is not suitable for installation in or near a coastal or marine environment

This product is non-dimmable

This product must be disconnected from the circuit if subjected to any high voltage or insulation

resistance testing. Irreparable damage will occur if this instruction is not followed

80mm

60mm

230mm

160mm

Fig. 2

ML Accessories Limited

LU5 4LT

www.mlaccessories.co.uk DCNOV18_V2

WARRANTY

This product has a warranty of 2 years from date of purchase. Failure to install this product in

accordance with the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal

of the batch codes will invalidate the warranty. If this product should fail within its warranty period

it should be returned to the place of purchase for a free of charge replacement. ML Accessories

does not accept responsibility for any installation costs associated with the replacement product.

Your statutory rights are not affected. ML Accessories reserve the right to alter product speciﬁcation

without prior notice.
