Klein Tools CL3200 Manuel utilisateur

ENGLISH

www.kleintools.com

Instruction

Manual

For Professionals...Since 1857

CL3200

UÊ AUTO VOLTAGE

CURRENT

DETECTION

UÊ BACKLIGHT

UÊ WORKLIGHT

UÊ LOW Z

UÊ BAR GRAPH

UÊ DATA HOLD

UÊ 3-3/4 DIGIT

3999 COUNT LCD

UÊ AUTO RANGE

UÊ NON CONTACT

VOLTAGE TESTER

AUTO

HOLD

ENGLISH

CL3200

Instruction Manual

GENERAL SPECIFICATIONS

The Klein Tools CL3200 is an auto-ranging general-purpose clamp meter.

It measures AC /DC voltage, AC current, and resistance. It can also test

non-contact voltage and continuity.

UÊ Operating Altitude: 2000 meters

UÊ Storage Altitude: 10000 meters

UÊ Humidity: 0% to 80% at 32°F to 95°F (0°C to 35°C)

0% to 70% at 32°F to 131°F (0°C to 55°C)

UÊ Operating Temperature: 0°C / 32°F to 40°C / 104°F < 75% R.H.

UÊ Storage Temperature: -20°C /-4°F to 60°C /140°F < 80% R.H.

UÊ Accuracy Temperature: 18°C /64°F to 28°C /82°F

UÊ Temperature Coefﬁcient: 0.1*(speciﬁed accuracy) /°C

UÊ Dimensions: 7.06" x 2.56" x 1.34"

UÊ Weight: 7.9oz.

UÊ Calibration: Accurate for one year

UÊ Certiﬁcations: UL & cUL standard UL3111-1 Listed

UÊ Pollution Degree: 2

UÊ CAT Rating: CAT IV 600V, CATIII 1000V

UÊ Accuracy: ± (% of reading + # of least signiﬁcant digits)

WARNINGS

To ensure safe operation and service of the tester, follow these instructions.

Failure to observe these warnings can result in severe injury or death.

UÊ Before each use, verify meter operation by measuring

a known voltage or current.

UÊ Never use the meter on a circuit with voltages that exceed the

category based rating of this meter.

UÊ Do not use the meter during electrical storms, or in wet weather.

UÊ Do not use the meter or test leads if they appear to be damaged.

UÊ Ensure meter leads are fully seated, and keep ﬁngers away from

the metal probe contacts when making measurements.

UÊ Do not open the meter to replace batteries while the probes

are connected.

UÊ Use caution when working with voltages above 60V DC,

or 25V AC RMS. Such voltages pose a shock hazard.

UÊ To avoid false readings that can lead to electrical shock,

replace batteries if a low battery indicator appears.

UÊ Unless measuring voltage or current, shut off and lock out

power before measuring resistance or capacitance.

UÊ Always adhere to local and national safety codes. Use individual

protective equipment to prevent shock and arc blast injury where

hazardous live conductors are exposed.

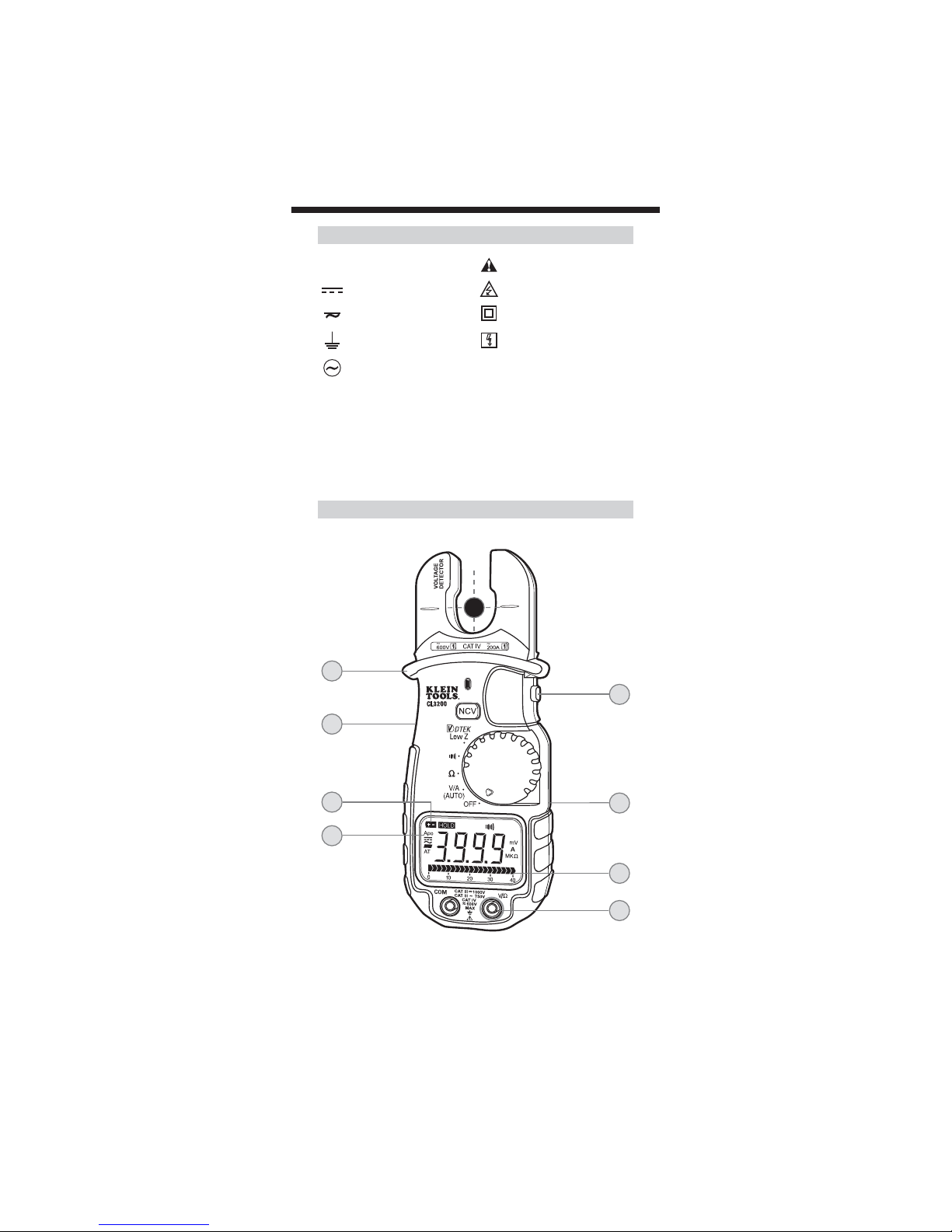

SYMBOLS

AC Alternating Current Warning or Caution

DC Direct Current Dangerous levels

DC/AC Voltage or Current Double Insulated Class II

Ground Safe for disconnect

from live conductors

AC Source

FEATURE DETAILS

A. Use CATIII 1000V or CAT IV 600V rated leads or higher.

Do not attempt to measure more than 1000V DC or 750V AC

B. Keep hands below line when measuring high current levels.

C. Auto Power-Off (Apo)

UÊ Device will power off after 30 minutes non-use.

UÊ Turn the dial or press a button to wake.

UÊ Holding HOLD button while turning on disables Auto Power-Off.

D. Hold /Backlight /Worklight

UÊ Press to hold the current input on the display.

UÊ Press again to return to live reading.

UÊ Press for 2 seconds to enable /disable lights.

UÊ Using lights decreases battery life.

E. F. Battery Replacement

UÊ When indicator is displayed on the LCD, batteries must be

replaced.

UÊ Remove the back screw and replace 2 x AAA batteries.

G. Magnetic Back

UÊ Attach instrument to metal for hands-free use.

H. Bar Graph

UÊ The bar graph shows an approximate analog representation

of a measurement.

UÊ The bar graph responds much faster than the digital display.

UÊ The scale of the bar graph is zero to the maximum reading of

the selected range.

1 2

FUNCTION INSTRUCTIONS

FEATURE DETAILS

1. AC Current:

< 200A

UÊ Center wire in guides for best accuracy.

UÊ Opposing currents cancel (use line-splitter when necessary).

2. AC /DC Voltage:

<750V AC or 1000V DC

AC /DC Voltage (Low Z): < 600V

UÊ The tester will automatically choose AC voltage or DC voltage or

AC current based on the inputs detected.

UÊ AUTO will be displayed when no input is detected.

UÊ DO NOT Use low impedance (Low Z) mode at voltages greater

than 600 V.

UÊ Use low impedance (Low Z) mode to reduce ghost voltages.

3. Resistance:

<40Mȍ

UÊ Do not measure resistance on a live circuit.

4. Continuity

UÊ Display shows resistance.

UÊ Buzzer sounds if less than about 40ȍ.

5. Non Contact Voltage (NCV): >25V AC

UÊ NCV works independently of other tester functions. The function

knob can be in the off position.

UÊ Press and hold.

ENGLISH

ELECTRICAL SPECIFICATIONS

DC Voltage Measurement

Range Resolution Accuracy

1.0V ~ 1000V 0.001V ~ 1V ± (1.0% + 4 digits)

-1.0V ~ -1000V 0.001V ~ 1V

Overload Protection: 1000V

Input Impedance (Nominal): >10M1, <100pF

AC Voltage Measurement

Range Resolution Accuracy

1.2V ˜ 750V 0.001 ~ 1V ± (1.5% + 3 digits)

Overload Protection: 750V RMS

Frequency Response: 45 to 400 Hz

Response: Averaging

Input Impedance (Nominal): >10M1, <100pF

Input Impedance (Low Z) >3k1, <200pF, up to 600V RMS

AC Current Measurement

Range Resolution Accuracy

0.9A ~ 200A 0.1A ± (2.0% + 8 digits)

Overload Protection:

UÊ Current: 200A

Frequency: 45 to 1kHz

Response: Averaging

Resistance Measurement

Range Resolution Accuracy

400ȍ˜4Mȍ0.1ȍ˜0.001Mȍ± (1.0% + 4 digits)

40Mȍ0.01Mȍ± (2.0% + 4 digits)

Overload Protection: 600V RMS

Continuity Test

Overload Protection Open Circuit Voltage Threshold (Appx.)

600V RMS <0.44V < 40ȍ

Overload Protection: 600V RMS

Non Contact Voltage Detector

On Voltage

Appx. 25V AC and above

SYMBOLS USED ON LCD

AC Measurement DC Measurement

Negative DC Value

Auto Range Active

.L.

Overload: Range Exceeded Apo

Auto Power-Off Active

Low Battery

HOLD

Hold Active

Voltage Measurement

Current in Amps

Resistance in Ohms Continuity Test

Kilo 10

Mega 10

CUSTOMER SERVICE

KLEIN TOOLS, INC.

450 Bond Street

Lincolnshire, IL 60069

1-877-775-5346

www.kleintools.com 139680



WARRANTY

This product is warranted to be free from defects in materials and workmanship

for a period of two years from the date of purchase. During this warranty period,

Klein Tools has the option to repair or replace or refund the purchase price of

any unit which fails to conform to this warranty under normal use and service.

This warranty does not cover damage which occurs in shipment or failure which

results from alteration, tampering, accident, misuse, abuse, neglect, or improper

maintenance. Batteries and damage resulting from failed batteries are not

covered by warranty. A purchase receipt or other proof of original purchase date

will be required before warranty repairs will be rendered.

Any implied warranties, including but not limited to implied warranties of

merchantability and ﬁtness for a particular purpose, are limited to the express

warranty. Klein Tools shall not be liable for loss of use of the instrument or other

incidental or consequential damages, expenses, or economic loss, or for any

claim or claims for such damage, expenses or economic loss.

Some states or countries laws vary, so the above limitations or exclusions may

not apply to you. This warranty gives you speciﬁc legal rights, and you may also

have other rights which vary from state to state. If your Klein product requires

repair or for information on how to exercise your rights under the terms of this

warranty, please contact Klein Tools at 1-877-775-5346.

CLEANING

Turn instrument off and disconnect test leads. Clean the instrument by using

a damp cloth. Do not use abrasive cleaners or solvents.

STORAGE

Remove the batteries when instrument is not in use for a prolonged period of

time. Do not expose to high temperatures or humidity. After a period of storage

in extreme conditions exceeding the limits mentioned in the Speciﬁcations

section, allow the instrument to return to normal operating conditions before

using it.

DISPOSAL /RECYCLE

Caution: This symbol indicates that equipment and its accessories

shall be subject to a separate collection and correct disposal.

ENGLISH

www.kleintools.com

Manual de

Instrucciones

For Professionals...Since 1857

CL3200

UÊ DETECCIÓN

AUTOMÁTICA DE

TENSIÓN Y CORRIENTE

UÊ LUZ DE FONDO

UÊ LUZ DE TRABAJO

UÊ MODO DE BAJA

IMPEDANCIA

UÊ GRÁFICO DE BARRAS

UÊ RETENCIÓN

DE DATOS

UÊ PANTALLA DE

LCD DE 3999

CONTEOS CON

DÍGITOS DE 3-3/4

UÊ INTERVALO

AUTOMÁTICO

UÊ PROBADOR DE

TENSIÓN SIN

CONTACTO

AUTO

HOLD

ESPAÑOL

CL3200

Manual de Instrucciones

ESPECIFICACIONES GENERALES

El CL3200 de Klein Tools es un multímetro de pinza de uso general con

determinación automática del intervalo. Mide tensión de CA / CC, corriente

CA / CC y resistencia. También puede probar tensión sin contacto, diodos

y continuidad..

UÊ Altitud de funcionamiento: 2000 metros

UÊ Altitud de almacenamiento: 10000 metros

UÊ Humedad: 0% / 80% á 0°C / 35°C (32°F / 95°F)

0% / 70% á 0°C / 55°C (32°F / 131°F)

UÊ Temperatura de funcionamiento: 0°C / 32°F a 40°C / 104°F < 75%

R.H.

UÊ Temperatura de almacenamiento: -20°C /-4°F a 60°C /140°F < 80%

R.H.

UÊ Temperatura de precisión: 18°C /64°F a 28°C /82°F

UÊ Coeﬁciente de temperatura: 0,1*(precisión especiﬁcada) / °C

UÊ Dimensiones: 7,06 x 2,56 x 1,34 pulgadas

UÊ Peso: 7,9 onzas

UÊ Calibración: Precisa durante un año

UÊ Certiﬁcaciones: Catalogado conforme al estándar UL3111-1 de UL

y cUL

UÊ Grado de polución: 2

UÊ Caliﬁcación CAT: CAT IV 600V, CATIII 1000V

UÊ Precisión: ± (% de la lectura + No. de dígitos menos signiﬁcativos)

ADVERTENCIAS

Para asegurar un funcionamiento y servicio seguros del probador, siga

estas instrucciones. Si no se hace caso de estas advertencias, el resultado

puede ser lesiones graves o muerte.

UÊ Antes de cada uso, veriﬁque el funcionamiento del multímetro midiendo

una tensión o una corriente conocida.

UÊ No utilice nunca el multímetro en un circuito con tensiones que excedan

la capacidad nominal basada en la categoría de este multímetro.

UÊ No utilice el multímetro durante tormentas eléctricas ni en tiempo mojado.

UÊ No utilice el multímetro ni los conductores de prueba si parecen estar

dañados.

UÊ Asegúrese de que los conductores de prueba del multímetro estén

completamente asentados y mantenga los dedos alejados de los contactos

metálicos de los conductores de prueba cuando haga mediciones.

UÊ No abra el multímetro para reemplazar las pilas mientras los conductores

de prueba estén conectados.

UÊ Tenga precaución cuando trabaje con tensiones superiores a 60 V CC, o 25 V

CA de valor eﬁcaz (RMS). Dichas tensiones presentan un peligro de descarga.

UÊ Para evitar lecturas falsas que pueden llevar a descargas eléctricas, reemplace

las pilas si aparece un indicador de pila baja.

UÊ A menos que mida tensión o corriente, apague y bloquee el suministro

eléctrico antes de medir resistencia o capacitancia

UÊ Cumpla siempre con los códigos de seguridad locales y nacionales.

Utilice equipo de protección individual para evitar las descargas eléctricas

y las lesiones por intensas corrientes de arco donde los conductores con

corriente peligrosos estén al descubierto.

Autres manuels pour CL3200

Table des matières

Langues :

Autres manuels Klein Tools Équipement de test

Klein Tools

Klein Tools VDV Scout Pro 2 VDV501-098 Manuel utilisateur

Klein Tools

Klein Tools cl2100 Manuel utilisateur

Klein Tools

Klein Tools Coax Explorer 2 VDV512-100 Manuel utilisateur

Klein Tools

Klein Tools LAN Scout Jr. VDV526-052 Manuel utilisateur

Klein Tools

Klein Tools NCVT-1XT Manuel utilisateur

Klein Tools

Klein Tools HVNCVT2 Manuel utilisateur

Klein Tools

Klein Tools Toner-Pro Manuel utilisateur

Klein Tools

Klein Tools ET200 Manuel utilisateur

Klein Tools

Klein Tools RT210 Manuel utilisateur

Klein Tools

Klein Tools NCVT1PKIT Manuel utilisateur

Klein Tools

Klein Tools NCVT-2P Manuel utilisateur

Klein Tools

Klein Tools VDV Commander VDV501-828 Manuel utilisateur

Klein Tools

Klein Tools NCVT-6 Manuel utilisateur

Klein Tools

Klein Tools ET600 Manuel utilisateur

Klein Tools

Klein Tools NCVT-3P Manuel utilisateur

Klein Tools

Klein Tools NCVT-1 Manuel utilisateur

Klein Tools

Klein Tools NCVT-6 Manuel utilisateur

Klein Tools

Klein Tools LAN EXPLORER Manuel utilisateur

Klein Tools

Klein Tools ET40 Manuel utilisateur

Klein Tools

Klein Tools VDV Scout Pro 3 Manuel utilisateur

Klein Tools

Klein Tools LAN Scout Jr. VDV526-052 Manuel utilisateur

Klein Tools

Klein Tools RT100 Manuel utilisateur

Klein Tools

Klein Tools VDV500-063 Toner-Pro Manuel utilisateur

Klein Tools

Klein Tools HVNCVT1 Manuel utilisateur

Manuels Équipement de test populaires d'autres marques

SMART

SMART KANAAD SBT XTREME 3G Series Manuel utilisateur

Agilent Technologies

Agilent Technologies BERT Serial Manuel utilisateur

Agilent Technologies

Agilent Technologies N3280A Manuel utilisateur

Vernier

Vernier Go Direct Voltage Manuel utilisateur

Lifeloc

Lifeloc R.A.D.A.R. Manuel utilisateur

Fluke

Fluke T5-600 Instructions d'utilisation et d'installation

Mercury

Mercury TSL01 Manuel utilisateur

MAHA

MAHA MBT Series Manuel utilisateur

Fuji Electric

Fuji Electric P-61 Manuel utilisateur

ETC

ETC SealerAtor Manuel utilisateur

Skyfine

Skyfine ETHYWAY V2 Manuel utilisateur

Appion

Appion G5 Twin Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 8159-0112A Manuel utilisateur

BW Technologies

BW Technologies MicroDock II Manuel utilisateur

Sun Nuclear

Sun Nuclear 1027 Manuel utilisateur

Biomark

Biomark HPR LITE READER Manuel utilisateur

Hioki

Hioki 3169-20 Manuel utilisateur

Ashcroft

Ashcroft ATE-100 Manuel utilisateur
