Kiturami WORLD PLUS-13D Manuel
Gas fired wall hung combination coilers
┃┃┃┃┃
Technical information and Installation Servicing Instructions
Model
WORLD PLUS - 13D (15.1 kW)
WORLD PLUS - 16D (18.6 kW)
WORLD PLUS - 20D (23.2 kW)
WORLD PLUS - 25D (29.1 kW)
WORLD PLUS - 30D (34.9 kW)
WORLD PLUS Gas boiler……………..
1페이지
CONTENTS
1) overall view
Specification ************************************** 3
Accessories ************************************** 3
2) Installation
Standard installation ************************************** 4
Installing Boiler ************************************** 5
Connecting Flue ************************************** 6
Piping for upper floor ************************************** 17
Connecting Gas ************************************** 18
Piping Central heating water ************************************** 18
Piping Hot water ************************************** 18
Drain ************************************** 18
Electric works ************************************** 19
3) Functions of the convenient service
Test working ************************************** 20
First ignition operation ************************************** 21
Water circuit Diagram ************************************** 22
Checking the CO2 ************************************** 22
Adjustment and gas conversion ************************************** 23
4) Direction for assembly
Disassembly ************************************** 25
Part list ************************************** 26
5) Maintenance guide
Main heat exchanger ************************************** 27
Burner unit ************************************** 28
Fan unit ************************************** 29
Temperature sensor ************************************** 30
Over heating sensor ************************************** 30
Gas valve ************************************** 30
Circulation pump ************************************** 31
3Way valve ************************************** 31
Others ************************************** 31
6) Function of the controller
Main controller ************************************** 32
Function ************************************** 33
7) Function of the controller
Room controller panel ************************************** 36
LED Panel ************************************** 37
8) Troubleshooting guide (error code)
Finding failure ************************************** 38
9) Technical Data Table ************************************** 39
10) Memo ************************************** 40
11) Warranty ************************************** 41
2페이지
1. overall view
These instructions are suitable for WORLD PLUS Series boiler;
Do not forget this instruction.
To ensure the correct installation, commissioning and servicing of domestic central heating system.
To the householder,
Make sure you have a completed this book for your boiler. This book provides a record of the commissioning of your boiler.
It contains very important information about your particular installation that may be required by service engineer.
This book will also provides contact details for the installer should you need guidance in the use of this unit or if there are
any problems. As with your car, your boiler will work more reliably and efficiently if it regularly is serviced. We recommend
an annual service check. The service history of the unit will be recorded on this book.
In the unlikely event of any problems with your boiler or system you should first contact your installer. If your installer cannot
resolve the problem he should calling to our service center.
You statutory rights are not affected.
To The Installer
As part of the commissioning of this unit it is vital that this book is completed and given to the householder.
Please ensure that your customer is aware of the importance of keeping this book safe as a record of the installation and the
unit service history
Please ensure that your customer is aware of the correct operation of the system, boiler and controls. KITURAMI recommend
the use of protective clothing, when installing and working on the unit i.e. gloves.
GUARANTEE
The manufacturer’s guarantee is for 2 years from the date of installed. The guarantee is invalidated if the unit is not installed
in accordance with the recommendations made herein or in a manner not approved by the manufacturer. To assist us in
providing you with an efficient after sales service, please return the guarantee registration card enclosed with the boiler without
delay.
1-1 General Information
A charge may be made if KITURAMI service is called out to resolve a non-product related fault.
3페이지
1. Product description
Model : WORLD PLUS
POWER SOURCE
DIMENSION (Wx Dx H)
INSTALLATION TYPE
FUEL TYPE
사진
CHIMNEY
36 (79.3) 36 (79.3)
133
1-2 Speafication
430 x 250 x 721
HETING AREA (㎡)
WEIGHT (kg/lb)
106
35 (77.1)
B33-C13-C33-C43-C53-C63-C83
LNG, 13A, G20, G30
85 199166
39 (85.9)
WORLD PLUS-30
Room Control FIXATION BOLT
STAINLESS STEEL BEND
39 (85.9)
MODEL
220 - 240 V, 50Hz
465 x 278 x 761 507 x 310 x 788
WORLD PLUS-13 WORLD PLUS-16 WORLD PLUS-20 WORLD PLUS-25
4페이지
2. Installation
2-1 Standard installation
5페이지
ㅣ Installing Boiler ㅣ
1. The boiler has to be fixed horizontally to the wall with some space for cleaning and maintenance.
2. The wall should support enough to hang 35 ~ 45kg of Boiler and be incombustible surface
3. Before installing the boiler, check the pipes and valves for central heating water in & out-let, domestic hot water in
& out-let, and gas.
ㅣSelecting Location ㅣ
1. Please select the location and position, considering some space for cleaning and maintenance.
2. The wall should support enough to hang the boiler of 35 ~45kg. If need, reinforce the wall before installing.
3. Corrosive gas [ex. Ammonia gas, Chloric gas, Sulfur, Acids, etc] can destroy or rust the boiler, flues, and pipes by a
chemical reaction. And it may reduce the efficiency of heater or igniter. Please avoid this location or clean up the place
before installing Boiler.
4. he boiler should be installed onto the incombustible surface.
5. Please avoid the wet place and hermetically sealed location.
The boiler can be installed on any suitable internal wall (suitable sound proofing may be required when installing onto a stud partition wall).
Provision must be made to allow for the correct routing of the flue and setting of the terminal to allow the safe and efficient removal of the
flueproducts.
Where a room sealed appliance is installed in a room containing a bath or shower, the appliance and any electrical switch or appliance
control, utilizing mains electricity should be situated specifically in accordance with current IEE Wiring Regulation.
[Installing Boiler]
1. The boiler has to be installed horizontally to the wall with some space for cleaning and maintenance.
2. The boiler has to be fixed firmly with special bolt for its weight and tightly against any vibration.
It is recommended to stick the rubber against vibration.
2-2 Boiler Installation
6페이지

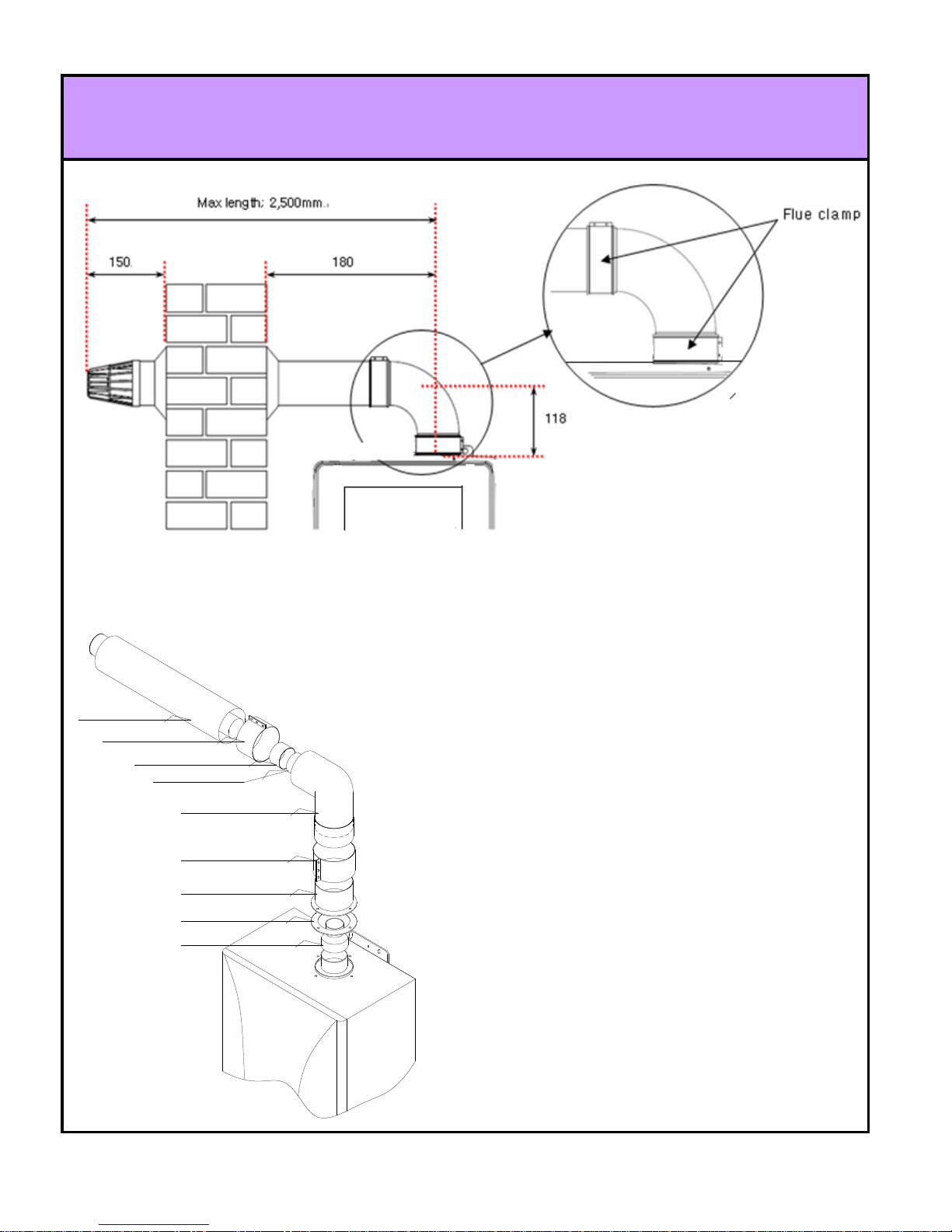

2-3-2 Installing flue (Connecting)
COXAIL FLUE Connecting
ASSEMBLING the socket of inlet and outlet flue.
1. Join the flue socket on flue outlet.
2. After sealing the top of boiler and socket with gasket,
fix the socket to the boiler body with screw.
JOINING FLUE WITH BOILER
1. Fix the socket, boiler adapter and flue elbow with sealing
tape after adjusting all.
2. After sealing well, join and screw the flue duct adapter.
3. Join and fix the flue elbow to main flue with careful check
of exhaust flue and inlet flue.
4. Seal the joint completely with tape and screw the Flue
duct adapter.
5. Slope down the flue outlet by 3 ~ 5˚ in order to drop the
condensation down.
2-3 Installing flue (Dimensions and Fixings)
Flue Air Duct
Flue Duct Adapter
Gasket
Flue Elbow
Flue Duct Adapter
Boiler Adapter
Gasket
Socket
Exhaust Flue
7페이지
2-3-1 FLUE
COXAIL FLUE
1 2 3 4 5 6 7
name air suction pipe exhaust pipe exhaust bend exhaust elbow air suction soket exhaust soket air suction bend
material SUS AL AL AL SUS SUS AL
remarks
8페이지
2-3-1 CHIMNEY
The provision for satisfactory flue termination must be installed in accordance with local regulations.
The appliance must be installed so that the flue terminal is exposed to outdoor air.
The terminal must not discharge into another room or space such as an outhouse or lean-to. It is important that the
position of the terminal allows a free passage of air across it at all times. The terminal should be located with due
regard for the damage or discoloration that might occur on buildings in the vicinity,
it must also be located in a place not likely to cause nuisance. In cold or humidity weather water vapor may condense
on leaving the flue terminal The effect of such “steaming” must be considered. If the terminal is less than 1 meter
above a balcony, above ground or above a flat roof to which people has access, then a suitable stainless steel terminal
guard must be fitted. The minimum acceptable spacing from the terminal to obstructions and ventilation openings
are specified in Fig. X.
Warning
The exhaust gas duct must not be contact with or close to inflammable material and must not pass through building
structures or walls made of inflammable material. When replacing an old appliance, the flue system must be changed.
9페이지
2-3-3 Installing flue (For Roof Terminals)
① For Roof Terminals
1. In the case of a pitched roof 25-50 degrees, position the lest
tile to replace/flash over existing roof tilling. Make an aperture
in the roof suitable for the lower tube of the roof terminal and
ensure the integrity of the roof cover is maintained. The
adjustable plastic collar can either be positioned. on the lead
tile or the lower tube of the roof terminal prior to the final
positioning of the vertical flue through the tile Check the collar
is correctly located to suit required roof pitch (either 25˚ to 38˚ or
37˚ to 50˚) From inside the roof adjust the to vertical position and
secure to the roof structure with the clamp supplied.
2. For flat roof installations the aluminum flashing must be
incorporated into the roof covering and the appropriate aperture
aperture made in the roof decking. The vertical flue is lowered
onto the flashing.(A mastic seal may be necessary). From inside
the roof, structure with the clamp supplied
IMPORTANT : If the boiler is not fitted immediately after the flue
System, temporary precautions must be taken to prevent rain entry
into the room of installation, Any precautionary measures must
be removed prior to commissioning the boiler.
② Flue Dimensions
The standard horizontal telescopic flue kit allows for lengths between
315mm and 500mm from elbow to terminal (Fig 13)
③ Flue Trim
1. The rubber flue trim supplied may be fitted to either the outside
wall or on the inner wall of installation.
④ Terminal Guard (Fig. 14)
1. When codes of practice dictate the use of terminal guards, they
can be obtained from most Plumber' and Builders' Merchants.
2. There must be a clearance of at least 50mm between and part
of the terminal and the guide.
3. When ordering a terminal guide quote the appliance name and
model number.
4. The flue terminal guide should be positioned centrally over the
terminal and fixed as illustrated.
⑤ Flue Deflector
1. If required push the flue deflector over the terminal end and
rotate to the optimum angle for deflecting plume. Secure the deflecton
to the terminal with screws provided
10페이지
