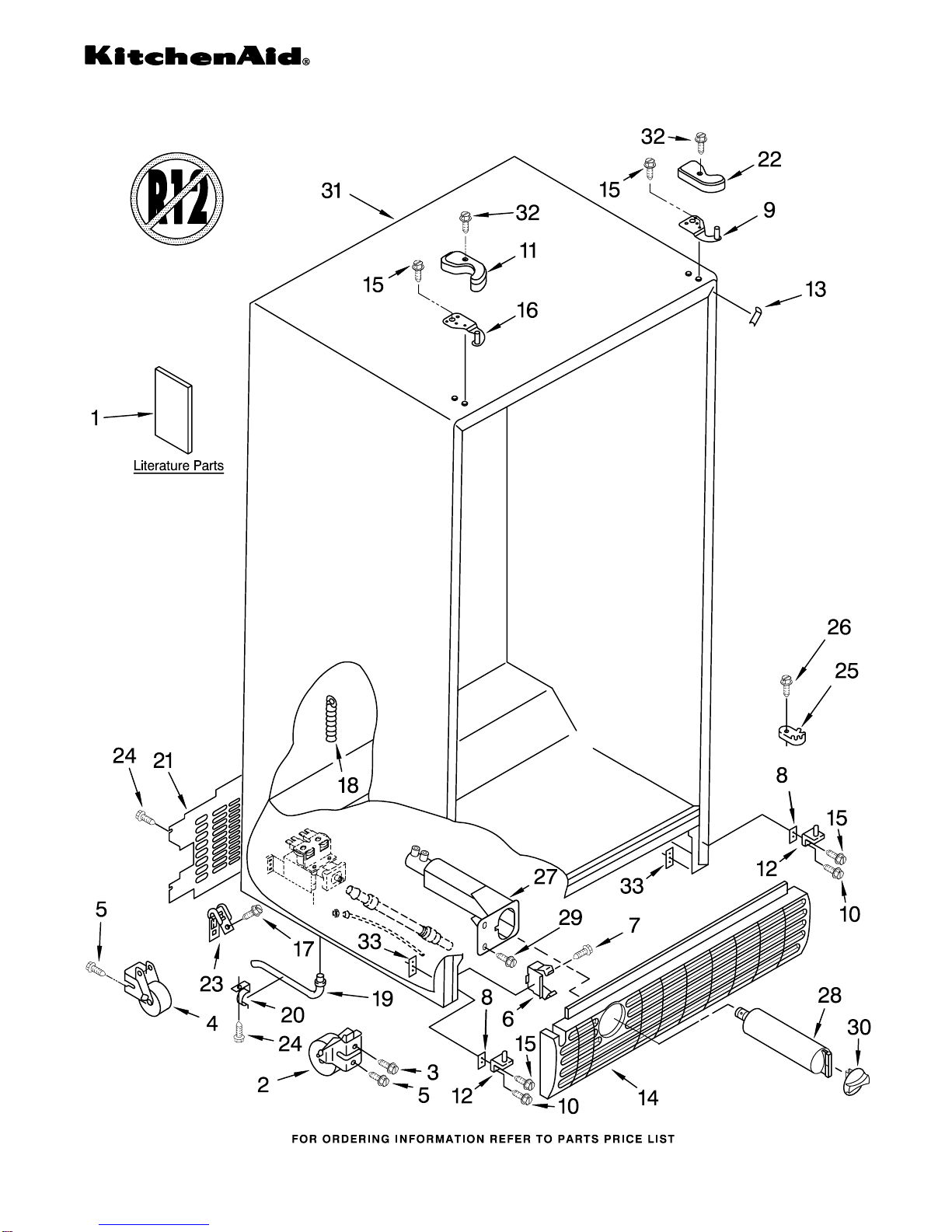

CABINET PARTS
1
For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00
(White) (Black) (Biscuit) (Stainless Steel)
9−03 Printed In U.S.A. (kdj) Part No. 8198758
REFRIGERATOR
CABINET PARTS
2
For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00
(White) (Black) (Biscuit) (Stainless Steel)
8198758
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
LITERATURE PARTS
1
LIT2254906
Use & Care Guide
LIT2255383
Service & Wiring
Sheet
LIT2261343
Energy Label
LIT2220407
Modular Icemaker
Service Sheet
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
8 2156056 Shim
9 2203771 Hinge Top, RC
10 3400103 Screw
11 Hinge Cover, FC
2203407W White
2203407B Black
2203407T Biscuit
12 2217075 Hinge Bottom (2)
13 Filler, Wrapper
2196094 White
2196097 Black
2196150 Biscuit
14 Grille
2186881W White
2186881B Black
2186881T Biscuit
15 489497 Screw
16 2203770 Hinge, Top FC
17 489464 Screw
18 940139 Drain Fitting
19 1108438 Tube, Extension
20 1108439 Clip, Drain Tube
21 2188739 Cover, Unit
22 Hinge Cover, RC
2203408W White
2203408B Black
2203408T Biscuit
23 549193 Clamp, Service
Cord
24 489084 Screw
25 2155311 Door Closer,
Lower Cam (2)
26 489483 Screw
27 2186443 Housing, Water
Filter
28 2203220 Water Filter
29 489500 Screw
30 Cap, Water
Filter
2186494W White
2186494B Black
2186494T Biscuit
31 Cabinet (Not A
Serviceable Part)
32 8281227 Screw
33 2203098 Plate, Screw

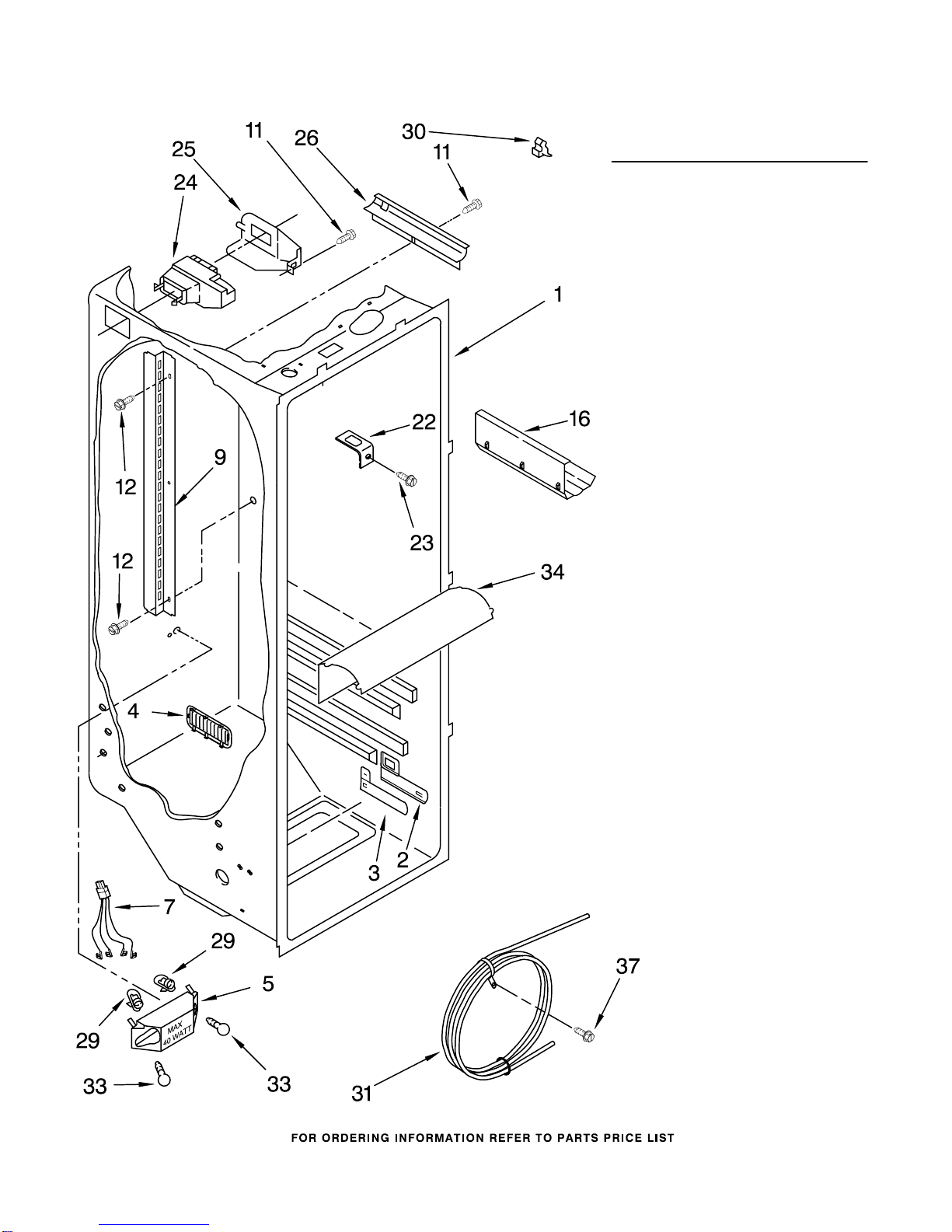

REFRIGERATOR LINER PARTS
3
For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00
(White) (Black) (Biscuit) (Stainless Steel)
8198758
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2194744 Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 2182147 Louver
5 2256035 Bracket, Dual
Crisper Light
7 2256037 Wire Harness,
Dual Crisper
Light
9 2206273 Ladder, Shelf (2)
11 486298 Screw (2)
12 487539 Screw
16 2179404 Rack, Wine & Egg
22 1123919 Bracket Retainer
23 489290 Screw (2)
24 2209751 Air Diffuser
Assembly
25 2212240 Air Diffuser
Cover
26 2150331 Cover, Conduit
29 2162085 Socket
30 842534 Clip, Air Duct
31 2217199 Reservoir
33 527949 Light Bulb
34 2209769 Light Lens
37 488280 Screw

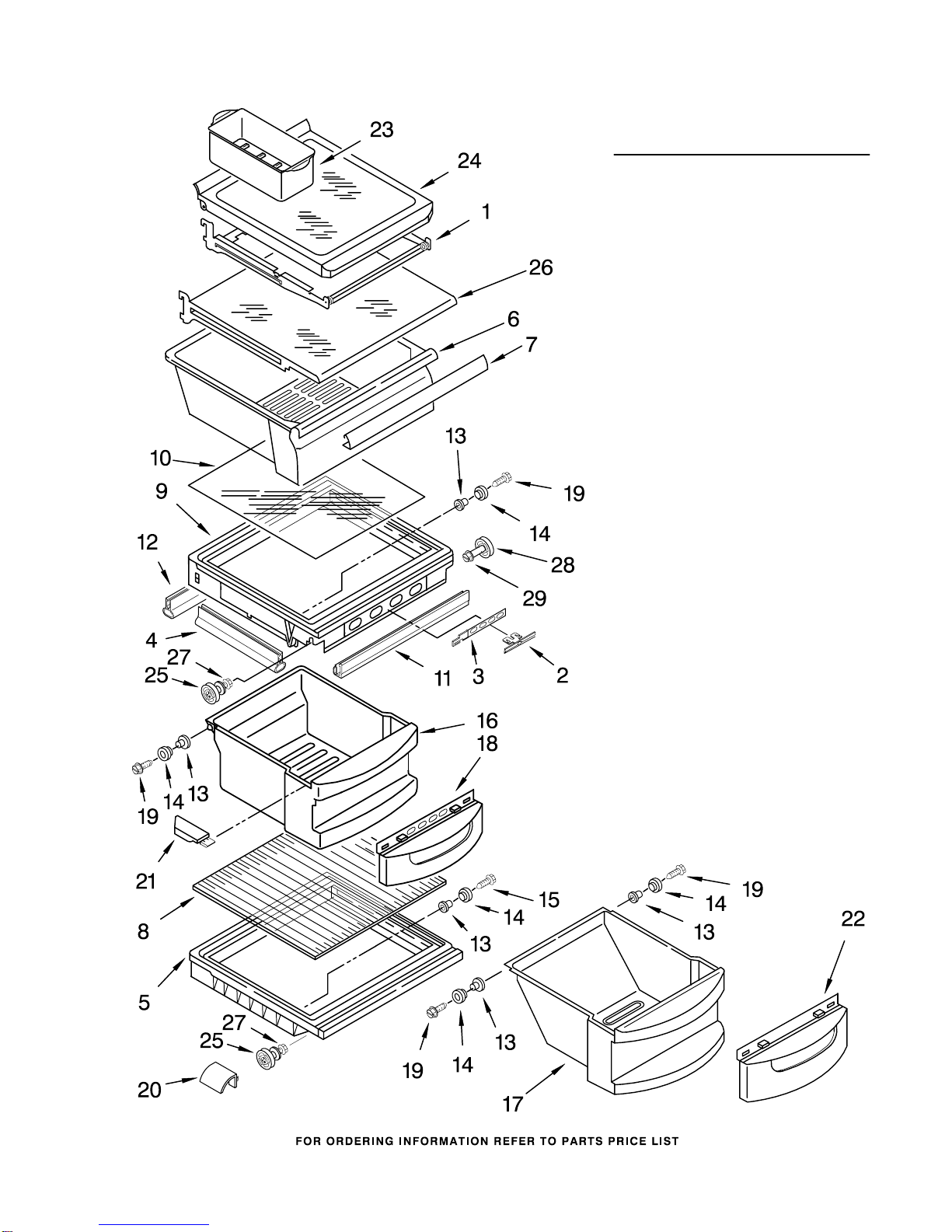

REFRIGERATOR SHELF PARTS
4
For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00
(White) (Black) (Biscuit) (Stainless Steel)
8198758
Illus. Part
No. No. DESCRIPTION
1 2195975 Shelf Assembly,
Cantilever (3)
2 2174253 Button, Humidity
3 2174252 Slide, Humidity
4 2174273 Gasket, Side (2)
5 2223357 Cover, Meat Pan
(Includes Items
13, 14 & 15)
6 2188669 Snack Pan
(Includes 7)
7 2179243 Trim, Handle
8 2255144 Glass, Cover
9 2256153 Cover, Crisper
(Includes 2,
3, 4, 11, 12,
13, 14 & 19)
10 2255143 Glass, Cover
11 2223361 Gasket (Front)
12 2223362 Gasket (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16 2223358 Crisper Pan
(Includes 13,
14, 18, 19 & 21)
17 2223359 Meat Pan
(Includes 13,
14, 19 & 22)
18 2174076 Window, Crisper
19 489261 Screw
20 2176095 Deflector
21 Cap, Crisper Pan
2223286 Right Side
2223285 Left Side
22 2174362 Window, Meat Pan
23 2216624 Egg Bin
24 2216102 Shelf & Roller
Assembly
25 2196485 Stud Assembly
26 2206346 Shelf, Snack Pan
27 3400894 Screw
28 2196483 Stud Assembly
29 8281158 Screw

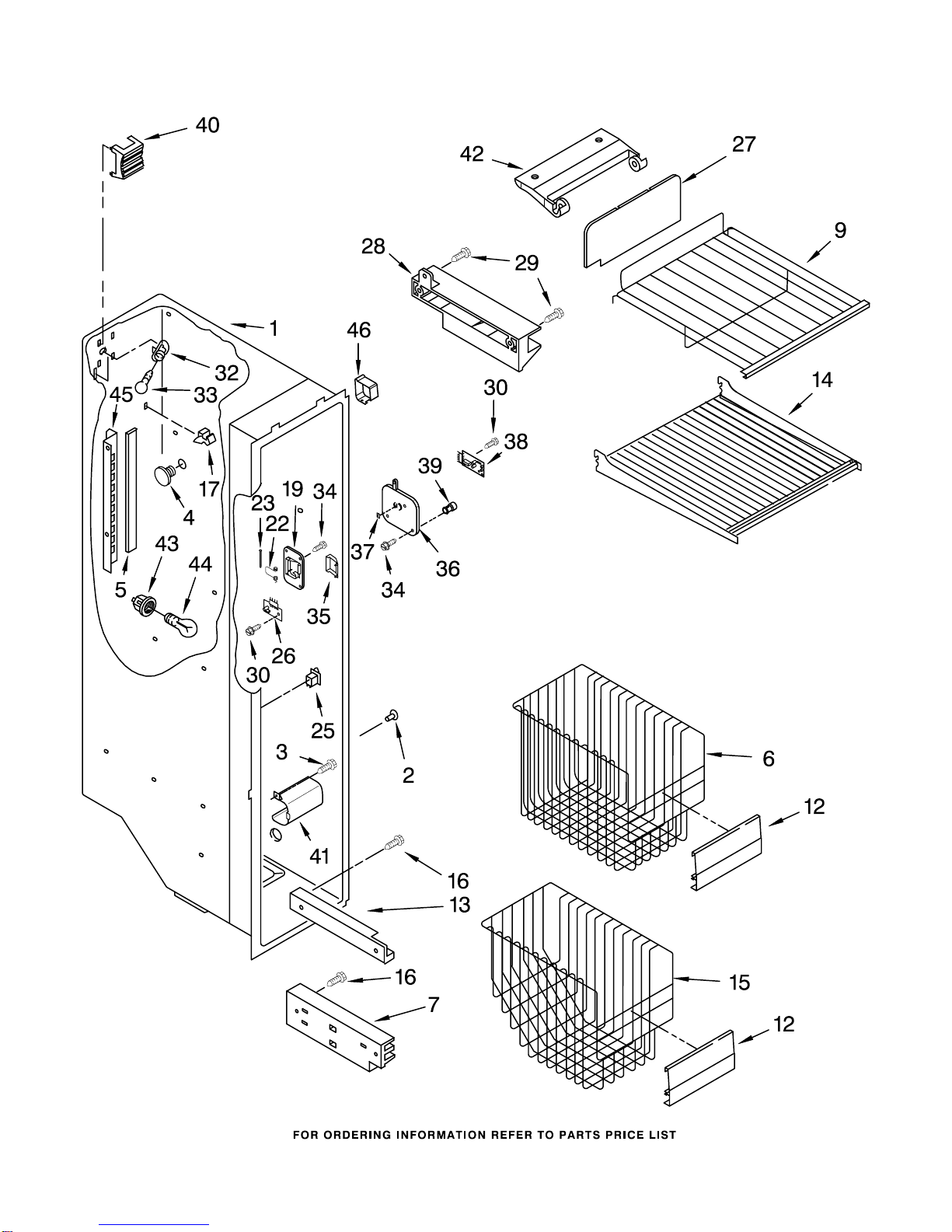

FREEZER LINER PARTS
5
For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00
(White) (Black) (Biscuit) (Stainless Steel)
8198758
FREEZER LINER PARTS
6
For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00
(White) (Black) (Biscuit) (Stainless Steel)
8198758
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 941839 Hole Plug
3 3400893 Screw
4 940014 Hole Plug
5 2198697 Gasket
6 2223539 Basket, Tall
7 Track, Basket−Dual
2223708 Right Side
2223709 Left Side
9 2211746 Shelf, Slide Out
Upper
12 2171766 Basket, Front
13 Shelf Track
2261449 Right Side
2261448 Left Side
14 2205837 Shelf
15 2223535 Basket, Sloped
16 486298 Screw
17 842534 Clip, Air Duct
19 2198587 Cover, Emitter
22 2198635 Spring
23 2198634 Pin
25 1115373 Switch, Rocker Arm
26 2220398 P.C. Board
Emitter
27 2198642 Cover, Ice Maker
28 2212321 Slide, Ice Maker
Mounting
29 489478 Screw
30 489214 Screw
32 2162085 Light Socket
33 527949 Light Bulb
34 8281185 Screw
35 2198633 Flipper
36 2198588 Cover, Receiver
37 2198637 Slide, Ice Maker
Shut Off
38 2255114 P.C. Board,
Receiver
39 2198643 Lens
40 2198589 Light Shield
41 2212340 Light Lens
42 2198641 Bracket, Ice Maker
Cover
43 2155597 Socket, Light
44 527949 Light Bulb
45 Ladder
2198609 Left Side
2198610 Right Side
46 2219878 Shield, Wiring

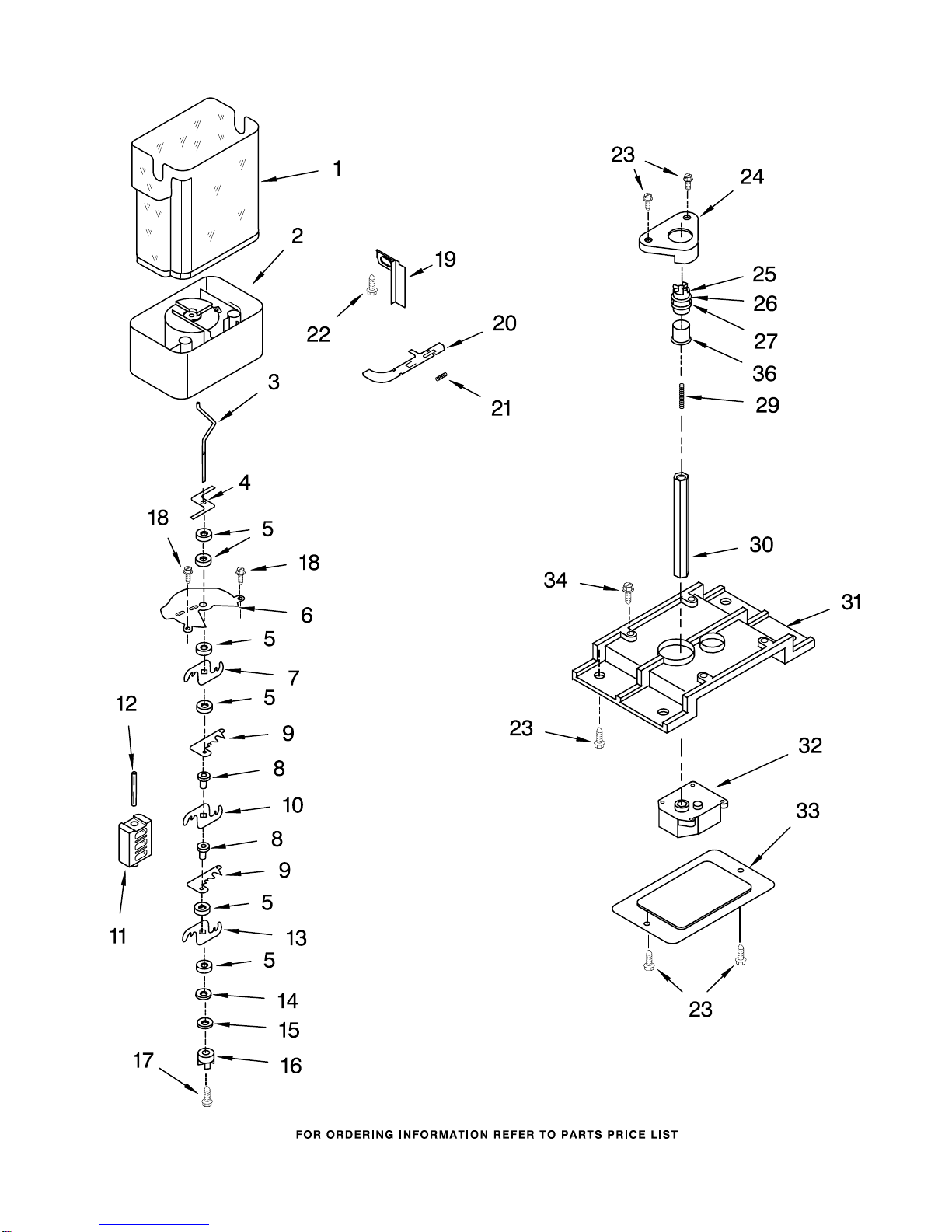

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00
(White) (Black) (Biscuit) (Stainless Steel)
8198758
MOTOR AND ICE CONTAINER PARTS
8
For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00
(White) (Black) (Biscuit) (Stainless Steel)
8198758
Illus. Part
No. No. DESCRIPTION
1 2198573 Ice Bin
2 2212367 Crusher Bin
3 2211590 Auger
4 2198603 Blade, Stirring
5 1119007 Spacer, Flat (6)
6 2255460 Cover, Crusher
7 1119013 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2198601 Blade, Fixed
10 1119012 Blade, Rotary
11 2198602 Block, Blade
12 489229 Roll Pin
13 1119006 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2220457 Coupling
17 8281164 Screw
18 3400065 Screw
19 2198605 Button, Bin
20 2212371 Latch, Bin
21 2198608 Spring, Latch
22 2198671 Screw
23 8281163 Screw
24 2212369 Holder
25 2220458 Coupling, Bottom
26 2198628 Seal
27 2212370 Washer
29 2198607 Spring
30 999536 Drive Shaft
31 2198655 Bracket, Motor
32 2198594 Dispenser, Motor
33 2198626 Cover
34 8281162 Screw
36 2212365 Sleeve, Coupling

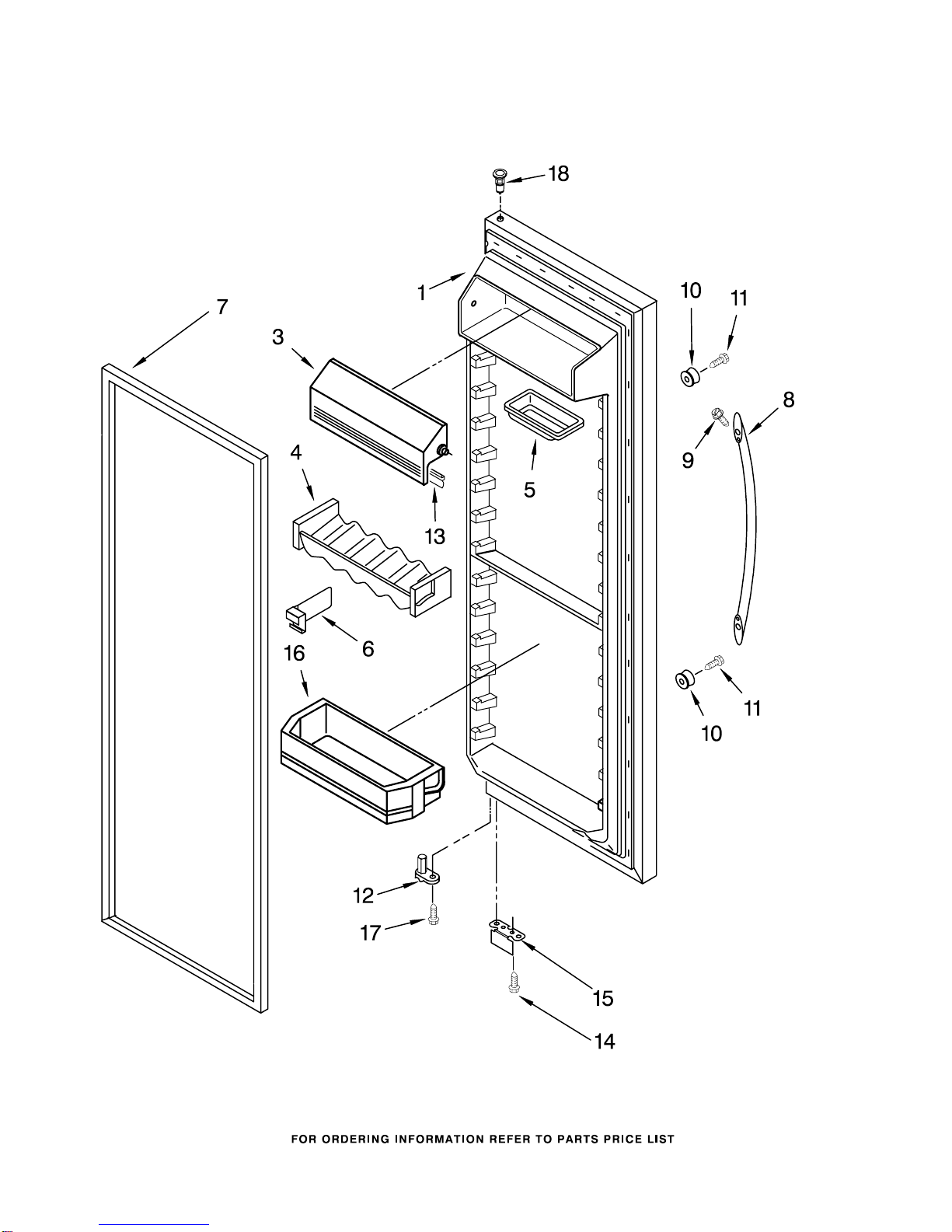

REFRIGERATOR DOOR PARTS
9
For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00
(White) (Black) (Biscuit) (Stainless Steel)
8198758
REFRIGERATOR DOOR PARTS
10
For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00
(White) (Black) (Biscuit) (Stainless Steel)
8198758
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #7)
2219830W White
2219830B Black
2219830T Biscuit
2219830S Stainless Steel
3 2218122 Door, Compartment
4 2193409 Holder, Beverage
5 2165792 Butter Dish
6 2195497 Divider, Bin
7 Door Gasket,
Magnetic
2221302 Mist Beige
2221313 Black
8 Handle
(Includes #9)
2188635W White
2188635B Black
2188635T Biscuit
2188635S Stainless Steel
9 98654 Set Screw
10 2203690 Stud−Handle
11 488208 Screw
12 2182178 Door Closer,
Upper Cam
13 2159124 Gasket
14 489420 Screw
15 Bracket, Door Stop
2206629 Chrome
2206629B Black
16 2171063 Shelf Bin (4)
17 3400012 Screw
18 2182180 Thimble−Top
