1
CABINET PARTS
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
6−00 Printed In U.S.A. (dmz) Part No. 4398738
REFRIGERATOR
CABINET PARTS
2
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
LITERATURE PARTS
1 LIT2206106 Use & Care Guide
LIT2200279
Service & Wiring
Sheet
LIT2211901
Energy Label
LIT628370
Modular Icemaker
Service Sheet
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
8 Shim
2156056 (2)
2181911 (1)
9 2196048 Shim, Hinge Top
10 489284 Screw
11 Hinge Cover (FC)
2203407W White
2203407B Black
2203407T Biscuit
12 2171851 Hinge Bottom (2)
13 Filler, Wrapper
2196094 White
2196097 Black
2196150 Biscuit
14 Grille
2186881W White
2186881B Black
2186881T Biscuit
15 489497 Screw
16 2203770 Hinge, Top (FC)
17 489464 Screw
18 940139 Drain Fitting
19 1108438 Tube, Extension
20 1108439 Clip, Drain Tube
21 2176140 Cover, Unit
22 Hinge Cover (RC)
2203408W White
2203408B Black
2203408T Biscuit
23 549193 Clamp, Service
Cord
24 489084 Screw
25 2155311 Door Closer,
Lower Cam (2)
26 489483 Screw
27 2186443 Housing, Water
Filter
28 2203220 Water Filter
29 489500 Screw
30 Cap, Water
Filter
2186884W White
2186884B Black
2186884T Biscuit
31 Cabinet (Not A
Serviceable Part)
32 2203771 Hinge, Top (RC)
REFRIGERATOR LINER PARTS
3
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2194744 Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 2182147 Louver
5 2171846 Release Valve
6 2196485 Stud Assembly
7 3400894 Screw
8 2196483 Stud Assembly
9 2181796 Ladder, Shelf (2)
10 8281158 Screw
11 486298 Screw (2)
12 487539 Screw
13 2205813 Strap
16 2179404 Rack, Wine & Egg
22 1123919 Bracket Retainer
23 489290 Screw (2)
24 2161467 Air Diffuser
Assembly
25 2161470 Air Diffuser
Cover
26 2150331 Cover, Conduit
29 2162085 Socket
30 842534 Clip, Air Duct
31 2209687 Reservoir
33 527949 Light Bulb
34 2203266 Light Lens
37 488280 Screw
REFRIGERATOR SHELF PARTS
4
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738
Illus. Part
No. No. DESCRIPTION
1 2195978 Shelf Assembly,
Cantilever (3)
2 2174253 Button, Humidity
3 2174252 Slide, Humidity
4 2174273 Gasket, Side (2)
5 2161491 Cover, Meat Pan
(Includes Items
13, 14 & 15)
6 2209677 Snack Pan
7 2179243 Trim, Handle
8 2189526 Glass, Cover
9 2174250 Cover, Crisper
(Includes 2,
3, 4, 11, 12,
13, 14 & 19)
10 2174148 Glass, Cover
11 2174272 Gasket (Front)
12 2174274 Gasket (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16 2179227 Crisper Pan
(Includes 13,
14, 18, 19 & 21)
17 2179231 Meat Pan
(Includes 13,
14, 19 & 22)
18 2174076 Window, Crisper
19 489261 Screw
20 2176095 Deflector
21 Cap, Crisper Pan
2174259 Right Side
2174258 Left Side
22 2174362 Window, Meat Pan
23 2182730 Egg Bin
24 2174021 Shelf & Roller
Assembly
25 489439 Screw
26 2208298 Shelf, Snack Pan
FREEZER LINER PARTS
5
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738
FREEZER LINER PARTS
6
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2174493 Shelf, Top
Compartment
3 2171713 Door, Ice
Compartment
4 940014 Hole Plug
5 8281158 Screw
6 842534 Clip, Air Duct (2)
7 2196206 Support, Stud (4)
8 2196483 Stud Assembly
9 2176134 Grommet (2)
10 Slide, Container
1119237 Left Side
1119293 Right Side
11 2174267 Shelf
12 489100 Screw (4)
13 3400893 Screw
14 2155572 Cover, Wiring
15 489355 Screw
16 2209674 Bracket, Fill Tube
17 Shelf Track
2181760 Right Side (3)
2181759 Left Side (3)
18 486298 Screw
19 1115373 Switch, Rocker Arm
20 489478 Screw
21 2181763 Basket, Shallow
22 2171767 Front, Basket
23 2181765 Basket, Square
24 2171766 Front, Basket
25 2181764 Basket, Sloped
27 2196207 Stud, Rear
29 2171705 Light Lens
32 2162085 Socket, Light
33 527949 Bulb, Light

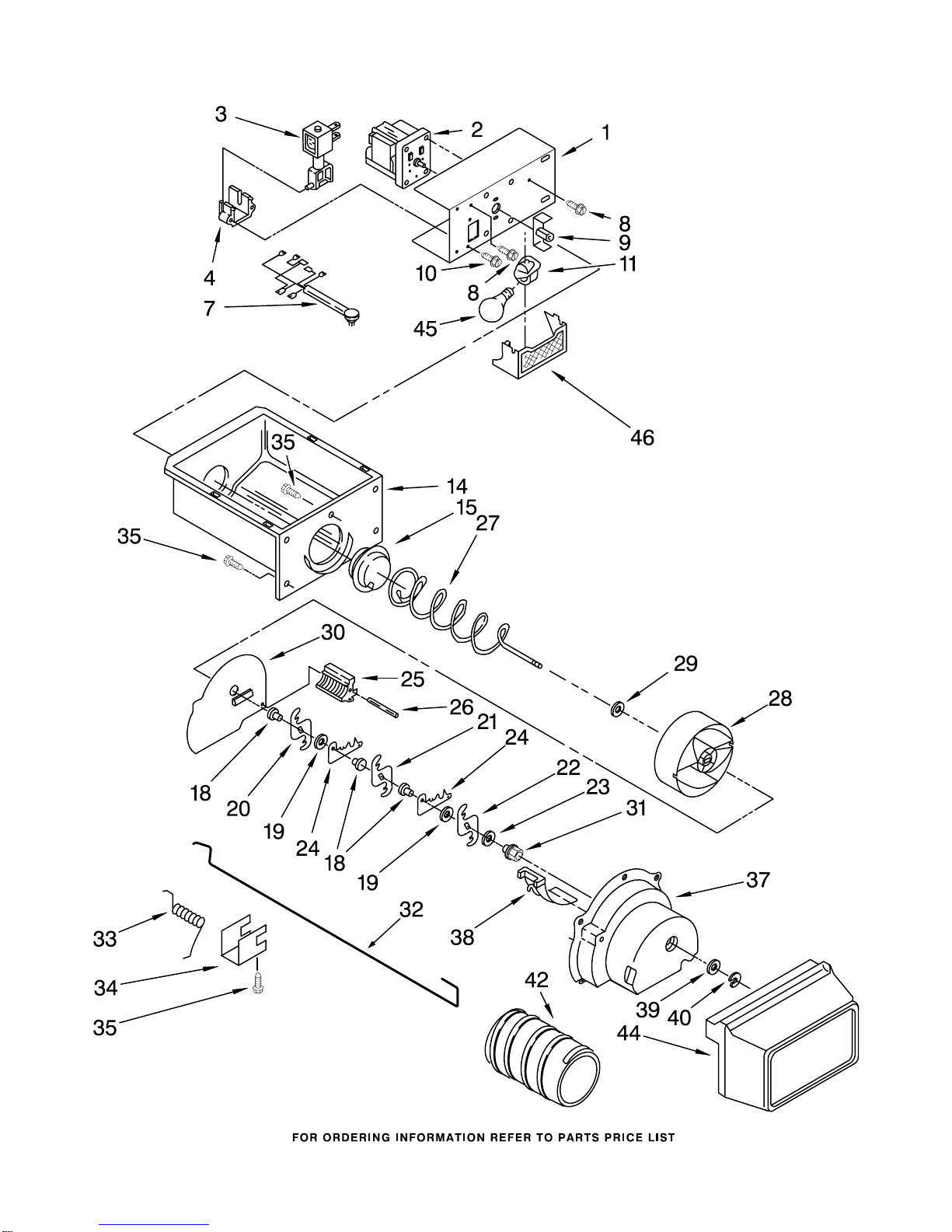

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738
MOTOR AND ICE CONTAINER PARTS
8
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738
Illus. Part
No. No. DESCRIPTION
1 2183726 Bracket, Motor
2 2188385 Motor, Dispenser
3 2152713 Soleniod Assembly
4 2149100 Guide, Solenoid
7 2186815 Wiring Assembly,
Ice Dispenser
8 489399 Screw
9 2205716 Coupling, Motor
10 489478 Screw
11 2162085 Socket, Light
14 2196091 Ice Container
15 983668 Coupling, Conveyor
18 1119005 Spacer, Step (3)
19 1119007 Spacer, Flat (2)
20 1119006 Blade, Rotary
21 1119012 Blade, Rotary
22 1119013 Blade, Rotary
23 489235 Washer, Plain
24 1119009 Blade, Fixed (2)
25 2157405 Block, Blade
26 489229 Roll Pin
27 2181955 Conveyor
28 2196194 Drum
29 3400912 Washer
30 2171682 Floating Baffle
31 1119018 Nut, Bearing
32 2155231 Control Arm
33 1119020 Spring, Return
34 1119021 Retainer Clip, Rod
35 488886 Screw
37 2180348 Housing, Crusher
38 1119017 Deflector, Ice
39 489234 Washer, Plain
40 489236 Retainer Ring
42 2152021 Sleeve−Auger
44 2204321 Front Cover,
Ice Container
45 527949 Light Bulb
46 2171706 Light Lens,
Dispenser
REFRIGERATOR DOOR PARTS
9
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738
REFRIGERATOR DOOR PARTS
10
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00
(White) (Black) (Biscuit) (Stainelss Steel)
4398738
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #7)
2207183W White
2207183B Black
2207183T Biscuit
2207183S Stainless Steel
3 2182399 Door, Compartment
4 2193409 Holder, Beverage
5 2165792 Butter Dish
7 Door Gasket,
Magnetic
2159075 Mist Beige
2159083 Black
10 Handle
2207112W White
2207112B Black
2207112T Biscuit
2207112S Stainless Steel
11 3400898 Screw
12 2182178 Door Closer,
Upper Cam
13 2159124 Gasket
14 489420 Screw
15 2200082 Bracket, Door Stop
16 2205821 Shelf Bin (4)
17 3400012 Screw
21 Endcap, Handle
2207111W White
2207111B Black
2207111T Biscuit
