KitchenAid KFCO22EVBL00 Manuel utilisateur

CABINET PARTS

For Models: KFCO22EVBL00

(Black Overlay)

1−09 Litho In U.S.A (mat) (psw)(bay) Part No. W10217727 Rev.A

REFRIGERATOR

The model(s) number shown may be different than what is printed on the

CABINET PARTS

For Models: KFCO22EVBL00

(Black Overlay)

The model(s) number shown may be different than what is printed on the

W10217727

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

12828187SP

Use & Care Guide

W10194233

Energy Guide

12827964 Tech Sheet

2 Cabinet (Not a

Servicable Part)

3 B5759649 Gasket

4 Roller Assembly

W10237085

Left

W10237087

Right

W10141622

Foot, Brake

6 67006521 Screw

7 Cover, Hinge

W10153130

Black, Left

W10153131

Black, Right

8 67006380 Screw

9 67006400 Screw

10 67003331 Cover, Water Line

11 67006303 Screw (3)

12 Hinge, Center

W10119776

Black, Left

W10119778

Black, Right

13 Hinge, Top

W10210891

Black, RH

W10210890

Black, LH

14 Cover, Corner

67003485 Black

W10157973

Clip, Drain

16 67006102 Cover, Unit

17 Grille, Toe

W10131134

Black

18 M0114003 Clip, Speed

W10164397

Tube, Drain

20 67006425 Screw (10)

21 67003796 Fiber, Acoustic

22 12751509 Cover, Water Valve

23 M0108105 Clamp, Tube

W10137519

Elbow, Fill Tube

25 67006287 Screw

26 67004092 Block, Filter (2)

27 67004101 Sweep, Dual Tube

W10119790

Box, HV Control

W10203258

Lid, HV Control

W10120821

Control,

Electronic,15W,PS

W10120827

Control,

Electronic,Trilogy

FREEZER LINER PARTS

For Models: KFCO22EVBL00

(Black Overlay)

The model(s) number shown may be different than what is printed on the

W10217727

FREEZER LINER PARTS

For Models: KFCO22EVBL00

(Black Overlay)

The model(s) number shown may be different than what is printed on the

W10217727

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam

3 12002497 Gear (Left)

(Includes Item 7)

4 67003905 Cover, Light

5 67004261 Shaft

Y12570701

Socket, Light

7 12002497 Gear(Right)

(Includes Item 3)

8 67006473 Screw (8)

9 A0282812 Bulb, Light

10 67001035 Housing, Light

W10203139

Cover, Evaporator

12 67006425 Screw (4)

13 Bracket, Door

W10119064

Left

W10119295

Right

W10119832

Module, Freezer

15 10623002 Clip, Evap. Motor

16 67005653 Switch, Light

17 67006530 Screw

18 Cradle, Basket

W10119848

Left

W10119849

Right

W10165841

Slide, Drawer

20 67003731 Gasket, Bottom

21 Adapter, Slide

W10163084

Left

W10163087

Right

W10175909

Grille, Fz Air

W10167023

Shroud, Evap.Fan

24 2169142 Blade, Fan

(Evaporator)

W10150583

Grommet

W10199049

Motor, Evaporator

27 D7753903 Funnel, Drain

28 M0500703 Seal

29 B8381501 Gasket

W10203133

Thermistor

31 67003924 Cover, Thermistor

32 67006406 Screw (6)

W10201550

Guide, Fill Tube

34 Adaptor, Shelf

W10203148

Left Hand

W10203149

Right Hand

Following Parts Not Illustrated

W10196195

Harness, Lights

(Freezer)

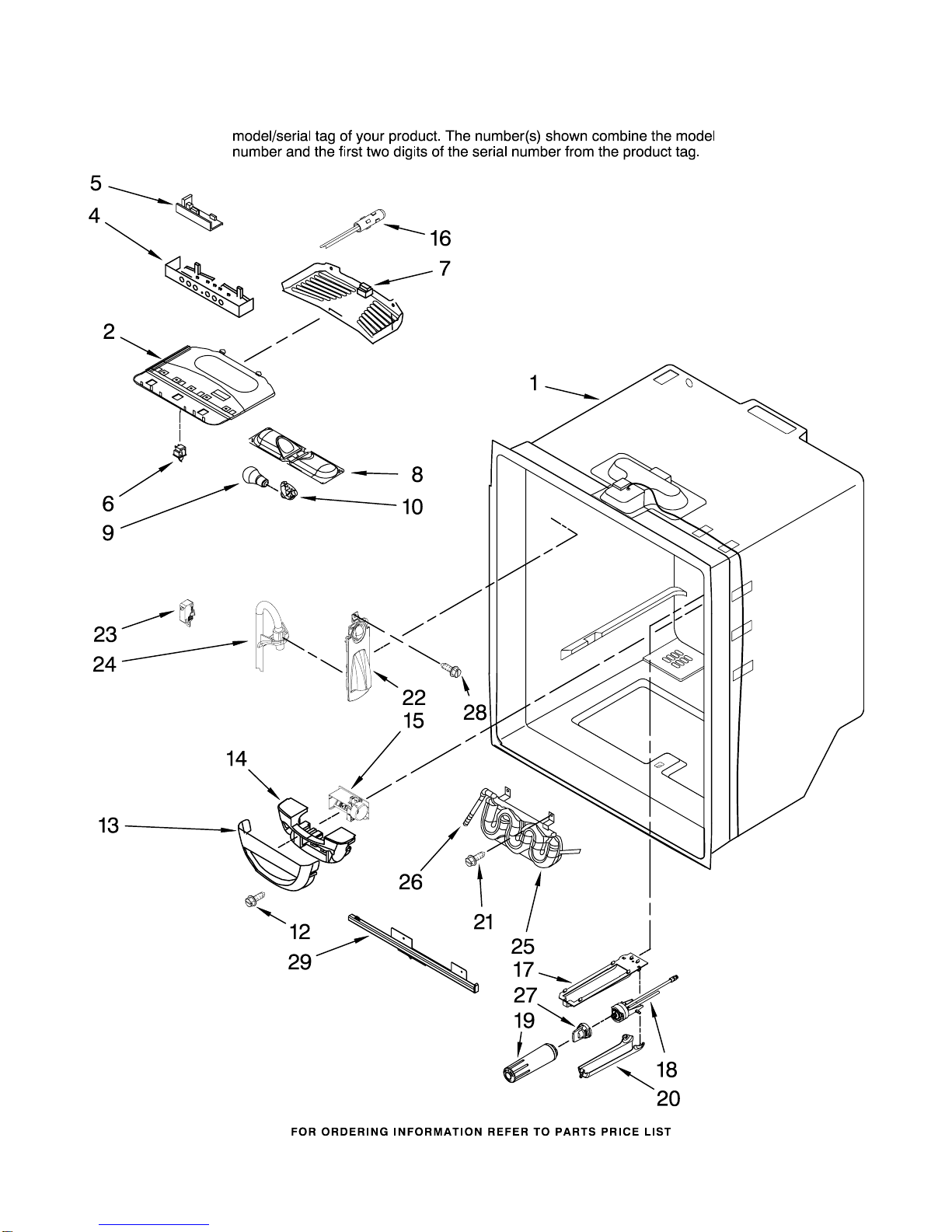

REFRIGERATOR LINER PARTS

For Models: KFCO22EVBL00

(Black Overlay)

The model(s) number shown may be different than what is printed on the

W10217727

REFRIGERATOR LINER PARTS

For Models: KFCO22EVBL00

(Black Overlay)

The model(s) number shown may be different than what is printed on the

W10217727

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

W10203323

Module, Light

W10185585

Module, Control

W10116216

Board, Control

6 12466104 Switch, Light

7 67003897 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light (2)

Y12570701

Socket, Light (2)

12 67006602 Screw (2)

13 67003899 Cover, Damper

14 67006604 Insulation

W10127431

Control, Damper

(Includes Harness)

16 12791416 Thermistor

17 67006325 Bracket, Filter

W10204043

Head, Filter

UKF8001AXX

Filter, Water

20 67006331 Lid, Filter

21 67006287 Screw (2)

W10204292

Facade, Disp.

23 12575502 Switch, Limit

W10117324

Waterline,

Dispenser

W10153959

Tank, Water

26 61006182 Union

27 67003146 Plug, Bypass

28 67006400 Screw

29 Slide, Crisper

2302952 Left

2302953 Right

Vent

Following Parts Not Illustrated

W10119821

Harness, Controls

(Refrigerator)

REFRIGERATOR DOOR PARTS

For Models: KFCO22EVBL00

(Black Overlay)

The model(s) number shown may be different than what is printed on the

W10217727

REFRIGERATOR DOOR PARTS

For Models: KFCO22EVBL00

(Black Overlay)

The model(s) number shown may be different than what is printed on the

W10217727

Illus. Part

No. No. DESCRIPTION

1 Door, Refrigerator

13094704BQ

Black, LH

W10150034

Clip, Trim (8)

3 67003819 Door, Dairy

4 67001279 Tray, Dairy

W10184033

Bucket, Medium (3)

W10184031

Gripper, Medium

W10184032

Gripper, Large

8 Gasket, Door

W10163998

Black

W10130132

Trim, Top / Bottom

W10130136

Trim, Side

11 Closure, Door

67003639 Black

15 67006287 Screw

17 Stop, Door

W10153126

Black

W10184034

Bucket, Gallon (2)

19 Mullion, Door

12732508B

Black

20 67006786 Screw

21 Door, Right

13094703BQ

Black

UNIT PARTS

For Models: KFCO22EVBL00

(Black Overlay)

The model(s) number shown may be different than what is printed on the

W10217727

UNIT PARTS

For Models: KFCO22EVBL00

(Black Overlay)

The model(s) number shown may be different than what is printed on the

W10217727

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 67006433 Screw

W10162928

Blade, Fan

3 67005889 Basepan

4 67006425 Screw

5 67005491 Block, Condenser

W10134293

Tube, Discharge

W10196196

Harness, Evap.

Heater

8 67007175 Drain Pan

9 61004743 Grommet (3)

W10203111

Heater, Defrost

W10136415

Clip, Capacitor

W10128791

Start Device

13 67003731 Gasket

W10165425

Thermostat,

Defrost

15 67005680 Grommet (2)

16 67006573 Screw

W10169124

Grommet (4)

18 67006131 Condenser

19 67006432 Screw (3)

20 67002490 Tray, Drip

21 67006737 Screw

W10203111

Evaporator Heater

23 Dam

W10203109

Right Side

W10203108

Left Side

24 67004432 Motor, Fan

25 10428101 Clip, Heater

W10137210

Harness, Unit

with Power Cord

W10143759

Drier

W10134623

Compressor

(Includes items

11,12,17,27,29)

29 2264017 Capacitor

30 67006434 Axle, Roller (2)

31 12575309 Shroud

32 67004953 Bracket, Fan Motor

33 67004954 Screw

34 10547003 Clip, Drier

35 67005149 Roller (2)

W10137529

Grommet, Cond. (4)

37 13058002 Clip, Evaporator

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.0 Ozs.

(R−134A)
