KitchenAid KSRV22FVBL02 Manuel utilisateur

CABINET PARTS

For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02

(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)

3−09 Litho In U.S.A. (wam)(bay) Part No. W10260810 Rev. A

REFRIGERATOR

CABINET PARTS

For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02

(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)

W10260810

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10167098

Use & Care Guide

W10205540

Service & Wiring

Sheet

W10139598

Energy Label

W10180407

Instruction Sheet,

Door Removal

2 2174748 Front Roller (2)

3 3400517 Screw

4 2196236 Roller (Rear) (2)

5 489427 Screw

6 2155013 Clip, Grille

7 2304249 Plate, Screw

W10121138

Housing, Water

Filter

9 2209697 Shim

10 489500 Screw (2)

11 4396841 Water Filter

12 2203770 Hinge Top (FC)

13 2203771 Hinge, Top (RC)

14 488500 Screw

15 Hinge Cover

W10138581

White

W10138583

Biscuit

W10138582

Black

W10138584

Apollo Grey

16 2217075 Bottom Hinge (RC)

17 Cap, Water

Filter

2260502W White

2260502T Biscuit

2260502B Black

2260502MG

Midnight Grey

18 3400113 Screw (4)

19 2260519 Block, Housing

Support

20 3400858 Screw

21 Filler, Wrapper

2201014 White

2200926 Biscuit

2201017 Black

2254507 Apollo Grey

22 Grille

W10184869

White

W10184881

Biscuit

W10184880

Black

W10184882

Midnight Grey

23 489497 Screw

24 Button, Water

Filter

2260503W White

2260503T Biscuit

2260503B Black

2260503MG

Midnight Grey

25 3400103 Screw (2)

26 489290 Screw

27 489464 Screw

28 2319867 Tube, Filter

Inlet

29 2255012 Tube, Filter

Outlet

30 2304888 Drain Fitting

W10153550

Extension Tube

32 2188734 Cover, Unit

33 Cabinet (Not A

Serviceable Part)

34 Hinge Cover

W10138576

White

W10138578

Biscuit

W10138577

Black

W10138579

Apollo Grey

35 8281227 Screw

36 549193 Clamp, Service

Cord

37 489084 Screw

38 2155311 Door Closer (RC)

Lower Cam (2)

39 489483 Screw (2)

40 2323833 Bottom Hinge (FC)

41 2223751 Door Closer (FC)

REFRIGERATOR LINER PARTS

For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02

(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)

W10260810

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

W10175967

Escutcheon, Meat

Pan Control

3 2182757 Slide, Meat

Pan Control

4 2257741 Louver

W10188421

Light Lens

6 489290 Screw

7 488280 Screw

8 2256085 Bracket, Retainer

W10151375

Air Diffuser

Assembly

10 2152019 Air Diffuser

Cover

11 2150331 Cover, Conduit

12 486298 Screw

13 2162085 Socket

W10204356

Reservoir

W10194422

Light Bulb

16 2212376 Light Lens

REFRIGERATOR SHELF PARTS

For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02

(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)

W10260810

Illus. Part

No. No. DESCRIPTION

1 2309560 Shelf, Snack Pan

2 2319720 Button, Humidity

3 2174252 Slide, Humidity

4 2174273 Gasket, Slide (2)

5 2223357 Cover, Meat Pan

(Includes Items

13, 14, 15 & 20)

6 2309518 Snack Pan

7 2309519 Trim, Hamdle

W10160481

Glass Cover

W10160317

Cover, Crisper

(Includes 2, 3,

4, 11, 12, 13,

14 & 19)

W10160480

Glass Cover

11 2223361 Gasket, Front

12 2223362 Gasket, Rear

13 2174478 Eyelet, Roller

14 2188212 Roller

15 489211 Screw

W10142714

Crisper Pan

(Includes 13,

14, 18, 19 & 21)

W10149982

Meat Pan

(Includes 13,

14, 19 & 22)

18 2174076 Window, Crisper

19 489261 Screw

20 2176095 Deflector

21 Cap, Crisper Pan

2223286 Right Side

2223285 Left Side

22 2174362 Window, Meat Pan

23 2327180 Shelf & Roller

Assembly

24 2196485 Stud Assembly

25 3400894 Screw

26 2196483 Stud Assembly

27 8281158 Screw

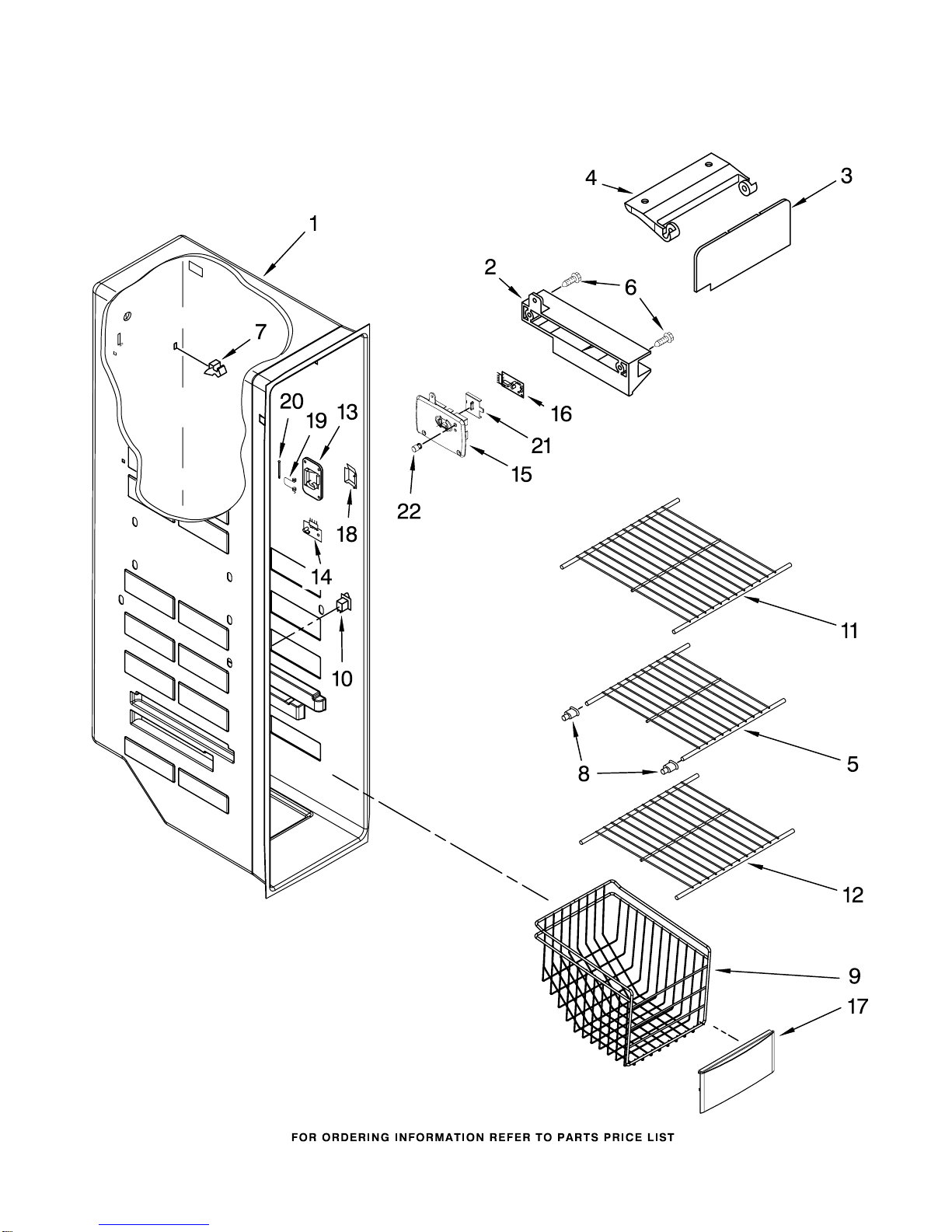

FREEZER LINER PARTS

For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02

(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)

W10260810

FREEZER LINER PARTS

For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02

(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)

W10260810

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2212321 Slide, Ice Maker

W10180062

Cover, Ice Maker

4 2198641 Bracket, Cover

5 2309634 Shelf, Wire

6 489478 Screw

7 842534 Clip, Air Duct (2)

W10130299

Cup, Shelf Mount.

9 2312034 Wire Basket

10 1115373 Switch, Rocker Arm

11 2309633 Shelf, Wire

12 2312040 Shelf, Wire

13 2198587 Cover, Emitter

14 2220398 P.C. Board

Emitter

W10173569

Cover, Receiver

W10193666

P.C. Board

Receiver

17 2305582 Trim, Basket

18 2198633 Flipper

19 2198635 Spring

20 2198634 Pin

21 2315398 Slide, Ice Maker

Shut Off

22 2198643 Lens

MOTOR AND ICE CONTAINER PARTS

For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02

(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)

W10260810

MOTOR AND ICE CONTAINER PARTS

For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02

(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)

W10260810

Illus. Part

No. No. DESCRIPTION

1 2317246 Ice Bin

W10176384

Crusher Bin

3 2317247 Auger

4 2258220 Washer

5 1119007 Spacer, Step (20

6 2317248 Cover, Crusher

7 2257024 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2257020 Blade, Fixed

10 2257023 Blade, Rotary

11 2317239 Block, Blade

12 489229 Roll Pin

13 2257022 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2188918 Coupling

17 8281164 Screw

18 3400065 Screw

19 2317274 Latch, Bin

20 2198608 Spring, Latch

21 8281163 Screw

22 2188919 Holder

23 2317243 Wiper

24 2198628 Seal

25 2317250 Divider−Chamber

26 2188916 Drive Shaft

27 2322488 Enclosure, Motor

28 2322580 Dispenser, Motor

29 2212305 Cover

30 2315559 Sleeve, Coupling

100

W10204457

Ice Container

(Complete)

REFRIGERATOR DOOR PARTS

For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02

(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)

W10260810

REFRIGERATOR DOOR PARTS

For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02

(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)

W10260810

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes Item 5)

2325248W White

2325248T Biscuit

2325248B Black

2323861S Stainless

W10191409

Monochromatic

2 2301486 Door, Compartment

3 488208 Screw

4 2304235 Door Bin (3)

5 Door Gasket,

Magnetic

2309600 Mist Beige

2309653 Black

2327161 Grey

6 Handle

(Includes #3)

2319727W White

2319727T Biscuit

2319727B Black

2319727S Stainless/Satina

7 2308091 Thimble−Top

8 2219698 Stud, Handle

9 2182178 Door Closer,

Upper Cam

10 489420 Screw

11 Bracket, Door Stop

2206629 Chrome

2206629B Black

12 Nameplate

W10046670

White

W10046700

Biscuit

W10046640

Black

W10046610

Grey

13 Set Screw

W10010140

Chrome

W10010150

Black

14 2309941 Trivet

15 3400012 Screw
