KitchenAid KSBS25IN - 24.5 cu. Ft. Refrigerator Manuel utilisateur

CABINET PARTS

For Models: KSBS25INWH03, KSBS25INBT03, KSBS25INBL03, KSBS25INSS03

(White) (Biscuit) (Black) (Stainless Steel)

5−10 Printed In U.S.A. (jdc)(bay) Part No. W10133385 Rev.B

REFRIGERATOR

CABINET PARTS

For Models: KSBS25INWH03, KSBS25INBT03, KSBS25INBL03, KSBS25INSS03

(White) (Biscuit) (Black) (Stainless Steel)

W10133385

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2318583 Use & Care Guide

2223419 Service & Wiring

Sheet

2318615 Energy Guide

628370 Modular Icemaker

Service Sheet

2223996 Installation

Instructions

2 Front Roller Asm

2306950 Left Side

2306951 Right Side

3 2223263 Strap, Roller

4 2306949 Roller, Rear (2)

5 2223388 Clip, Retainer (4)

6 2155013 Clip, Grille

7 489478 Screw

8 2223545 Shim

9 Hinge Top, RC

2307008W White

2307008T Biscuit

2307008B Black

10 3400113 Screw

11 3400243 Screw

12 2307179 Hinge Assembly,

Bottom−RC

Includes # (34)

13 Filler, Wrapper

2223893W White

2223893T Biscuit

2223893B Black

14 Grille

2322234W White

2322234T Biscuit

2322234B Black

15 3400108 Screw

16 Hinge, Top FC

2307007W White

2307007T Biscuit

2307007B Black

17 489464 Screw

18 2304888 Drain Fitting

19 2254566 Tube, Extension

21 2223409 Cover, Unit

22 489483 Screw

23 549193 Clamp, Service

Cord

24 489084 Screw

25 2307152 Hinge Assembly,

Bottom−FC

Includes # (32)

26 Button, Water

Filter

2260503W White

2260503T Biscuit

2260503B Black

27 2260526 Housing, Water

Filter

28 4396841 Water Filter

29 2223387 Pin, Roller(4)

30 Cap, Water

Filter

2260518W White

2260518T Biscuit

2260518B Black

31 Cabinet (Not A

Serviceable Part)

32 2307051 Door Closer (FC)

34 2307049 Door Closer (RC)

35 3400858 Screw

36 2304709 Tube, Filter

Outlet

37 2319868 Tube, Filter

Inlet

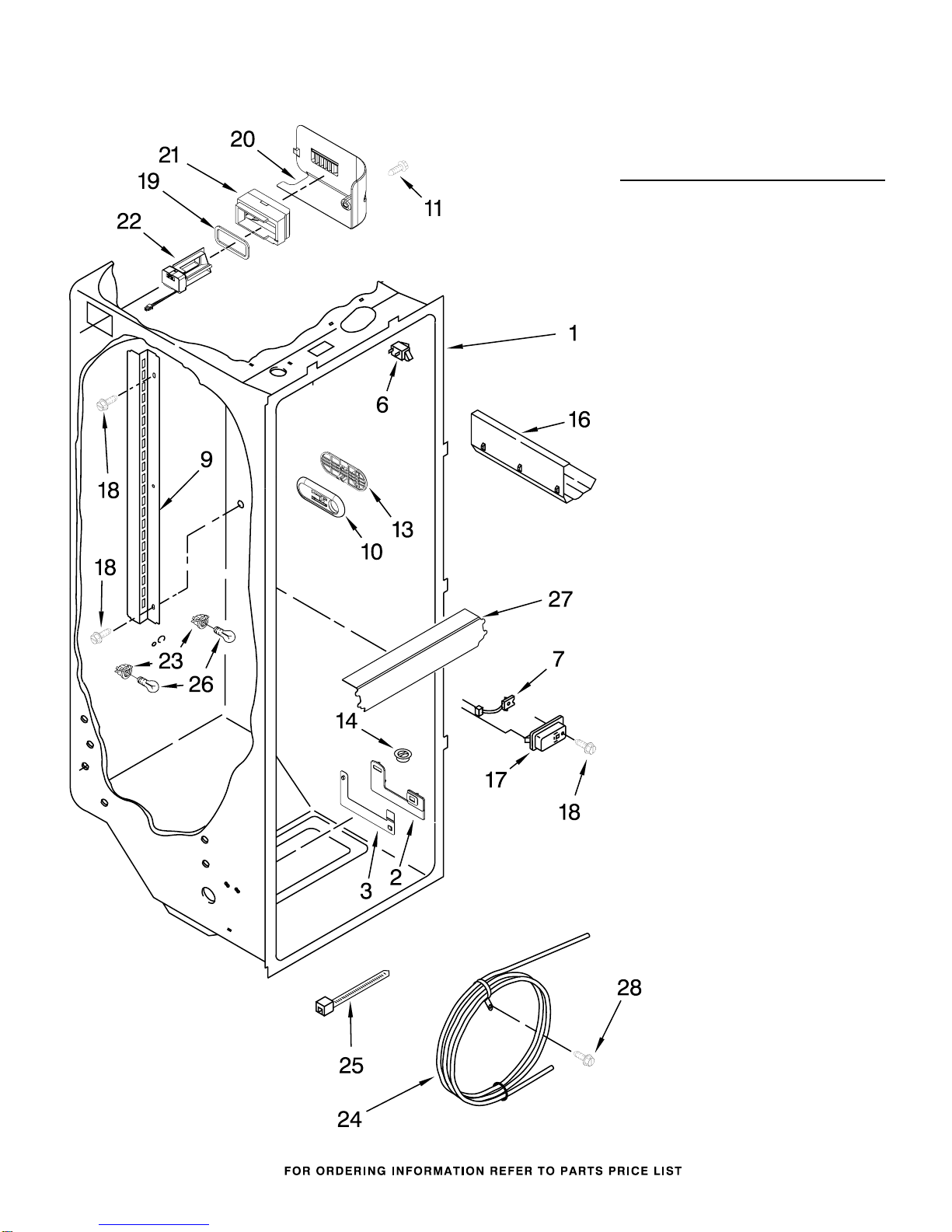

REFRIGERATOR LINER PARTS

For Models: KSBS25INWH03, KSBS25INBT03, KSBS25INBL03, KSBS25INSS03

(White) (Biscuit) (Black) (Stainless Steel)

W10133385

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2224121 Escutcheon, Meat

Pan Control

3 2224123 Slide Meat

Pan Control

6 1118894 Switch, Rocker

Arm

7 2188820 Thermistor

9 2223456 Ladder, Shelf (2)

10 2301234 Housing, Door

Control

11 489084 Screw

13 2301235 Slide, Door

Control

14 2171846 Release Valve

16 2179375 Rack, Wine & Egg

17 2317105 Cover, Thermistor

18 489478 Screw

19 2304597 Gasket,

Air Baffle

20 2223403 Cover,

Air Baffle

21 2224076 Air Diffuser

Assembly

22 2220377 Air Baffle

23 2162085 Socket

24 2223876 Reservoir

25 2205813 Strap

26 2255743 Light Bulb

27 2223663 Light Lens

28 488280 Screw

REFRIGERATOR SHELF PARTS

For Models: KSBS25INWH03, KSBS25INBT03, KSBS25INBL03, KSBS25INSS03

(White) (Biscuit) (Black) (Stainless Steel)

W10133385

Illus. Part

No. No. DESCRIPTION

1 2224061 Shelf Assembly,

Cantilever (2)

2 2301025 Button, Humidity

3 2301026 Slide, Humidity

4 2301117 Gasket, Side (2)

5 2203027 Cover, Meat Pan

(Includes Items

13, 14, 15 & 20)

6 2301023 Snack Pan

(Includes 30 & 31)

7 Glide Assembly,

Crisper Pan

2301548 Right Side

2301549 Left Side

8 2301001 Window,

Crisper Pan

9 2301567 Cover, Crisper

(Includes 2,

3, 4, 11, 12,

13, 14 & 19)

10 2301027 Glass, Cover

11 2301116 Gasket (Front)

12 2301115 Gasket (Rear)

13 2174478 Eyelet, Roller

14 2188212 Roller

15 489211 Screw

16 2301031 Crisper Pan

(Includes 8, 13,

14, 19 & 31)

17 2223790 Meat Pan

(Includes 13,

14, 19 & 22)

18 Glide Assembly,

Snack Pan

2301550 Right Side

2301551 Left Side

19 489261 Screw

20 2223487 Deflector

21 Support Assembly

2301569 Right Side

2301570 Left Side

22 2203031 Handle

23 2216625 Egg Bin

25 2196485 Stud Assembly

26 2301566 Shelf, Snack Pan

27 3400894 Screw

28 2196483 Stud Assembly

29 8281158 Screw

30 2301006 Window, Snack Pan

31 Cap, Snack Pan

2301016 Right Side

2301017 Left Side

FREEZER LINER PARTS

For Models: KSBS25INWH03, KSBS25INBT03, KSBS25INBL03, KSBS25INSS03

(White) (Biscuit) (Black) (Stainless Steel)

W10133385

FREEZER LINER PARTS

For Models: KSBS25INWH03, KSBS25INBT03, KSBS25INBL03, KSBS25INSS03

(White) (Biscuit) (Black) (Stainless Steel)

W10133385

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2223777 Spacer, Slide (2)

6 2254611 Basket, Deep (2)

9 2223500 Shelf Assembly,

Cantilever (2)

11 2224053 Front, Basket

12 2223782 Front−Frzr.Basket

13 Shelf Track

2223787 Right Side

2223788 Left Side

14 2254615 Shelf, Fixed

15 2254612 Basket, Lower

16 489427 Screw

17 842534 Clip, Air Duct (2)

18 Glide Assembly,

Basket (2)

2301544 Right Side

2301545 Left Side

19 2259487 Cover, Emitter

20 8534064 Screw

22 2198635 Spring

23 2198634 Pin

24 2198665 Tube, P.C. Board

25 1115373 Switch, Rocker Arm

26 2220398 P.C. Board

Emitter

27 2224125 Cover, Ice Maker

28 Slide, Ice Maker

Mounting

2212321 Right Side

2306900 Left Side

29 489478 Screw

30 489214 Screw

32 2162085 Light Socket

33 2255743 Light Bulb

34 8281185 Screw

35 2198633 Flipper

36 2255561 Cover, Receiver

37 2301340 Slide, Ice Maker

Shut Off

38 2255114 P.C. Board,

Receiver

39 2198643 Lens

40 2198589 Light Shield

41 2212340 Light Lens

42 2198641 Bracket, Ice Maker

Cover

43 2155597 Socket, Light

44 3400893 Screw

45 Ladder

2223414 Left Side

2223415 Right Side

46 2303378 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS

For Models: KSBS25INWH03, KSBS25INBT03, KSBS25INBL03, KSBS25INSS03

(White) (Biscuit) (Black) (Stainless Steel)

W10133385

MOTOR AND ICE CONTAINER PARTS

For Models: KSBS25INWH03, KSBS25INBT03, KSBS25INBL03, KSBS25INSS03

(White) (Biscuit) (Black) (Stainless Steel)

W10133385

Illus. Part

No. No. DESCRIPTION

1 2223317 Ice Bin

2 2317256 Crusher Bin

3 2317240 Auger

4 2258220 Washer

5 1119007 Spacer, Flat (6)

6 2317248 Cover, Crusher

7 2257024 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2257020 Blade, Fixed

10 2257023 Blade, Rotary

11 2317239 Block, Blade

12 489229 Roll Pin

13 2257022 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2188918 Coupling

17 8281164 Screw

18 3400065 Screw

20 2317272 Latch, Bin

21 2198608 Spring, Latch

23 8281163 Screw

24 2188919 Holder

25 2317243 Wiper

26 2198628 Seal

27 2317250 Divider−Chamber

28 2188916 Drive Shaft

29 2256154 Enclosure, Motor

30 2315547 Dispenser, Motor

31 2212305 Cover

32 2315559 Sleeve, Coupling

33 2187725 Wire Harness,

IDI Motor

100 2317268 Ice Container

Assembly

REFRIGERATOR DOOR PARTS

For Models: KSBS25INWH03, KSBS25INBT03, KSBS25INBL03, KSBS25INSS03

(White) (Biscuit) (Black) (Stainless Steel)

W10133385

REFRIGERATOR DOOR PARTS

For Models: KSBS25INWH03, KSBS25INBT03, KSBS25INBL03, KSBS25INSS03

(White) (Biscuit) (Black) (Stainless Steel)

W10133385

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes #7)

2307195W White

2307195T Biscuit

2307195B Black

2 2203087K Trim, Shelf

3 2255421 Dairy Door

4 2223883 Caddy, Can

5 2165792K Butter Dish

6 Trim, Top

2224096W White

2224096T Biscuit

2224096B Black

2224096S Stainless Steel

7 Door Gasket,

Magnetic

2223326 Mist Beige

2223909 Black

8 Handle

2223821W White

2223821T Biscuit

2223821B Black

2223821S Stainless Steel

9 3196537 Screw

10 2223879 Dairy Compartment

11 3196180 Screw

12 2307048 Door Closer,

Upper Cam

13 2308091 Thimble, Top

14 489420 Screw

15 Bracket, Door Stop

2306940 Chrome

2306940B Black

16 2223860 Door Bin (3)

17 3400012 Screw

18 2224173 Door Bin,

Shallow

19 Trim, Hinge Side

2223824W White

2223824T Biscuit

2223824B Black

2223824S Stainless Steel

20 2156006K Plug, Trim

21 Trim, Bottom

2223823W White

2223823T Biscuit

2223823B Black

2223823S Stainless Steel
