CABINET PARTS

For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00

(White) (Black) (Stainless Steel−RH) (Stainless Steel−LH)

8−07 Litho In U.S.A. (tpm) Part No. W10144698 Rev.B

REFRIGERATOR

CABINET PARTS

For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00

(White) (Black) (Stainless Steel−RH) (Stainless Steel−LH)

W10144698

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10136388

Owners Manual

W10123819

Energy Tag

67006616 Tech Sheet

2 Cabinet (Not a

Servicable Part)

3 Plug, Button (3)

67001130 White

67001131 Black

5 67002227 Roller Assembly

6 12627302 Clip, Grille

7 67006642 Pin, Center Hinge

8 67006611 Bolt, Adjusting

(Rear)

9 67006287 Screw

10 12456801 Bracket, Roller

11 67006380 Screw

12 67006473 Screw

13 A3076901 Plug, Button

14 67006303 Screw

15 Hinge, Center

67006960 White

67007043 Black

16 67003868 Foot Brake

17 Cover, Corner

67003484 White

67003485 Black

12566604ED

Hinge, Top

19 67007174 Bracket, Foot

20 67006473 Screw

21 Cover, Hinge

67001014 White

67001012 Black

22 Grille Assembly

(Includes Clips)

67007004 White

67006954 Black

25 67006425 Screw

27 67004611 Cover, Water Valve

12575101ED

Cover, Unit

W10137695

Power Cord

30 67003796 Insulation, Sound

31 67001066 Tube, Drain

32 67001067 Clip, Drain Tube

33 M0286708 Nut, Speed

34 67005127 Roller

35 M1205302 Pin

36 67006737 Screw

37 10093320 Bolt, Adjusting

(Rear)

40 B5759649 Gasket

42 67004092 Block, Filter

43 67006287 Screw

44 67003331 Cover, Water Line

45 67004102 Track, Water

W10137519

Elbow, Fill Tube

47 B5705307 Tube, Plastic

49 M0104106 Clip, Water Tube

FREEZER LINER PARTS

For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00

(White) (Black) (Stainless Steel−RH) (Stainless Steel−LH)

W10144698

FREEZER LINER PARTS

For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00

(White) (Black) (Stainless Steel−RH) (Stainless Steel−LH)

W10144698

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam

3 12002497 Gear (2)

(Includes RH & LH)

4 67003905 Cover, Light

5 67004261 Shaft

6 8170839 Socket, Light

8 67006737 Screw

9 A0282812 Bulb, Light

10 67001035 Housing, Frz. Light

11 67005872 Cover, Evaporator

12 67006425 Screw

13 Bracket, Door

67004012 Left

67004013 Right

14 67003906 Housing, Lighting

15 8208285 Clip, Evap. Motor

16 67005653 Switch, Light

17 8170922 Cover, Plug

18 Bracket, Basket

67004014 Left

67004015 Right

19 67006607 Slide, Drawer (2)

20 67001776 Gasket, Bottom

21 Bracket, Slide

67004864 Left

67004865 Right

22 13024802 Cover, Fan Shroud

23 67002777 Shroud, Evap.Fan

24 12217201 Fan, Evaporator

25 67002780 Grommet (2)

26 67003636 Motor, Evaporator

27 D7753903 Funnel, Drain

(Incl. # 28 & 29)

28 M0500703 Seal

29 B8381501 Gasket

30 12002355 Thermistor

31 67003924 Cover, Thermistor

32 67006406 Screw

33 67006530 Screw

Following Parts Not Illustrated

67006095 Harness, Lights

(Freezer)

REFRIGERATOR LINER PARTS

For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00

(White) (Black) (Stainless Steel−RH) (Stainless Steel−LH)

W10144698

REFRIGERATOR LINER PARTS

For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00

(White) (Black) (Stainless Steel−RH) (Stainless Steel−LH)

W10144698

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

Y67003896

Bracket, Control

and Lights

3 67005628 Overlay

4 67005444 Housing,

Electronic Control

5 67005397 Electronic Control

6 C3680310 Switch, Light

7 67003897 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light (2)

10 8170839 Socket, Light (2)

11 67003900 Insert,

Damper Cover

12 67006602 Screw

13 67003899 Cover, Damper

14 67006604 Insulation

W10127429

Control, Damper

16 8208278 Thermistor

17 67005130 Tray, Sump

18 67001668 Plate

19 67004609 Tank, Water

20 67002979 Dispenser

21 67006400 Screw

22 B8390302 Clip

23 67006524 Housing, Filter

Head

24 12568001 Cover, Filter

25 67006469 Filter, Water

26 12664501 Head, Filter

Bypass

27 67002742 Plate, Switch

28 67006287 Screw

29 67005674 Cover

30 12575501 Switch, Limit

31 61006182 Union

32 67002816 Clip, Water

33 67002743 Guide, Water

Following Parts Not Illustrated

8208197 Harness,

Damper Control

67005644 Harness, Controls

(Refrigerator)

(Includes # 16)

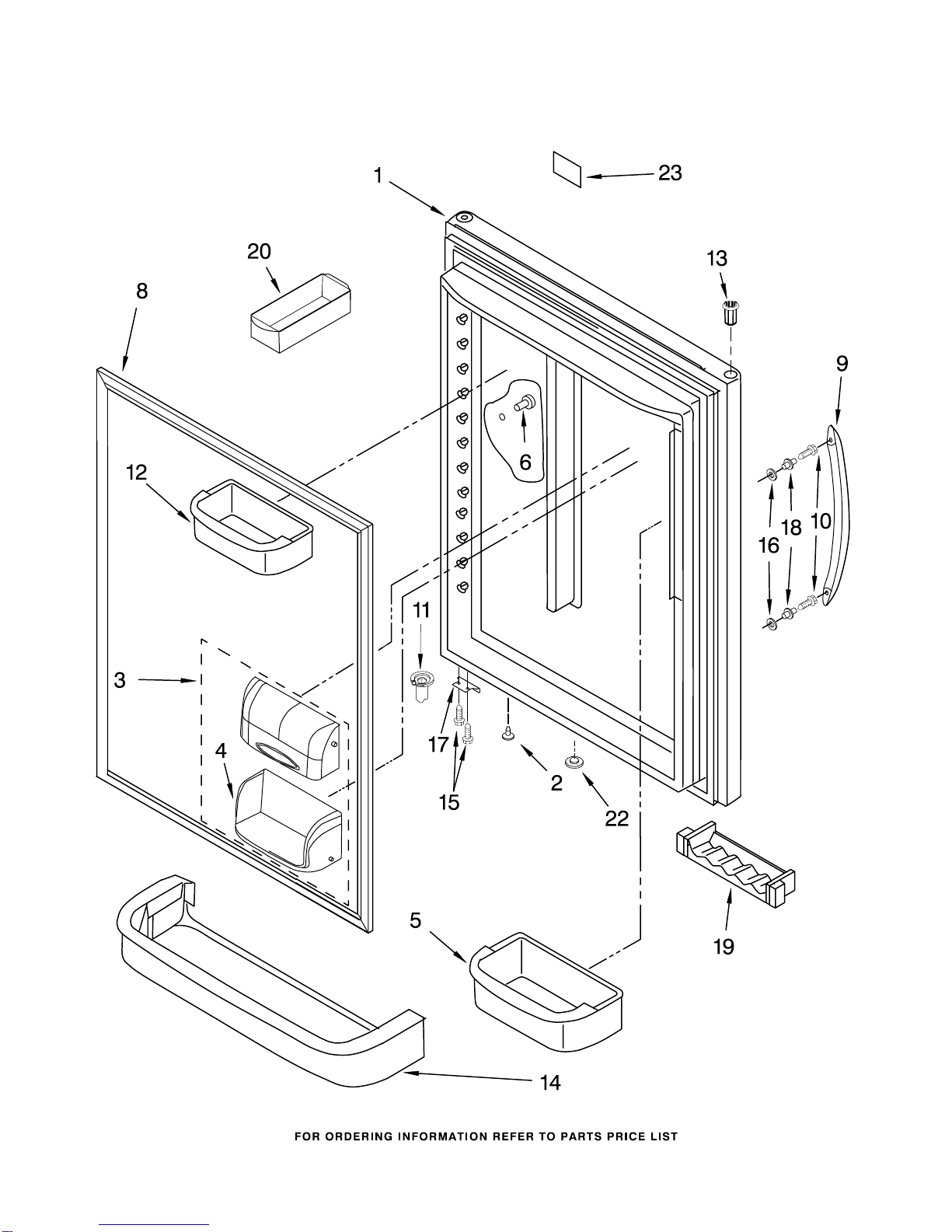

REFRIGERATOR DOOR PARTS

For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00

(White) (Black) (Stainless Steel−RH) (Stainless Steel−LH)

W10144698

REFRIGERATOR DOOR PARTS

For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00

(White) (Black) (Stainless Steel−RH) (Stainless Steel−LH)

W10144698

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(w/ Insulation)

67004777 White

67004775 Black

W10136949

Stainless Steel−RH

W10136950

Stainless Steel−LH

2 Plug, Vent

67001130 White

67001131 Black

3 67003819 Door, Compartment

4 67001279 Tray, Dairy

5 67005672 Bin, Shelf (3)

(Medium)

6 Plug, Handle Hole

67001130 White

67001131 Black

8 Gasket, Door

Magnetic

W10130893

White

W10131327

Black

9 Handle, Door

2319727W White

2319727B Black

2319727S Stainless Steel

10 67002935 Screw

11 Closure, Door

67003638 White

67003639 Black

12 67005724 Bin, Shelf (1)

(Small)

13 Bushing

8208208 White

8171213 Black

14 67001748 Trim, Door Shelf

15 67006521 Screw

16 8171212 Washer

17 Stop, Door

67003779 White

67003780 Black

18 67004790 Stud, Handle

19 67005626 Caddy, Can

W10136387

Bin, Egg

22 Plug, Button

10712401 White

67004838 Black

23 Nameplate

W10046670

White

W10046640

Black

W10046610

Grey

UNIT PARTS

For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00

(White) (Black) (Stainless Steel−RH) (Stainless Steel−LH)

W10144698

UNIT PARTS

For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00

(White) (Black) (Stainless Steel−RH) (Stainless Steel−LH)

W10144698

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 67006425 Screw

2 67004952 Blade, Fan

3 67005744 Base

4 67006433 Screw

5 67004954 Screw

6 67005421 Cover, Box

7 67005679 Harness,

Evap. Heater

8 67004713 Drain Pan

9 61004743 Grommet (3)

10 67001794 Evaporator Heater

11 Capacitor

(See Item #12)

12 67005560 Overload/Relay

(Capacitor Incl.)

13 61003210 Gasket

14 67003426 Bi−Metal

15 67005680 Grommet (8)

16 67006550 Screw

17 67007052 Clip, Capacitor

18 67006132 Condenser

19 67004262 Tube, Discharge

20 67001080 Tray, Drip

21 67005719 Spacer, HV Box

22 12001919 Evaporator

23 Dam

67001084 Right Side

67001083 Left Side

24 67004432 Motor, Fan

25 10428101 Clip, Heater

26 13060201 Harness, Unit

27 2317845 Drier (Service)

28 12002634 Compressor

(Includes Items

11, 12, 17,

27 & 35)

29 12782027 Control Board

30 12972902 Harness, HV Board

31 12575305 Shroud

32 67004953 Bracket, Fan Motor

33 67005718 Box, Control

34 10547003 Clip, Drier

35 67003493 Grommet (4)

36 10623002 Clip, Evaporator

37 67006737 Screw

38 67006432 Screw

39 67006573 Screw

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.00 Ozs.

(R−134A)
