KitchenAid KBLS20EV Manuel de la liste des pièces

Bottom Mount Refrigerator

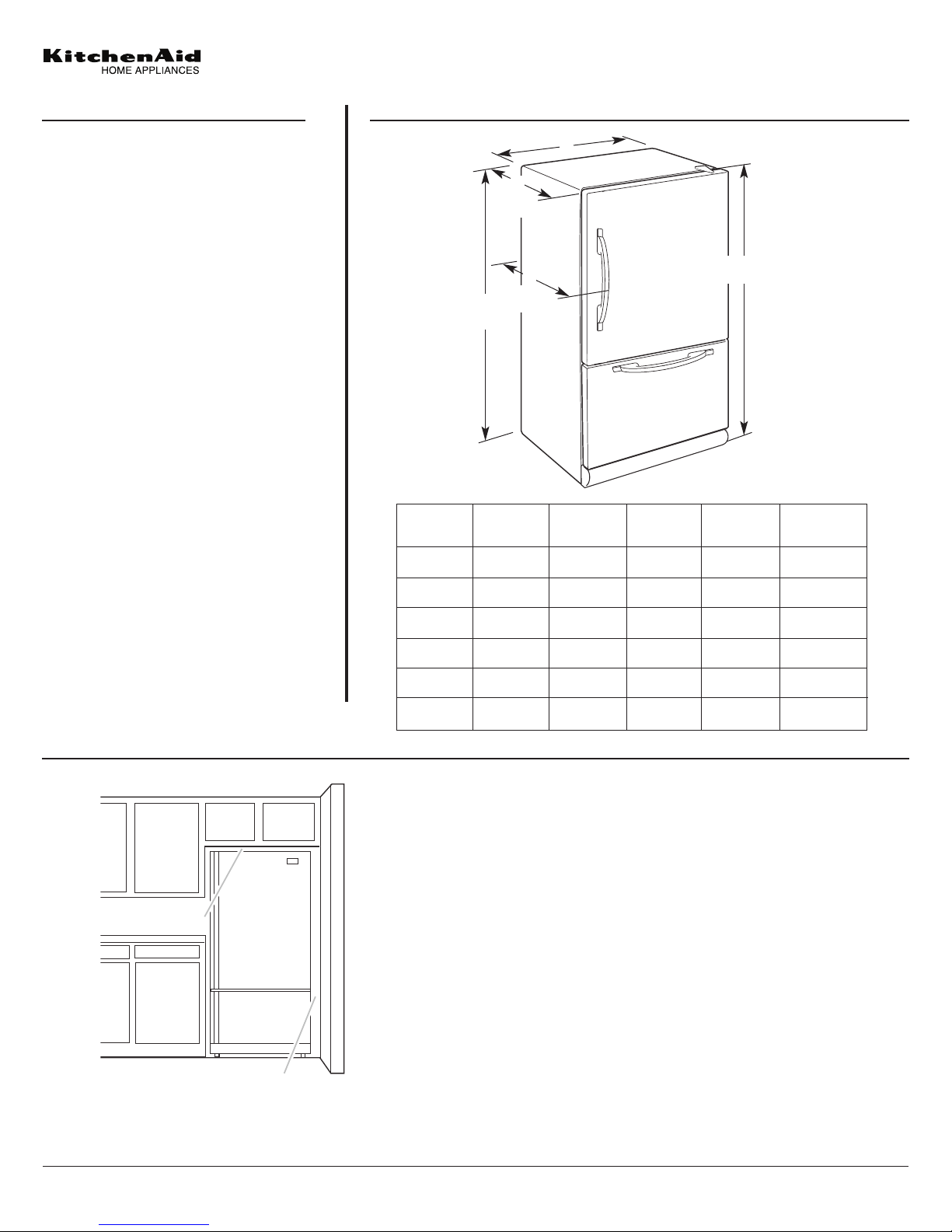

PRODUCT MODEL NUMBERS PRODUCT DIMENSIONS

LOCATION REQUIREMENTS

KBLS20EV

KBLS22EV

KBLS22KV

KBRS20EV

KBRS22EV

KBRS22KV

Electrical: A 115-volt, 60-Hz, AC-only, 15- or

20-amp fused, grounded electrical supply is

required. It is recommended that a separate circuit

serving only your refrigerator be provided. Use an

outlet that cannot be turned off by a switch. Do not

use an extension cord.

Water: Connect the ice maker to a cold water line

with water pressure between 35 and 100 psi

(241 and 689 kPa).

IMPORTANT: The pressure of the water coming

out of a reverse osmosis system going to the

water inlet valve of the refrigerator needs to be

between 35 and 120 psi (241 and 827 kPa).

If a reverse osmosis water filtration system is

connected to your cold water supply, the water

pressure to the system needs to be a minimum of

40 to 60 psi (276 to 414 kPa).

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. W10137649

03-12-09

¹⁄

" (6.3 cm)

¹⁄₂

" (1.25 cm)

overall

top of

cabinet

not incl.

handle

To ensure proper ventilation for your refrigerator, allow for 1⁄2" (1.25 cm) space on

each side, at the top and behind the refrigerator. When installing your refrigerator

next to a fixed wall, leave 2-1/2" (6.3 cm) minimum on each side (depending on

your model) to allow for the door to swing open. If your refrigerator has an ice

maker, allow extra space at the back for the water line connections.

NOTE: Do not install the refrigerator near an oven, radiator, or other heat source, nor

in a location where the temperature will fall below 55°F (13°C).

incl.

handle

Depth (Excl. Depth (Incl. Cabinet Overall Cabinet

handles) handles) Height Height Width

Model # “A” “B” “C” “D” “E”

KBLS20EV 26-7/8" 29-3/8" 68-1/2" 69-15/16" 35-5/8"

(68.3 cm) (74.6 cm) (174 cm) (177.6 cm) (90.5 cm)

KBLS22EV 30-7/8" 33-3/8" 68-1/2" 69-15/16" 32-5/8"

(78.4 cm) (84.8 cm) (174 cm) (177.6 cm) (82.9 cm)

KBLS22KV 30-7/8" 33-3/8" 68-1/2" 69-15/16" 32-5/8"

(78.4 cm) (84.8 cm) (174 cm) (177.6 cm) (82.9 cm)

KBRS20EV 26-7/8" 29-3/8" 68-1/2" 69-15/16" 35-5/8"

(68.3 cm) (74.6 cm) (174 cm) (177.6cm) (90.5 cm)

KBRS22EV 30-7/8" 33-3/8" 68-1/2" 69-15/16" 32-5/8"

(78.4 cm) (84.8 cm) (174 cm) (177.6 cm) (82.9 cm)

KBRS22KV 30-7/8" 33-3/8" 68-1/2" 69-15/16" 32-5/8"

(78.4 cm) (84.8 cm) (174 cm) (177.6 cm) (82.9 cm)
