KitchenAid KSSS36DAW04 Manuel utilisateur

REFRIGERATOR

CABINET PARTS

For Model: KSSS36DAW04

11−93 Litho In U.S.A. Part No. 4379204

CABINET PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Model: KSSS36DAW04

4379204

1 Cabinet (Not A

Serviceable Part)

2 1112019 Leveler, Front (2)

3 1113249 Retainer (2)

4 1112023 Roller, Front &

Rear (4)

5 1112695 Leveler,

Adjustable (2)

6 2000670 Adjusting Rod (2)

7 1113250 Sleeve,

Retainer (2)

8 1112937 Bushing, Rod (2)

9 489359 Screw

10 1112939 Hole Plug, Leveler

11 1112849 Cap, Grommet

12 1112970 Grommet, Water

Tube

13 1113122 Grommet, Wiring

14 2000830 Wiring Harness,

Cabinet

15 1112848 Drain Fitting

16 Gap, Cover

Assembly (Top)

2000305 Left Side

2000304 Right Side

17 2001295 Shoulder Screw

18 Hinge (Top)

2000306 Left Side

2000307 Right Side

19 2000770 Shim, Hinge

Top

20 1112805 Guard, Wiring

21 487534 Screw (2)

23 1112992 Door Closer

Assembly (2)

24 2000333 Bracket, Door

Closer

25 486194 Screw, 8 x 1/2

26 1112973 Tap Plate,

Hinge Butt (2)

27 1113227 Fastener (3)

28 Gap, Cover

Assembly (Bottom)

2001200 Left Side

2001199 Right Side

29 Hinge (Bottom)

2000308 Left Side

2000309 Right Side

30 1112942 Shim, Hinge (1)

1112943 Shim, Hinge (2)

Bottom (4)

31 2000490 Screw,

1/4−28 x 3/4

33 2001266 Tube clamp

34 2001217 Grille Base,

Front

35 489238 Screw (6)

36 2000727 Cover, Rear

37 1113123 Grommet, Wiring

38 1113079 Grommet, Flexible

39 1112926 Grommet, Tube

41 2001377 Screw

42 2000530 Grommet

43 2001415 Screw (4)

44 489359 Screw

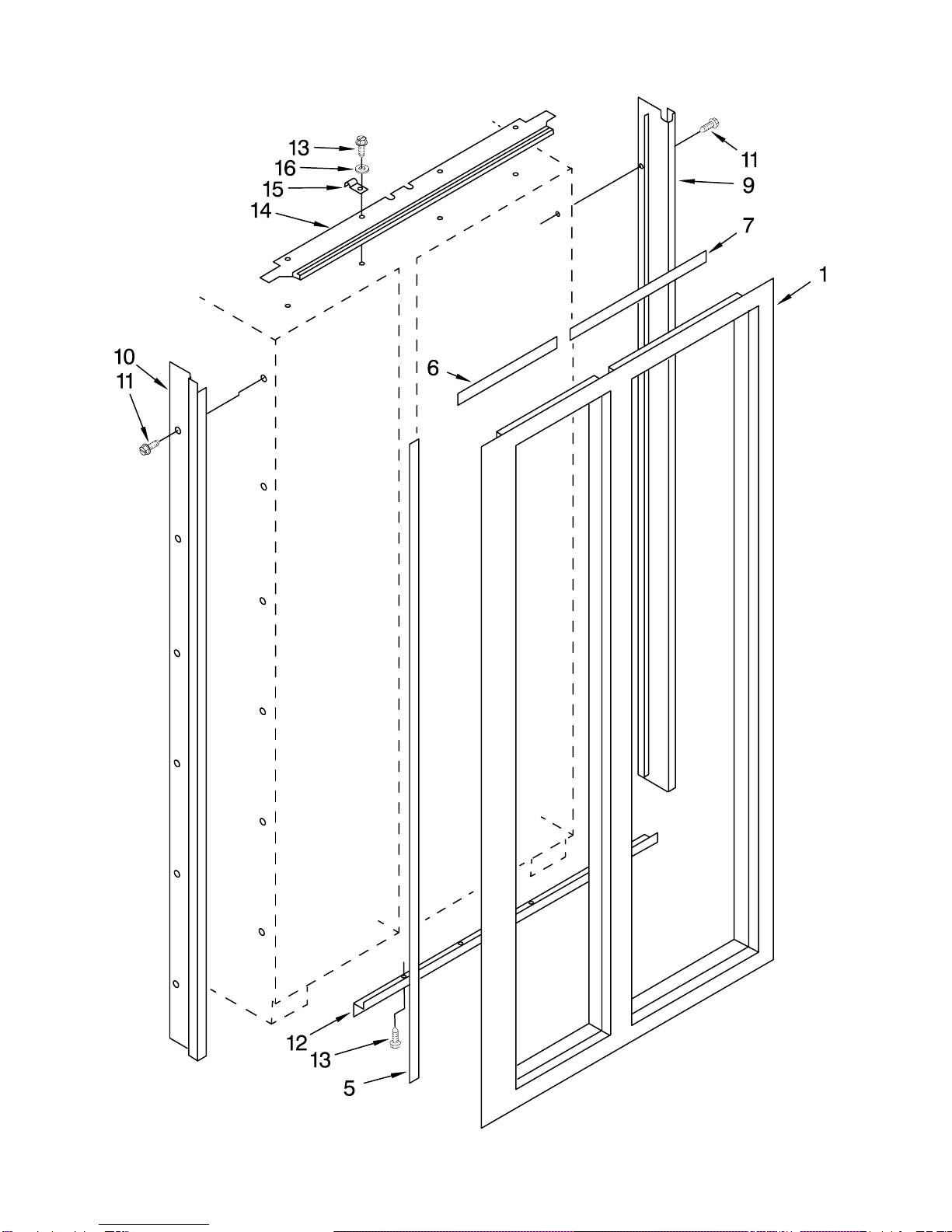

CABINET TRIMS AND BREAKER TRIM PARTS

For Model: KSSS36DAW04

4379204

CABINET TRIMS AND BREAKER TRIM PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

TOP GRILLE AND UNIT COVER PARTS

For Model: KSSS36DAW04

4379204

1 2000650 Breaker Trim &

Retainer Assembly

5 1112682 Magnet, Side (4)

6 1112683 Magnet,

Freezer (2)

7 1112679 Magnet,

Refrigerator (2)

9 2001390 Cabinet, Trim R.S

10 2001391 Cabinet, Trim L.S

11 2001297 Screw

12 2001188 Cabinet, Trim

(Bottom)

13 488649 Screw,

8−32 x 1/2 (8)

14 2001387 Cabinet, Trim Top

15 2000007 Retainer, Unit

Base (2)

16 487944 Washer (2)

1 2001312 Decorative

Panel Assembly

2 1113313 Back Up Panel

3 2002116 Top Grille

Assembly

4 2001088 Cover, Unit

5 486194 Screw

6 1113300 Cover, Component

Assembly

7 1113317 Brace

REFRIGERATOR LINER PARTS

For Model: KSSS36DAW04

4379204

REFRIGERATOR LINER PARTS

Illus. Part

No. No. DESCRIPTION

For Model: KSSS36DAW04

4379204

1 LINER (Not A

Serviceable Part)

2 1112591 Spacer, Control

Panel (3)

3 843436 Grommet, Screw (3)

5 2001117 Ladder, Shelf (2)

6 520965 Screw Support,

Ladder (8)

7 488357 Screw,

8 x 1−1/4 (8)

8 486194 Screw, 8 x 1/2

9 1112257 Hole Plug

10 2000740 Meat Pan, Air

Duct Cover

(Also Order 12)

11 2000337 Meat Pan, Air Duct

12 2001302 Inlay, Control

Meat Pan

13 2001326 Seal, Air Duct

14 1112218 Damper Control,

Meat Pan

15 1112258 Control Knob,

Meat Pan

16 837444 Retainer, Knob

17 2000343 Air Baffle

Assembly

20 2001073 Wiring Harness,

Air Baffle

21 2001146 Seal

22 1116793 Cover, Thermistor

23 1116959 Thermistor

25 2000736 Air Baffle Cover

26 2000527 Guard, Air Return

FREEZER LINER PARTS

Illus. Part

No. No. DESCRIPTION

For Model: KSSS36DAW04

4379204

1 Liner (Not A

Serviceable Part)

6 538533 Support Clip,

Icemaker (2)

7 2000193 Grommet, Screw (2)

8 488552 Screw,

10−12 x 3/8 (2)

9 992720 Stud, Support (4)

12 486194 Screw, 8 x 1/2

13 1112591 Spacer, Control

Panel (3)

14 842534 Clip, Air Duct (4)

16 1112260 Support,

Evaporator

17 658944 Stud, Shelf (8)

18 487559 Screw,

8−15 x 1−1/4 (8)

Illus. Part

No. No. DESCRIPTION

FREEZER CONTROL PANEL PARTS

For Model: KSSS36DAW04

4379204

1 1112595 Control Panel

2 1113963 Inlay, Control

Panel

3 1113466 Thermostat &

Barrier Assembly

4 488974 Screw (2)

5 851387 Switch, Rocker Arm

(Dispenser Motor)

6 1113132 Seal, Control

Panel

8 489260 Screw (3)

9 2000153 Hole Plug (3)

10 1113767 Shield, Control

Panel

11 1112613 Socket, Light

12 486194 Screw, 8 x 1/2

13 547225 Light Bulb

14 1112707 Channel, Wiring

15 1108112 Switch, Rocker Arm

(Light)

16 1112592 Knob, Thermostat

17 1115375 Clip, Wiring

Illus. Part

No. No. DESCRIPTION

FREEZER SHELF PARTS

For Model: KSSS36DAW04

4379204

1 1112365 Solid Shelf

2 2000885 Front, Ice

Compartment

3 1113564 Shelf, Fixed (2)

1113636 Shelf, Deep

4 2001551 Basket

5 1113642 Trim, Basket

15 1113870 Roller

16 1113871 Eyelet, Roller

17 489211 Screw, 10−16 x 3/4

18 488307 Washer

22 2000061 Slide, Basket R.S.

2000062 Slide, Basket L.S.

24 1113169 Stop, Roller

25 486194 Screw, 8 x 1/2

Illus. Part

No. No. DESCRIPTION

REFRIGERATOR CONTROL PANEL PARTS

For Model: KSSS36DAW04

4379204

1 1112640 Control Panel

2 2000974 Inlay, Control

Panel

3 2000789 Circuit Board

4 1116853 Control Knob

5 837444 Retainer, Knob

6 1108112 Switch, Rocker Arm

7 1113133 Seal, Control

Panel

8 489260 Screw (3)

9 2000153 Hole Plug (3)

10 1113773 Shield, Control

Panel

11 1112613 Socket, Light (2)

12 547225 Light Bulb (2)

13 486194 Screw, 8 x 1/2

14 2001074 Control, Panel

Harness

15 2001141 Channel, Wiring

16 1115375 Clip, Wiring (2)
