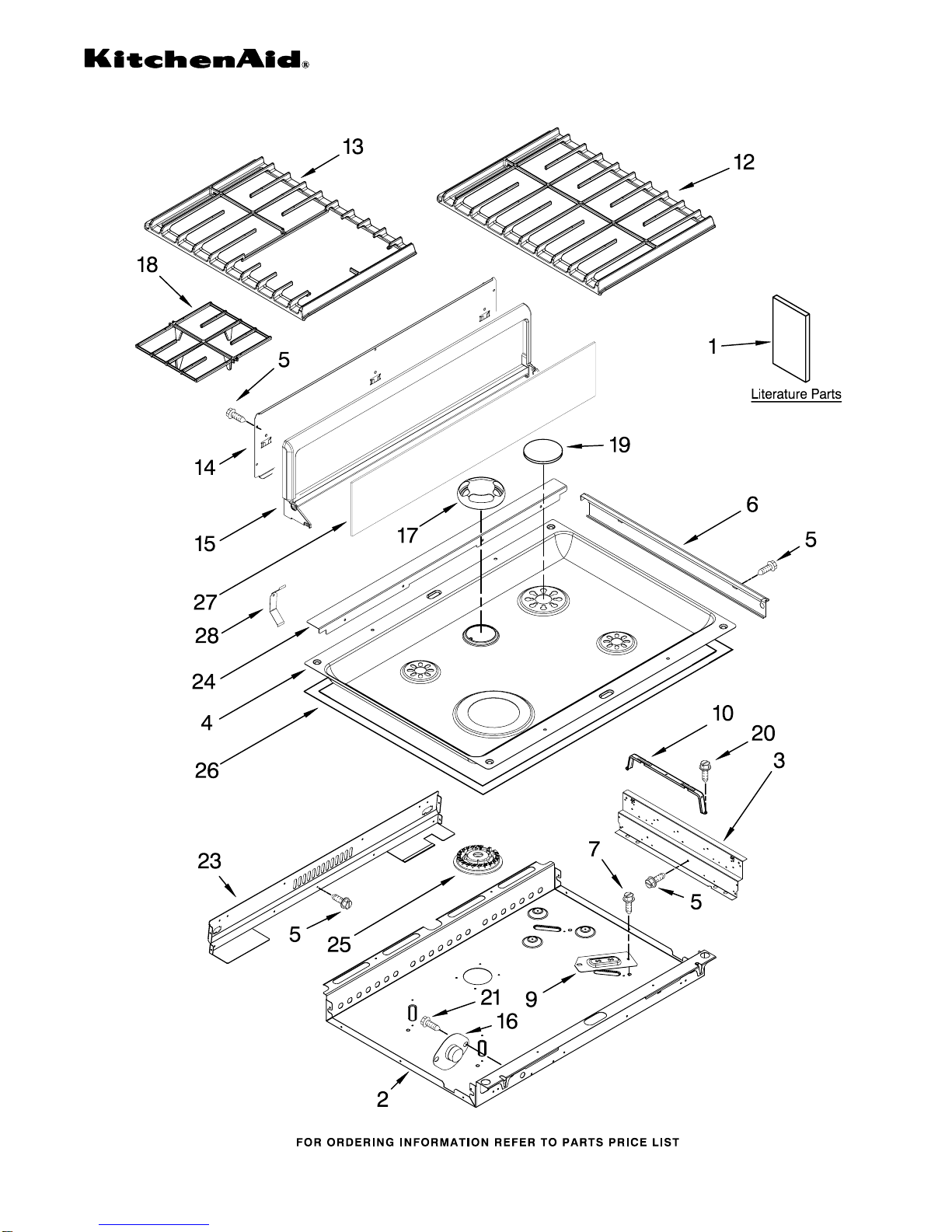

COOKTOP PARTS
1
For Models: KGRS807SBL01,KGRS807SWH01, KGRS807SBT01,KGRS807SSS01
(Black) (White) (Biscuit) (Stainless)
05−08 Litho in U.S.A. (amd) (eeb) Part No. W10168532 Rev. B
30" Freestanding
GAS OVEN
CONVECTION
COOKTOP PARTS
2
For Models: KGRS807SBL01,KGRS807SWH01, KGRS807SBT01,KGRS807SSS01
(Black) (White) (Biscuit) (Stainless)
W10168532
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literaturre Parts
W10118262
Installation
Instructiions
W10162198
Use & Care Guide
Tech Sheet
W10112145
English
W10112146
French
9757680 Anti−Tip
Instructions
Safe Cooking Tips
9762761 English
W10065852
French
9763467 Guide Easy Set
2
W10153103
Burner Box
3 9761784 Bracket, Mounting
4 Cooktop
W10175857
Black/Stainless
W10106340
White
W10106330
Biscuit
5 3196537 Screw
6 Trim, Cooktop
Right
W10110687
Black
W10110685
White
W10110686
Biscuit
W10140550
Stainless
Left
W10110682
Black
W10110680
White
W10110681
Biscuit
W10140549
Stainless
7 3400843 Screw
9 9763445 Bracket, Burner
10 9756821 Support, Wiring
12 Grate, Burner
Right
9761625CB
Coal Black
9761625SD
Satin Cumberland
9761625SN
Satin Moleskin
13 Grate, Burner
Left
9761624CB
Coal Black
9761624SD
Satin Cumberland
9761624SN
Stain Moleskin
14
W10153092
Panel, Backsplash
15 Backsplash
W10109750
Black
W10109740
White
W10109760
Biscuit
W10156267
Stainless
Gasket
9763483BL
Black/Stainless
Models
9763483GY
White/Biscuit
Models
16 9759944 Thermostat (60c)
17 Vent, Center
9760225BL
Black
9760225WH
White
9760225BT
Biscuit
18 Grate, Insert
9761557CB
Coal Black
9761557SD
Satin Cumberland
9761557SN
Satin Moleskin
19 Cap, Burner
6K (RF, LR)
8284669 Coal Black
9761562SD
Satin Cumberland
9761562SN
Satin Moleskin
12.5K (RR)
9761563CB
Coal Black
9761563SD
Satin Cumberland
9761563SN
Satin Moleskin
20 4449809 Screw
21 3196160 Screw
23 9759627 Cover, Cooktop
Rear
24 9763436 Cover, Top Rear
25 Head, Burner
8286181 LR, RF
8286182 RR
26
W10109920
Gasket (Tape)
27 Glass, Backsplash
9761749BL
Black
9761749WH
White
9761749BT
Biscuit
28 9762768 Clip, Retainer

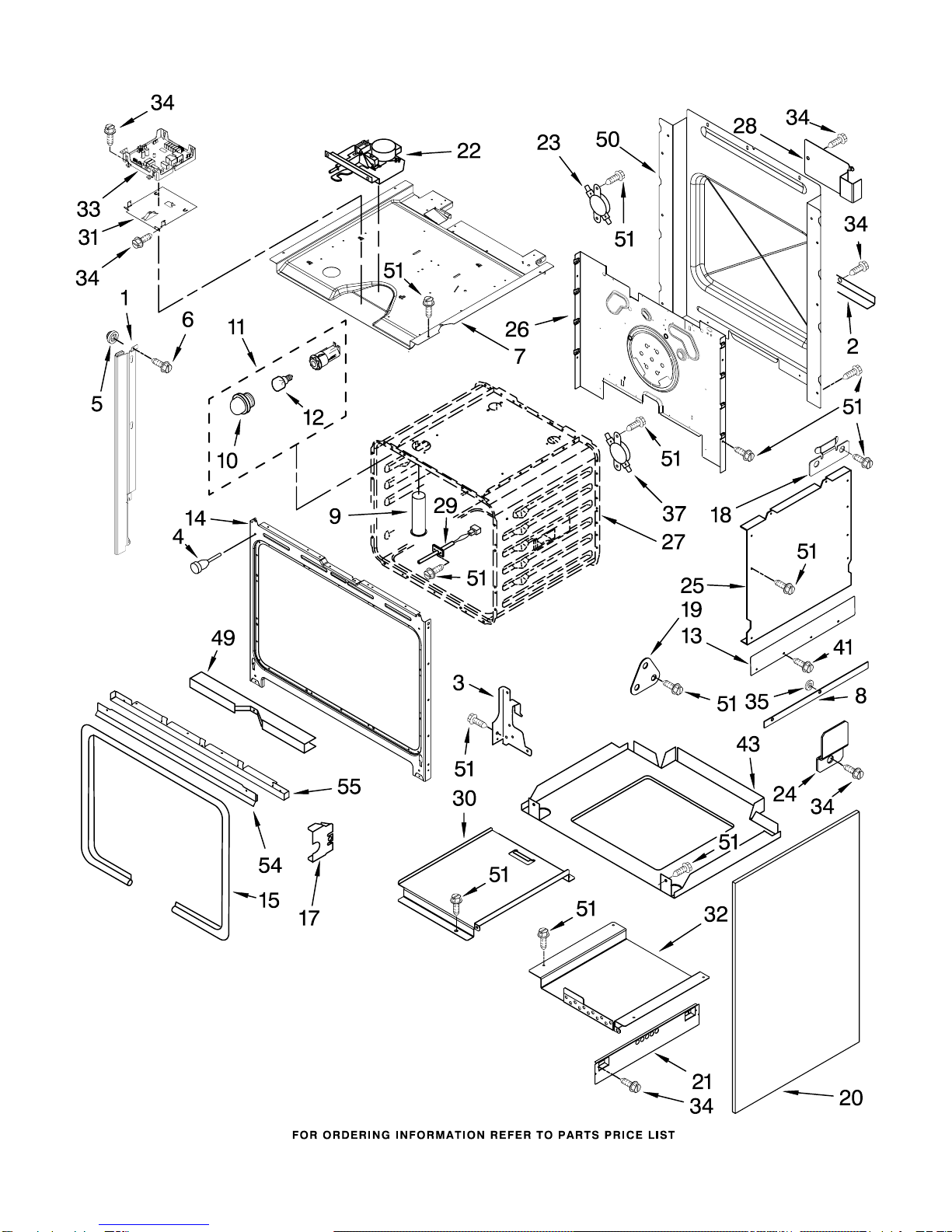

OVEN PARTS
3
For Models: KGRS807SBL01,KGRS807SWH01, KGRS807SBT01,KGRS807SSS01
(Black) (White) (Biscuit) (Stainless)
W10168532
OVEN PARTS
4
For Models: KGRS807SBL01,KGRS807SWH01, KGRS807SBT01,KGRS807SSS01
(Black) (White) (Biscuit) (Stainless)
W10168532
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Trim, Side
Right
W10109540
Black
W10109570
White
W10109550
Biscuit
W10140548
Stainless
Left
W10109490
Black
W10109520
White
W10109500
Biscuit
W10140547
Stainless
2 8053971 Brace, Main Back
3 Hinge Receiver
4455606 Right
4455605 Left
4
W10105790
Bumper, Door
5 4448444 Grommet
6 3400832 Screw
7 8303099 Top Chassis
8 9759722 Insulation, Body
Side Trim
9 9761666 Tube, Vent
10
W10067870
Lens, Light
11
W10009930
Assembly, Oven
Light
12 4452166 Bulb, Light
13 9757732 Shield, Heat
14
W10130368
Frame, Front
15
W10074200
Gasket, Door
17 4452152 Bracket, Mounting
18 9757685 Guide, Side Panel
19 9757461 Bracket,Side Panel
20 Oven, Side Panel
9760723PB
Black
9760723PW
White
9760723PC
Biscuit
21 9757811 Brace, Side Panel
22 9760888 Latch, Motorized
23 9757807 Thermostat
24 9759890 Clip, Side Panel
25 4455641 Side, Chassis
26 9759762 Back, Chassis
27 Liner, Oven
(Not serviceable)
28 9759945 Standoff, Rear
29
W10131825
Sensor
30 9756454 Bracket, GOC
31 9760223 Slide, DSI
32
W10083460
Slide, GOC
33 9762774 Central, Appliance
34 3196537 Screw
35 9760481 Washer, Insulation
Body Side Trim
37 9759242 Thermostat (TOD)
41 4449743 Screw
43
W10110534
Base, Chassis
49 4448933 Retainer, Gasket
50
W10112206
Cover, Back
51 4449809 Screw
54 Vent, Bottom Upper
9756481BL
Black
9756481WH
White
9756481BT
Biscuit
9756481SS
Stainless
55 Trim, Bottom Vent
W10104890
Black
W10104910
White
W10104900
Biscuit
W10104870
Stainless
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
9756817 Insulation, Wrap
9756470 Insulation, Back

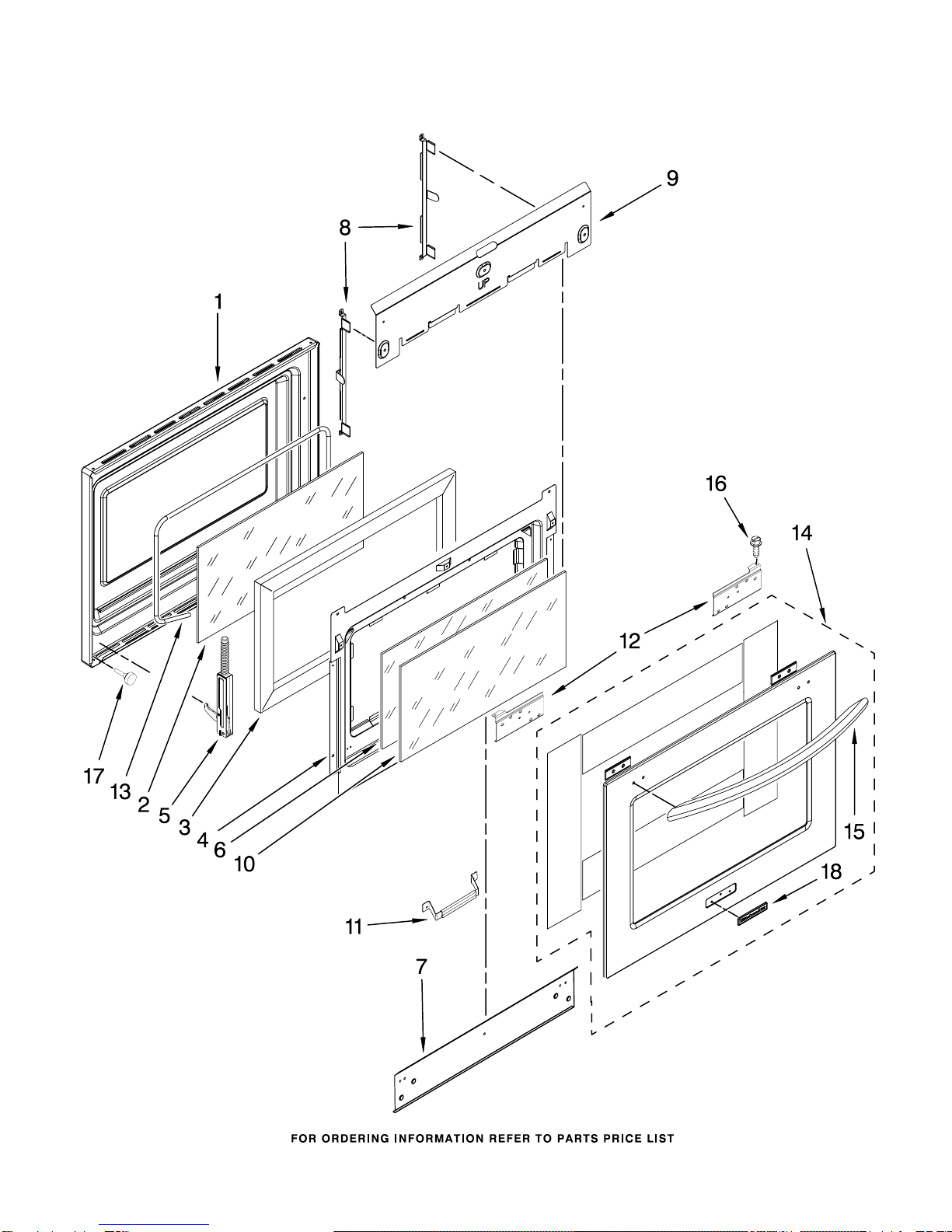

DOOR PARTS
5
For Models: KGRS807SBL01,KGRS807SWH01, KGRS807SBT01,KGRS807SSS01
(Black) (White) (Biscuit) (Stainless)
W10168532
DOOR PARTS
6
For Models: KGRS807SBL01,KGRS807SWH01, KGRS807SBT01,KGRS807SSS01
(Black) (White) (Biscuit) (Stainless)
W10168532
Illus. Part
No. No. DESCRIPTION
1 9759413 Panel, Door
2 9757706 Glass, Inner
3 4451722 Insulation, Door
4 4457132 Retainer, Glass
5 Hinge, Oven Door
9760579 Right
9760580 Left
6 9759225 Glass, Inner
7 4457114 Shield, Heat
Bottom
8 9759229 Bracket, Glass
Side
9 4457103 Shield, Heat Top
10 9759225 Glass, Inner Door
11 9759230 Bracket, Central
12 Bracket, Handle
9763497 Right
9763496 Left
13 8522415 Seal, Window
14 Assembly, Door
Kit
W10131888
Black
W10131889
White
W10131890
Biscuit
15 Handle, Door
8303774BL
Black
8303774WH
White
8303774BT
Biscuit
8303774SS
Stainless
16 3196184 Screw
17 4448520 Bumper, Door (3)
18 Badge
8304603BL
Black
8304603WH
White
8304603BT
Biscuit
8304603SS
Stainless

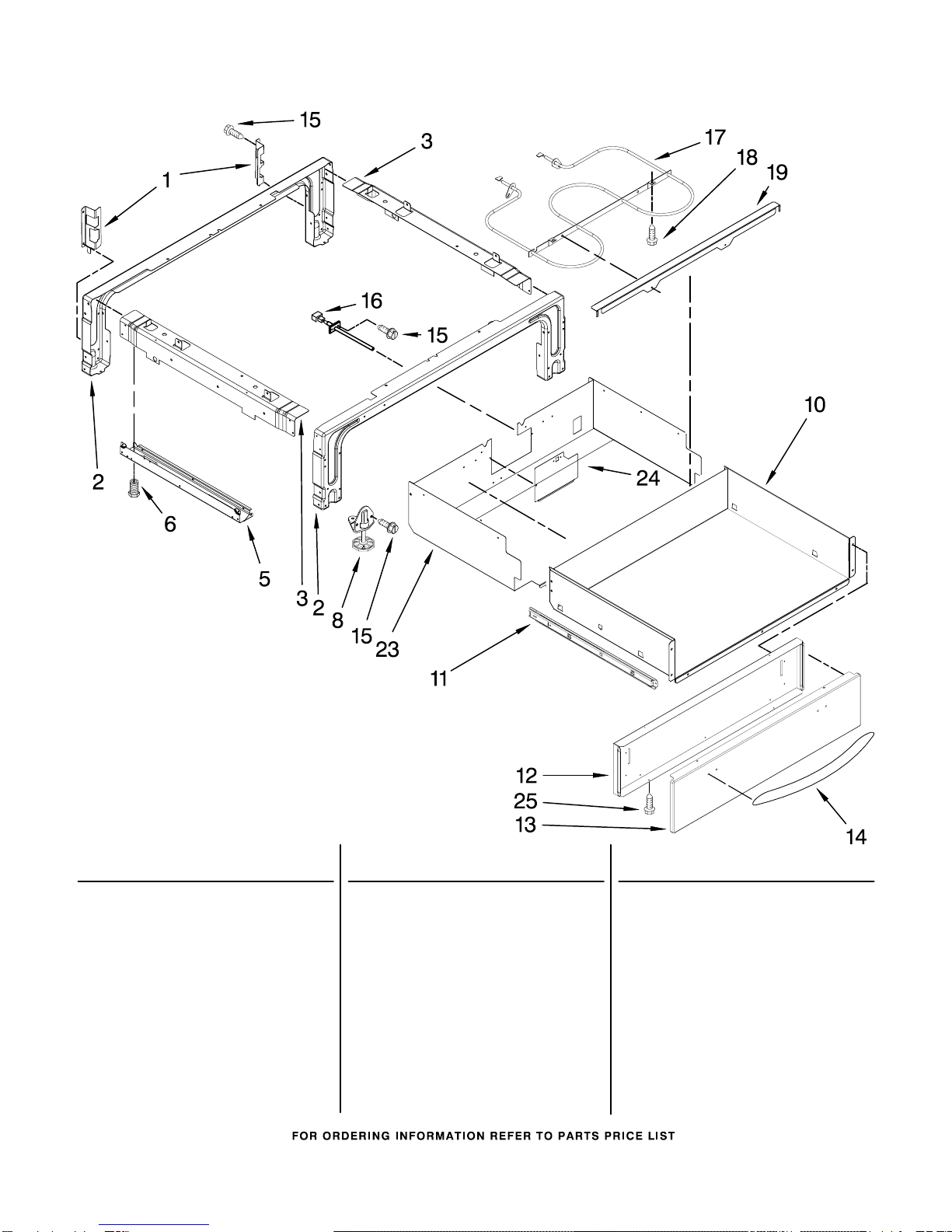

DRAWER PARTS
7
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
For Models: KGRS807SBL01,KGRS807SWH01, KGRS807SBT01,KGRS807SSS01
(Black) (White) (Biscuit) (Stainless)
W10168532
1 Support, Drawer
Rail
9757687 Right
9757686 Left
2
9763501BL
Support, Front
& Rear
3 Brace, Drawer
4453720 Right
4453721 Left
5 Side, Base
9759953 Right
9759954 Left
6
W10058460
Foot
8 3196037 Foot Assembly
10
W10144430
Drawer
11 Guide, Roller
Includes Roller
W10019810
Right
W10019800
Left
12
W10144431
Panel, Drawer
13 Front, Drawer
9761747BL
Black
9761747WH
White
9761747BT
Biscuit
W10140545
Stainless
14 Handle, Drawer
9761573BL
Black
9761573WH
White
9761573BT
Biscuit
9761573SS
Stainless
15 3196537 Screw
16 8274149 Thermistor
17 9760775 Element, Warming
18 4449809 Screw
19 9758676 Support, Element
23 9761796 Enclosure, Warming
Drawer
24
W10153099
Cover, Access
25 3400805 Screw

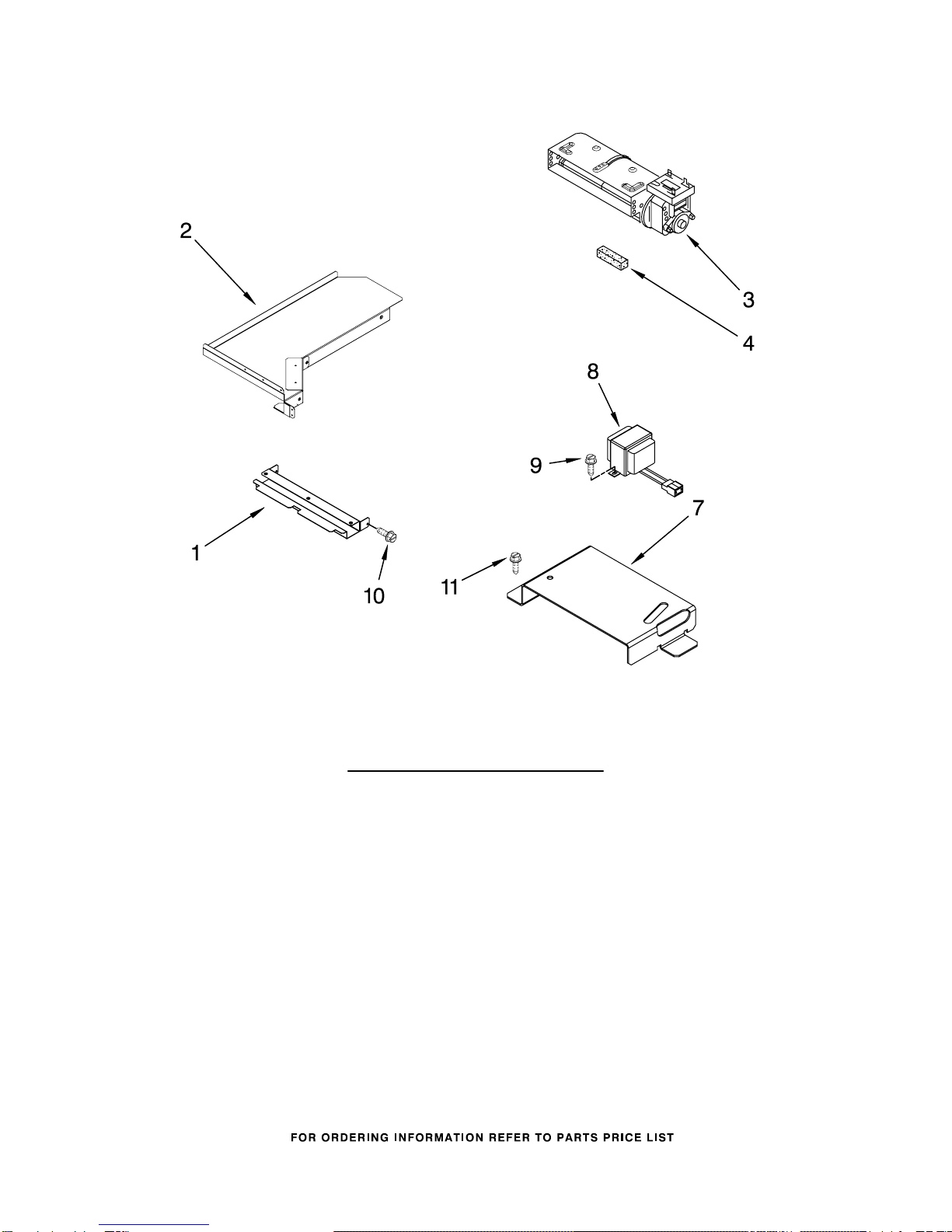

TOP VENTING PARTS
8
For Models: KGRS807SBL01,KGRS807SWH01, KGRS807SBT01,KGRS807SSS01
(Black) (White) (Biscuit) (Stainless)
W10168532
Illus. Part
No. No. DESCRIPTION
1
W10105780
Front, Air Duct
2 Top, Air Duct
W10068590
Right
W10068600
Left
3 9759320 Blower
4 4451758 Block, Foam
7 9757829 Bracket, Transfrmr
8
W10111628
Transformer
9 3196537 Screw
10 4449040 Screw
11 4449809 Screw

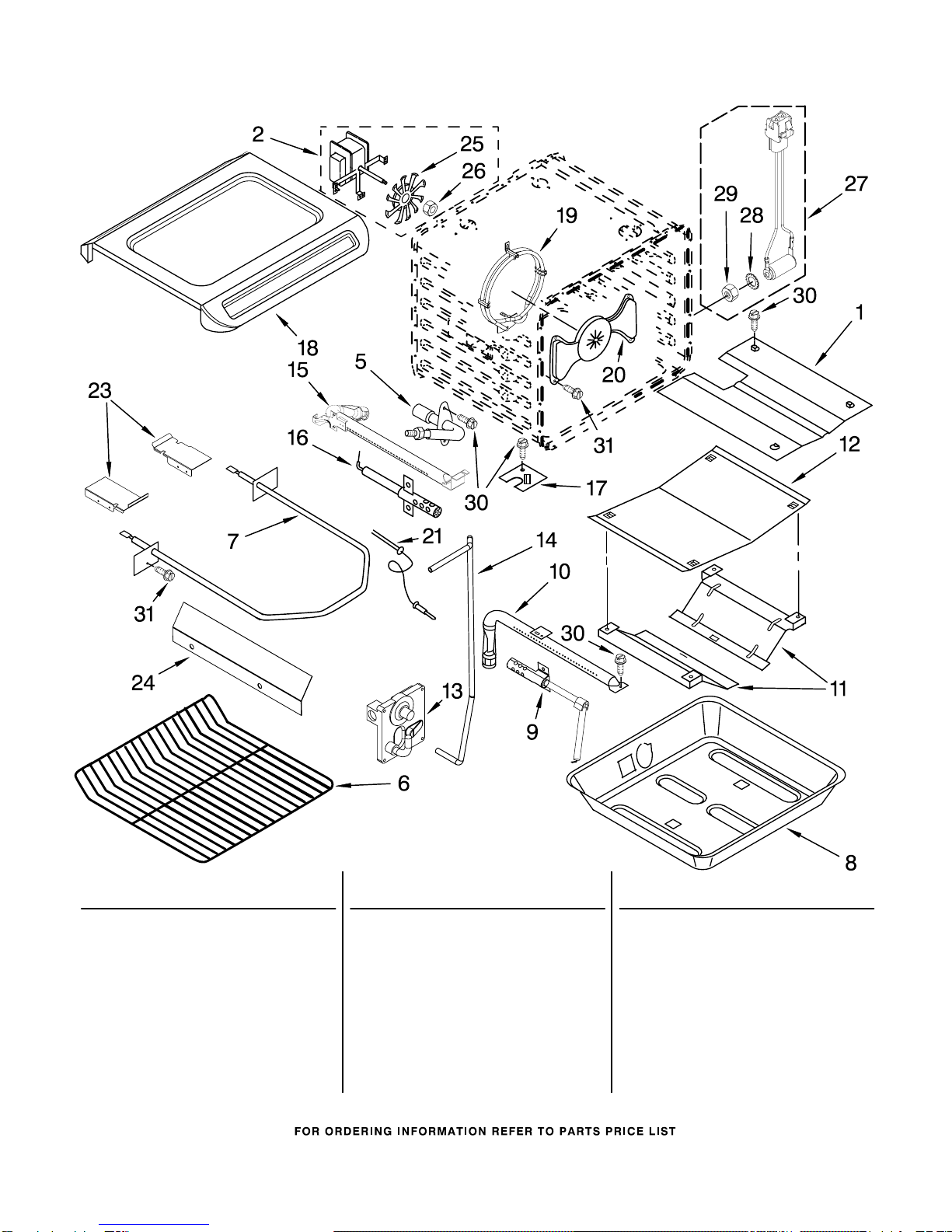

INTERNAL OVEN PARTS
9
For Models: KGRS807SBL01,KGRS807SWH01, KGRS807SBT01,KGRS807SSS01
(Black) (White) (Biscuit) (Stainless)
W10168532
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 9752980 Shield, Flame
2
W10116228
Motor, Convection
5 9757779 Fitting, Broiler
6 4448717 Rack, Oven
7 9760776 Element, Broil
8 4453957 Pan Support, Bake
9 9760229 Electrode, Bake
10 9760228 Burner, Bake Log
11 9752737 Shield, Oven
12 4453984 Shield, Bake Flame
3196176 Screw
13 9763716 Valve, Assemble
14 9756831 Tube, Broil
15
W10111219
Burner, Broil
16 8054129 Ignitor, Broil
17 4454009 Cover, Ignitor
18 4453920 Pan, Oven Bottom
19 9760777 Element, Convect
20
W10104790
Cover, Fan
21 9755542 Probe, Meat
23 Shield, Element
W10153093
Right
W10153094
Left
24
W10153101
Diverter, Air
25
W10116351
Blade, Fan
26
W10116349
Nut
27 9755543 Jack, Meat Probe
28 9755547 Washer, Lock
External
29 9755546 Hex Nut
30 3196176 Screw
31 4449154 Screw

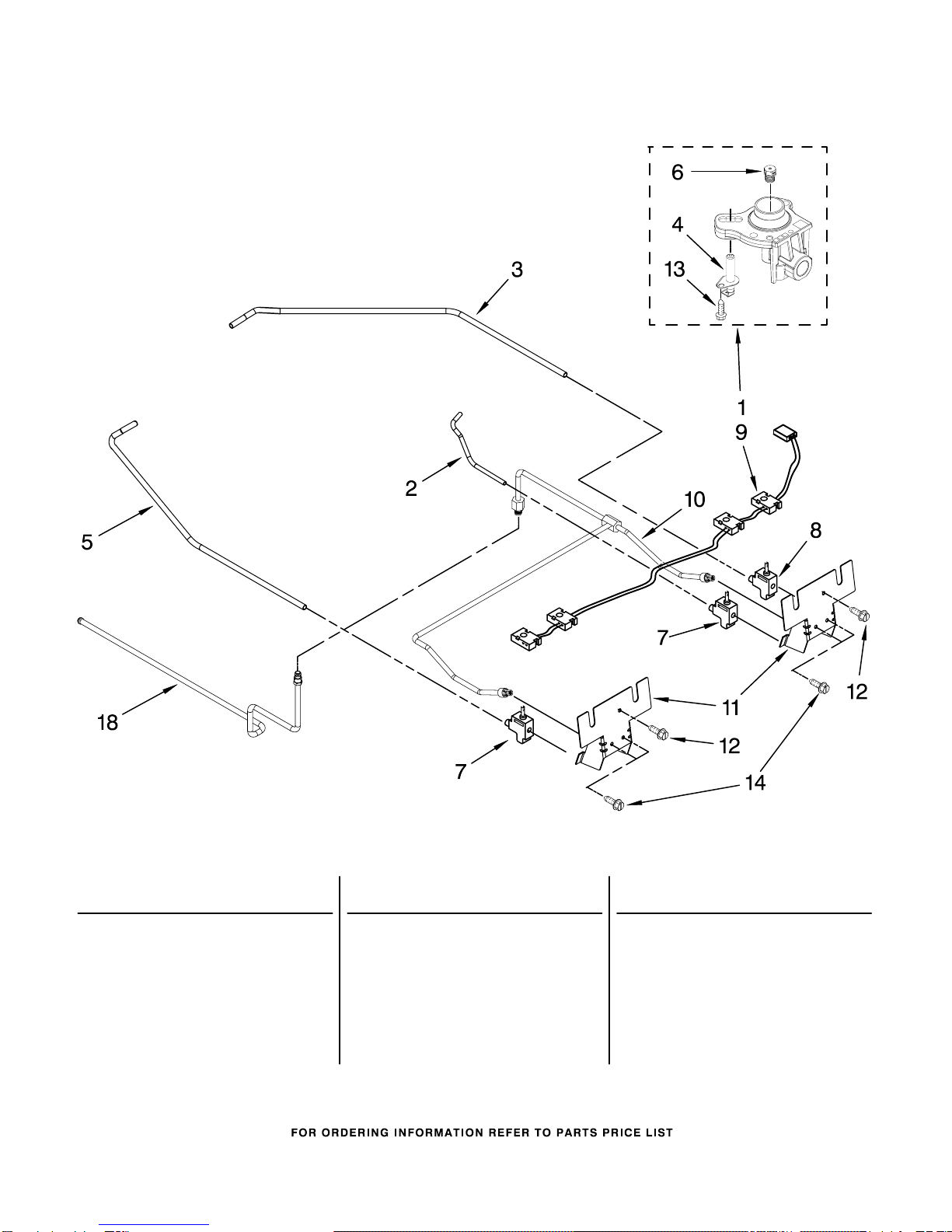

COOKTOP BURNER PARTS
10
For Models: KGRS807SBL01,KGRS807SWH01, KGRS807SBT01,KGRS807SSS01
(Black) (White) (Biscuit) (Stainless)
W10168532
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Burner Base
W10128446
LR, RF
W10128455
RR
2 9761069 Tubing, Burner(RF)
3 9761070 Tubing, Burner(RR)
4
W10110378
Ingiter, Orifice
Holder
5 9761068 Tubing, Burner(LR)
6 Orifice
9762937 LR, RF
9762938 RR
7 4456816 Valve, Burner
Small (2)
8 4456817 Valve, Burner
Large
9 9756824 Spark Switch &
Harness Assembly
10 9761648 Tube, Manifold
11 Manifold
9761641 TCB
9761642 Cooktop
12 3196537 Screw
13 8273062 Screw
14 8523704 Bolt, Valve (4)
18 4453754 Tubing
GDS to Manifold
