COOKTOP PARTS

For Models: KERS205TWH2, KERS205TBL2, KERS205TSS2, KERS205TBT2

(White) (Black) (S.Steel) (Biscuit)

30" FREE STANDING

ELECTRIC RANGE

6−10 Litho in U.S.A. (JMJ) (psw) Part No. W10245882 Rev. B

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10168033

Use & Care Guide

W10167997

Wiring Diagram

W10185365

Installation

Instructions

2 Cooktop

W10240342

White

W10240341

Black

W10217638

Biscuit

8010P149−60

Spacer Snap−In (4)

7406P365−60

Element LF/RR (2)

5 9762851 Element, Warm

7803P087−60

Spring, Element

7 3196165 Screw

4011F497−51

Bottom, Burner Box

9 4453909 Element LR/RF (2)

CONTROL PANEL PARTS

For Models: KERS205TWH2, KERS205TBL2, KERS205TSS2, KERS205TBT2

(White) (Black) (S.Steel) (Biscuit)

W10245882

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3196068 Lens

2 Panel, Backguard

& Switch Assy

W10167672

Black

W10167671

White

W10167685

Biscuit

7101P309−60

Screw, Switch (10)

4 Switch, Infinte

7450P011−60

Dual RF/LR (2)

7403P373−60

LF/RR (2)

7403P877−60

Low Heat

3801F945−51

Bracket, Control

8507P331−60

Control

7 End Cap, Left

3807F703−70

Black

3807F703−71

White

3807F703−78

Biscuit

8 3196178 Screw

9 Shield, Heat Visor

3604F382−09

Black

3604F382−81

White

3604F382−88

Biscuit

3604F381−19

Shield, Vent

4005F804−51

Cover, Rear Wire

13 End Cap, Right

3807F702−70

Black

3807F702−71

White

3807F702−78

Biscuit

7101P376−60

Screw

15 3196178 Screw

7407P136−60

Light, Indicator

17 Knob (4)

W10160370

Black

W10160371

S.Steel

W10160368

White

W10160369

Biscuit

CHASSIS PARTS

For Models: KERS205TWH2, KERS205TBL2, KERS205TSS2, KERS205TBT2

(White) (Black) (S.Steel) (Biscuit)

W10245882

CHASSIS PARTS

For Models: KERS205TWH2, KERS205TBL2, KERS205TSS2, KERS205TBT2

(White) (Black) (S.Steel) (Biscuit)

W10245882

Illus. Part

No. No. DESCRIPTION

1 Panel, Side

2618F172−58

White

2618F172−69

Black

2618F172−57

Biscuit

2 3196165 Screw

3804F311−51

Retainer, Side

8002P104−60

Latch Assembly

4002P347−51

Main Back

4005F754−51

Cover, Main Wire

4005F712−51

Bottom Wire Cover

8 3196178 Screw

7003P145−60

Insulator, Cord

4005P703−51

Cover, Wire (LWR)

4005P704−51

Panel, Access

7103P027−60

Nut, Term.Block

7401P039−60

Block, Terminal

3605F146−51

Plate, Conduit

7101P507−60

Leg, Leveling

3801F656−51

Bracket, Anti−Tip

7101P485−60

Screw, Anti−Tip

3604F371−51

Shield, Heat

7101P376−60

Screw, 8AB 1/2 (4)

7406P493−60

Element, Broil

7430P042−60

Sensor, Oven

8026P081−60

Vent, Oven

898020−001

Lens, Bulb

7101P282−60

Screw (4)

7101P618−60

Screw, Shoulder(6)

W10162385

Gasket

8010P148−60

Spacer, Side Pnl.

7106P125−60

Receiver, Hinge

7407P181−60

Light Assembly

7101P375−60

Screw (Black) (2)

7407P103−60

Bulb, Oven

7101P500−60

Screw, Shoulder

3801P822−45

Support, Ov BTM

7406P451−60

Element, Bake

3807P680−45

Support, Oven

2205F053−19

Bottom, Oven

3401F084−45

Pan, Bake Brnr

7403P857−60

Switch, Terminal

7101P336−60

Screw (2)

INSULATION

7002P362−60

Insulation, Wrap

7002P492−60

Insulation, Back

3804F316−51

Retainer,

Insulation

DOOR PARTS

For Models: KERS205TWH2, KERS205TBL2, KERS205TSS2, KERS205TBT2

(White) (Black) (S.Steel) (Biscuit)

W10245882

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Door Top

3608F139−70

Black

3608F139−71

White

3608F139−78

Biscuit

2 Spacer, Handle

W10169552

Black

W10169553

White

W10169554

Biscuit

7106P124−60

Hinge, Door (2)

3601F380−51

Baffel, Retainer

7101P376−60

Screw (6)

7902P436−60

Glass, Inner (2)

3801F886−51

Frame, Glass Inner

W10176584

Screw

2402W297−19

Lining, Door

3801F886−51

Bracket, Glass (2)

7002P246−60

Insulation, Door

7101P427−60

Screw (8)

14 Bracket, Handle

3801P858−45

Left

3801P857−45

Right

w10208308

Tape, White

16 Trim, Door Side

3608F126−70

Black

3608F126−71

White

3608F126−78

Biscuit

17 Tape, Double Sided

8270P194−60

White

8270P193−60

Black

8270P194−60

Biscuit

18 Trim, Door Bottom

3608F092−71

White

3804F236−51

Black

3608F092−78

Biscuit

7101P282−60

Screw 10−24x5/16

20 Glass, Door

W10160906

White

W10160908

Black

W10160907

Biscuit

(Order Item #15

When Replacing

Door Glass)

21 Handle, Door

W10153013

White

W10153016

S.Steel

W10153015

Black

W10153014

Biscuit

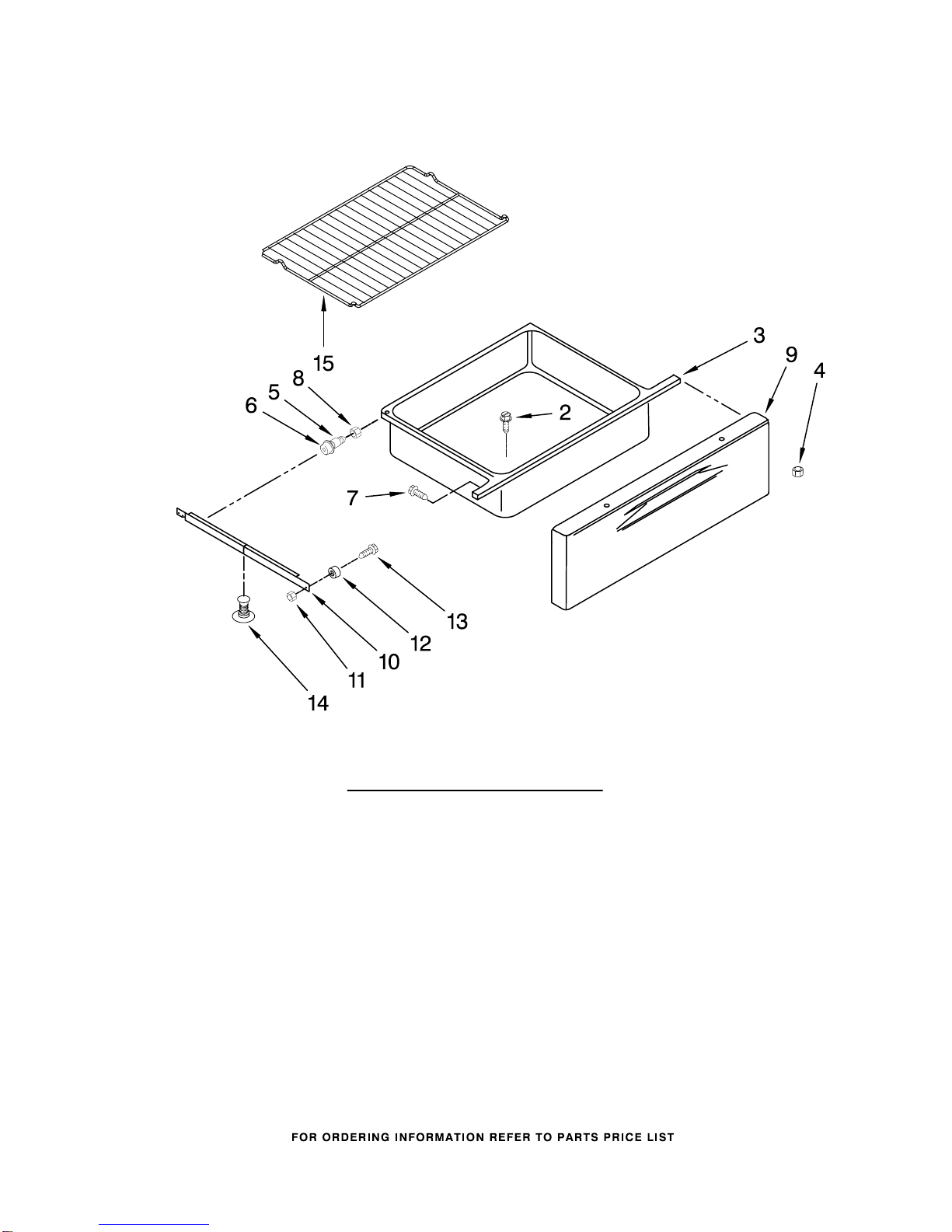

DRAWER AND RACK PARTS

For Models: KERS205TWH2, KERS205TBL2, KERS205TSS2, KERS205TBT2

(White) (Black) (S.Steel) (Biscuit)

W10245882

Illus. Part

No. No. DESCRIPTION

2 3196165 Screw (2)

3405F037−80

Drawer, Storage

7103P082−60

Nut, Lock

8010P130−60

Spacer, Rubber

7118P032−60

Shaft, Roller

7 3196165 Screw

7103P082−60

Nut

9 Panel, Drawer

W10163040

White

W10163038

Black

W10163041

Biscuit

3406P034−51

Runner, Drawer

7103P190−60

Nut, Lock

8014P022−60

Roller, Drawer

7118P032−60

Shaft, Roller

8038P037−60

Stop, Drawer

W10179196

Rack, Oven

OPTIONAL PARTS (NOT INCLUDED)

For Models: KERS205TWH2, KERS205TBL2, KERS205TSS2, KERS205TBT2

(White) (Black) (S.Steel) (Biscuit)

W10245882

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit(Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

3191048 Cleaner, Glass

WIRING HARNESS PARTS

5171P792−60

Harness, Wire

(Cooktop Right)

5171P791−60

Harness, Wire

(Cooktop Left)

W10167991

Harness, Wire

(Burner Box)

W10160683

Harness, Wire

(Main)

8019P013−60

Clip, Wire

7101P027−60

Screw, Ground
