KitchenAid KDRP707RSS00 Manuel utilisateur

OVEN PARTS

For Model: KDRP707RSS00

(Stainless Steel)

7−07 Litho in U.S.A. (cre) Part No. 8186353 Rev. A

30" KITCHENAID

FREE STANDING RANGE

DUAL FUEL STEAM

OVEN PARTS

For Model: KDRP707RSS00

(Stainless Steel)

8186353

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9758978 Installation

Instructions

9761936 Use & Care Guide

9758979 Tech Sheet

9759441 Conversion

Instructions

3191638 Safer Cooking Tips

9759133 Safer Cooking Tips

9762575 Cook Book

2 4449809 Screw, 8−18 x 3/8

3 4449743 Screw, 8−32 X 3/8

4 9758595 Retainer, Gasket

5 9761101 Pump, Drain (120v)

(Includes Clamps)

6 4450118 Nut,(U−Type Clip)

7 9758832 Top, Chassis

8 4448520 Bumper, Door

9 4452158 Tube, Vent

10 4452163 Lens, Light

11 4448972 Oven Light Assy

4449748 Screw

12 4452164 Bulb, Light

13 Hinge Receiver

4455605 Left Hand

4455606 Right Hand

14 9762237 Frame, Front

15 4455382 Gasket, Door

16 4452152 Bracket, Mounting

17 4452260 Spacer, Foam

18 9758598 Boiler

19 4451478 Support, Insulation

20 9761145 Reservoir

(Includes Clamps)

21 4455510 Bracket, Support

22 9762243 Gasket, Sensor

23 9761107 Sensor, Level

24 9762606 Latch, Motorized

25 4455641 Side, Chassis

26 9758830 Back, Chassis

27 Liner, Oven

(Not serviceable)

29 4455636 Sensor

30 4449154 Screw, 8−32 x .440

31 4449040 Screw, 8−18 x 3/8

33 9758597 Orifice, Boiler

34 9758596 Cover, Orifice

Boiler

35 9762138 Hose, (Blue)

(Pump to Outlet)

36 9762139 Hose (Gray)

(Boiler to Pump)

37 4450249 Thermostat (TOD)

(150c) SPST

38 9761154 Hose (Green)

(Boil’r to Resv’r)

39 9761147 Clamp

40 9761146 Clamp

41 9762844 Screw

43 4455649 Base, Chassis

50 9758583 Cover, Back

56 4448982 Button, Plug

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449316 Insulation, Wrap

4450365 Insulation, Back

4452337 Insulation,

Bottom Vent

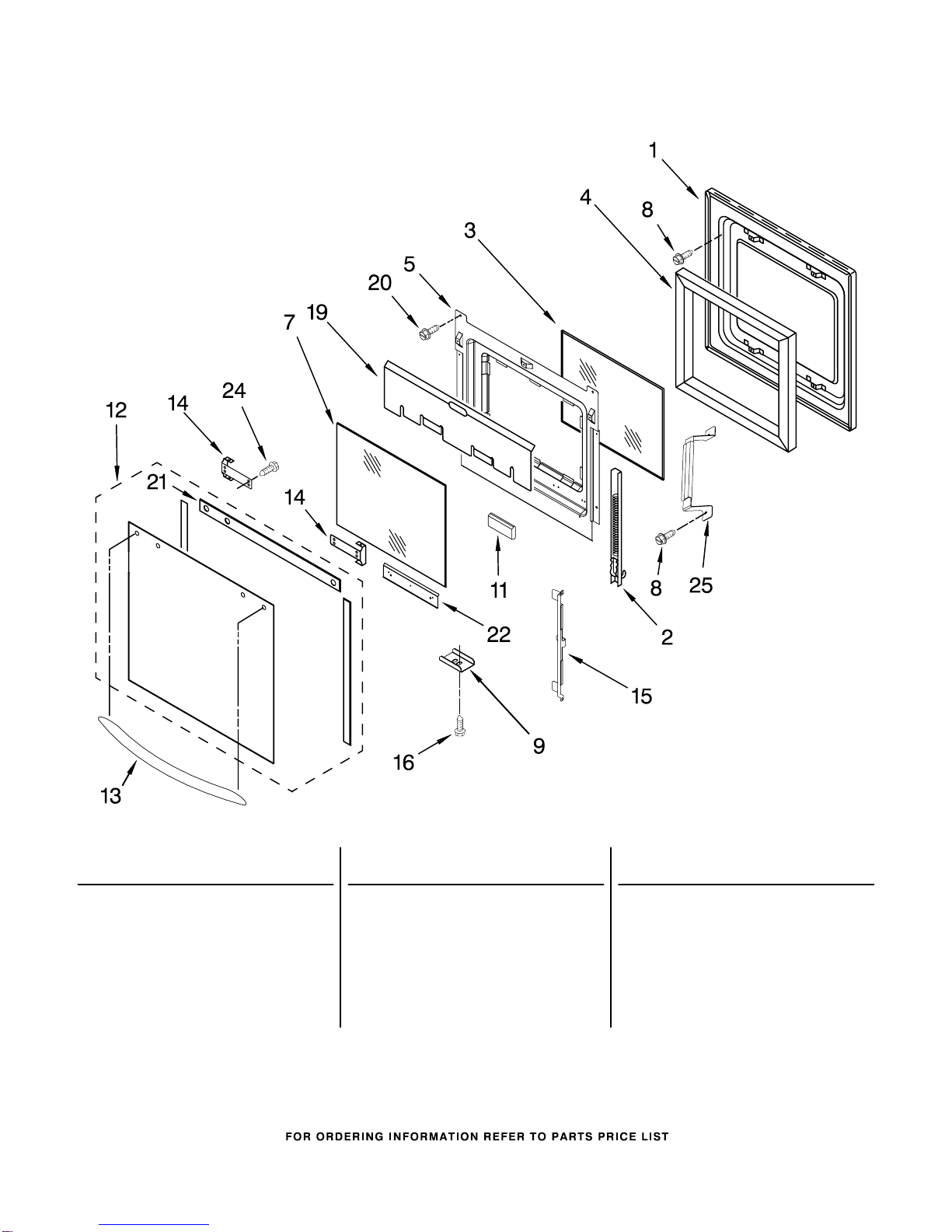

OVEN DOOR PARTS

For Model: KDRP707RSS00

(Stainless Steel)

8186353

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4455618 Door Liner

2 Hinge, Door

8300577 R.Side

9760578 L.Side

3 4449259 Glass, Inner

4 4451722 Insulation, Door

5 4457132 Retainer, Glass

7 4449263 Glass, Inner

8 4449743 Screw, 8−32 x 3/8

9 9759634 Retainer, Glass

11 9759635 Spacer, Glass

12 4452316 Assy, Door Glass

13 4455851 Door Handle

14 Bracket, Handle

4455803 Right Hand

4455804 Left Hand

15 8302092 Bracket(2nd Glass)

16 3400832 Screw, 8−18 x 3/8

19 4457103 Shield, Top Heat

20 4449809 Screw, 8−18 x 3/8

21 4452326 Seal, Door Top

22 4457114 Heat Shield (Btm)

24 3196184 Screw, 8−32 x .548

25 8302094 Bracket(3rd Glass)

INTERNAL OVEN PARTS

For Model: KDRP707RSS00

(Stainless Steel)

8186353

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 4456103 Element, Broil

3 4457277 Grill, Broiler

4 4457276 Pan, Broiler

5 3181534 Rack, Roasting

6 4452807 Rack, Oven

7 4452155 Element, Hidden

Bake

9 4451583 Motor, Convection

10 4452226 Blade, Fan

11 4448418 Cover, Fan

12 4452227 Nut

13 9762242 Element,

Convection

14 4455037 Tray, Hidden

Bake

15 4450039 Cover, Access

16 4449154 Screw, 8−32 x .440

17 4449809 Screw, 8−18 x 3/8

CONTROL PANEL PARTS

For Model: KDRP707RSS00

(Stainless Steel)

8186353

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 9758959 Panel, Control

(Inc.Nuts,Clamps)

2 4453000 Bracket, Display

3 9758961 Bracket, Display

Mounting

4 3196537 Screw, 8−18 x 3/8

5 9761103 Control, Zodiac

6 3196184 Screw, 6−19 x 1

7 4455806 Glass,

Control Panel

8 9758960 Module, Display

9 2004333 Palnut

10 2005292 Nameplate

11 9758967 Face, Control

Panel

12 4455192 Bezel, Knob

13 4454970 Knob, Control

14 4455115 Knob, Temp/Time

15 9758966 Knob, Selector

16 4457218 Switch, Cancel

4457278 Jumper

17 4452997 Switch, Enter

18 9758974 Button, Drain

19 9761600 Water, Inlet

(Inc.Nuts,Clamps)

20 9761146 Clamp

21 4457218 Switch, Cancel

(Drain Pump)

23 9761149 Hose(Red)W/Clamps

(Inlet to Resrv’r)

24 9761151 Hose(Clear)W/Clmps

(Inlet to Valve)

25 4452842 Switch, Oven Light

26 4457152 Bezel, Temp Knob

27 4159450 Screw

28 9762136 Fitting, Drain

(Includes Clamp)

29 9762671 Clamp

TOP VENTING PARTS

For Model: KDRP707RSS00

(Stainless Steel)

8186353

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 9758955 Vent, Exhaust

2 9758954 Vent−Top

3 9759837 Blower 60MM

4 9758953 Vent−Bottom

5 6610122 Transformer, Light

6 8300642 Transformer,

Control

7 4449809 Screw, 8−18 x 3/8

8 9758956 Bracket, Blower

9 9758999 Fuse−Thermo

105c 15a/120vac

11 4449868 Block, Terminal

14 4452442 Side, Control Top

24 9761155 Control, Taurus

(Appliance Mngr)

25 8302143 Suppressor

26 9758985 Control, Steam

27 4450800 Screw, 8−32 x 3/8

COOKTOP PARTS

For Model: KDRP707RSS00

(Stainless Steel)

8186353

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4456868 Cooktop

2 4455849 Burner Head (4)

3 3368921 Screw, 7−18 x 3/4

4 4455243 Cap, Burner (4)

5 4456622 Orifice Holder (4)

(Incl.Orifice &

Ignitor)

3400843 Screw

6 3177991 Screw, 8−18 x 1/4

7 4457331 Grate, Burner (2)

8 4457150 Grate, Filler

9 4454961 Trim, Island

10 4455031 Support,

Backsplash

11 4454959 Trim, Backsplash

12 3400837 Screw, 8−18 x 3/8

13 9782116 Ignitor

15 4455109 Plate, Simmer

BURNER BOX AND MANIFOLD PARTS

For Model: KDRP707RSS00

(Stainless Steel)

8186353

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4457272 Tubing, Gas

Burner − RF

2 4457273 Tubing, Gas

Burner − RR

3 4457274 Tubing, Gas

Burner − LF

4 4457275 Tubing, Gas

Burner − LR

6 3400843 Screw, 8−18 x 3/8

7 4457267 Manifold

8 4456818 Valve, Burner (4)

9 3186217 Bolt,Gas Valve (4)

10 4457173 Burner Switch &

Harness Assembly

11 9759091 Pressure Regulator

12 9762134 Box, Burner

13 3192439 Seal, Switch

14 4449809 Screw, 8−18 x 3/8

15 Side, Burner Box

8285607 Right Side

8285606 Left Side

16 4457315 Support, Rear

17 9758986 Support, Cooktop

18 3192811 Bracket, Burner

19 3177991 Screw, 8−18 x 1/4

20 9758964 Bracket, Valve

21 4455645 Tube, Manifold

22 9762133 Cover, Manifold

23 Adaptr,Compression

4453116 1/2" Male

4453115 1/2" Female

24 4453036 Cover, Burner

Box

25 8522426 Module, Spark

26 9761102 Valve, Overflow

27 3196184 Screw, 8−32

28 9761150 Hose (White)

(Valve to Resrv’r)

29 9761147 Clamp

30 3191387 Seal, Switch

31 4453191 Seal, Panel

CHASSIS PARTS

For Model: KDRP707RSS00

(Stainless Steel)

8186353

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4452802 Vent, Bottom

Lower

2 4449809 Screw, 8−18 x 3/8

5 4452800 Deflector, Center

7 9761913 Vent, Center

4453323 Gasket

3400805 Screw (4)

8 3196537 Screw, 8−18 x 3/8

9 9759092 Bracket, Mounting

Regulator

10 9759117 Foot

11 3400518 Screw,

5/16−12 x 5/8

12 4455644 Gusset

13 4455643 Support, Channel

14 9760672 Brace, Rear

15 Trim, Front

4452804 Right Side

4453205 Left Side

16 3196537 Screw, 8−18 x 3/8

17 Side Chassis

9761934 Right Side

9761933 Left Side

18 9759118 Plate

19 9762142 Tray, Drip

20 3400805 Screw, 8−18 x 3/8

OPTIONAL PARTS

For Model: KDRP707RSS00

(Stainless Steel)

8186353

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242829 Wire (12 Ga.

150 c Red)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242826 Wire (14 Ga.

150 c White)

242827 Wire (14 Ga.

150 c Yellow)

242832 Wire (14 Ga.

200 c Yellow)

WIRING HARNESS PARTS

9758957 Harness, Sensor

9758951 Harness, Wire

(Main)

3196896 Clip, Wire

4456549 Harness, Wire

(Spark Module)

4456628 Harness, Wire

(Ignitor 39")

4456627 Harness, Wire

(Ignitor 28")

4456626 Harness, Wire

(Ignitor 15")

9761098 Harness, Signal

3191506 Bushing, Conduit

1129449 Bushing

8301668 Conduit

4449809 Screw

112432 Nut

4450800 Screw, Ground

Miscellaneous

8301282 Conv. Kit (LP)

4453141 Bracket,

Anti−Tip (1")

4453202 Bracket,

Anti−Tip (1 3/4")

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

4453192 Seal, Ribbon

Cable

4453191 Seal, Access

Panel

Table des matières

Autres manuels KitchenAid Gamme

KitchenAid

KitchenAid KDRS463VSS00 Manuel utilisateur

KitchenAid

KitchenAid Architect II KDRS505XSS Manuel utilisateur

KitchenAid

KitchenAid KFEG500ESS Manuel utilisateur

KitchenAid

KitchenAid KDRP407HSS - 30" Pro-Style Dual-Fuel Range Manuel utilisateur

KitchenAid

KitchenAid KGSS907SBL - 30" Slide-In Gas Range Manuel utilisateur

KitchenAid

KitchenAid Freestanding Gas Ranges Manuel utilisateur

KitchenAid

KitchenAid KDRP407HSS12 Manuel utilisateur

KitchenAid

KitchenAid W11427468A Manuel utilisateur

KitchenAid

KitchenAid KEDT105W Manuel utilisateur

KitchenAid

KitchenAid 30” (76.2cm) Manuel utilisateur

KitchenAid

KitchenAid ELECTRIC RANGE Manuel utilisateur

KitchenAid

KitchenAid KFGG500EBL Manuel utilisateur

KitchenAid

KitchenAid KSDB900ESS2 Manuel utilisateur

KitchenAid

KitchenAid Architect Series II KDSS907SSS Manuel utilisateur

KitchenAid

KitchenAid KESC300 Manuel utilisateur

KitchenAid

KitchenAid 9752397 Manuel utilisateur

KitchenAid

KitchenAid KEDH207WHO Manuel utilisateur

KitchenAid

KitchenAid KSDG950ESS Manuel utilisateur

KitchenAid

KitchenAid KFGG500ESS Manuel utilisateur

KitchenAid

KitchenAid KGRS807SBL00 Manuel utilisateur

KitchenAid

KitchenAid KFGD500EBS Instructions d'installation

KitchenAid

KitchenAid KSGG700ESS Manuel utilisateur

KitchenAid

KitchenAid Architect Series II YKERS308X Manuel utilisateur

KitchenAid

KitchenAid KFEG500ESS Manuel utilisateur

Manuels Gamme populaires d'autres marques

Samsung

Samsung FCQ321HTUW Manuel utilisateur

Kenmore

Kenmore 790.45712 Manuel utilisateur

Wolf

Wolf CHR CHSSR Manuel utilisateur

Smeg

Smeg Built-in Microwave Oven Mode d’emploi

Zanussi

Zanussi ZCG054G Manuel utilisateur

Whirlpool

Whirlpool 8575985-W Manuel de la liste des pièces

Frigidaire

Frigidaire 316000635 Manuel utilisateur

GE JCSS630 Manuel utilisateur

Samsung

Samsung NX58M9960P series Manuel utilisateur

Hotpoint

Hotpoint RB524R Guide d'installation

Whirlpool

Whirlpool Roper FGP305KW3 Manuel utilisateur

Amana

Amana ART6610 SERIES Manuel utilisateur

Maytag

Maytag MERH770WB Manuel utilisateur

Fulgor Milano

Fulgor Milano SOFIA Manuel utilisateur

Premier

Premier EF-4358GH Manuel utilisateur

Kenmore

Kenmore 790.9010 Series Manuel utilisateur

Frigidaire

Frigidaire FFEF3012LS Guide de l'utilisateur

Diamond

Diamond G65/2F4T Manuel utilisateur
