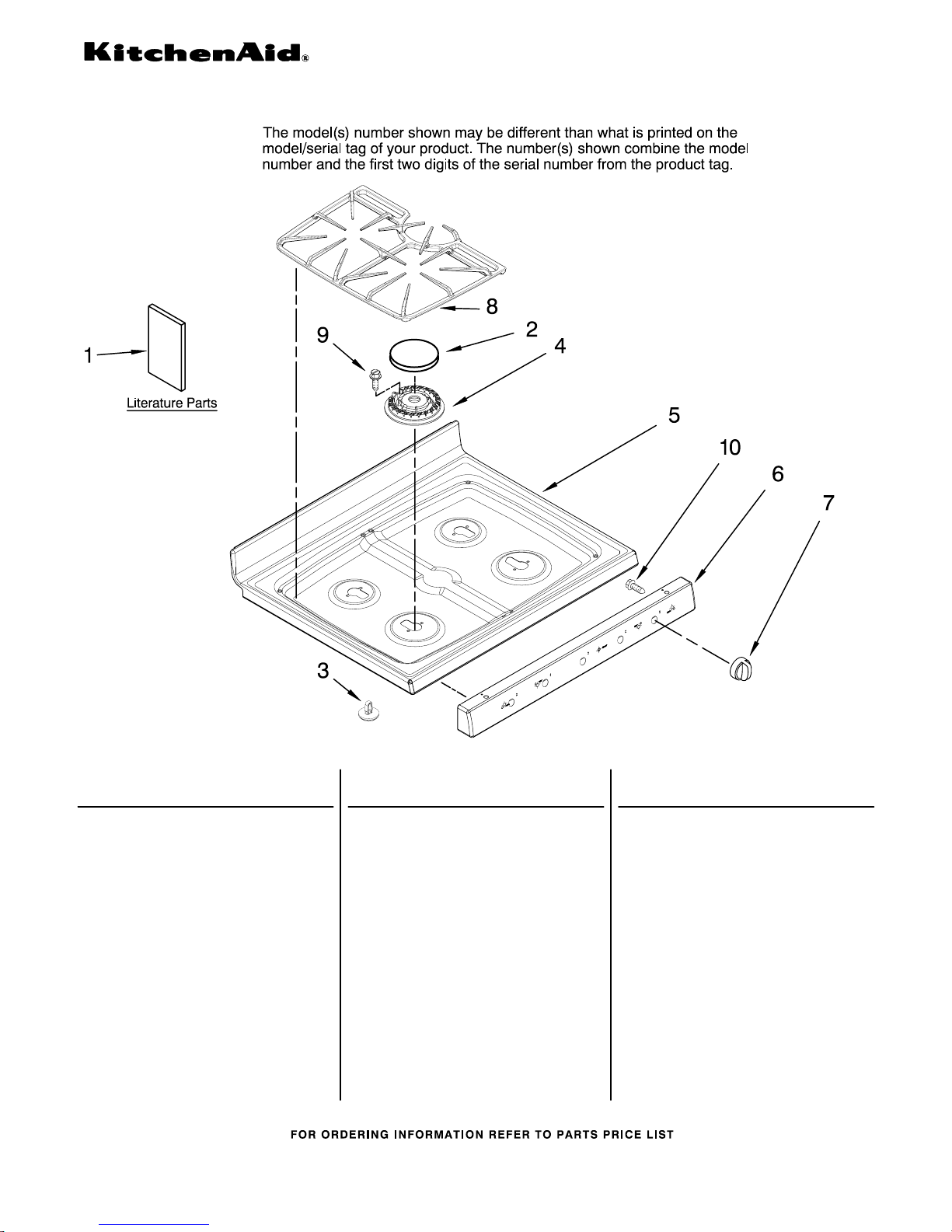

COOKTOP PARTS

For Models: KGRS205TWH0, KGRS205TSS0, KGRS205TBL0, KGRS205TBT0

(White) (S.Steel) (Black) (Biscuit)

30" GAS FREESTANDING

SELF CLEAN RANGE

SEALED BURNER

CONVECTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10188242

Installation

Instructions

W10185364

Owners Manual

W10168001

Wiring Diagram

2 Cap, Burner

(RF)

W10177376

Black

W10177370

Gray

(LF)

W10177375

Black

W10177368

Gray

(RR & LR)

W10168355

Black

W10168351

Gray

(CTR)

W10177366

Gray

W10177373

Black

3 74008761 Spacer, Snap−In

4 Burner

74007411 (CTR)

74007698 (LF)

74009900 (RR & LR)

74007413 (RF)

5 Cooktop

W10182781

Black

W10182784

White

W10160620

Biscuit

6 Panel, Manifold

W10168240

Black

W10168241

White

W10168242

Biscuit

7 Knob, Control (5)

W10160374

Black

W10160372

White

W10160375

S.Steel

W10160373

Biscuit

8 Grate, Burner (2)

W10168266

Black

W10168265

Gray

7101P685−60

Screw (8)

10 74001530 Screw

3−10 Litho In U.S.A. (JMJ) (psw) Part No. W10206096 Rev.D

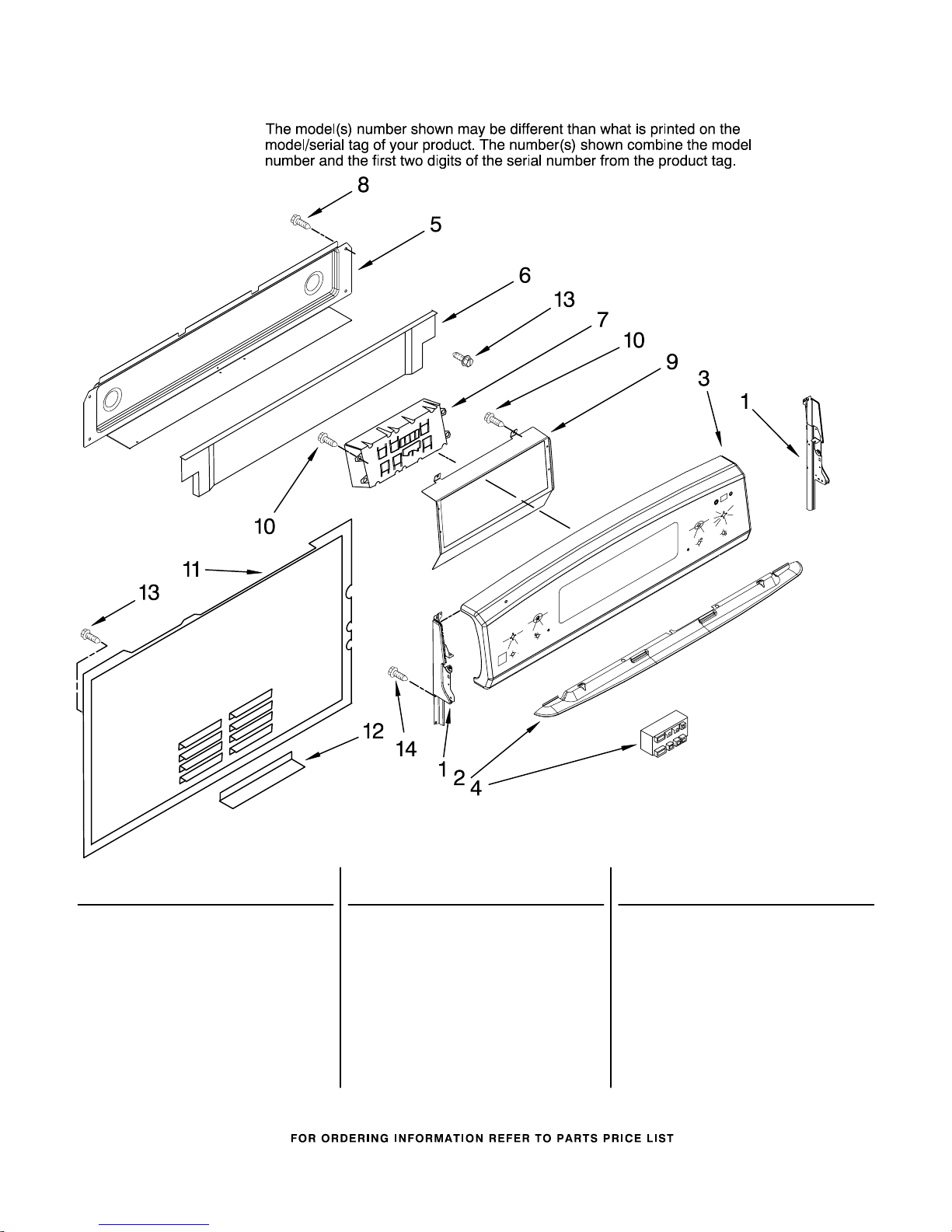

CONTROL PANEL PARTS

For Models: KGRS205TWH0, KGRS205TSS0, KGRS205TBL0, KGRS205TBT0

(White) (S.Steel) (Black) (Biscuit)

W10206096

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap, Left Hand

74009023 Black

74009079 White

74009080 Biscuit

Endcap, Right Hand

74009022 Black

74009077 White

74009078 Biscuit

2 Heat Shield,Visor

74010577 Black

74010578 White

74010579 Biscuit

3 Panel, Backguard

& Switch Assy

W10218262

Black

W10218265

White

W10218264

S.Steel

W10218263

Biscuit

4 74009098 Module, Spark

5 74010983 Cover, Upper

6 74009444 Shield, Vent

W10178396

Control

8 Y700502 Screw

3801F945−51

Bracket, Control

10 74003976 Screw

11 74009652 Cover, Main Wire

12 74008867 Bottom, Wire Cover

13 71001394 Screw

14 74002979 Screw

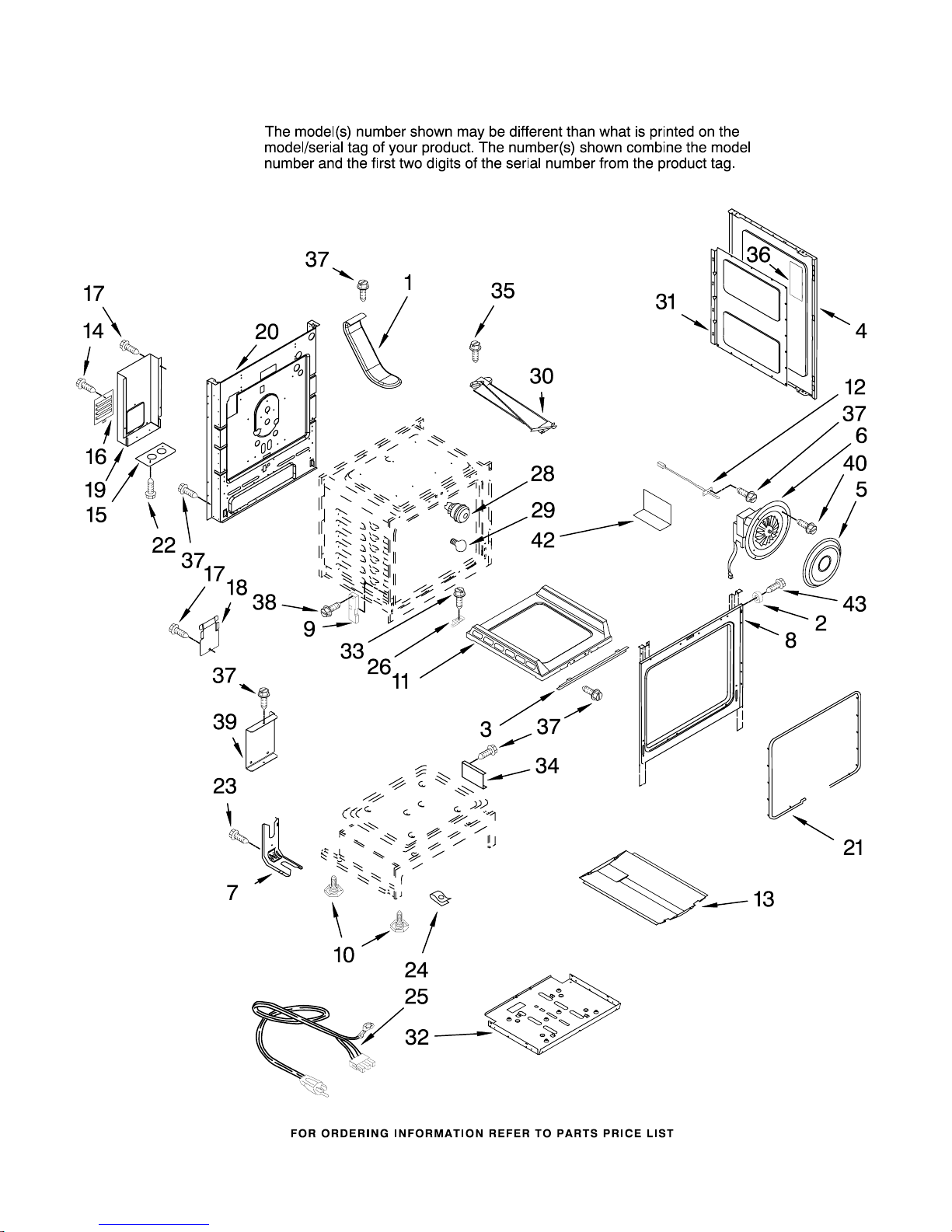

CHASSIS PARTS

For Models: KGRS205TWH0, KGRS205TSS0, KGRS205TBL0, KGRS205TBT0

(White) (S.Steel) (Black) (Biscuit)

W10206096

CHASSIS PARTS

For Models: KGRS205TWH0, KGRS205TSS0, KGRS205TBL0, KGRS205TBT0

(White) (S.Steel) (Black) (Biscuit)

W10206096

Illus. Part

No. No. DESCRIPTION

1 74008817 Vent, Oven

2 74008690 Spacer, Side Panel

3807P680−45

Support, Oven

Bottom

4 Panel, Side (2)

74008710 Black

74008709 White

74008708 Biscuit

5 74005783 Plate, Convect

6 74009142 Fan, Convect

7 74005564 Bracket, Anti−Tip

8 Frame, Front

(Not Serviced)

9 74010551 Hinge, Receiver

10 74002373 Foot, Leveler (4)

11 74008741 Bottom, Oven

12 74004944 Sensor, Oven

13 74008846 Baffle, Burner

7101P338−60

Screw

3605F146−51

Plate, Conduit

16 74008340 Panel, Access

17 71001394 Screw (2)

18 74009653 Cover, Broil

19 31955101 Cover, Lower Wire

20 74011911 Back, Main

W10162385

Seal, Oven

7101P336−60

Screw

7101P352−60

Screw

24 74008835 Clip (4)

25 74008876 Cord, Power

26 74008694 Bracket, Oven

Bottom

28 74011278 Light Assembly

7407P103−60

Bulb, Oven Light

8002P104−60

Latch, Door Lock

3804F316−51

Retainer,

Insulation

3604P409−51

Shield, Heat

33 74003976 Screw (2)

34 74011187 Bracket, Oven

35 74003975 Screw

7002P494−60

Insulation

37 74002979 Screw

7101P282−60

Screw (4)

3801P798−51

Bracket, Oven

Support

40 74005401 Screw

42 74008704 Insulator, Shield

43 74008798 Screw

INSULATION

74008700 Insulation, Wrap

7002P492−60

Insulation, Back

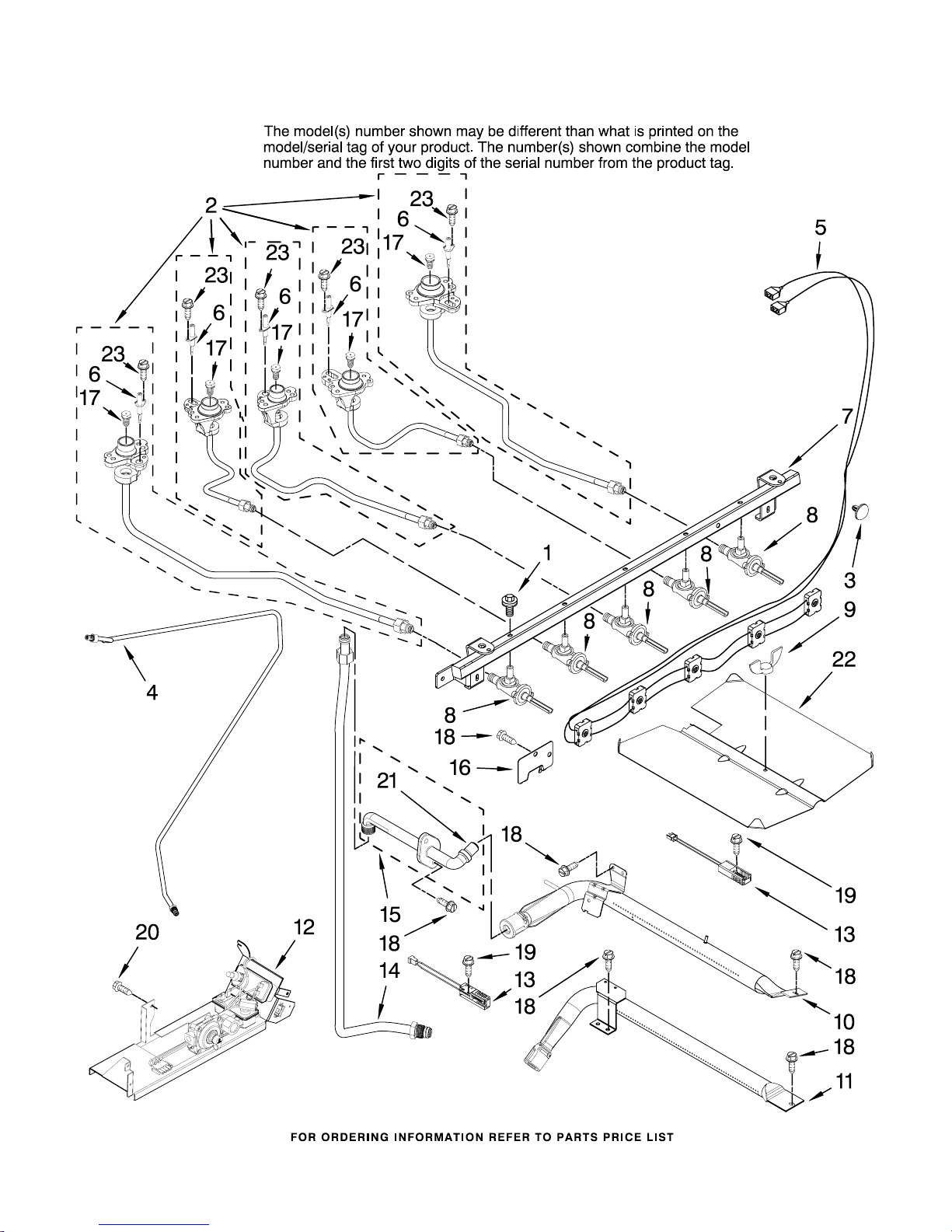

MANIFOLD PARTS

For Models: KGRS205TWH0, KGRS205TSS0, KGRS205TBL0, KGRS205TBT0

(White) (S.Steel) (Black) (Biscuit)

W10206096

MANIFOLD PARTS

For Models: KGRS205TWH0, KGRS205TSS0, KGRS205TBL0, KGRS205TBT0

(White) (S.Steel) (Black) (Biscuit)

W10206096

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 71003231 Screw, Valve

2 Holder, Orifice

74009099 (RF)

W10154209

(RR)

7527P125−60

(LR)

7527P101−60

(LF)

7527P097−60

(CTR)

3 74008761 Spacer, Snap−In

4 74008829 Tubing,

Main Supply

7403P983−60

Harness, Igniter

Includes Switches

6 74009958 Ignitor, Top

Burner (4)

7513P499−60

Pipe, Manifold

8 Valve

74010751 (RF)

74010752 (LR/RR/CTR)

74010629 (LF)

9 790431 Nut

10 74008820 Burner, Broiler

11 31945701 Burner, Bake

12 74010218 Valve/Regulator

13 Igniter

74007498 Broil

74008064 Bake

14 74008830 Tubing (Broiler

Fitting To Valve)

15 74008818 Fitting, Broiler

4005F421−45

Cover, Igniter

17 Orifice, Burner

7509P123−60

Left Front

7509P122−60

(LR/RR)

7509P124−60

Right Front

7509P120−60

Center

18 74002979 Screw

7101P282−60

Screw

7101P027−60

Screw

21 74008834 Orifice

W10156134

Baffle,

Broil Burner

23 8273062 Screw

Following Parts Not Illustrated

74008871 Spuds, LP Gas

(Kit of 5)

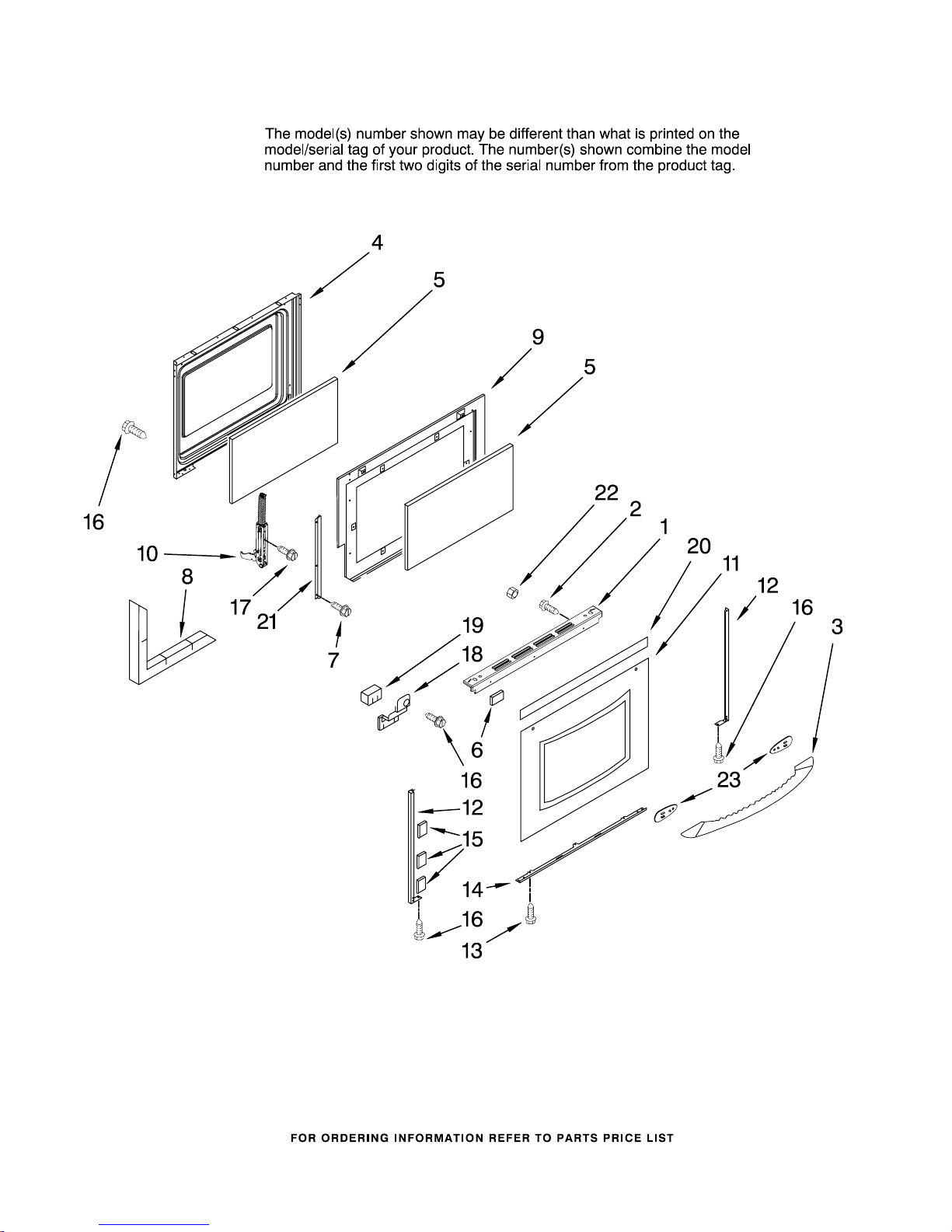

DOOR PARTS

For Models: KGRS205TWH0, KGRS205TSS0, KGRS205TBL0, KGRS205TBT0

(White) (S.Steel) (Black) (Biscuit)

W10206096

DOOR PARTS

For Models: KGRS205TWH0, KGRS205TSS0, KGRS205TBL0, KGRS205TBT0

(White) (S.Steel) (Black) (Biscuit)

W10206096

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Top

3608F139−70

Black

3608F139−71

White

3608F139−78

Biscuit

W10176584

Screw

3 Handle, Door

W10153015

Black

W10153013

White

W10153016

S.Steel

W10153014

Biscuit

4 74008926 Liner, Door

5 74003645 Glass, Inner (2)

6 74004224 Tape (White)

7 74002979 Screw

8 74003647 Insulation, Door

3601F380−51

Retainer,

Insulation

10 74010546 Hinge, Door

11 Glass, Outer Door

W10182773

Black

W10182776

White

W10183574

Biscuit

12 Trim, Door Side

74010560 Black

74010561 White

74010562 Biscuit

13 74009537 Screw

14 Trim, Lower Door

74008889 Black

74008757 White

74008758 Biscuit

15 Tape, Double Sided

74009025 Black

74009014 White

16 Y706189 Screw

7101P282−60

Screw

18 Bracket, Handle

3801P857−45

Right

3801P858−45

Left

7002P484−60

Insulation, Corner

8270P090−60

Tape, Foil (3")

21 74011458 Bracket, Window(2)

22 Y311426 Nut

23 Spacer, Handle

W10169553

White

W10169552

Black

W10169554

Biscuit

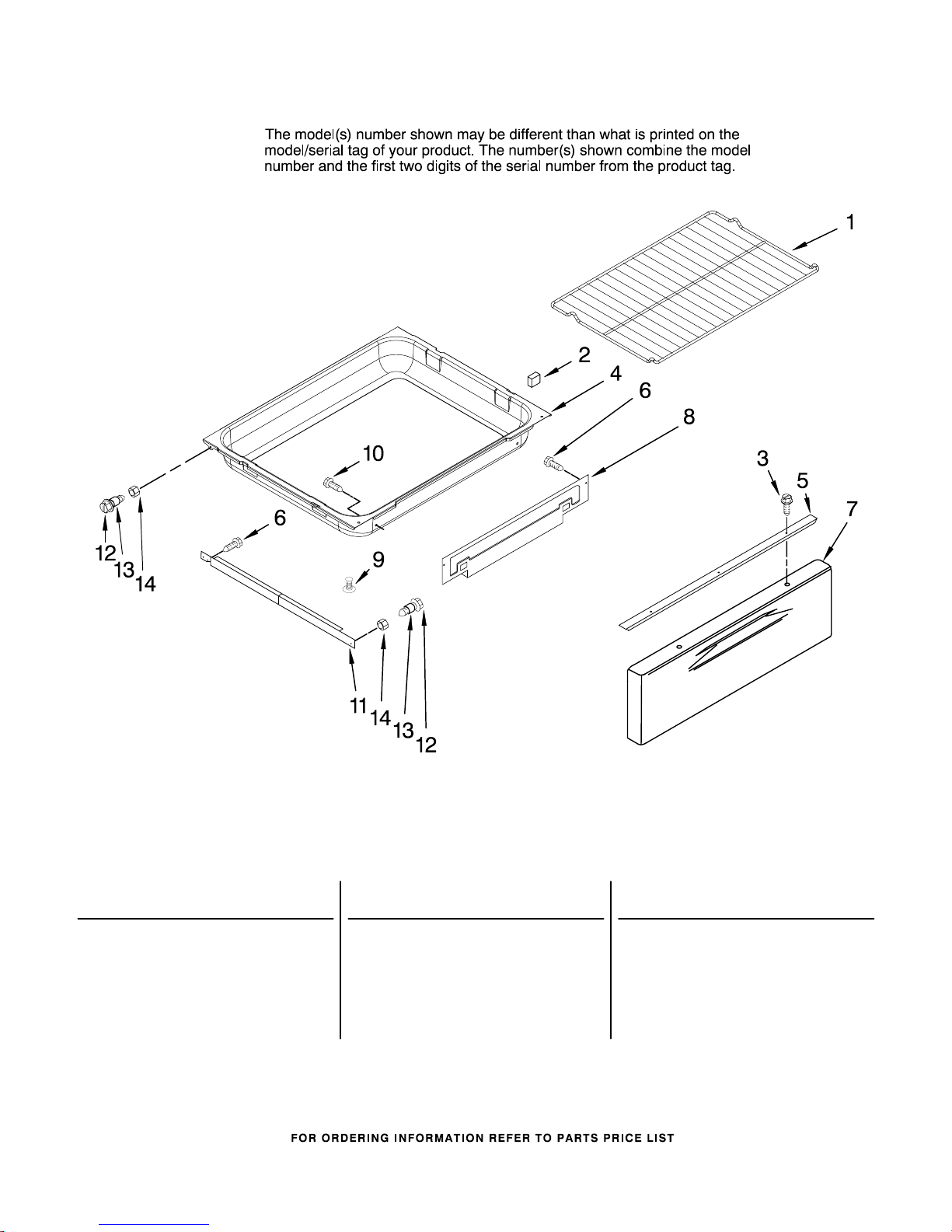

DRAWER AND RACK PARTS

For Models: KGRS205TWH0, KGRS205TSS0, KGRS205TBL0, KGRS205TBT0

(White) (S.Steel) (Black) (Biscuit)

W10206096

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 74008763 Rack, Oven (3)

2 74005546 Spacer, Bumper

3 74009268 Screw

4 74008877 Drawer

5 74008908 Handle, Drawer

6 74002979 Screw

7 Panel, Drawer Frnt

W10159224

Black

W10159223

White

W10159225

Biscuit

8 74009519 Panel, Inner

9 74008688 Drawer, Stop

7101P072−60

Screw

3406P034−51

Rail, Drawer

12 74005231 Shaft, Storage

Drawer Roller

13 74004078 Roller, Drawer

7103P082−60

Nut

OPTIONAL PARTS (NOT INCLUDED)

For Models: KGRS205TWH0, KGRS205TSS0, KGRS205TBL0, KGRS205TBT0

(White) (S.Steel) (Black) (Biscuit)

W10206096

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

242827 Wire, Yellow

14 Ga. 150 c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

72032 Black

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

350939 Black

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit (Uncut)

799340 Black (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

WIRING HARNESS PARTS

5171P893−60

Harness, Main

74006784 Clip, Harness

7101P027−60

Screw, Ground

74006784 Clip, Wire
