KitchenAid KSM500PSER0 Manuel utilisateur
5 QT. STAND MIXER
PRO 500 − LIFT
MODELS:
KSM500PSWH0 (White)
KSM500PSER0 (Empire Red)
KSM500PSOB0 (Onyx Black)
KSM500PSSM0 (Silver Metallic)
Part No. W10184246 Rev. A
1−08 Litho in U.S.A. (wam) c2008 KITCHENAID

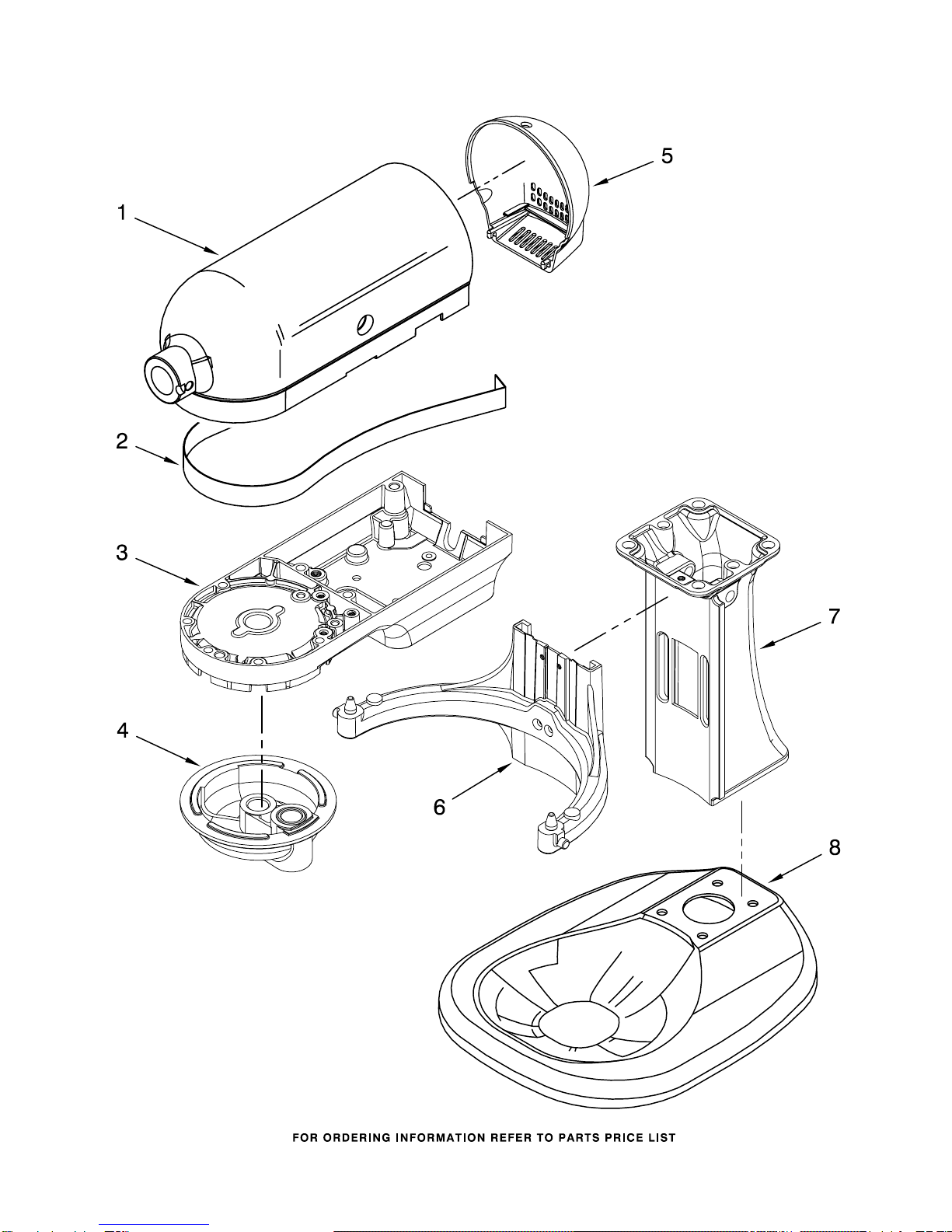

COLOR VARIATION PARTS
2
FOR MODELS:KSM500PS__0
W10184246
COLOR VARIATION PARTS
3
FOR MODELS:KSM500PS__0
W10184246
Illus. Part
No. No. DESCRIPTION
1 Motor Housing
240291−1 White
240291−21
Empire Red
240291−13
Onyx Black
W10121193
Silver Metallic
2 Trim Band
W10158179
Black
3 Lower Gearcase
240354−3 White
9704499 Empire Red
240354−43
Onyx Black
W10158521
Silver Metallic
4 Planetary
240286−1 White
240286−23
Empire Red
240286−16
Onyx Black
W10121190
Silver Metallic
5 End Cover
240253−1 White
240253−22
Empire Red
240253−14
Onyx Black
W10121188
Silver Metallic
6 Bowl Support
And Pins
3179300 White
3179318 Empire Red
3179311 Onyx Black
W10158518
Silver Metallic
7 Column
240148−4 White
9702393 Empire Red
240148−15
Onyx Black
W10158516
Silver Metallic
8 Base & Foot
Assembly
3179280 White
3179299 Empire Red
3179292 Onyx Black
W10158515
Silver Metallic
Colors Subject To Change.
Any Color Not Listed is
No Longer Available.
If Additional Colors Are Added,
This Page Will Be Updated.
CASE, GEARING AND PLANETARY UNIT
4
FOR MODELS:KSM500PS__0
W10184246
CASE, GEARING AND PLANETARY UNIT
5
FOR MODELS:KSM500PS__0
W10184246
Illus. Part
No. No. DESCRIPTION
1 Motor Housing
2 242765−2 Cap, Attachment
Hub
3 9709194 Thumb Screw
4Band, Trim
5 3180161 Washer, Fiber
6
W10112253
Gear, Worm
7 240308 Worm Gear Bracket
and Bearing
8 9705444 Pin
9 240210−2 Shaft & Pinion
10 9705130 Gear, Attachment
Hub Bevel
11 9709627 Bevel Pinion
and Center Gear
12 240026 Shaft, Vertical
Center
13 240018−1 Pin (Vertical
Center Shaft)
14 9705443 Pin, Groove
15 4162324 Gasket, Transmssn
16 67500−55 "O" Ring
17 3180163 Washer
18 Lower Gearcase
19 103994 Screw
20 4176067 Shaft, Agitator
21 9703438 Ring, Retaining
22 9704677 Pin, Groove
23 4162914 Screw
24 Cover, End
25 311932 Screw
26 3400022 Screw
27 240309−2 Worm Gear Bracket
and Gear
28 4160474 Center Shaft and
"O" Ring
30 3400025 Screw
31 3400026 Screw
32 9703903 Pinion, Gear
(Agitator Shaft)
33 9706090 Washer, Shim
34 Planetary
35 240285 Ring, Planetary
Drip
36 9703904 Gear, Internal
Refer to Page 3
Color Variation Parts
MOTOR AND CONTROL PARTS
6
FOR MODELS:KSM500PS__0
W10184246
MOTOR AND CONTROL PARTS
7
FOR MODELS:KSM500PS__0
W10184246
Illus. Part
No. No. DESCRIPTION
1 110679 Screw, Pivot
2 116241 Washer, Spring
3 Lever, Speed
Control Assembly
9709276 Black
4 3183680 Spring, Control
Plate
5 9704324 Washer, Ball
Bearing (Front)
6 9708315 Armature & Bearing
Assembly
7 3180162 Washer
8 16998 Stud, Governor Drv
9 3180526 Bracket, Bearing
Assembly
10 240775−1 Seal, End
11
W10131078
Nut
12 3180238 Washer
13 240769 Screw, Stator
14
W10068270
Washer, Lock
15 3184176 Speed Link & Cam
16 240205 Spring, Flat
17 9702695 Field Assembly
18 4162634 Sleeve, Motor Stud
19 9706416 Brush & Spring
Assembly
20 9707926 Screw, Set
21 4162546 Brush Holder Assy
22 3179908 Housing, Brush
Holder
23 240680 Insert, Brush
Holder
24 116286 Cap, Spring
Seat
25 116287 Spring, Cap
26 3184212 Cap, Brush Holder
27
W10068260
Screw
28
W10119326
Control Plate
Assembly
29 17830 Governor Assembly
30 9706595 Phase Control
Board
31 Cord, Power
W10164883
Black
W10164882
White
32 3184609 Screw, Self Tap
BASE AND PEDESTAL UNIT
8
FOR MODELS:KSM500PS__0
W10184246
BASE AND PEDESTAL UNIT
9
FOR MODELS:KSM500PS__0
W10184246
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
9706634 Use & Care Guide
W10184246
Repair Parts List
2 9709923 Shield, Pouring
3 4162161 Bowl, 5 Qt.
4 240185 Pin, Bowl Locating
5 3182857 Latch, Bowl Spring
6 3400024 Screw
7Bowl Support & Pns
8Base & Foot Assy
9 9708649 Foot
10 9704608 Pin, Cotter
11 9085 Rod, Bowl Lift
12 240169 Bracket, Bowl Lift
13 WS00323 Washer
14 9237 Spring
15 8533907 Nut
16 3182904 Screw
17 3180500 Pin, Dowel
18 240235−4 Beater, Flat
19 3183233 Hook, Dough
20 9704309 Whip, Wire
21 241764 Arm, Bowl Lift
22 240912 Screw
23 9703442 Pin, Roll
24 9079 Handle, Bowl Lift
25 Column Assembly
26 3400018 Screw
Refer to Page 3
Color Variation Parts
ACCESSORY PARTS
10
FOR MODELS:KSM500PS__0
W10184246
Illus. Part
No. No. DESCRIPTION
FOLLOWING PARTS
NOT ILLUSTRATED
4164778 Mixer Attachment
Pak (Includes Food
Grinder (FG−A),
Food Strainer
(FVSP), And
Vegetable Slicer,
(RVS−A)
(FPP−A)
4164749 Food Grinder
(FGA)
8211924 Grain Mill
(KGMA)
4164768 Pasta Maker And
Food Grinder
(Includes SNP
Pasta Maker
Plates)
(SN/FG−A)
4164775 Fruit/Vegetable
Strainer Parts (Use
With FG−A Model
Only) (FVSP)
4164750 Rotor Slicer/Shredder
(With 4 Standard
Cones) Fine Shredder,
Coarse Shredder,
Thick Slicer, And
Thin Slicer (RVS−A)
3177975 Pouring Shield
(KPS2CL)
4164824 Pasta Maker Plates
(SNP−A)
4164774 Fruit/Vegetable
Strainer And Food
Grinder (FVS/FG−A)
3180616 Cover, Decorative
(Cotton Polyester)
4162838 Food Tray (FT)
4164748 Juicer (JE)
4164747 Can Opener (CO)
4164803 Sausage Stuffer
Kit (SSA)
4162154 Water Jacket
(K5AWJ)
3177925 Bowl Cover, Plastic
Non−Sealing
4176100 5 Qt. Bowl,
Polished Stainless
Steel
4164839 Speed Disc
(Service Tool)
4160588 Grease, Planetary
8212519 Ice Cream Maker
(KICA0WH0)
