KitchenAid 4KP26M1XBS4 Manuel utilisateur

c2006 KITCHENAID

6 QT. STAND MIXER

PROFESSIONAL 600 BOWL LIFT

MODELS:

KP26M1XMR4 (Meringue)

KP26M1XBS4 (Blue Steel)

KP26M1XCM4 (Cinnamon)

KP26M1XDP4 (Dark Pewter)

KP26M1XLC4 (Licorice)

KP26M1XMC4 (Metallic Chrome)

KP26M1XNP4 (Nickel Pearl)

KP26M1XPM4 (Pearl Metallic)

KP26M1XBP4 (Brass Pearl)

KP26M1XBR4 (Bronze Pearl)

KP26M1XCE4 (Copper Pearl)

KP26M1XRC4 (Cayenne)

KP26M1XSV4 (Silver Sage)

KP26M1XSE4 (Seashell)

KP26M1XAZ4 (Azure Blue)

4KP26M1XMR4 (Meringue)

4KP26M1XBS4 (Blue Steel)

4KP26M1XDP4 (Dark Pewter)

4KP26M1XLC4 (Licorice)

4KP26M1XMC4 (Metallic Chrome)

4KP26M1XNP4 (Nickel Pearl)

4KP26M1XPM4 (Pearl Metallic)

4−06 Litho in U.S.A. (skr) Part No. 8211764 Rev. B

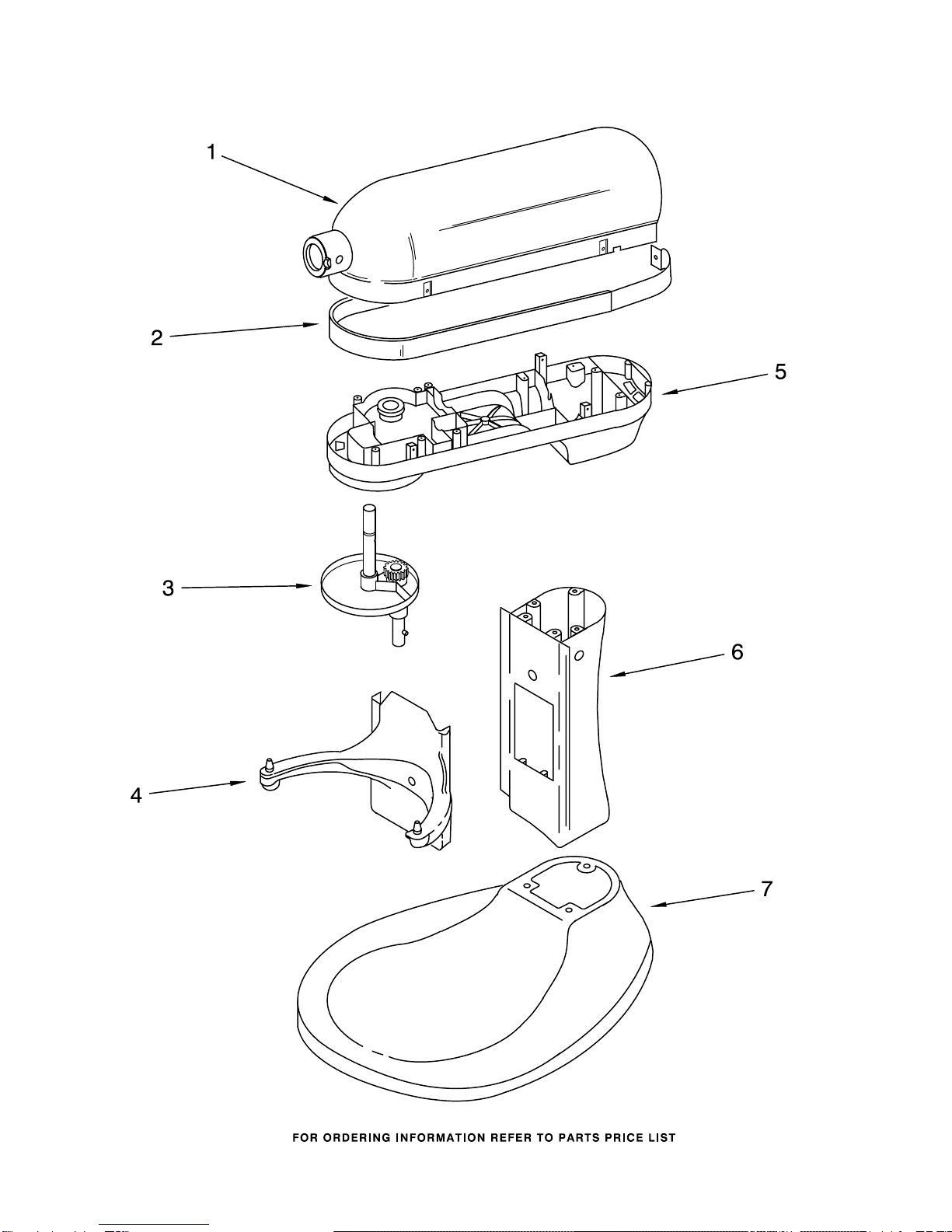

COLOR VARIATION PARTS

For Models: KP26M1X_ _4, 4KP26M1X_ _4

8211764

COLOR VARIATION PARTS

For Models: KP26M1X_ _4, 4KP26M1X_ _4

8211764

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Colors Subject To Change.

Any Color Not Listed is

No Longer Available.

If Additional Colors Are Added,

This Page Will Be Updated.

1 Motor Housing

9708658 Meringue

9708730 Blue Steel

9708527 Cinnamon

9708711 Dark Pewter

9708677 Licorice

9703433 Metallic Chrome

9708749 Nickel Pearl

9707981 Pearl Metallic

9709131 Brass Pearl

9709173 Bronze Pearl

9709152 Copper Pearl

9709321 Cayenne

9709202 Silver Sage

9709813 Seashell

9709794 Azure Blue

2 Trim Band

9708371 Platinum/Frost

3 Planetary

9708662 Meringue

9708734 Blue Steel

9708531 Cinnamon

9708715 Dark Pewter

9708543 Licorice

9708175 Metallic Chrome

9708753 Nickel Pearl

9707977 Pearl Metallic

9709135 Brass Pearl

9709177 Bronze Pearl

9709156 Copper Pearl

9709325 Cayenne

9709206 Silver Sage

9709817 Seashell

9709798 Azure Blue

4 Bowl Support

9708669 Meringue

9708741 Blue Steel

9709059 Cinnamon

9708722 Dark Pewter

9708688 Licorice

9703397 Metallic Chrome

9708760 Nickel Pearl

9707970 Pearl Metallic

9709142 Brass Pearl

9709184 Bronze Pearl

9709163 Copper Pearl

9709332 Cayenne

9709213 Silver Sage

9709824 Seashell

9709805 Azure Blue

5 Lower Gearcase

9708665 Meringue

9708737 Blue Steel

9709073 Cinnamon

9708718 Dark Pewter

9708684 Licorice

9706306 Metallic Chrome

9708756 Nickel Pearl

9707974 Pearl Metallic

9709138 Brass Pearl

9709180 Bronze Pearl

9709159 Copper Pearl

9709328 Cayenne

9709209 Silver Sage

9709820 Seashell

9709801 Azure Blue

6 Column & Pin Asm

9708672 Meringue

9708744 Blue Steel

9709062 Cinnamon

9708725 Dark Pewter

9708691 Licorice

9703349 Metallic Chrome

9708763 Nickel Pearl

9707967 Pearl Metallic

9709145 Brass Pearl

9709187 Bronze Pearl

9709166 Copper Pearl

9709335 Cayenne

9709216 Silver Sage

9709827 Seashell

9709808 Azure Blue

7 Base & Foot

Assembly

9708675 Meringue

9708747 Blue Steel

9709065 Cinnamon

9708728 Dark Pewter

9708694 Licorice

9703346 Metallic Chrome

9708766 Nickel Pearl

9707964 Pearl Metallic

9709148 Brass Pearl

9709190 Bronze Pearl

9709169 Copper Pearl

9709338 Cayenne

9709219 Silver Sage

9709830 Seashell

9709811 Azure Blue

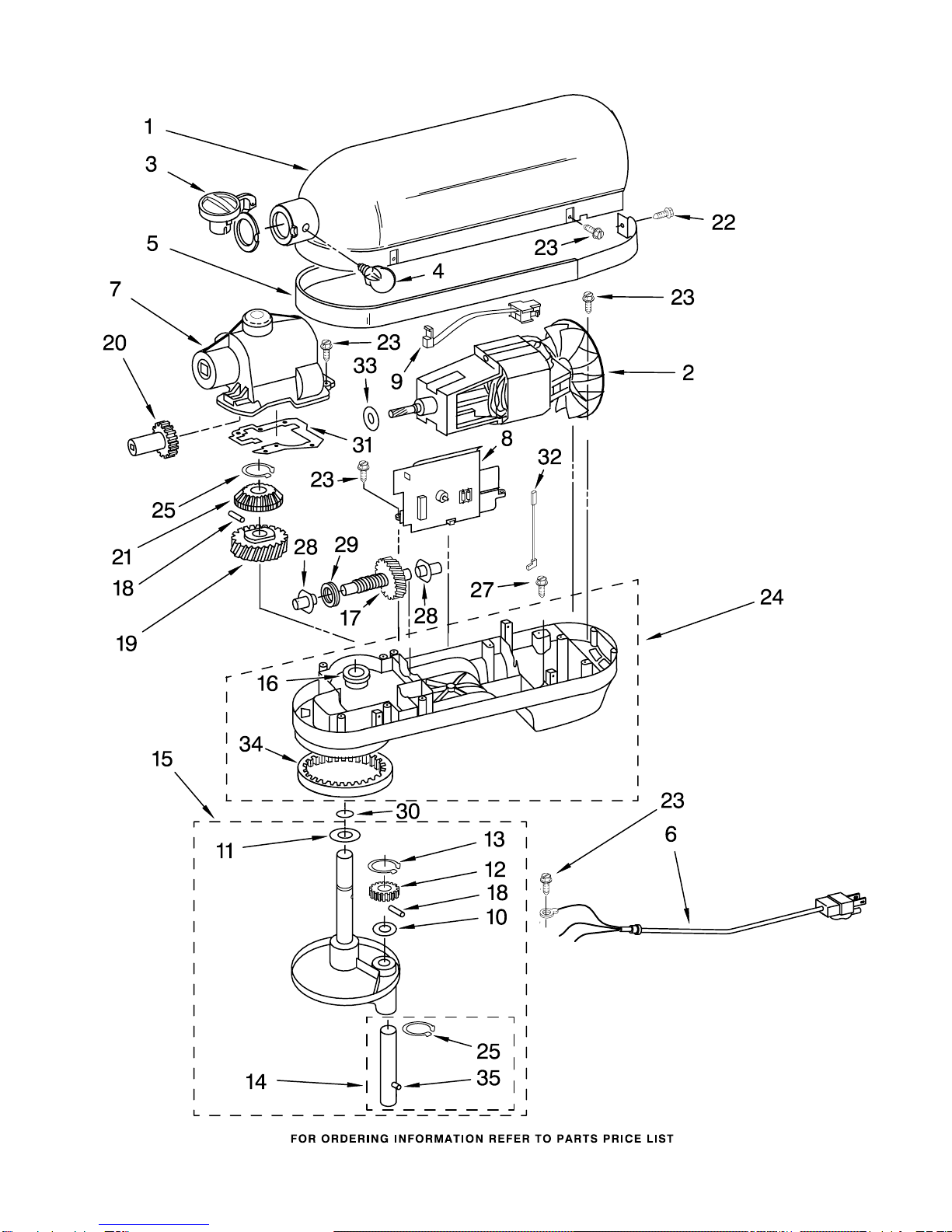

CASE, GEARING AND PLANETARY UNIT

For Models: KP26M1X_ _4, 4KP26M1X_ _4

8211764

CASE, GEARING AND PLANETARY UNIT

For Models: KP26M1X_ _4, 4KP26M1X_ _4

8211764

Illus. Part

No. No. DESCRIPTION

1 Gearcase Motor

Housing

2 9707507 Motor (10 Tooth)

3 Cap, Attachment

Hub

9707983 Pearl Nickel

4 Thumb Screw

9709194 Black

9709196 Grey

5Band, Trim

6 Power Cord

9706551 White

9706552 Black

7 9703671 Transmission

Housing

8 Control Assembly

(Incl. Knob)

9706648 Black Knob

9706649 Gray Knob

9 9703312 Sensor, Hall

Effect

10 9706090 Washer

11 9703434 Washer, Fiber

12 9707627 Gear, Pinion

13 9703438 Clip, Retaining

14 9708191 Shaft, Agitator

15 Planetary Assembly

16 16897 Bearing, Lower

Center

17 9709231 Gear, Worm

18 9707223 Pin, Retaining

19 9706529 Gear, Worm

Follower

20 9703338 Gear, Attachment

Hub Bevel

21 9703337 Gear, Bevel

22 3400617 Screw

23 3400814 Screw

24 Lower Gear Case

25 9703680 Clip, Retaining

27 3400200 Screw

28 Bearing

9703560 Front

9703570 Rear

29 9703445 Bearing, Thrust

30 67500−55 "O" Ring

31 9707425 Gasket,

Transmission Cover

32 9706036 Lead, Motor To

Control

33 9706247 Seal, Motor

Shaft

34 9703339 Gear, Internal

35 9704677 Pin, Groove

Refer To Page 3

Color Variation Parts

BASE AND PEDESTAL UNIT

For Models: KP26M1X_ _4, 4KP26M1X_ _4

8211764

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

Use & Care Guide

9708307 U.S.

9708308 Canada

8211764 Repair Parts List

2 9708649 Foot, Rubber

3Column Assembly

4Bowl Support

5 9703474 Latch, Bowl Spring

6 9706885 Arm, Bowl Lift

7 9706787 Rod, Bowl Lift

8Base And Foot

Supports

9 9703439 Washer

10 9237 Spring

11 4159092 Nut

12 9706788 Handle, Bowl Lift

13 3400863 Screw

14 9703687 Bowl (6 Qt)

15 9703485 Beater, Flat

16 9703655 Hook, Dough

17 9703491 Whip, Wire

18 9703534 Spout, Pouring

19 9703533 Shield, Pouring

20 9703426 Cam, Adjusting

21 3400200 Screw

22 3400018 Screw

23 9703307 Clip

24 4162028 Pin, Bowl Locating

25 9703698 Handle

Refer To Page 3

Color Variation Parts

ACCESSORY PARTS

For Models: KP26M1X_ _4, 4KP26M1X_ _4

8211764

Illus. Part

No. No. DESCRIPTION

4164778 Mixer Attachment

Pak (Includes Food

Grinder (FG−A),

Food Strainer

(FVSP), And

Vegetable Slicer,

(RVS−A)

(FPP−A)

4164749 Food Grinder

(FG−A)

8211924 Grain Mill

(KGMA)

4164768 Pasta Maker And

Food Grinder

(Includes SNP

Pasta Maker

Plates)

(SN/FG−A)

4164775 Fruit/Vegetable

Strainer Parts (Use

With FG−A Model

Only) (FVSP)

4164750 Rotor Slicer/Shredder

(With 4 Standard

Cones) Fine Shredder,

Coarse Shredder,

Thick Slicer, And

Thin Slicer (RVS−A)

4164824 Pasta Maker Plates

(SNP−A)

4164774 Fruit/Vegetable

Strainer And Food

Grinder (FVS/FG−A)

4162838 Food Tray (FT)

4164748 Juicer (JE)

4164747 Can Opener (CO)

4164803 Sausage Stuffer

Kit (SSA)

9707963 Ice Cream Maker

(KICAOWH0)

4160588 Grease, Planetary
