KitchenAid 5KHM9212 Manuel utilisateur
Hand Mixer
5KHM9212
W11606022A.indb 1W11606022A.indb 1 5/10/2022 10:15:53 AM5/10/2022 10:15:53 AM
2
PARTS AND FEATURES
1Swivel Lock Power Cord
2Cord Strap
3Soft Grip Handle
4Digital Speed Control
5Oversized Beater Ejector Button
6Air Vents
7Non-tip Heel Rest
8Flex Edge Beater
9Liquid Blender Rod Accessory
10 Dough Hooks Accessory
11 16-tine Pro Whisk Accessory
89
10 11
5
6
4
3
2
17
W11606022A.indb 2W11606022A.indb 2 5/10/2022 10:15:54 AM5/10/2022 10:15:54 AM
ENGLISH
3

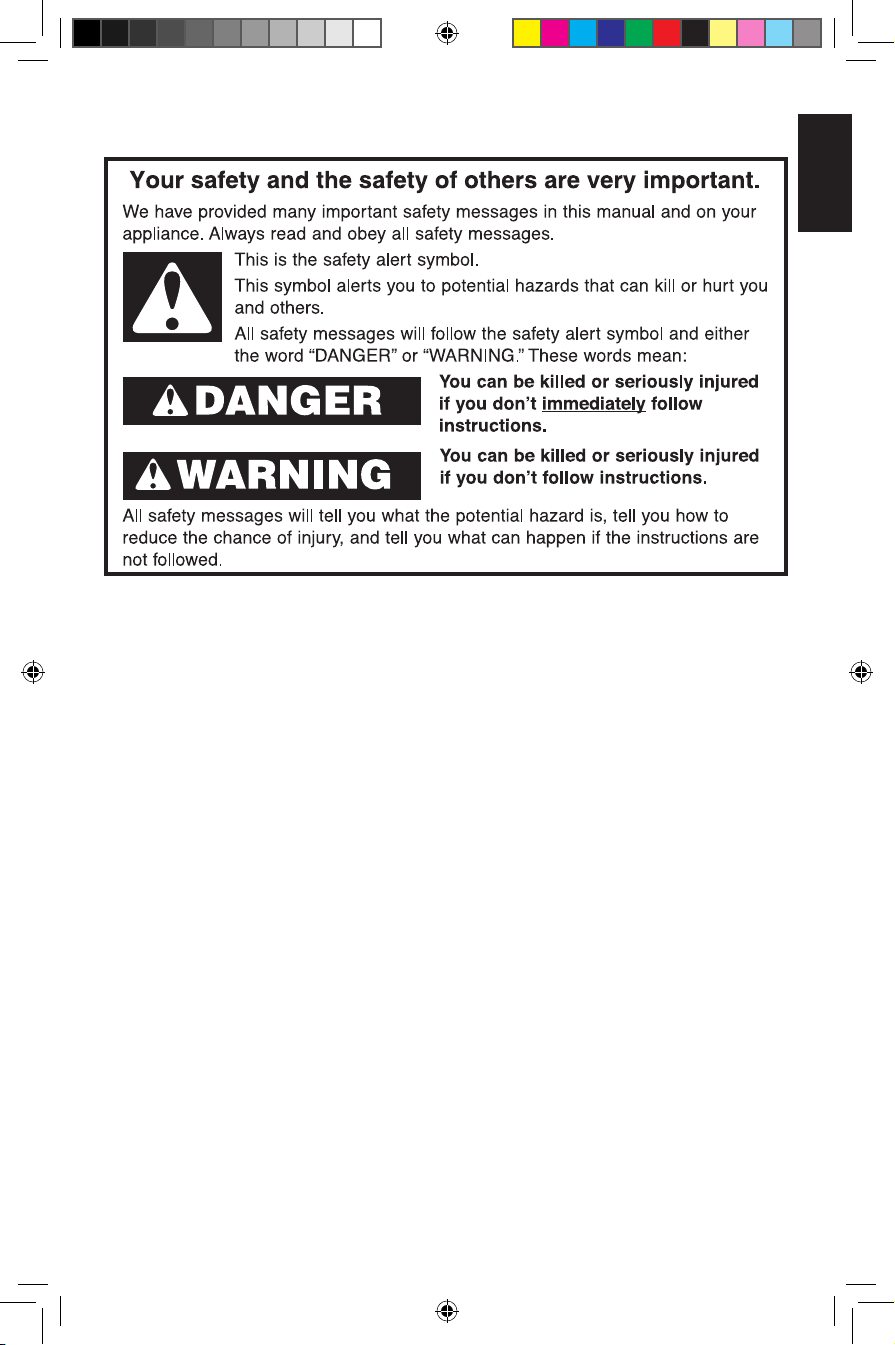

PRODUCT SAFETY
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always
be followed, including the following:
1. Read all instructions. Misuse of appliance may result in personal injury.
2. To protect against the risk of electrical shock do not put Hand Mixer in water or
other liquid.
3. This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory, or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
4. Turn the appliance to OFF (0), then unplug from the outlet when not in use,
before assembling or disassembling parts and before cleaning. To unplug, grasp
the plug and pull from the outlet. Never pull from the power cord.
5. Avoid contacting moving parts. Keep hands, hair, and clothing, as well as
spatulas and other utensils, away from beater during operation to reduce the risk
of injury to persons and/or damage to the Hand Mixer.
6. Do not operate any appliance with a damaged cord or plug or after the appliance
malfunctions, or is dropped or damaged in any manner. Return appliance to
the nearest Authorised Service Facility for examination, repair, or electrical or
mechanical adjustment
7. The use of accessories or attachments not recommended or sold by the
KitchenAid may cause re, electric shock or injury.
8. Do not use the appliance outdoors.
9. Do not let the cord hang over the edge of table or counter.
W11606022A.indb 3W11606022A.indb 3 5/10/2022 10:15:54 AM5/10/2022 10:15:54 AM
4
PRODUCT SAFETY
ELECTRICAL REQUIREMENTS
Voltage: 220-240 V
Frequency: 50-60 Hz
Wattage: 85 W
NOTE: If the plug does not fit in the
outlet, contact a qualified electrician. Do
not modify the plug in any way. Do not
use an adapter.
10. Do not let cord contact hot surface, including the stove.
11. Remove any accessories from the Hand Mixer before washing.
12. Allow the appliance to cool completely before putting on or taking off parts, and
before cleaning the appliance.
SAVE THESE INSTRUCTIONS
ACCESSORY GUIDE
Attachment Uses
Turbo Beater Accessories cookie dough
cake batter
Mixing Rod
smoothies
milkshakes
sauces
salad dressing
Dough Hooks yeast bread doughs
16-wire Whisk
whipped cream
whipped egg whites
sauces
puddings
W11606022A.indb 4W11606022A.indb 4 5/10/2022 10:15:54 AM5/10/2022 10:15:54 AM
ENGLISH
5
SPEED CONTROL GUIDE
NOTE: Beater accessories are not designed for mixing and kneading bread dough.
Special dough hook attachments are available. See the “Accessory Guide” section for
details and ordering information.
IMPORTANT: Hand Mixer should always be set on the lowest speed to start mixing.
Move to higher speeds as needed; the speed setting indicator control will light up with
the corresponding number for each speed.
First, clean all parts and accessories (see “Care and Cleaning” section).
Speed Attachment 9 - Speed Hand Mixer
1 Flex Edge Beater
For slow stirring, combining, and starting
all mixing procedures. Use this speed to
stir in nuts, chocolate chips, shredded
cheese, onions, olives, and other chunky
ingredients. Helps prevent ingredients
from splashing out of bowl.
2Flex Edge Beater
Dough Hook
Mix flour and other dry ingredients with
liquids or other moist mixtures.
3
Flex Edge Beater
Mix pancake batter.
4
Combine heavy mixtures, such as cookie
dough. Mix light cream cheese spreads.
Stir batters and gelatin mixtures.
5
Mix muffins and quick breads. Combine
heavy cream cheese mixtures. Mash
potatoes or squash.
6Flex Edge Beater
Dough Hook
Mix batter breads. Blend butter and sugar.
Mix frostings.
7 Flex Edge Beater Finish mixing cake and other batters.
8
16-tine Whisk
Liquid Blender Rod
Whip cream and mousse mixtures.
Mix liquid preparations (milkshakes,
sauces) and emulsify salad dressings.
9
Beat egg white and meringue mixtures.
Mix liquid preparations (milkshakes,
sauces) and emulsify salad dressings
W11606022A.indb 5W11606022A.indb 5 5/10/2022 10:15:54 AM5/10/2022 10:15:54 AM
6
PRODUCT ASSEMBLY
ATTACHING THE ACCESSORIES
IMPORTANT: Read and follow the specific
instructions in this manual for proper use of
the Hand Mixer.
Before attaching any accessories, unplug
the Hand Mixer from the electrical outlet.
1
Paired accessories (Turbo Beater
Accessories, Dough Hooks) include one
accessory with a collar (D) and one without
(C). The single accessory comes with a collar
(D) (Mixing Rod) or without (C) (Whisk).
Insert the accessory shaft with the collar
(D) into the larger opening (B) of the
hand mixer. Align the flanges on the shaft
with the slots in the opening. Push to
lock into place.
2
Insert the accessory without a collar (C)
into the smaller opening (A). Align and
push to lock into place.
3NOTE: An accessory shaft without a collar
maybe used in either opening (A or B).
Those with a collar may only be used in the
larger opening (B).
D
C
BA
D
B
W11606022A.indb 6W11606022A.indb 6 5/10/2022 10:15:54 AM5/10/2022 10:15:54 AM
ENGLISH
7
PRODUCT ASSEMBLY
REMOVING THE ACCESSORIES
Slide the Power switch to the “O” (Off)
position. Then unplug the Hand Mixer
from an electrical outlet.
1
Press the ejector button to release the
accessories from the Hand Mixer, then
remove them.
2
This KitchenAid Hand Mixer will beat faster
and more thoroughly than most other electric
hand mixers. Therefore, the beating time in
most recipes must be adjusted to avoid over
beating. Beating time is faster due to larger
beater sizes.
To help determine the ideal beating time,
observe the batter or dough and beat only
until it has the desired appearance described
in your recipe, such as “smooth and creamy”.
To select the best beating speeds, use the
“Speed Control Guide” section.
OPERATING THE SPEED CONTROL
PRODUCT USAGE
Plug the Hand Mixer into an electrical
outlet. Slide the Power switch to the
“I” (ON) position. The motor will
automatically start at Speed 1, and the
“1” on the speed indicator control will
light up.
1
Touch the “UP (arrow)” button and the
“DOWN (arrow)” button to increase or
decrease the mixing speed. See the “Speed
Control Guide” for more information.
2
W11606022A.indb 7W11606022A.indb 7 5/10/2022 10:15:55 AM5/10/2022 10:15:55 AM
8
When finished, slide the Power switch to
the “O” (Off) position. Then unplug the
Hand Mixer from an electrical outlet.
3
CARE AND CLEANING
IMPORTANT: Allow the appliance to cool completely before putting on or taking
off parts, and before cleaning the appliance. Do not immerse the Hand Mixer body
in water or other liquids. Do not use abrasive cleansers or scouring pads to avoid
scratching.
Wipe the Hand Mixer body with a soft,
damp cloth.
2
Electrical Shock Hazard
Do not put in water.
Doing so can result in death or
electrical shock.
Slide the Power switch to the “O” (Off)
position. Then unplug the Hand Mixer
from an electrical outlet.
1
PRODUCT USAGE
W11606022A.indb 8W11606022A.indb 8 5/10/2022 10:15:55 AM5/10/2022 10:15:55 AM
ENGLISH
9
The following parts are dishwasher-safe, top
rack only: Flex Edge Beater*, 16-Tine Pro
Whisk*, Dough Hooks* and Liquid Blender
Rod*.
3
CARE AND CLEANING
TROUBLESHOOTING GUIDE
Problem Solution
If the Hand Mixer fails to start:
Check if the Hand Mixer is securely plugged into an
outlet.
If you have a circuit breaker box, make sure the circuit is
closed.
If the problem cannot be fixed:
Then contact KitchenAid or an Authorized Service Center.
Do not return the Hand Mixer to the retailer; retailers do
not provide service.
©2022 All rights reserved.
W11606022A.indb 9W11606022A.indb 9 5/10/2022 10:15:55 AM5/10/2022 10:15:55 AM
10
1
2
3
4
5
6
7
8
9
10
11 Pro Whisk 16
89
10 11
5
6
4
3
2
17
W11606022A.indb 10W11606022A.indb 10 5/10/2022 10:15:56 AM5/10/2022 10:15:56 AM
