KitchenAid KUDP01FLBL3 Manuel utilisateur
1
DOOR AND PANEL PARTS
For Models: KUDP01FLBL3, KUDP01FLWH3, KUDP01FLBT3, KUDP01FLSS3
(Black) (White) (Biscuit) (Stainless)
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
LIT8531579
Instructions,
Installation
LIT8531624
Energy Guide
LIT8531532
Guide, Use & Care
Tech Sheet
LIT8531822
Video, Use & Care
(DVD)
LIT8537797
English/French
2 Arm, Hinge
8534854 Left
8534853 Right
3 8268983 Stiffener,
Door
4 8524576 Panel Front
5 Access Panel
(Inculdes Item 14)
8543838 Black
8543839 White
8543840 Biscuit
6 9744437 Plate, Backing
7 Panel, Full Front
(Includes Items
16 & 17)
8531226 Black
8531227 White
8531228 Biscuit
8531225 Stainless
8 Toe Panel
(Includes Item 11)
8270026 Black
8269000 White
8269001 Biscuit
9 Handle
(Includes
Items 6 & 10)
8524418 Black
8524416 White
8524417 Biscuit
8524415 Stainless
10 3400067 Screw
11 8268581 Insulation,
Toe Panel
12 Screw
302868 Black
3400836 White
3400865 Biscuit
13 304392 Screw
14 8268584 Insulation,
Access Panel
15 3400071 Screw (2)
16 Nameplate
2005292 Black
2209118W White
2209118T Biscuit
17 2004333 Nut
01−05 Litho in U.S.A. (rle) Part No. 8193930 Rev. A
CONTROL PANEL PARTS
2
For Models: KUDP01FLBL3, KUDP01FLWH3, KUDP01FLBT3, KUDP01FLSS3
(Black) (White) (Biscuit) (Stainless)
8193930
Illus. Part
No. No. DESCRIPTION
1 8531536 Console Assembly
(Includes Insert
& Medallion)
2 8531262 User Interface
3 8524447 Ribbon Cable
4 8524547 Shield
5 8524426 Medallion
6 8269213 Fuse, Thermal
Electronic
7 3400412 Screw
8 3369051 Screw (4)
9 8270175 Latch Assembly
11 8534963 Control,
Electronic
12 8269209 Switch, Door
DOOR AND LATCH PARTS
3
For Models: KUDP01FLBL3, KUDP01FLWH3, KUDP01FLBT3, KUDP01FLSS3
(Black) (White) (Biscuit) (Stainless)
8193930
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8281217 Screw
3 8530900 Inner Door
Mastic Assembly
(Also Order
Item 6)
4 8268937 Inlet, Air
5 8531759 Vent Assembly
(Also Order
Item 6)
6 8269259 Gasket, Vent
7 8545536 Deflector, Vent
(Also Order
Item 6)
8 8269996 Dispenser,
Assembly
11 8268541 Shield, Dispenser
12 8534932 Wiring Harness
Main
13 8281154 Screw (6)
14 8269143 Seal,
Console/door
15 8269743 Bracket,
Dispenser
17 8533380 Cap, Rinse Aid
18 8531799 Shield, Solenoid
4
LOWER WASHARM AND STRAINER PARTS
For Models: KUDP01FLBL3, KUDP01FLWH3, KUDP01FLBT3, KUDP01FLSS3
(Black) (White) (Biscuit) (Stainless)
8193930
Illus. Part
No. No. DESCRIPTION
1 8268300 Wash Arm Assembly
2 8268343 Cap, Internal
Rear Feed
3 8268340 Seal, Sprayarm
4 8268342 Hub, Lower
Sprayarm
HEATER PARTS
5
For Models: KUDP01FLBL3, KUDP01FLWH3, KUDP01FLBT3, KUDP01FLSS3
(Black) (White) (Biscuit) (Stainless)
8193930
Illus. Part
No. No. DESCRIPTION
1 8194200 Heater Element
Assembly
(Also Includes
Item 2 and
Electronic
Control)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
5 3400931 Retainer,
Spring Grip
NOTE:
If heater element is
removed, it must be replaced.

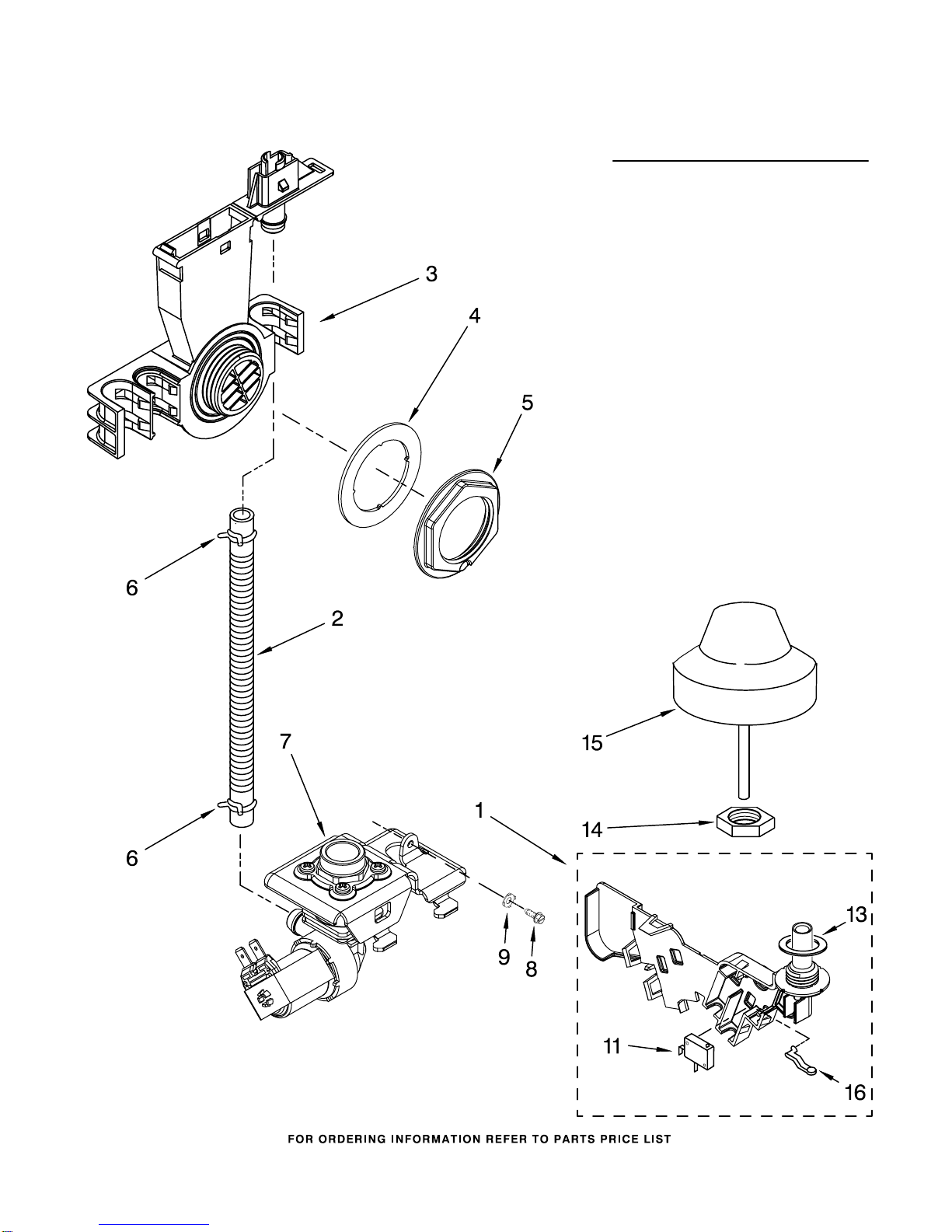

FILL AND OVERFILL PARTS
6
For Models: KUDP01FLBL3, KUDP01FLWH3, KUDP01FLBT3, KUDP01FLSS3
(Black) (White) (Biscuit) (Stainless)
8193930
Illus. Part
No. No. DESCRIPTION
1 8545946 Control, Overfil
Assembly
2 8531412 Hose, Inlet
3 8531325 Water Inlet
(Also Order
Item 4)
4 8531323 Gasket
5 8531327 Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
7 8531669 Fill Valve
Assembly
8 3400014 Screw
9 3378128 Washer
11 8268909 Switch, Overfill
Control
13 8531743 Gasket, Flat
14 9741998 Nut, Standpipe
15 8268895 Float & Retainer
Assembly
16 8268892 Lever, Overflow
Switch
TUB AND FRAME PARTS
7
For Models: KUDP01FLBL3, KUDP01FLWH3, KUDP01FLBT3, KUDP01FLSS3
(Black) (White) (Biscuit) (Stainless)
8193930
8
TUB AND FRAME PARTS
For Models: KUDP01FLBL3, KUDP01FLWH3, KUDP01FLBT3, KUDP01FLSS3
(Black) (White) (Biscuit) (Stainless)
8193930
Illus. Part
No. No. DESCRIPTION
1 8531733 Tub Assembly
(Also Order
Item 2)
2 8268395 Seal, Sump
3 8531629 Door Seal
4 8270119 Plug Tub (2)
5 8531022 Drain Loop
With Check Valve
7 8269110 Seal, Cabinet
9 8270021 Mount, Door
Balance
10 3367670 Screw
11 8269145 Bracket,
Undercounter
12 3400074 Screw (2)
14 3370389 Screw (2)
15 8268977 Wheel Leg
16 8524584 Leveler, Leg
17 8524474 Wheel, door
Balance
18 8270182 Spring, Door
Balance
20 3400892 Screw
21 8268991 Cover, Terminal
Box
24 8270022 Link, Door
Balance
26 304666 Retainer, Push (2)
27 8269016 Clip, Grounding
28 8531027 Shield, Sound
Tub
29 9742648 Bracket,
Thermostat
30 661566 Thermostat
31 8269426 Strike, Latch
32 9741232 Screw
46 8542575 Switch, Pressure
48 356138 Clamp, Hose (1)
PUMP AND MOTOR PARTS
9
For Models: KUDP01FLBL3, KUDP01FLWH3, KUDP01FLBT3, KUDP01FLSS3
(Black) (White) (Biscuit) (Stainless)
8193930
PUMP AND MOTOR PARTS
10
For Models: KUDP01FLBL3, KUDP01FLWH3, KUDP01FLBT3, KUDP01FLSS3
(Black) (White) (Biscuit) (Stainless)
8193930
Illus. Part
No. No. DESCRIPTION
1 8534952 Accumulator Assy
2 8268529 Shield
3 3400069 Screw
4 8268382 Sump
5 8268375 Check Valve, Sump
6 8268383 Chopper Assembly
7 9741232 Screw
8 8268390 Protector, Inlet
9 8268427 Protector, Foreign
10 8534942 Motor Assembly
11 3400217 Screw
12 8268391 Screen, Separation
13 8268395 Seal, Sump
14 8545578 Sump & Motor
Assembly
15 8269524 Tab, Sump
16 3400921 Nut
17 661658 Pump, Drain
18 8531019 Volute, Back
(Also Order
ItemS 23 & 30)
19 8269144 Hose, Drain
20 8534941 Motor
21 8268397 Seal, Volute
22 8531017 Impeller Kit
(Also Order
Item 30)
23 8268403 Face Seal Assembly
(Also Order
Item 30)
24 356138 Clamp, Hose
25 8269208 Thermister
26 8269507 Capacitor
27 8534946 Shield,
Capacitor
28 8269449 Shield, Drain
Pump
29 8269501 Shield, Pressure
switch
30 8531018 Washer
