DOOR AND PANEL PARTS
For Models: KUDS25SHBL1, KUDS25SHWH1, KUDS25SHAL1, KUDS25SHBT1
(Black) (White) (Almond) (BISCUIT)
6-99 Litho in U.S.A. (rle) Part No. 4172166
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
LIT9743822
Instructions
Installation
LIT9744391
Energy Guide
LIT9744039
Guide, Use&Care
Tech Sheet
LIT9744033
English
LIT9744034
French
2 302868 Screw
3 9742964 Stiffener,
Door
4 Panel Front
3379375 Black Model
3379376 White Model
3379377 Almond Model
8054178 Biscuit Model
5 Access Panel
& Clip Assembly
(Includes Items 11 & 12)
9744392 Black Model
9744393 White Model
9744394 Almond Model
9744395 Biscuit Model
6 9743986 Spring, Door (2)
7 3373234 Bushing, Spring
Door (2)
8 Toe Panel
(Includes Item 11)
9744147 Black Model
9744148 White Model
9744149 Almond Model
8054181 Biscuit Model
9 9743788 Frame,Door
10 9743825 Insulation
11 3379326 Insulation
12 3378123 Clip, Grounding
13 3367670 Screw (2)
14 9744140 Seal, Toe Panel
15 3400803 Screw (2)
21 8054188 Barrier,
Lower Vent
CONTROL PANEL PARTS
2
For Models: KUDS25SHBL1, KUDS25SHWH1, KUDS25SHAL1, KUDS25SHBT1
(Black) (White) (Almond) (BISCUIT)
4172166
Illus. Part
No. No. DESCRIPTION
1 Console Asm.
includes Active
Overlay & Insert
9744112 Black Model
9744113 White Model
9744114 Almond Model
9744115 Biscuit Model
4 9743573 Spring, Handle
5 9743572 Link, Handle
6 9743412 Sponge, Vent
8 3369051 Screw (4)
9 Handle, Latch
9743903 Black Model
9743904 White Model
9743905 Almond Model
9743906 Biscuit Model
10 3380655 Latch Lever Asm.
DOOR AND LATCH PARTS
3
For Models: KUDS25SHBL1, KUDS25SHWH1, KUDS25SHAL1, KUDS25SHBT1
(Black) (White) (Almond) (BISCUIT)
4172166
DOOR AND LATCH PARTS
4
For Models: KUDS25SHBL1, KUDS25SHWH1, KUDS25SHAL1, KUDS25SHBT1
(Black) (White) (Almond) (BISCUIT)
4172166
Illus. Part
No. No. DESCRIPTION
1 9743399 Knob, Dispenser
2 3369325 Switch
3 3369051 Screw, Door
4 3380654 Latch, Bolt Assy.
(Includes Item 2)
5 3400404 Screw
6 9742353 Inner Door
Mastic Assembly
(Also Includes
Items 7, 9 & 10)
7 9743542 Seal, Door
Lower
8 9742770 Vent Assembly
(Also Order Item 9)
9 9742782 Gasket, Vent
10 9742780 Deflector, Vent
(Also Order
Item 9)
11 9744335 Dispenser,
Assembly
12 9743450 Shield,
Dispenser
13 9742623 Bracket, Controls
15 9743487 Guide, Door
16 9743486 Bracket,
Dispenser (2)
19 9744031 Control,
Electronic
20 3177991 Screw (2)
22 9743451 Fuse Thermal
Electronic
24 9743154 Dispenser,
Wiring Harness
25 9742397 Sound Absorber
26 9742852 Sensor, Rinse Aid
27 3376405 Elbow, Harness
30 9744027 Wiring Harness
Main
33 3400700 Screw (6)
35 9743806 Seal,
Console/door
5
LOWER WASHARM AND STRAINER PARTS
For Models: KUDS25SHBL1, KUDS25SHWH1, KUDS25SHAL1, KUDS25SHBT1
(Black) (White) (Almond) (BISCUIT)
4172166
Illus. Part
No. No. DESCRIPTION
1 9742947 Wash Arm Assembly
2 9742945 Nut, Washarm
3 9742646 Strainer (Coarse)
4 9742946 Bearing, Radial
5 3376846 Seal, Sprayarm

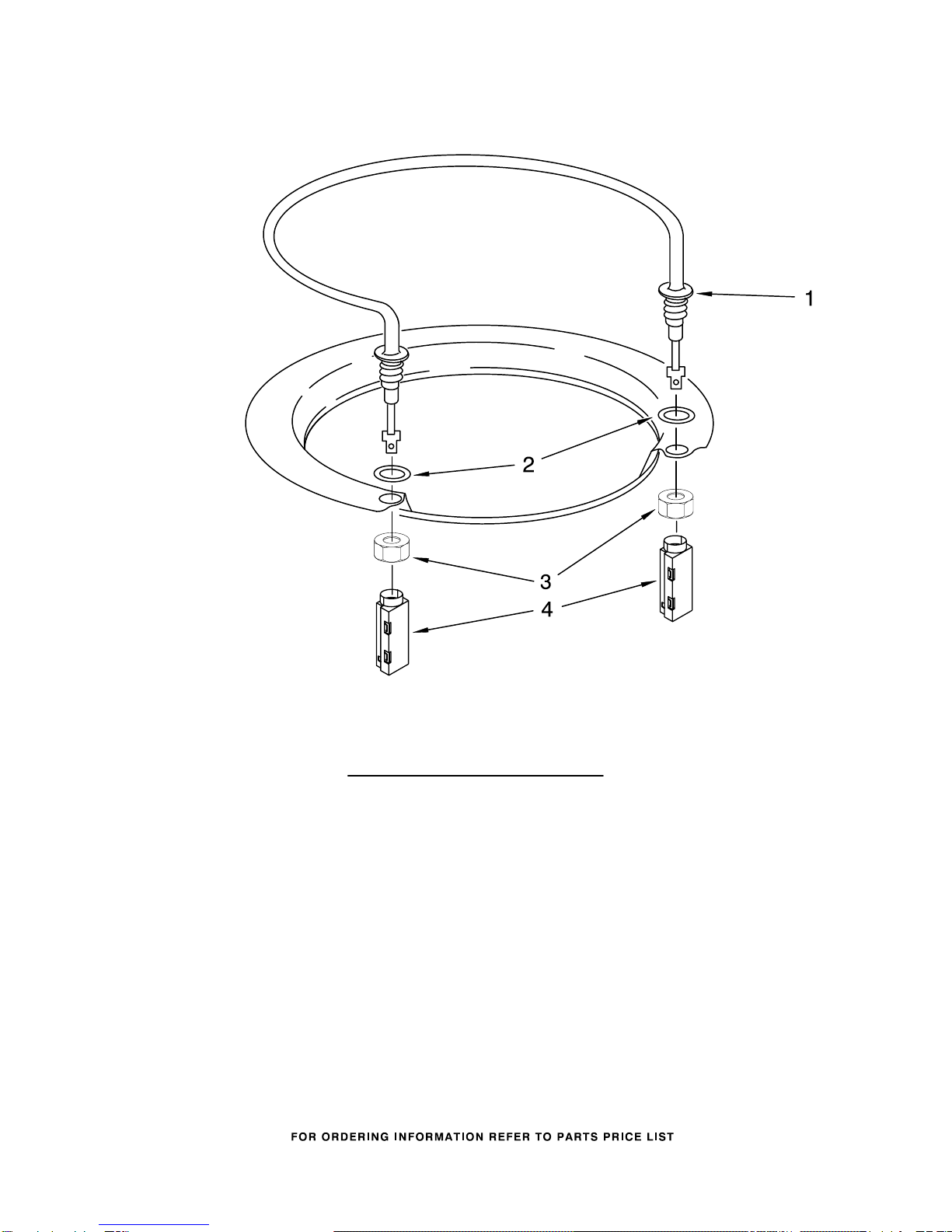

HEATER PARTS
6
For Models: KUDS25SHBL1, KUDS25SHWH1, KUDS25SHAL1, KUDS25SHBT1
(Black) (White) (Almond) (BISCUIT)
4172166
Illus. Part
No. No. DESCRIPTION
1 9743495 Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 9743039 Nut, Heater
Element
4 9743166 Pod, Terminal
Heater
FILL AND OVERFILL PARTS
7
For Models: KUDS25SHBL1, KUDS25SHWH1, KUDS25SHAL1, KUDS25SHBT1
(Black) (White) (Almond) (BISCUIT)
4172166
Illus. Part
No. No. DESCRIPTION
1 9741999 Control, Overfill
Assembly
(Also Order
Item 14)
2 9742727 Hose, Inlet
3 9744288 Water Inlet
Assembly
(Includes
Items 4 & 5)
4 9742787 Gasket
5 9742786 Bezel, Inlet
6 301958 Clamp, Hose
7 9744284 Fill Valve
Assembly
8 304392 Screw
9 9744360 Flapper
10 3935667 Screw
11 9743413 Switch, Overfill
Control
12 9741997 Standpipe,
Overfill
13 4161670 Gasket, Flat
14 9741998 Nut, Standpipe
15 9743070 Float & Retainer
Assembly
16 4171116 Lever, Overflow
Switch
UPPER WASH AND RINSE PARTS
8
For Models: KUDS25SHBL1, KUDS25SHWH1, KUDS25SHAL1, KUDS25SHBT1
(Black) (White) (Almond) (BISCUIT)
4172166
Illus. Part
No. No. DESCRIPTION
1 3378147 Seal, Sprayarm
2 3400031 Screw
3 9742989 Sprayarm, Upper
(Also Order
Item 1)
5 9742994 Mount, Tiered
6 3378144 Tube, Connector
7 3378145 Holder, Water
Inlet Funnel
9 9743473 Connector
(Includes Items
13, 14 & 15)
10 9744135 Feed Tube
Assembly
13 9743475 Washer
14 9740848 Screw
15 9743474 Gasket, Connector
16 9742953 Seal, Tube
17 9743194 Mount, Top
Upper Sprayarm
24 9743958 Tube (3rd level)
25 3379369 Wash Asm.,
(3rd level)
TUB AND FRAME PARTS
9
For Models: KUDS25SHBL1, KUDS25SHWH1, KUDS25SHAL1, KUDS25SHBT1
(Black) (White) (Almond) (BISCUIT)
4172166
10
TUB AND FRAME PARTS
For Models: KUDS25SHBL1, KUDS25SHWH1, KUDS25SHAL1, KUDS25SHBT1
(Black) (White) (Almond) (BISCUIT)
4172166
Illus. Part
No. No. DESCRIPTION
1 9744192 Tub Assembly
3 9743590 Door Seal
4 9742788 Plug Tub (2)
5 9743468 Wheel & Mount
Assembly
(Also Order
Item 6)
6 9743002 Gasket, Bracket
Mounting
7 3378056 Tub Stiffener
8 3400003 Screw (8)
9 9743149 Rear Support
Assembly
10 343641 Screw
11 9742610 Connector
Tub To Brace
12 90767 Screw (2)
13 304392 Screw
14 3370389 Screw (2)
15 302819 Wheel Leg
16 3374849 Leveler, Leg
17 9743488 Spacer, Tank - RH
18 9743489 Spacer, Tank - LH
19 3378131 Terminal Box
20 3369138 Screw
21 300068 Cover, Terminal
Box
22 3400014 Screw
23 3378128 Washer
24 3370307 Strain, Relief
25 9743460 Trim Strip, Tub
26 304666 Retainer, Push (2)
27 9742789 Corner Trim, Tub
28 9742661 Shield, Sound
Tub
29 9742648 Bracket,
Thermostat
30 661566 Thermostat
31 9742722 Strike, Latch
32 3379938 Pad, Friction
33 3370225 Screw, Ground
46 3380871 Switch, Pressure
47 3380785 Hose, Pressure
Switch
48 3380943 Clamp, Hose (2)
