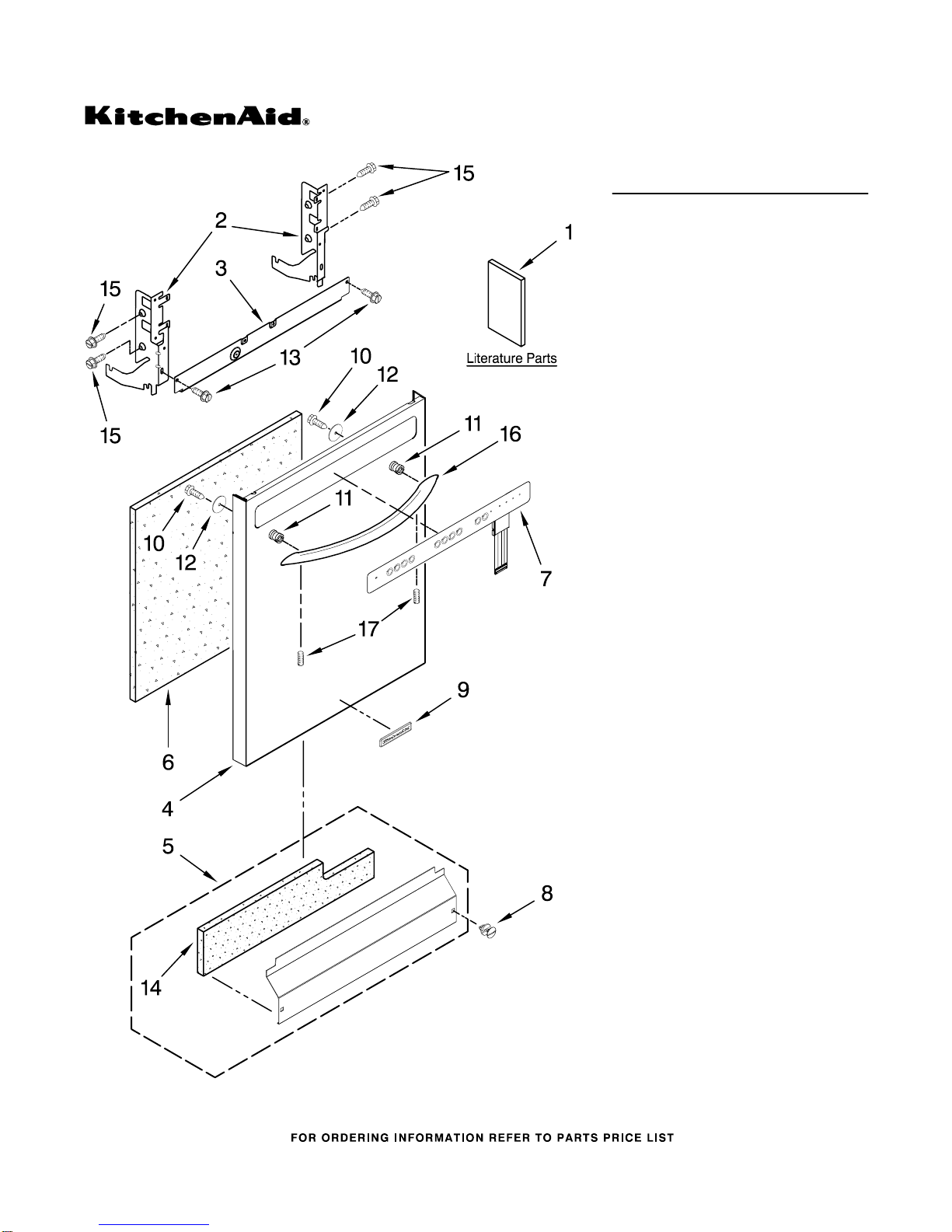

DOOR AND PANEL PARTS
1
For Models: KUDC20CVBL5, KUDC20CVWH5, KUDC20CVSS5
(Black) (White) (Stainless)
1−11 Litho in U.S.A. (ELS) (eeb) Part No. W10392110 Rev. A
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10275503
Instructions,
Installation
W10311167
Energy Guide
W10300234
Guide, Use & Care
Spanish
W10300233
Guide, Use & Care
English/French
W10142800
Tech Sheet
2 Arm, Hinge
8534854 Left
8534853 Right
3 8268983 Stiffener,
Door
4 Panel Front
(Includes Items
6, 9 & 11)
W10077999
Black
W10078000
White
W10137621
Stainless
5 Access Panel
W10369024
Black
W10369026
White
6
W10073520
Insulation, Door
7 Bezel, Console
W10243193
Black
W10243194
White
W10243195
Stainless
8 Fastener
W10331789
Black
W10331793
White
9 Nameplate
W10243392
Black
W10243393
White
W10243391
Stainless
10
W10123421
Screw
11 8564951 Stud, Mounting
12
W10133538
Plate, Backer
13 304392 Screw
14
W10073540
Insulation, Access
Panel
15 3400071 Screw
16 Handle
(Includes
Items 17)
W10257146
Black
W10257147
White
W10257145
Stainless
17 8534008 Screw

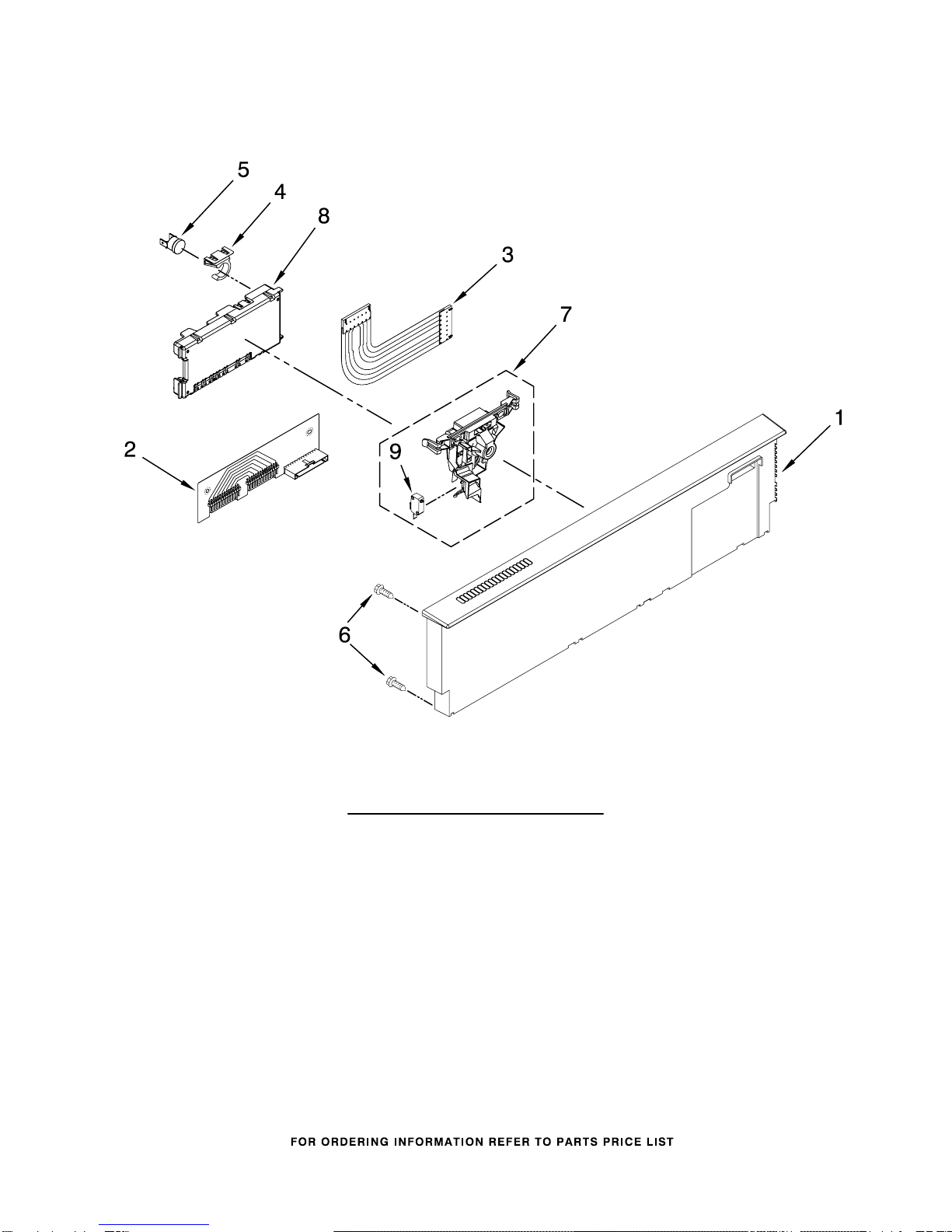

CONTROL PANEL AND LATCH PARTS
2
For Models: KUDC20CVBL5, KUDC20CVWH5, KUDC20CVSS5
(Black) (White) (Stainless)
W10392110
Illus. Part
No. No. DESCRIPTION
1 Console Asm.
W10243233
Black
W10243234
White
W10243235
Stainless
2 8531873 Interconnect
3 8531877 Cable, Ribbon
4 8546546 Clip, BI−Metal
5 661663 BI−Metal
6 3369051 Screw
7
W10077360
Latch Assembly
8
W10285180
Control,
Electronic
9
W10102497
Switch, Door

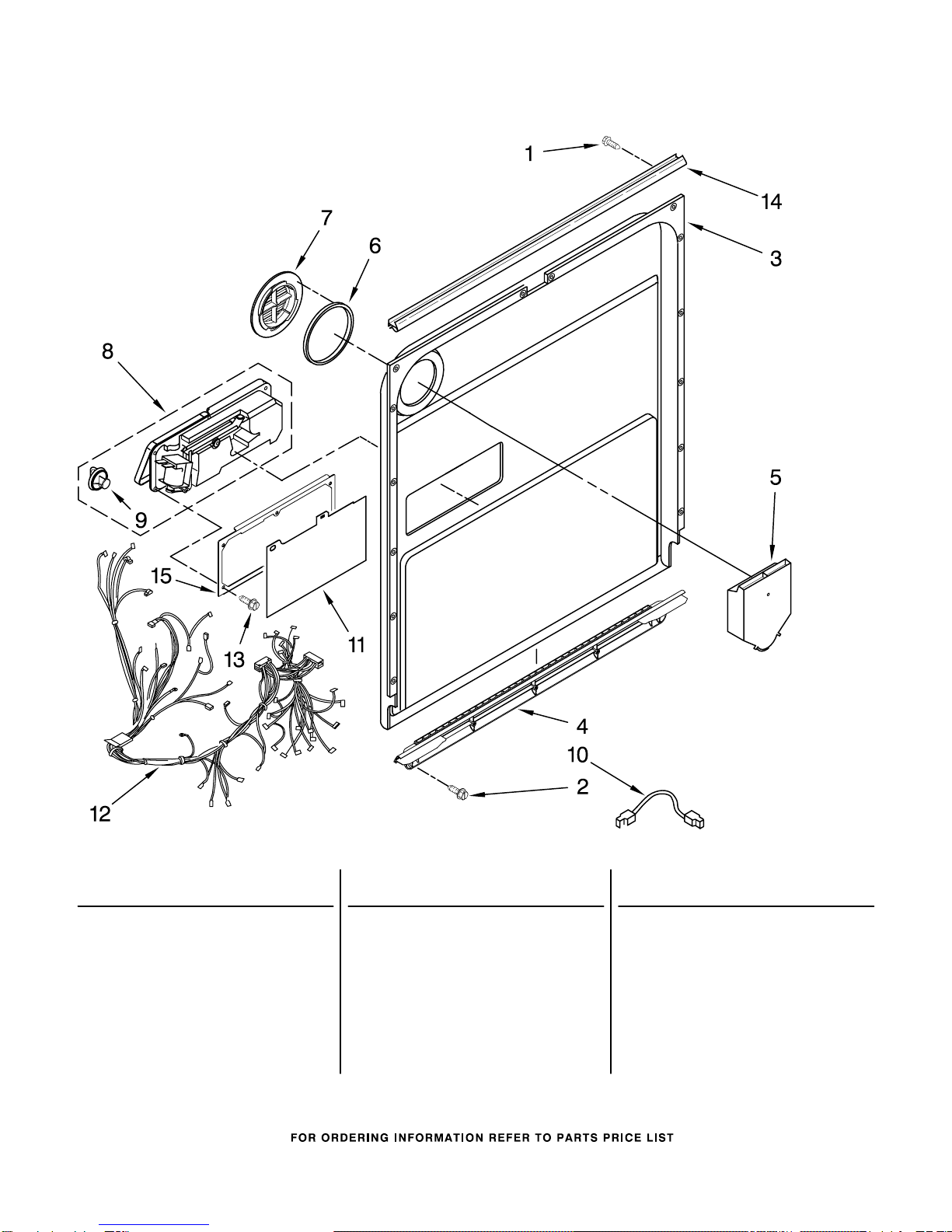

INNER DOOR PARTS
3
For Models: KUDC20CVBL5, KUDC20CVWH5, KUDC20CVSS5
(Black) (White) (Stainless)
W10392110
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8281217 Screw
3
W10056249
Inner Door
Mastic Assembly
(Also Order
Item 6)
4
W10077883
Inlet, Air
5 8572611 Vent Assembly
(Also Order
Item 6)
6 8269259 Gasket, Vent
7
W10077877
Deflector, Vent
(Also Order
Item 6)
8
W10224431
Dispenser,
Assembly
9
W10077881
Knob, Rinse Aid
10 8545608 Harness, Vent
Motor
11
W10319030
Shield, Dispenser
12
W10341070
Wiring Harness
Main
13
W10177098
Screw
14 8535660 Seal,
Console/door
15 8535637 Bracket,
Dispenser

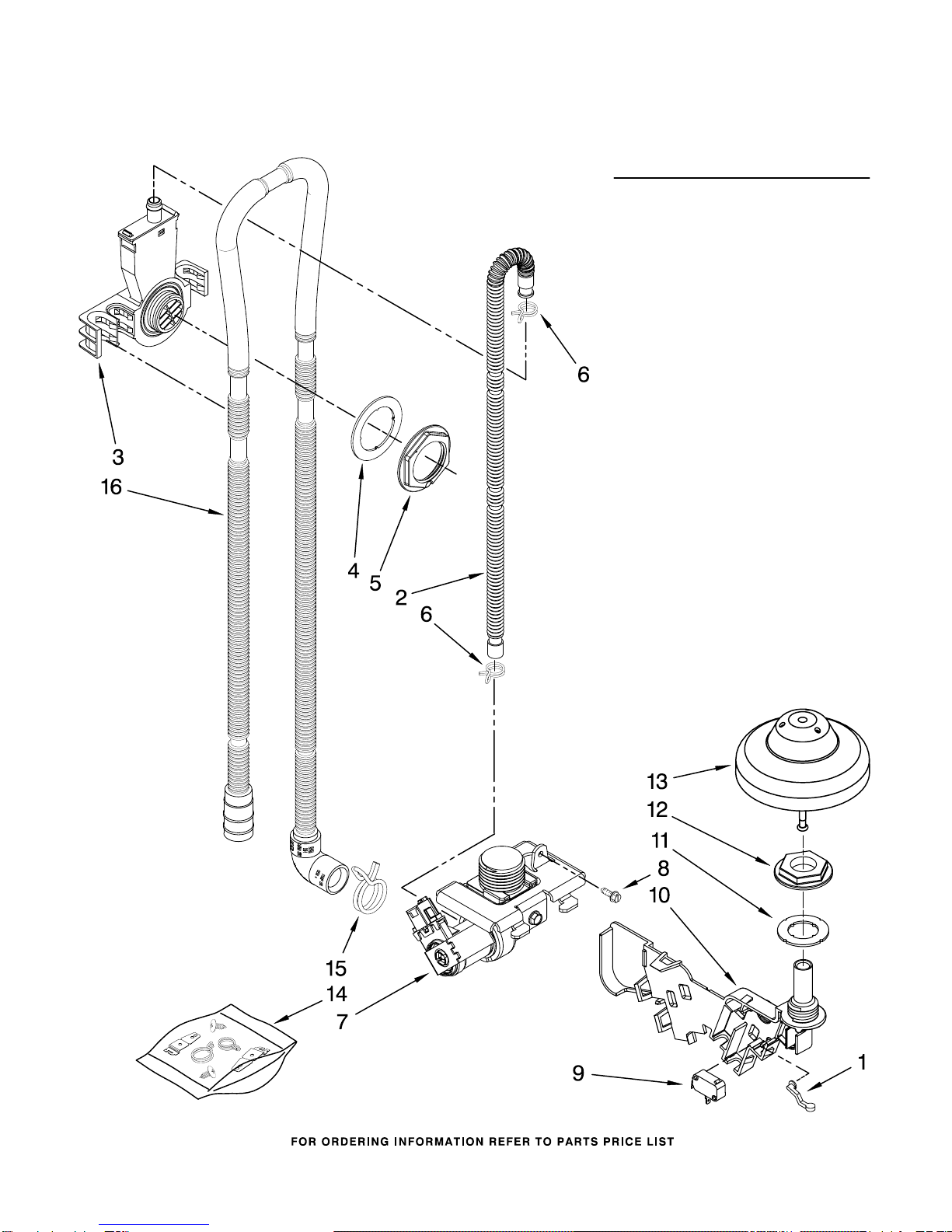

FILL, DRAIN AND OVERFILL PARTS
4
For Models: KUDC20CVBL5, KUDC20CVWH5, KUDC20CVSS5
(Black) (White) (Stainless)
W10392110
Illus. Part
No. No. DESCRIPTION
1 8268892 Lever, Overfill
Switch
2 8531412 Hose, Inlet
3
W10195536
Water Inlet
(Also Order
Item 4)
4 8531323 Gasket
5
W10213826
Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
7
W10195049
Fill Valve
Assembly
8 304392 Screw
9
W10102495
Switch, Overfill
Control
10 8545946 Standpipe,
Overfill
(Includes Item 11)
11 8531743 Gasket, Flat
12 9741998 Nut, Standpipe
13
W10077871
Float & Retainer
Assembly
14
W10292152
Miscellaneous
Parts Bag
(Includes 2 Screws
2 Hose Clamps &
2 Brackets)
15 356138 Clamp, Hose
16
W10195750
Drain Loop
with Check Valve)

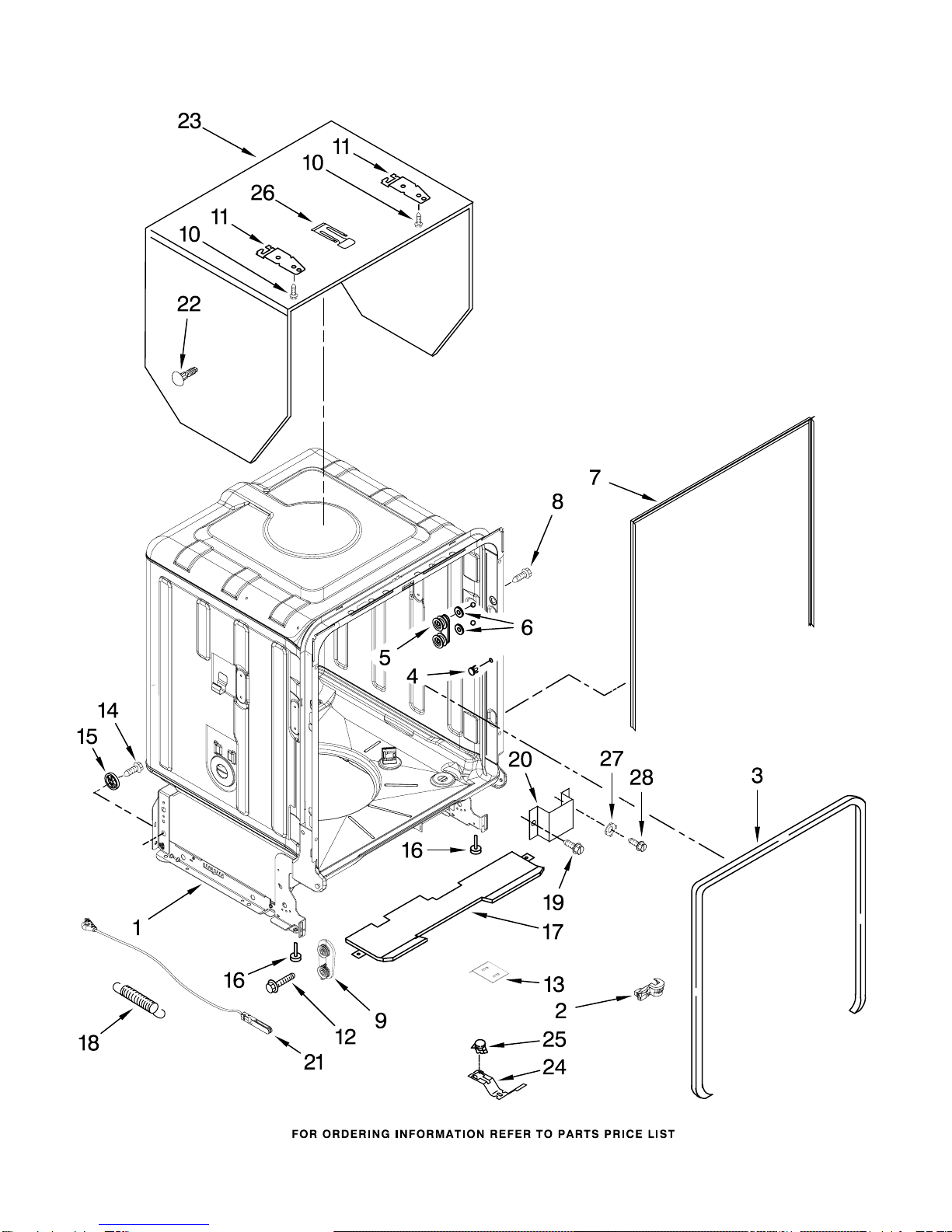

TUB AND FRAME PARTS
5
For Models: KUDC20CVBL5, KUDC20CVWH5, KUDC20CVSS5
(Black) (White) (Stainless)
W10392110
TUB AND FRAME PARTS
6
For Models: KUDC20CVBL5, KUDC20CVWH5, KUDC20CVSS5
(Black) (White) (Stainless)
W10392110
Illus. Part
No. No. DESCRIPTION
1
W10319020
Tub Assembly
(Includes Heater
Assembly)
2 8573061 Strain Relief
3
W10112096
Door Seal
4
W10082838
Plug Tub
5
W10078083
Wheel & Mount
Assembly
(Also Order
Item 6)
6 9743002 Gasket, Bracket
Mounting
7 8269110 Seal, Cabinet
8
W10078083
Screw
9
W10084086
Door Balance
Assembly
10 3367670 Screw
11 8269145 Bracket,
Undercounter
12 3400074 Screw
13
W10321574
Shield, Thermostat
Undercounter
14 3370389 Screw
15 8268977 Wheel Leg
16 8524584 Leveler, Leg
17
W10195368
Insulator,
Sound
18 8270020 Spring, Door
Balance
19 3400892 Screw
20 8268991 Cover, Terminal
Box
21
W10158291
Cable, Door
Balance
22 304666 Retainer, Push
23 8573241 Shield, Sound
24 9742648 Bracket,
Thermostat
25 661566 Thermostat
26
W10317686
Strike, Latch
27 3378128 Washer,
Pronged Cup
28 3400014 Screw

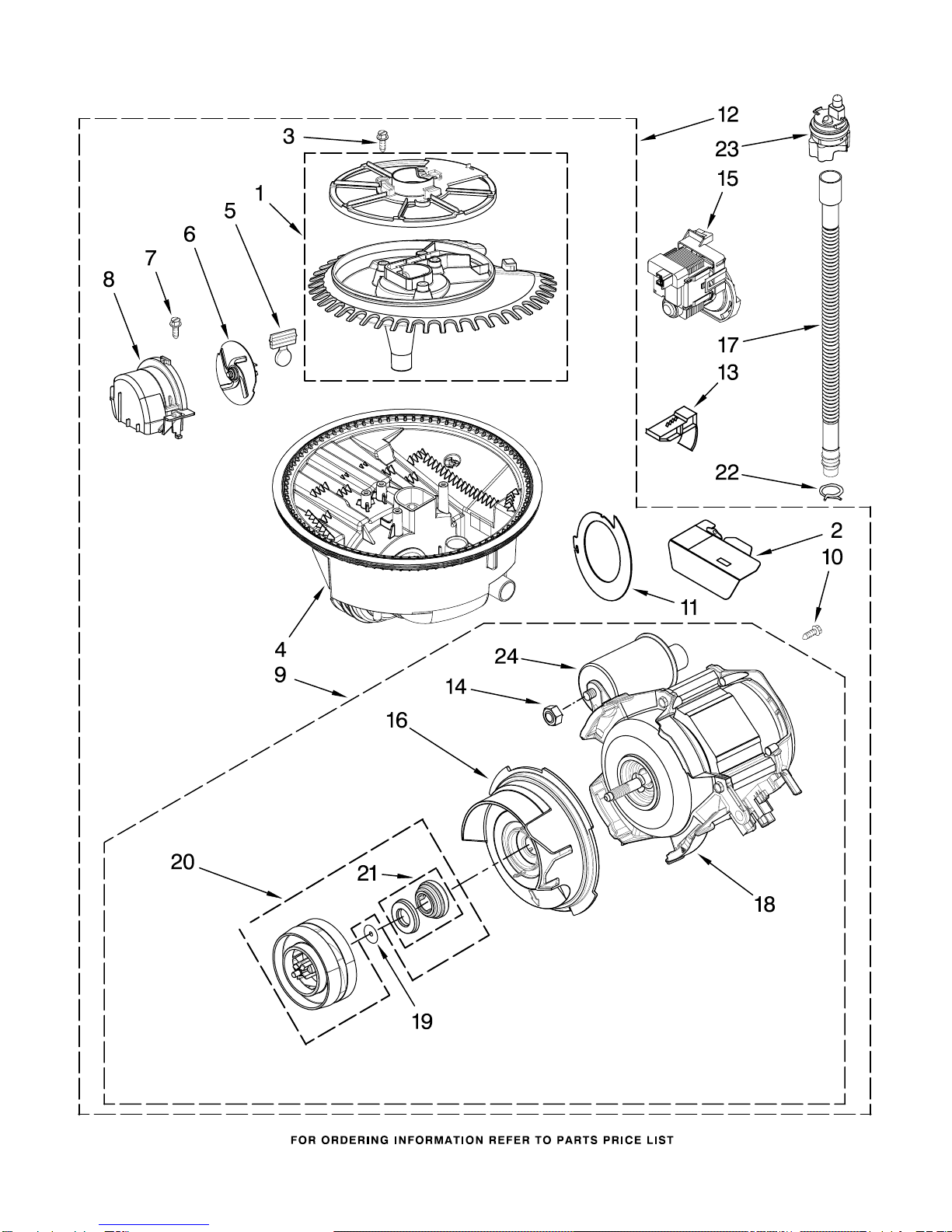

PUMP AND MOTOR PARTS
7
For Models: KUDC20CVBL5, KUDC20CVWH5, KUDC20CVSS5
(Black) (White) (Stainless)
W10392110
PUMP AND MOTOR PARTS
8
For Models: KUDC20CVBL5, KUDC20CVWH5, KUDC20CVSS5
(Black) (White) (Stainless)
W10392110
Illus. Part
No. No. DESCRIPTION
1 8534952 Accumulator Assy
2 8283527 Shield
3
W10348405
Screw
4 8572618 Sump
(Includes Seal)
5 8268375 Check Valve, Sump
6
W10083957
Chopper Assembly
7 9741232 Screw
8 8531857 Protector, Inlet
9
W10239404
Motor Assembly
10 3400217 Screw
11
W10084567
Screen, Separation
12
W10237169
Sump & Motor
Assembly
13
W10300599
Tab, Sump
14 8533949 Nut
15 8558995 Pump, Drain
16
W10142656
Volute W/Seal
(Also Order
Items 19 & 21)
17 8269144 Hose, Drain
18
W10239401
Motor
19 8531018 Washer
20 8531017 Impeller Kit
(Also order
Item 19)
21 8268403 Face Seal Assembly
(Also Order
Item 19)
22 8269146 Clamp, Hose
23
W10134017
Optical Water
Indicator
24
W10334457
Capacitor

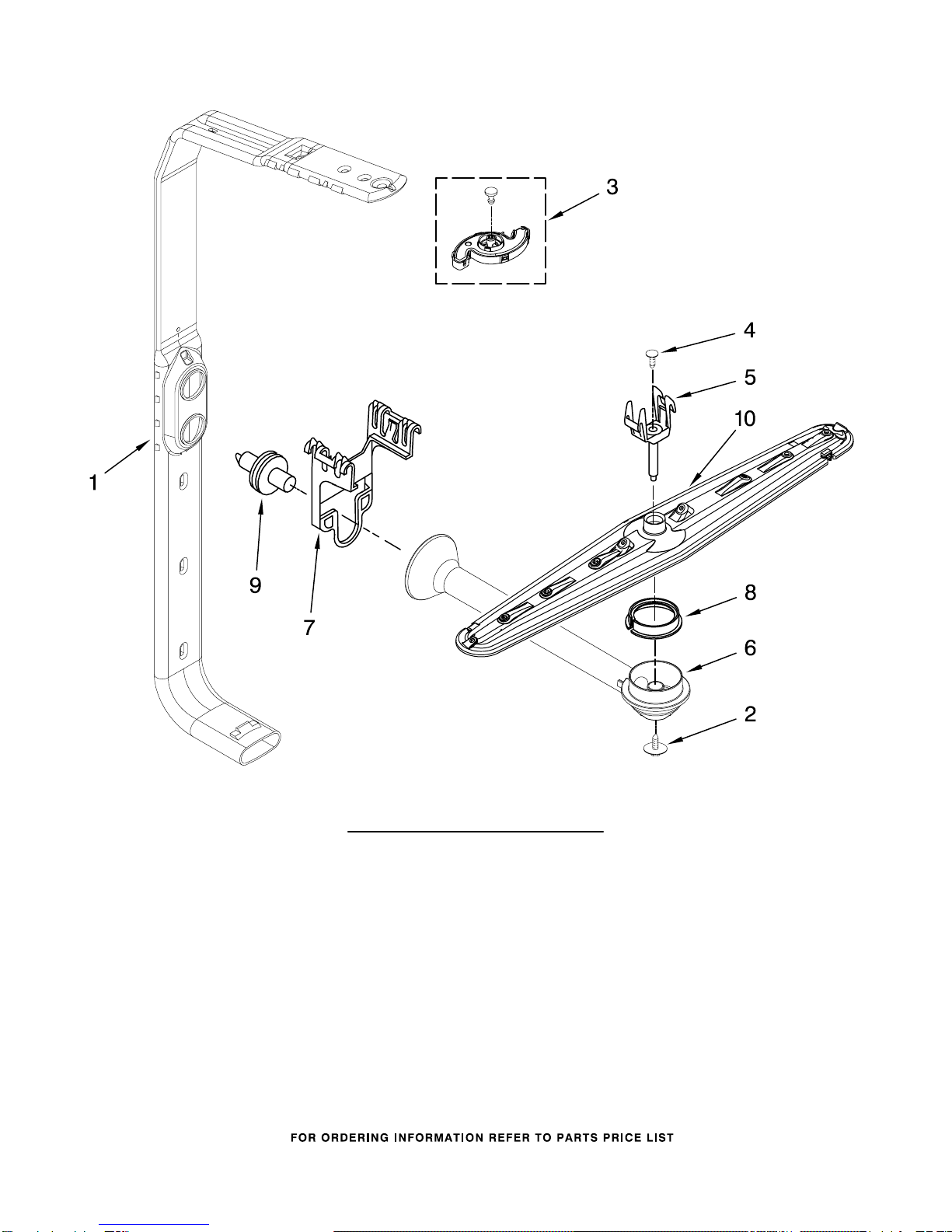

UPPER WASH AND RINSE PARTS
9
For Models: KUDC20CVBL5, KUDC20CVWH5, KUDC20CVSS5
(Black) (White) (Stainless)
W10392110
Illus. Part
No. No. DESCRIPTION
1
W10077863
Feed Tube
Assembly
(Also Includes
Item 3)
2 8533889 Screw
3 8557720 Spinner, 3rd
Level
4
W10118464
Fastener, Push−In
5
W10082867
Mount
6
W10323424
Manifold
7
W10082832
Hanger
8 8268433 Seal, Sprayarm
9
W10082831
Nozzle−Feed
10
W10082841
Sprayarm

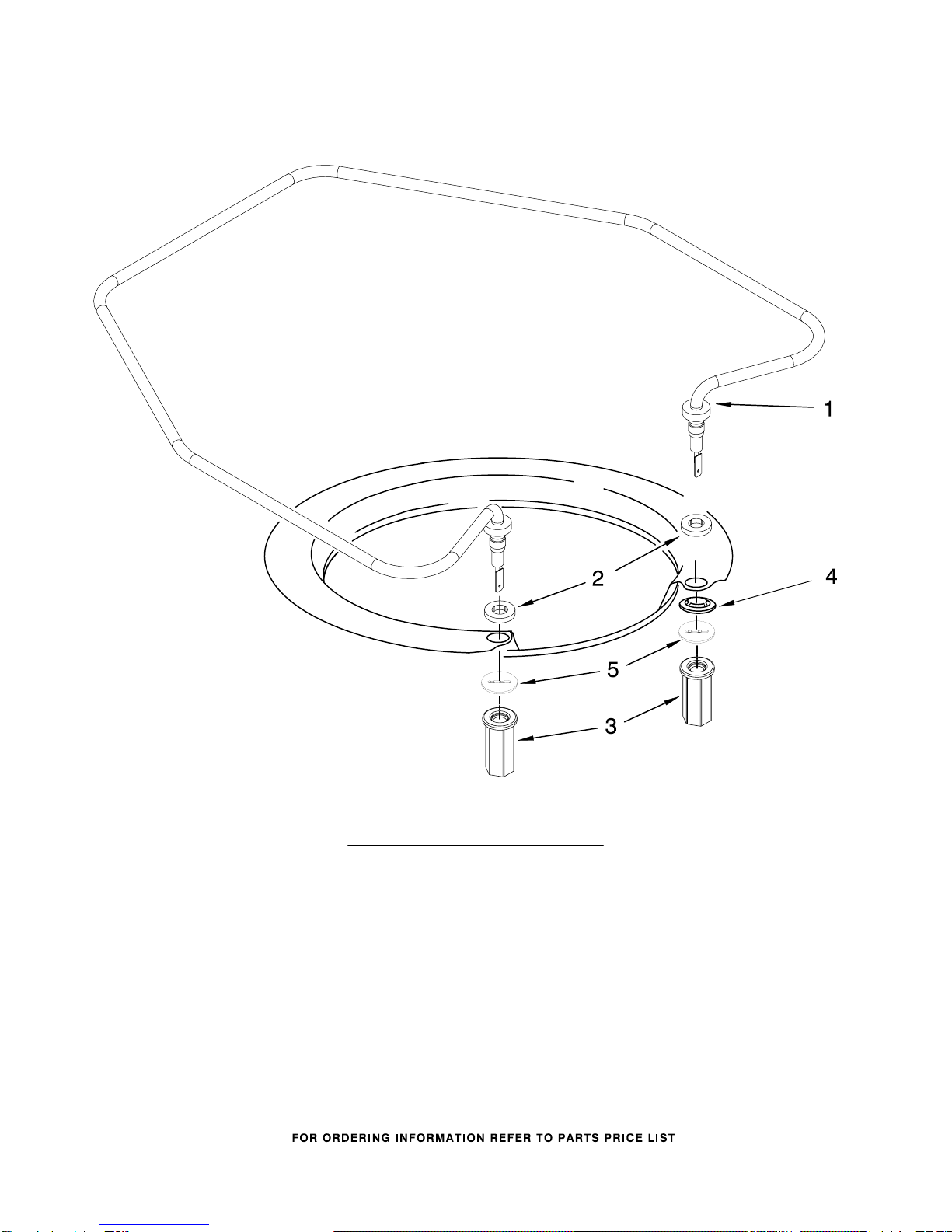

HEATER PARTS
10
For Models: KUDC20CVBL5, KUDC20CVWH5, KUDC20CVSS5
(Black) (White) (Stainless)
W10392110
Illus. Part
No. No. DESCRIPTION
1
W10082892
Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
4 3400931 Retainer, Spring
Grip
5
W10343251
Shield, Heater
Nut
NOTE:
If heater element is
removed, it must be replaced.
