Installation Instructions

Single Drawer Dishwasher

Instructions d'installation

Lave-vaisselle à tiroir unique

528534/8573714B

HOME APPLIANCES

Table of Contents/Table des matières..............................................2/11

Table of Contents

Drawer Dishwasher Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Installation Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Tools and Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Location Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Water Supply Requirements . . . . . . . . . . . . . . . . . . . . . . . . . 4

Electrical Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

You can be killed or seriously injured if you don't immediately

You can be killed or seriously injured if you don't follow

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

follow instructions.

instructions.

DANGER

WARNING

DRAWER DISHWASHER SAFETY

Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Prepare Cabinet Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

If Installing Flexible Trim Pieces. . . . . . . . . . . . . . . . . . . . . . . 5

Install Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Install the Drain Hose. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Connect to Water Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Install Drawer Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Complete Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Tools needed:

■Utility knife

■Needle-nose pliers

■Tape measure

■Flat-bladed screwdriver

■#2 Phillips screwdriver

■Side cutting pliers

■Pencil

■Sandpaper

■Level

■Adjustable wrench that

opens to 1¹⁄₈" (29 mm)

■7 mm socket wrench

■5 mm socket wrench

■5 mm open end or box end

wrench

■Electric or hand drill

■1¹⁄₂" hole saw

■Valve (sized to fit hot water

supply line) with ³⁄₈" male

compression fitting

■Protective floor covering

Tools and Parts

Gather the required tools and parts before starting installation.

Read and follow the instructions provided with any tools

listed here.

Parts supplied:

Located in drawer:

■2 flexible trim pieces (for sides)

■Edge protection

■Hose clamp, screw type

■Washer

■Drain hose support

■Drain hose connector

■Hose clamp, wire type

■11, ⁵⁄₈”long, #8 Phillips head wood screws

■Moisture protection tape

■3, 1”hex head wood screws

■3, ⁹⁄₁₆”washers

INSTALLATION REQUIREMENTS

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

Failure to meet codes and ordinances could lead to fire or

electrical shock.

Proper installation is your responsibility:

■Contact a qualified installer to ensure that the dishwasher is

installed to meet all electrical and plumbing national and local

codes and ordinances.

■Install the dishwasher as specified in these instructions.

■Have everything you need to properly install dishwasher.

■Protect dishwasher and water lines leading to dishwasher

against freezing. Damage from freezing is not covered by the

warranty.

■This dishwasher is manufactured for indoor use only.

■Install the dishwasher in a cabinet cutout that is level, will hold

weight up to 104 lbs. (47 kg), and is in an area suitable for its

size and use.

Product dimensions

23⁷⁄₁₆"

(59.5 cm)

22⁷⁄₁₆" *

(57 cm)

16³⁄₃₂"

(40.9 cm)

side

attaching

tabs

20¹⁵⁄₃₂"

(52 cm)

drawer open

*If custom wood panels are to be used, the product depth is specified with an

¹¹⁄₁₆" (18 mm) door panel thickness.

NOTE: Product shown with front panels for dimension purposes.

Greatest length from product exit point to hookup (does not

include allowance for drain loop):

■Drain hose 88 ⁹⁄₁₆” (2250 mm): Extension kit available - part

■no. 8194400

■Inlet hose 68 ⁷⁄₈” (1750 mm)

■Power cord 44” (1125 mm)

Cabinet dimensions/requirements

(10 cm)

moisture protection

tape

support surface must

be solid and level

Utility hole:

1¹⁄₂" (3.8 cm) dia.

hole, either side –

immediately adjacent

to corner.

22⁷⁄₈" (58.0 cm)

3¹³⁄₁₆"

(9.7 cm)

19⁷⁄₈"

(50.5 cm)

⁵⁄₈

(6.7 cm)

23⁵⁄₈"* (60.0 cm)

moisture protection tape

tape

¹⁄₂" (12.7 mm) from

front of countertop

typical

installation countertop

■ A 3 prong grounded outlet must be installed within 6" (15.2 cm)

to 18" (45.7 cm) to either side of the utility hole in the cabinet

side wall. The power outlet must be accessible after

installation.

■ It is recommended that wood cabinetry surrounding the

dishwasher be sealed with an oil-based paint or moisture-

proof polyurethane to prevent possible damage from humidity.

■ A utility hole that will be used to route the power supply cord

and hoses must be located as shown. If the hole is not located

as shown, the hoses will prevent the dishwasher from being

pushed back all the way into the cavity. Make sure the edges

of the utility hole are smooth or covered. If the utility hole is

through a metal cabinet, the hole must be protected with the

edge protector provided.

IMPORTANT: Custom wood door panel, if used, may be wider

than the dishwasher to match surrounding cabinets. The 23⁵⁄₈"

(60.0 cm) must be increased so that there is a ³⁄₃₂" (2.5 mm)

clearance between the cabinet side and panel edge.

Water Supply Requirements

For dishwasher:

■Hot water line with 4.3-145 psi (30-1000 kPa) water pressure.

■120°F (48.8°C) water at dishwasher.

■An easily accessible valve with 3/8" compression fitting must

be installed in the hot water supply line.

Electrical Requirements

A 120-volt, 60 Hz, AC-only, 15 amp fused electrical supply is

required. (Circuit breaker is recommended.) It is recommended

that a separate circuit serving only this appliance be provided.

Garbage Disposer:

If you plan to install a garbage disposer, an additional separate

120-volt, 60 Hz, AC-only, 15 or 20 amp fused electrical supply is

required.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

WARNING

16 ⁷⁄₃₂"

(41.2 cm)

Adjacent cabinetry

must not extend

above cavity base.

Dishwasher

GROUNDING INSTRUCTIONS

SAVE THESE INSTRUCTIONS

■The dishwasher must be grounded. In the event of a

malfunction or breakdown, grounding will reduce the risk of

electric shock by providing a path of least resistance for

electric current. The dishwasher is equipped with a cord

having an equipment-grounding conductor and a grounding

plug. The plug must be plugged into an appropriate outlet

that is installed and grounded in accordance with all local

codes and ordinances.

WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric shock.

Check with a qualified electrician or service representative

or personnel if you are in doubt as to whether the

dishwasher is properly grounded. Do not modify the plug

provided with the dishwasher: if it will not fit the outlet, have

a proper outlet installed by a qualified electrician.

These marks indicate the side mounting tab screw

locations.

Minimum thickness of cabinet/cavity sides

and bottom is ⁵⁄₈" (1.6 cm)

■ Build the custom cabinet to the size and specifications

shown. The supporting base of the cabinet must be solid,

level and able to sustain weight up to 104 lbs. (47 Kg), with a

minimum thickness of cabinet/cavity sides and bottom of

⁵⁄₈”(1.6 cm).

■ For corner installation, there must be a ¹⁄₂" (12.7 mm) space

between the adjacent cabinet doors (i.e. door knobs) and open

dishwasher drawer.

If Installing Flexible Trim Pieces

If the cabinet opening is 24" wide (61.0 cm), flexible

trim pieces can be attached along the sides of the dishwasher.

(No trim piece used along the top.)

1. Open the drawers to expose the chassis trim .

2. Center the flexible trim pieces.

3. Remove the backing paper from the trim pieces to expose

the adhesive.

4. Place the trim pieces on the trim and press.

5. Finish pushing dishwasher into opening.

INSTALLATION INSTRUCTIONS

Prepare Cabinet Opening

1. Prepare the cabinet opening by applying self-adhesive

moisture protection tape to the dry dust-free underside of the

countertop.

2. Turn off water supply.

Electrical Connection

1. Place cardboard or other protective covering on the floor or a

support in front of cabinet opening. Place the dishwasher on

covering. Depending on the height of the cavity, the

dishwasher will need to be supported.

2. Begin to route the power supply cord and hoses through the

utility hole in the cabinet.

3. Place dishwasher part way into the opening.

IMPORTANT: Push against the outside edges of drawer as

shown. Do not push against the center of the drawer.

4. As the dishwasher is being pushed into the opening, slowly

pull the power supply cord, drain hose and inlet hose through

the utility hole.

5. Remove the tape/strap from the drawer.

NOTE: This unit is shown without a front panel. Some models

are shipped with the front panel already installed.

moisture

protection tape

tape

1/2" (12.7 mm) from

front of countertop

countertop

WARNING

Excessive Weight Hazard

Use two or more people to move and install

dishwasher.

Failure to do so can result in back or other injury.

Install Dishwasher

1. Leave protective cover on the floor or on a support in front of

the cabinet opening.

2. For “panel ready”models, push the dishwasher in place,

leaving a space equal to the width of the front door panel of

the drawer, back from the front of the surrounding cabinetry.

3. For models with the front panel already attached, push the

dishwasher in place, aligning the front panel with the

surrounding cabinetry

4. Gently open the drawer enough to mark the chassis position

on the cabinet cavity.

drawer panel

width

chassis

trim

edge

chassis trim

edge

side trim

piece

side trim

piece

side trim

piece

open drawer

lip

mark chassis position

5. Open the drawer.

6. Press in the right-hand runner clip and push it back about 6”

(15.2 cm). Repeat with the left-hand runner clip.

NOTE: When removing the drawer there is limited range of

movement due to the attached water hoses.

7. Lift the right edge of the drawer off its runner. Slide that runner

back into the dishwasher.

8. Lift the drawer completely off the left-hand runner.

9. Set the drawer down flat on the protective covering. If the

drawer cannot be set down flat due to space constraints,

rotate it to the left onto its side, and place on the protective

covering. The drawer will need to be securely supported at a

height even with the cavity.

10. Slide the left-hand runner back into the dishwasher.

11. Make sure chassis position is still aligned and mark holes in

the bottom (if using bottom mount option).

Option 1: Attach dishwasher (side mount)

1. The dishwasher side attaching tabs are accessed through

holes in the sound insulation.

IMPORTANT: For best installation, use all four attaching tabs.

Add spacers to side of cabinet if needed to attach screws.

Refer to “Cabinet dimensions/requirements” section.

2. Secure the attaching tabs to the cabinet using #8 Phillips

head screws.

NOTE: Before securing the dishwasher, confirm that the

chassis is still properly aligned.

3. Pull one of the bottom drawer runners all the way out. Make

sure the latches on the back of the drawer runner are facing

forward.

4. If the bottom drawer was rotated, rotate the drawer to unwind

the hoses and then put the drawer on the extended runner,

making sure the hoses are looping upward.

5. While holding on to the drawer, fully extend the remaining

drawer runner. Follow the procedure in step 3 to place the

drawer on the remaining runner.

6. Make sure both runner clips have snapped into place. If they

have not, pull the runner clips forward until they do.

7. Close the drawer.

side

mounting

bracket

drawer

runner latch

latch

bracket

runner clip

Option 2: Attach dishwasher (bottom mount)

1. Temporarily reinstall drawer and remove entire dishwasher

from cavity.

2. Drill a 3/16”diameter pilot hole at each of the three locations

marked.

3. Replace dishwasher in opening and realign with chassis

mark.

4. Remove drawer and install the three 1”hex head screws and

the three 9/16”washers (all three screws and washers must

be used) using a minimum 20 in/lb torque.

5. Reinstall the drawer,

following steps 3 through

7 in Option 1.

6. Check unit for side-to-

side movement. If it

moves, remove the

drawer and retighten the

screws. Then reinstall the drawer.

Bottom mount hole locations

Hex head screws and washers

Option 2: Garbage disposal connection

1. Route the drain hose as shown and press the hose into the

drain hose support.

2. Decide if the drain hose needs to be trimmed. If it does,

trim it.

NOTE: The drain hose connector must not support the

weight of excess hose length. Keep hose as fully extended as

possible.

3. Slip a wire clip over the drain hose.

Push the hose into the drain hose

connector firmly, 5 clicks.

4. Position the wire clip between the

two positioning ribs on the drain

hose connector.

5. Attach the drain hose connector to the garbage disposal

using the supplied hose clamp.

6. Attach the drain hose support bracket to the cabinet with a

#8 Phillips head screw at the height shown below.

IMPORTANT: A drain loop must be provided as shown in the

Installation Instructions. Keep hoses as fully extended as

possible to prevent sagging. Any excess length of hose

should be kept on the dishwasher side of the drain loop.

Install the Drain Hose

A drain hose extension kit, part no. 8194400, will extend the drain

hose to a length of up to 141 ³⁄₄”(360.05 cm). Do not extend

beyond this length. The maximum drain height is 37 ¹⁄₂”

(95.25 cm).

Option 1: Sink drain waste tee connection

1. Route the drain hose as shown and press the hose into the

drain hose support.

2. Decide if the drain hose needs to be trimmed. If it does,

trim it.

NOTE: The drain hose connector must not support the weight

of excess hose length. Keep hose as

fully extended as possible.

3. Slip a wire clip over the drain hose.

Push the hose into the drain hose

connector firmly, 5 clicks.

4. Position the wire clip between the

two positioning ribs on the drain

hose connector.

5. Attach the drain hose connector to the waste tee using the

supplied hose clamp.

6. Attach the drain hose support bracket to the cabinet with a

#8 Phillips head screw at the height shown below.

IMPORTANT: A drain loop must be provided as shown in the

Installation Instructions. Keep hoses as fully extended as possible

to prevent sagging. Any excess length of hose should be kept on

the dishwasher side of the drain loop.

drain hose

support

water supply

waste

waste tee

waste

garbage

disposal

valve

water supply

8" (20.3 cm) min. bend

radius from valve

8" (20.3 cm) min. bend

radius from valve

6" (15.2 cm)

minimum

6" (15.2 cm)

minimum

wire clip

drain hose connector

wire clip

drain hose connector

drain hose

support

27-1/2" – 32-1/4"

(70 cm – 82 cm)

27-1/2" – 32-1/4"

(70 cm – 82 cm)

Keep drain hose

straight, as shown.

Keep drain hose

straight, as shown.

Connect to Water Supply

1. Install the flat seal washer on the end of the inlet hose.

Connect the inlet hose to the water supply valve. Tighten

securely.

2. Turn the water valve on and check for any leaks.

3. Open the drawer. Remove the packing tape from the front and

rear of dish rack.

4. Close the drawer.

Install Drawer Front Panel

Option 1: Install standard front panel

(on some models)

1. Remove front panel from box and discard all shipping

material.

2. Remove the tape securing the connector and wires from the

panel and the metal plate. Discard tape.

3. Connect the end of the medallion connector to the connector

from the drawer.

4. Gently feed the wires and connectors into the metal plate wire

opening.

5. Line up front panel tabs to slots in metal plate. Do not pull the

connector from the wire opening. Pull the drawer out slightly

to aid in installing the panel.

6. Push the front panel down to lock in place.

7. When installed properly, the panel should be even with the top

of the dishwasher.

Option 3: Air break connection

1. Route the drain hose as shown.

2. Decide if the drain hose needs to be trimmed. If it does,

trim it.

3. Slip a wire clip over the drain

hose. Push the hose into the

drain hose connector firmly, 5

clicks.

4. Position the wire clip between

the two positioning ribs on the

drain hose connector.

5. Attach the drain hose connector to the air break using the

supplied hose clamp.

waste

valve

air break

drain hose

connector

water supply

8" (20.3 cm) min. bend

radius from valve

flat seal

washer

valve

inlet hose

wire

opening

end of medallion

connector

metal

plate

front panel

slots

metal plate

front panel

tabs

wire clip

drain hose connector

6. Measure and mark the vertical centerline and horizontal

position line on the back of the custom door panel.

7. Mount the handle to the custom door panel. The screws must

not extend beyond the back surface of the panel.

Countersink the holes.

8. Feed the wires of the medallion connector through the front

of the custom door panel and push the medallion into the

prepared medallion hole.

9. Remove the pins on both sides of the dishwasher drawer by

pulling the pins straight out with a pair of needle-nose pliers.

10. Gently pull the bottom of the metal plate away from the

dishwasher, and then pull down.

11. Lay the custom door panel face down.

12. Feed the medallion wires through the wire opening in the

metal plate.

13. Lay the metal plate on the back of the custom door panel.

Option 2: Install custom door panel

Custom door panel dimensions

¹⁄₄"

(6.4 mm)

end may be round or

squared off

1⁹⁄₃₂"

(32.6 mm)

max.

1⁷⁄₃₂"

(30.8 mm)

Medallion cutout dimensions

(front of panel)

2¹³⁄₃₂"

(60.8 mm)

1¹³⁄₆₄"

(30.6 mm)

2⁵⁄₁₆"

(5.9 cm)

(12.7 cm)

23⁷⁄₁₆" (59.5 cm)

(22.9 cm)

15⁵⁄₈"

(39.7 cm)

medallion

location area

(front view)

Minimum panel thickness is ⁵⁄₈" (16 mm). Panel thickness more

than ¹¹⁄₁₆" (18 mm) can be accommodated but overall product

depth will increase accordingly.

Custom door panel material must be suitable for damp

conditions or adequately sealed to withstand moisture and

humidity. Using a moisture-resistant material can provide

additional protection. Taping edges alone may not provide

adequate sealing. For painted panel, paint all rear edges to

improve sealing.

1. Cut the custom door panel to specifications shown. The

custom panel may be wider than the dishwasher in order to

match the surrounding cabinets.

2. On the front side of the custom door panel, measure and

mark the location of the customer supplied handle. The

location is customer preference. Do not install handle at this

time.

3. On the front side of the custom door panel, measure, mark

and cut a hole for the medallion per specifications shown.

NOTE: The medallion must be placed within the specified

medallion area. Do not locate outside of this specified area.

4. Lay the custom front panel face down on a protective

covering to prevent damage or abrasions.

5. On the back side of the custom door panel, rout a ¹⁄₄"

(6.4 mm) radius around the medallion cutout. The medallion

end does not need to be routed.

mark

horizontal line

mark

centerline

1⁷⁄₁₆" (36.5 mm)

door panel

metal plate

wire opening

NOTE: Do not cut

beyond outline of

medallion cutout.

Rout a ¹⁄₄" (6.4 mm)

radius around the back

side of the medallion

cutout.

It is not necessary to

rout the ¹⁄₄" (6.4 mm)

radius on the right hand

tip of the medallion

cutout.

18. Line up the bracket holes with the pin holes and replace each

pin so that the pin line is vertical.

Complete Installation

1. Check that all parts are now installed. If there is an extra part,

go back through the steps to see which step was skipped.

2. Check that the dishwasher is level, securely fastened to the

cabinetry and opens and closes freely with no resistance from

the cabinetry.

3. Check that the inlet hose to valve connection is tightened an

additional half turn after seal contact.

4. Check that any knockouts of plugs in the drain connection

have been drilled out and drain connection has been made.

5. Turn on the power and water supply. The dishwasher should

beep and the controls should light up.

6. Open the drawer and check the operation of the wash

program control panel.

7. Check that the spray arm is in place and rotates freely.

8. On the wash program control panel, select rinse and close the

drawer. Start the program by pressing the Start/Resume

button.

9. After the rinse program has finished, be sure the dishwasher

has run and drained correctly.

10. Check the water supply and drainage connection for leakage.

11. Check that you have all of your tools.

12. Dispose of/recycle all packaging materials.

13. Read “Dishwasher Use” in the Drawer Dishwasher Use and

Care Guide.

If dishwasher does not operate, check the following:

■Household fuse is intact and tight; or circuit breaker has not

tripped.

■Electrical supply is connected.

■See “Troubleshooting” in your Use and Care Guide.

14. Align the centerline marked on the custom door panel with the

diamond shape and notch in the metal plate to center the

metal plate horizontally. Align the horizontal line with the top

of the metal plate.

15. Using the screws provided, fasten the metal plate to the door

panel through the 3 inner holes (per side).

16. Connect the medallion connector to the dishwasher

connector.

17. Slide the metal plate tabs into the notches and slots on the

dishwasher and gently pull up to lock in place.

centerline

horizontal line

top of plate

3 inner holes

end of medallion

connector

door panel

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels KitchenAid Lave-vaisselle

KitchenAid

KitchenAid KDTM404KBS Manuel utilisateur

KitchenAid

KitchenAid KUDD03STPA10 Manuel utilisateur

KitchenAid

KitchenAid Undercounter Dishwasher 8573157 Manuel utilisateur

KitchenAid

KitchenAid KUDM03FTBL2, KUDM03FTWH2, KUDM03FTSS2 Manuel utilisateur

KitchenAid

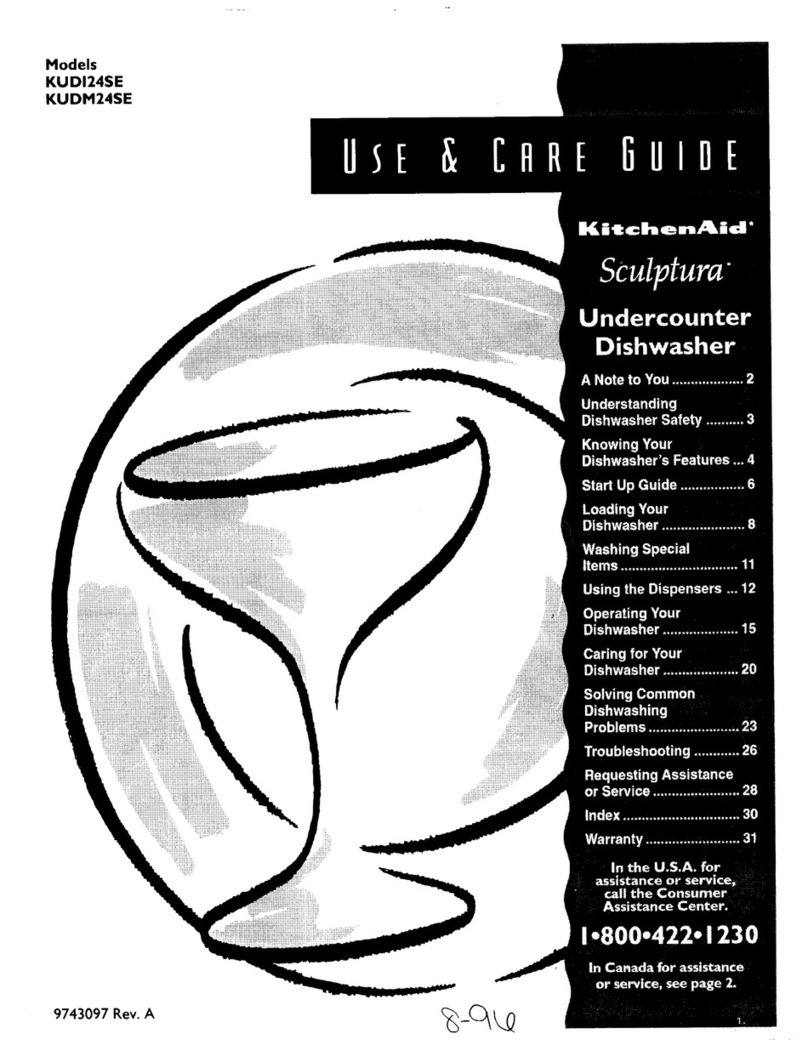

KitchenAid Sculptura KUDI24SE Manuel utilisateur

KitchenAid

KitchenAid KUDS50SVBL - Semi-Integrated Dishwasher With 5 Wash... Guide de configuration

KitchenAid

KitchenAid Sculptura KUDR24SE Manuel utilisateur

KitchenAid

KitchenAid DISHWASHER Manuel utilisateur

KitchenAid

KitchenAid KUDD03DTPA - 24" Double Drawer Dishwasher Manuel utilisateur

KitchenAid

KitchenAid KUDI220T Manuel de service

KitchenAid

KitchenAid KUDB230B Manuel utilisateur

KitchenAid

KitchenAid KUDE03FTSS0 Manuel utilisateur

KitchenAid

KitchenAid KMTM704E Series Manuel utilisateur

KitchenAid

KitchenAid Architect Series II KUDE60FXSS Instructions de montage

KitchenAid

KitchenAid KUDS40FVBT0 Manuel utilisateur

KitchenAid

KitchenAid KUDS01FLBL1 Manuel utilisateur

KitchenAid

KitchenAid KUD-22 SERIES Manuel utilisateur

KitchenAid

KitchenAid KUDK03CTBL0 Manuel utilisateur

KitchenAid

KitchenAid KUDC Series Manuel utilisateur

KitchenAid

KitchenAid KUDD03DTPA10 Manuel utilisateur

KitchenAid

KitchenAid KDTE104DSS Manuel utilisateur

KitchenAid

KitchenAid KUDS50FVWH - Superba - 5 Cycle Dishw Guide de configuration

KitchenAid

KitchenAid Briva KIDS36EP Manuel utilisateur

KitchenAid

KitchenAid KDTM354EBS Manuel utilisateur

Manuels Lave-vaisselle populaires d'autres marques

Electrolux

Electrolux ESI5211LOX Manuel utilisateur

Brandt

Brandt BDJ424DB Manuel utilisateur

Asko

Asko DSD767UXXL.AU Manuel utilisateur

Beko

Beko DFN26210W Manuel utilisateur

NEFF

NEFF S153ITX00E Fiche technique

Midea

Midea SV 4.45 wi Manuel utilisateur

LG LDF7932 Manuel utilisateur

Gorenje

Gorenje GV63214 Manuel utilisateur

Hotpoint

Hotpoint HDA1100ZWH Manuel de service

Blomberg

Blomberg LDFN2240W Manuel utilisateur

AEG

AEG FFB83836PM Manuel utilisateur

Cylinda

Cylinda DM3220RFD Manuel utilisateur

Atag

Atag DW8214MB Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

Siemens

Siemens SN23HI02KE Fiche technique

Omega

Omega ODW717X Manuel utilisateur

BORETTI

BORETTI BVW-683 Manuel utilisateur

Siemens

Siemens SN 56N591 Manuel utilisateur
