DOOR AND PANEL PARTS

For Models: KUDS24SEBL1, KUDS24SEWH1, KUDS24SEAL1

(Black) (White) (Almond)

UNDERCOUNTER

DISHWASHER

Illus. Part

No. No. DESCRIPTION

1 9743028 Door Frame

2 302868 Screw

3 9742964 Stiffener,

Door

4 Panel Front

9743212 Black Model

9743213 White Model

9743214 Almond Model

5 Access Panel

& Clip Assembly

(Includes Items 11 & 12)

9742645 Black Model

9742856 White Model

9742857 Almond Model

6 9743441 Spring, Door (2)

7 3373234 Bushing, Spring

Door (2)

8 Toe Panel

(Includes Item 11)

3375423 Black Model

9742869 White Model

9742870 Almond Model

11 3374767 Insulation

12 3378123 Clip, Grounding

13 3367670 Screw (2)

Part No. 4172113 Rev. A

1−97 Litho in U.S.A. (sms)

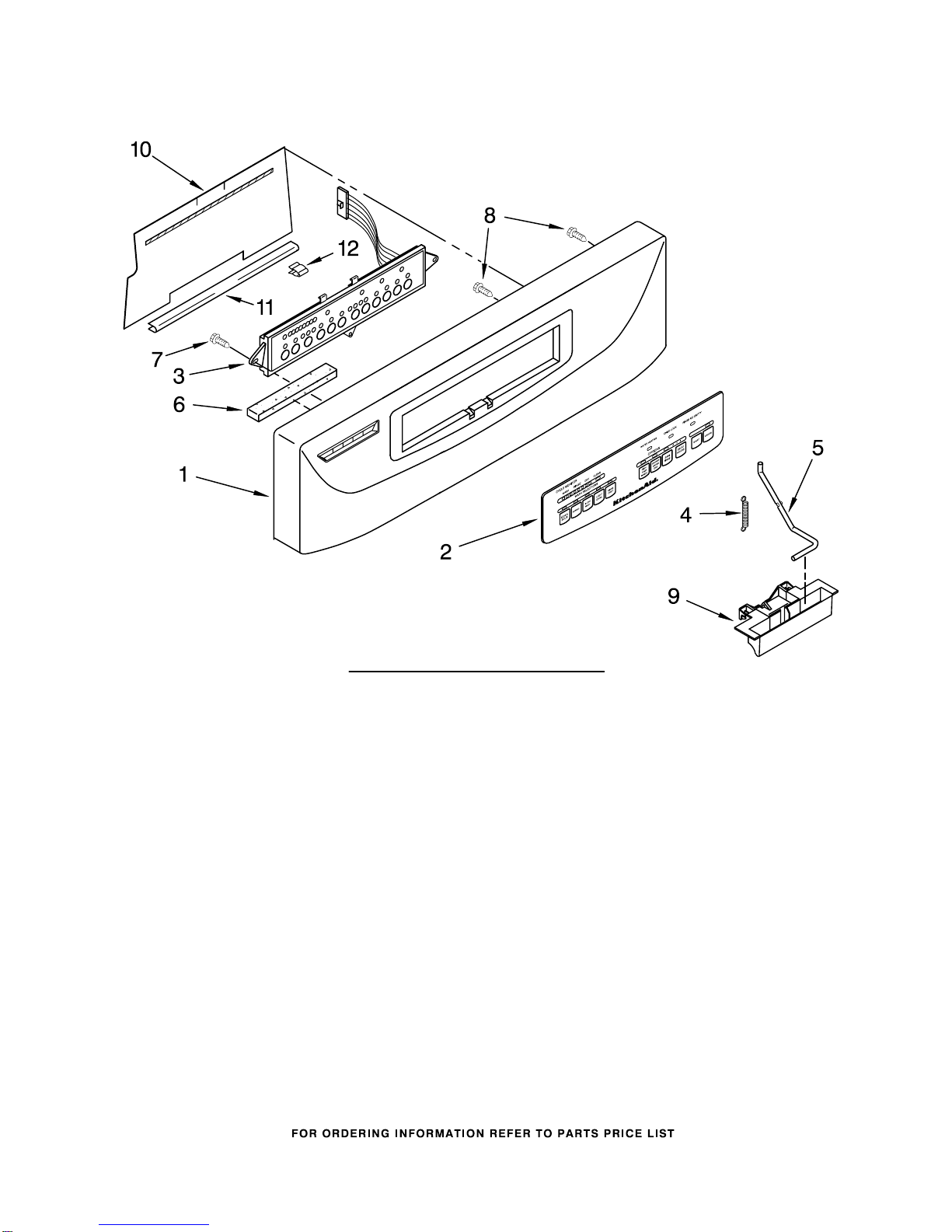

CONTROL PANEL PARTS

For Models: KUDS24SEBL1, KUDS24SEWH1, KUDS24SEAL1

(Black) (White) (Almond)

4172113

Illus. Part

No. No. DESCRIPTION

1 Console

(Also Order

Item 2)

9743340 Black Model

9743341 White Model

9743342 Almond Model

2 Insert

9743375 Black Model

9743376 White Model

9743377 Almond Model

3 9743241 Switch, Panel

(User Interface)

4 9743350 Spring, Handle

5 9743351 Link, Handle

6 9743412 Sponge, Vent

7 304231 Screw (3)

8 3369051 Screw (4)

9 Handle, Latch

9743188 Black Model

9743189 White Model

9743190 Almond Model

10 9743440 Barrier, Display

11 9743444 Retainer, Barrier

12 9743442 Clip, Retainer

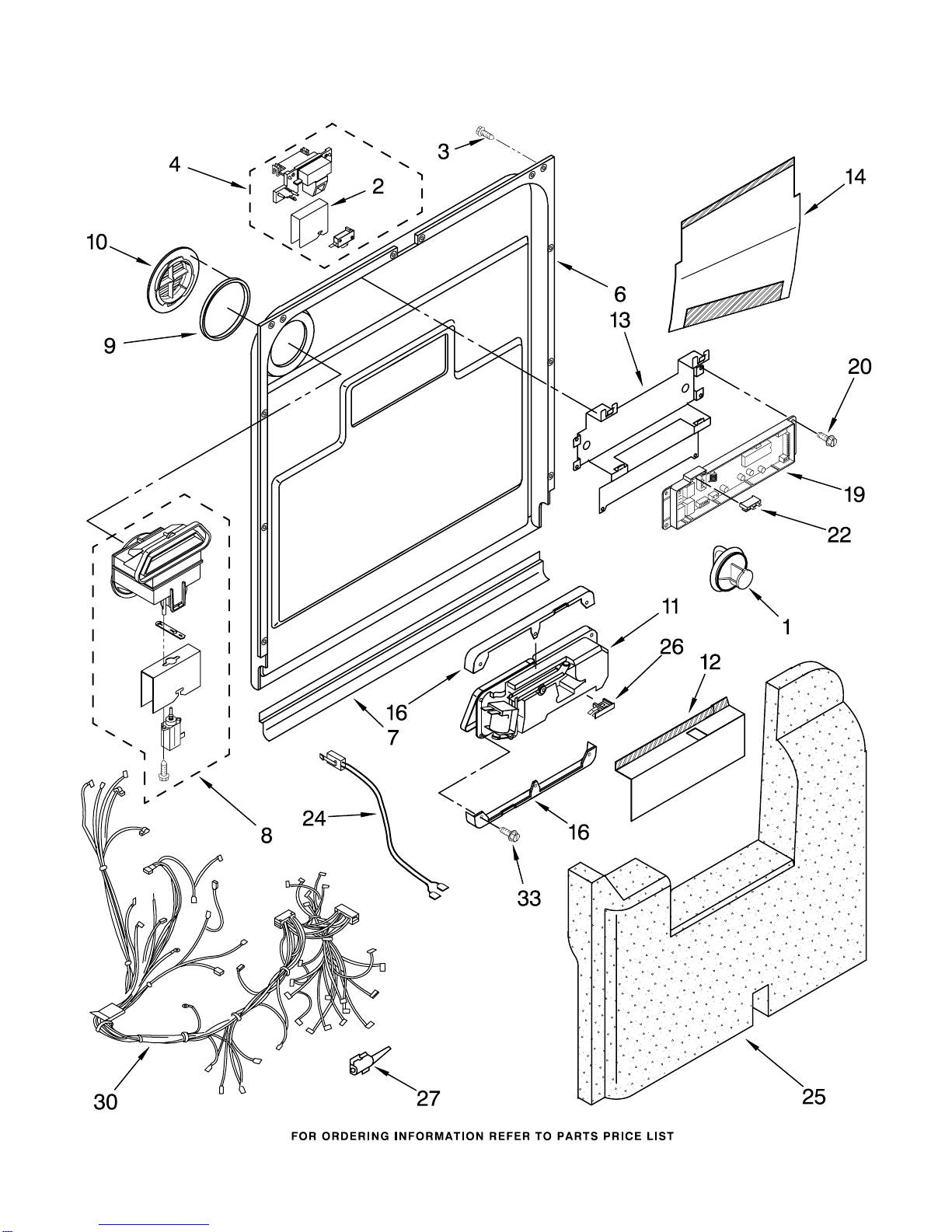

DOOR AND LATCH PARTS

For Models: KUDS24SEBL1, KUDS24SEWH1, KUDS24SEAL1

(Black) (White) (Almond)

4172113 3

DOOR AND LATCH PARTS

For Models: KUDS24SEBL1, KUDS24SEWH1, KUDS24SEAL1

(Black) (White) (Almond)

4172113

Illus. Part

No. No. DESCRIPTION

1 9743399 Cap, Dispenser

2 9743467 Shield, Switch

3 3369051 Screw, Door

4 9743554 Latch Assembly

(Includes Item 2)

6 9742625 Inner Door

Mastic Assembly

(Also Includes

Items 7, 9 & 10)

7 9742631 Seal, Door

Lower

8 9742770 Vent Assembly

(Also Order Item 9)

9 9742782 Gasket, Vent

10 9742780 Deflector, Vent

(Also Order

Item 9)

11 9742629 Dispenser,

Assembly

12 9743450 Shield,

Dispenser

13 9742623 Bracket, Controls

14 9742963 Shield, Control

16 9743486 Bracket,

Dispenser (2)

19 9743448 Control,

Electronic

20 246132 Screw (2)

22 9743451 Fuse Thermal

Electronic

24 9743154 Dispenser,

Wiring Harness

25 9743026 Sound Absorber

26 9742852 Sensor, Rinse Aid

27 3376405 Elbow, Harness

30 9743462 Wiring Harness

Main

33 3400700 Screw (6)

LOWER WASHARM AND STRAINER PARTS

For Models: KUDS24SEBL1, KUDS24SEWH1, KUDS24SEAL1

(Black) (White) (Almond)

4172113

Illus. Part

No. No. DESCRIPTION

1 9742947 Wash Arm Assembly

2 9742945 Nut, Washarm

3 9742646 Strainer (Coarse)

4 9742946 Bearing, Radial

5 3376846 Seal, Sprayarm

HEATER PARTS

For Models: KUDS24SEBL1, KUDS24SEWH1, KUDS24SEAL1

(Black) (White) (Almond)

4172113

Illus. Part

No. No. DESCRIPTION

1 9743495 Heater Element

Assembly

(Also Includes

Item 2)

2 717273 Washer, Heater

Element

3 9743039 Nut, Heater

Element

4 9743166 Pod, Terminal

Heater

FILL AND OVERFILL PARTS

For Models: KUDS24SEBL1, KUDS24SEWH1, KUDS24SEAL1

(Black) (White) (Almond)

4172113

Illus. Part

No. No. DESCRIPTION

1 9742938 Control, Overfill

Assembly

(Also Order

Item 14)

2 9742727 Hose, Inlet

3 9742783 Water Inlet

Assembly

(Includes

Items 4 & 5)

4 9742787 Gasket

5 9742786 Bezel, Inlet

6 301958 Clamp, Hose

7 9743559 Fill Valve

Assembly

8 304392 Screw

10 4159424 Screw

11 9740811 Switch, Overfill

Control

12 9742937 Standpipe,

Overfill

13 4161670 Gasket, Flat

14 4161596 Nut, Standpipe

15 9743070 Float & Retainer

Assembly

16 4171116 Lever, Overflow

Switch

UPPER WASH AND RINSE PARTS

For Models: KUDS24SEBL1, KUDS24SEWH1, KUDS24SEAL1

(Black) (White) (Almond)

4172113

Illus. Part

No. No. DESCRIPTION

1 3376846 Seal, Sprayarm

2 3400002 Screw

3 9742989 Sprayarm, Upper

(Also Order

Item 1)

4 9742992 Manifold, Sprayarm

5 9742994 Mount, Tiered

6 9742995 Tube, Connector

7 9742997 Holder, Water

Inlet Funnel

8 9743210 Funnel

9 9743473 Connector

(Includes Items

13, 14 & 15)

10 9742950 Feed Tube

Assembly

13 9743475 Washer

14 9740848 Screw

15 9743474 Gasket, Connector

16 9742953 Seal, Tube

17 9743194 Mount, Top

Upper Sprayarm

TUB AND FRAME PARTS

For Models: KUDS24SEBL1, KUDS24SEWH1, KUDS24SEAL1

(Black) (White) (Almond)

4172113

TUB AND FRAME PARTS

For Models: KUDS24SEBL1, KUDS24SEWH1, KUDS24SEAL1

(Black) (White) (Almond)

4172113

Illus. Part

No. No. DESCRIPTION

1 9742605 Tub Assembly

3 9742612 Door Seal

4 9742788 Plug Tub (2)

5 9743468 Wheel & Mount

Assembly

(Also Order

Item 6)

6 9743002 Gasket, Bracket

Mounting

7 3378056 Tub Stiffener

8 3400003 Screw (8)

9 9743149 Rear Support

Assembly

10 343641 Screw

11 9742610 Connector

Tub To Brace

12 90767 Screw (2)

13 304392 Screw

14 3370389 Screw (2)

15 302819 Wheel Leg

16 3376439 Leveler, Leg

17 9743488 Spacer, Tank − RH

18 9743489 Spacer, Tank − LH

19 3370292 Terminal Box

20 3369138 Screw

21 300068 Cover, Terminal

Box

22 3371578 Screw

23 3371579 Nut

24 3370307 Strain, Relief

25 9743460 Trim Strip, Tub

26 304666 Retainer, Push (2)

27 9742789 Corner Trim, Tub

28 9742661 Shield, Sound

Tub

29 9742648 Bracket,

Thermostat

30 3371618 Thermostat

31 9742722 Strike, Latch

32 9743406 Pad, Friction

33 3370225 Screw, Ground
